DEM 320432A VTX-PW

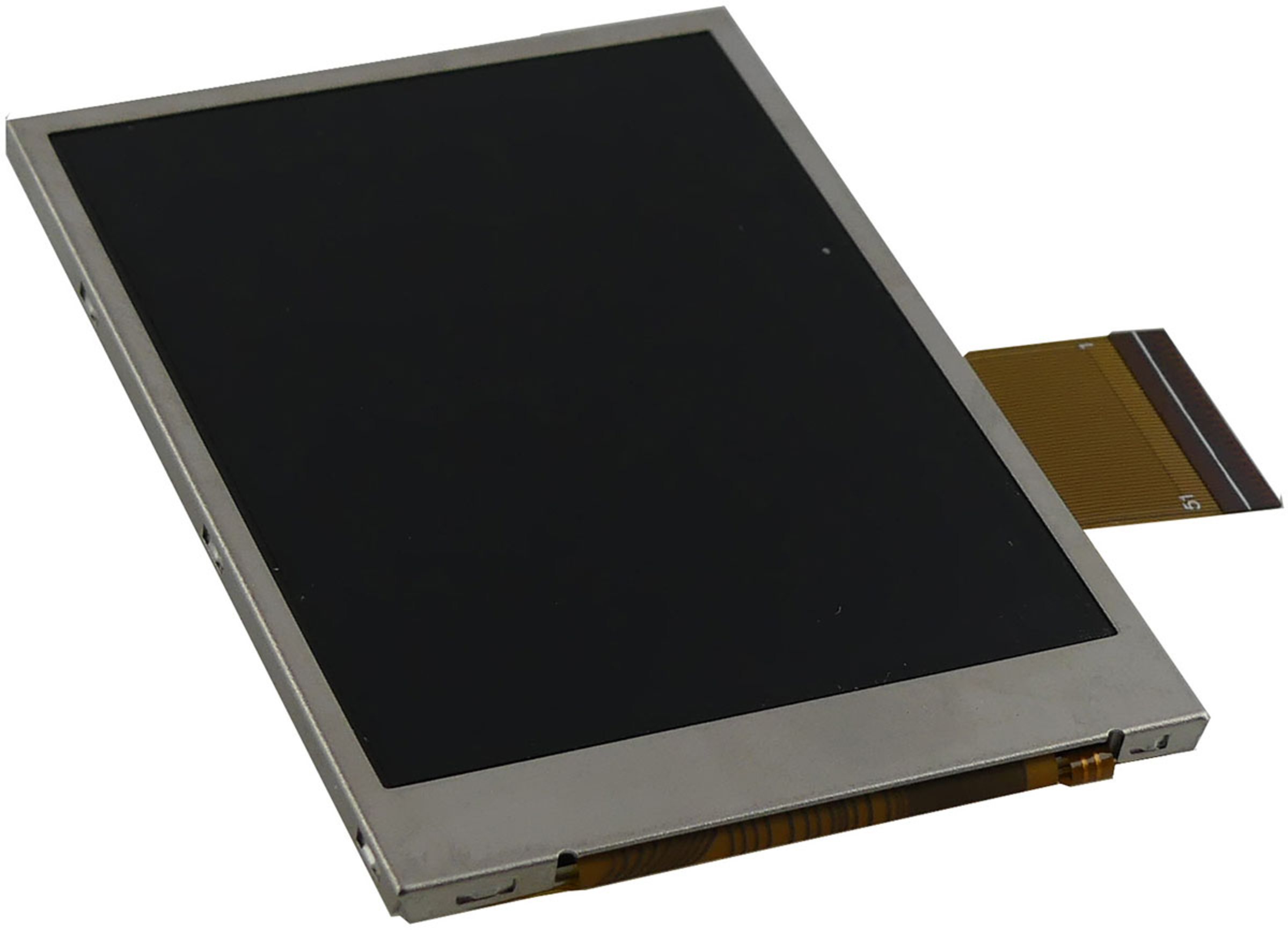

Display Elektronik LCD Graphic Module TFT 320x432 LED white 500 cd/m2

DEM320432AVTX-PW
NEW
Manufacturer Part No.
DEM 320432A VTX-PW
Schukat Part No.
DEM320432AVTX-PW
Manufacturer
Display Elektronik
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

3 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
LCD Graphic Module
Touch Panel
No Touch
Resolution (Pixel)
320x432
Display Interface
16-Bit-MCU
18-Bit-RGB
8-Bit-MCU
9-Bit-MCU
SPI
(Uf) Forward Voltage
19.2 V
(If) Forward Current
20 mA
Backlight Type
LED
Backlight Colour
white
Backlight Brightness
500 cd/m2
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Display Elektronik
Type
  • LCD Graphic Module
Series
  • DEM_-PW
Product group
  • W6834
Module Width
  • 46.76 mm
Module Height
  • 65.85 mm
Module Thickeness
  • 2.6 mm

Operating conditions

Operating Temperature Min.
  • -30 °C
Operating Temperature Max.
  • 80 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 85 °C

Electrical Properties

(Uf) Forward Voltage
  • 19.2 V
(If) Forward Current
  • 20 mA
Backlight Type
  • LED
Display Interface
  • 16-Bit-MCU
  • 18-Bit-RGB
  • 8-Bit-MCU
  • 9-Bit-MCU
  • SPI
Resolution (Pixel)
  • 320x432
Touch Panel
  • No Touch
Screen Diagonal
  • 2.6 ''
Display-Technology
  • TFT
Backlight Colour
  • white
Backlight Brightness
  • 500 cd/m2
Expected Lifetime
  • 50,000 h
Pixel Width
  • 0.124 mm
Pixel Heigth
  • 0.124 mm
