DEM 240320K TMH-PW-N(C1-TOUCH)

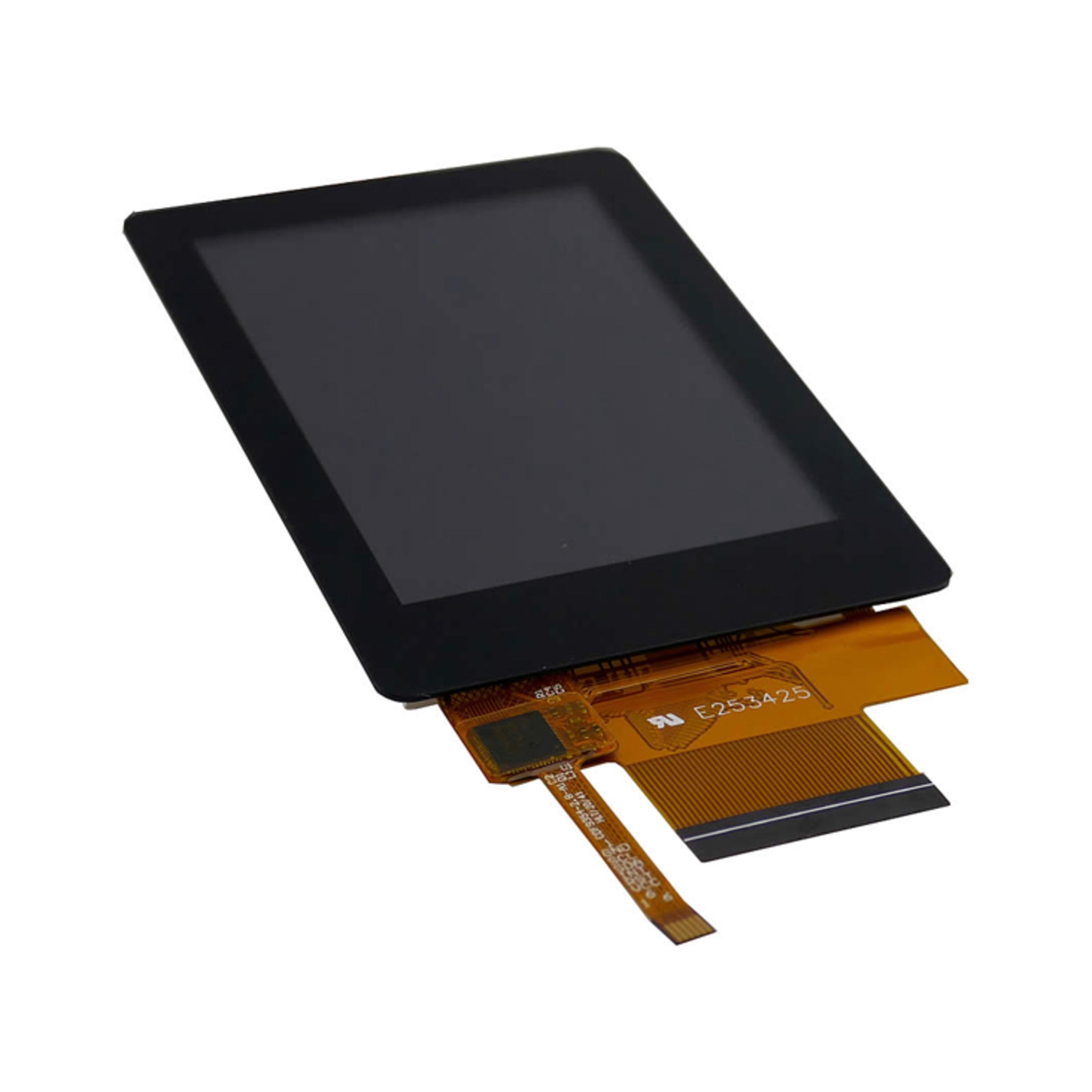

Display Elektronik LCD Graphic Module TFT 240x320 LED white 610 cd/m2
Manufacturer Part No.
DEM 240320K TMH-PW-N(C1-TOUCH)
Schukat Part No.
DEM240320KTMH-PWNC
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 105 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Electrical properties
- (Uf) Forward Voltage
- 3.2 V
- (If) Forward Current
- 120 mA
- Backlight Type
- LED
- Display Controller
- ILI9341V
- Display Interface
- 16-Bit-MCU
- 18-Bit-RGB
- 8-Bit-MCU
- SPI
- Resolution (Pixel)
- 240x320
- Touch Panel
- Projective Touch
- Screen Diagonal
- 2.8 ''
- Display-Technology
- TFT
- Supply Voltage Min.
- 2.4 V
- Backlight Colour
- white
- Supply Voltage Max.
- 3.3 V
- Backlight Brightness
- 610 cd/m2
- Expected Lifetime
- 30,000 h
- Pixel Width
- 0.18 mm
- Pixel Heigth
- 0.18 mm
