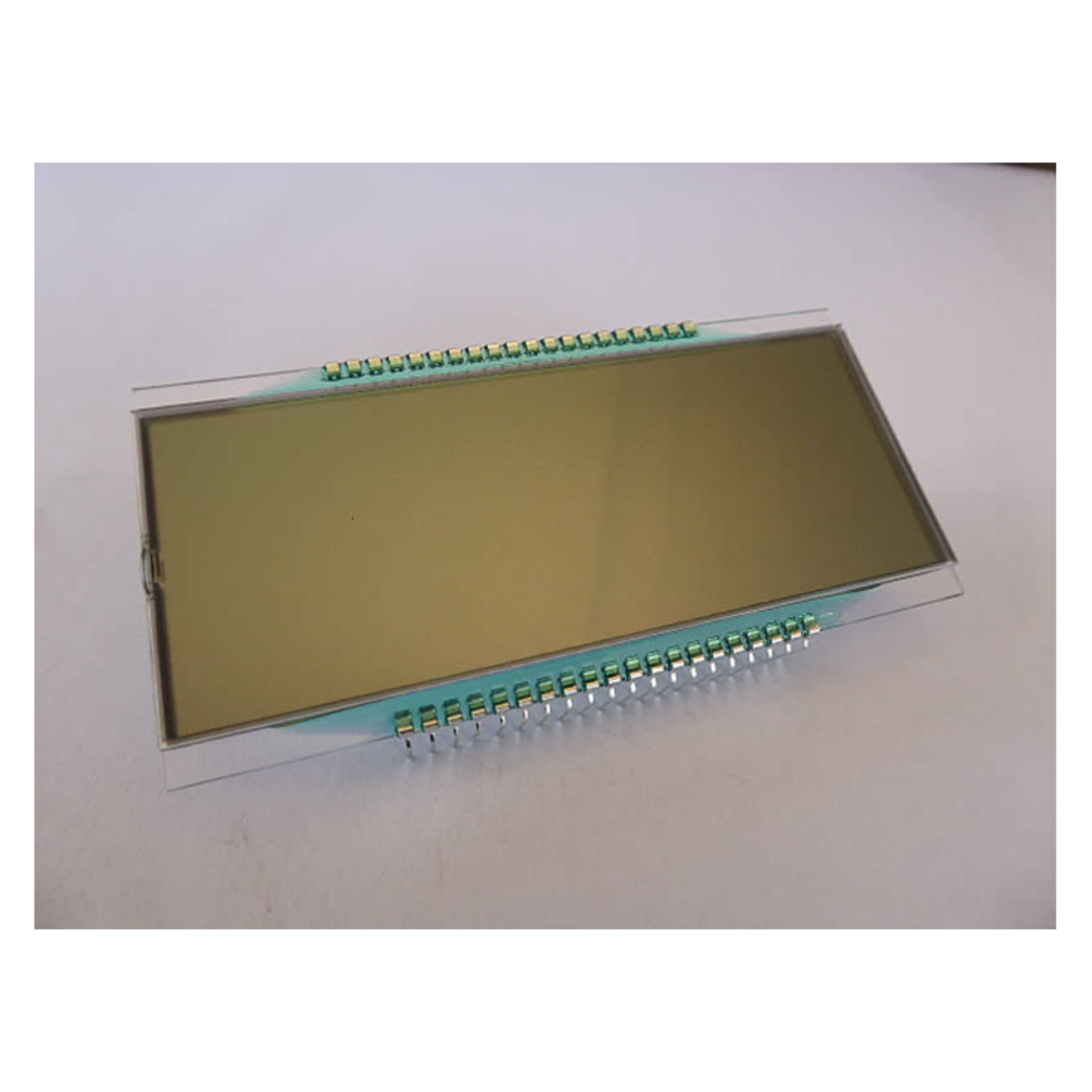

DE160RS-20/7,5

Display Elektronik 7-Segment LCD Display 4,5 Digit/Sonderz.

Manufacturer Part No.
DE160RS-20/7,5
Schukat Part No.
DE160RS-20/7.5
Manufacturer
Display Elektronik
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

23 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 28 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
3 V
Supply Voltage Max.
5 V
Characters
4,5 Digit/Sonderz.
Character Heigth
20.5 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Display Elektronik
Type
  • LCD Display
Kind
  • 7-Segment
Series
  • DE_
Product group
  • W4235 display elektronik 7-/14-Segment LCD-Displays
Dimension: Width
  • 45.7 mm
Dimension: Height
  • 93.9 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C

Electrical properties

Characters
  • 4,5 Digit/Sonderz.
Supply Voltage Min.
  • 3 V
Supply Voltage Max.
  • 5 V
Character Heigth
  • 20.5 mm
