Results (211)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Manufacturer Package | (Uf) Forward Voltage | (If) Forward Current | (Urms) RMS Voltage | (Urrm) Peak Recurrent Reverse Voltage Max. | (Ir) Reverse Current | Packaging | Barrier Layer temperature, min. (TJ) | Barrier Layer Temperature, max. (TJ) | Approvals |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

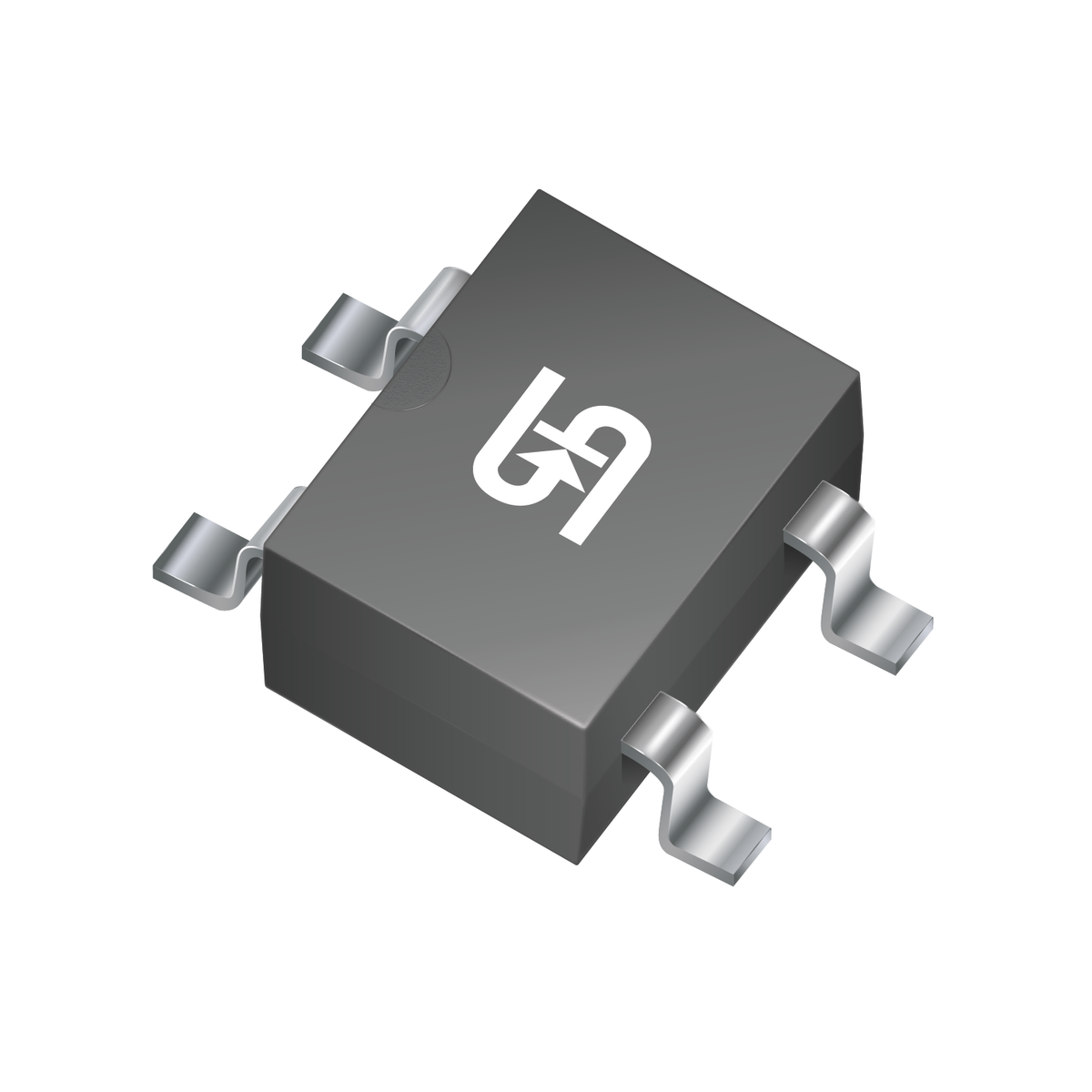

01 |  | Manufacturers Part No. MBS8(MBS8) Taiwan Semiconductor SMD/SMT Bridge Rectifier 0,5A 560V 800V 1,0V MBS-4 | Customer Part No. Customer Project No. | 5.900 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 100 or mul. of 100) | Bridge Rectifier | Taiwan Semiconductor | SMD/SMT | MBS-4 | 1.0 V | 0.5 A | 560.0 V | 800.0 V | 5.0 µA | Reel | -55.0 °C | 150.0 °C | ||||||
02 | | Manufacturers Part No. GBPC3510W(GBPC3510W) Taiwan Semiconductor THT Power Bridge Rectifier 35A 700V 1.000V 1,1V GBPC-W New | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Power Bridge Rectifier | Taiwan Semiconductor | THT | GBPC-W | 1.1 V | 35.0 A | 700.0 V | 1000.0 V | 5.0 µA | Tray | -55.0 °C | 150.0 °C | ||||||

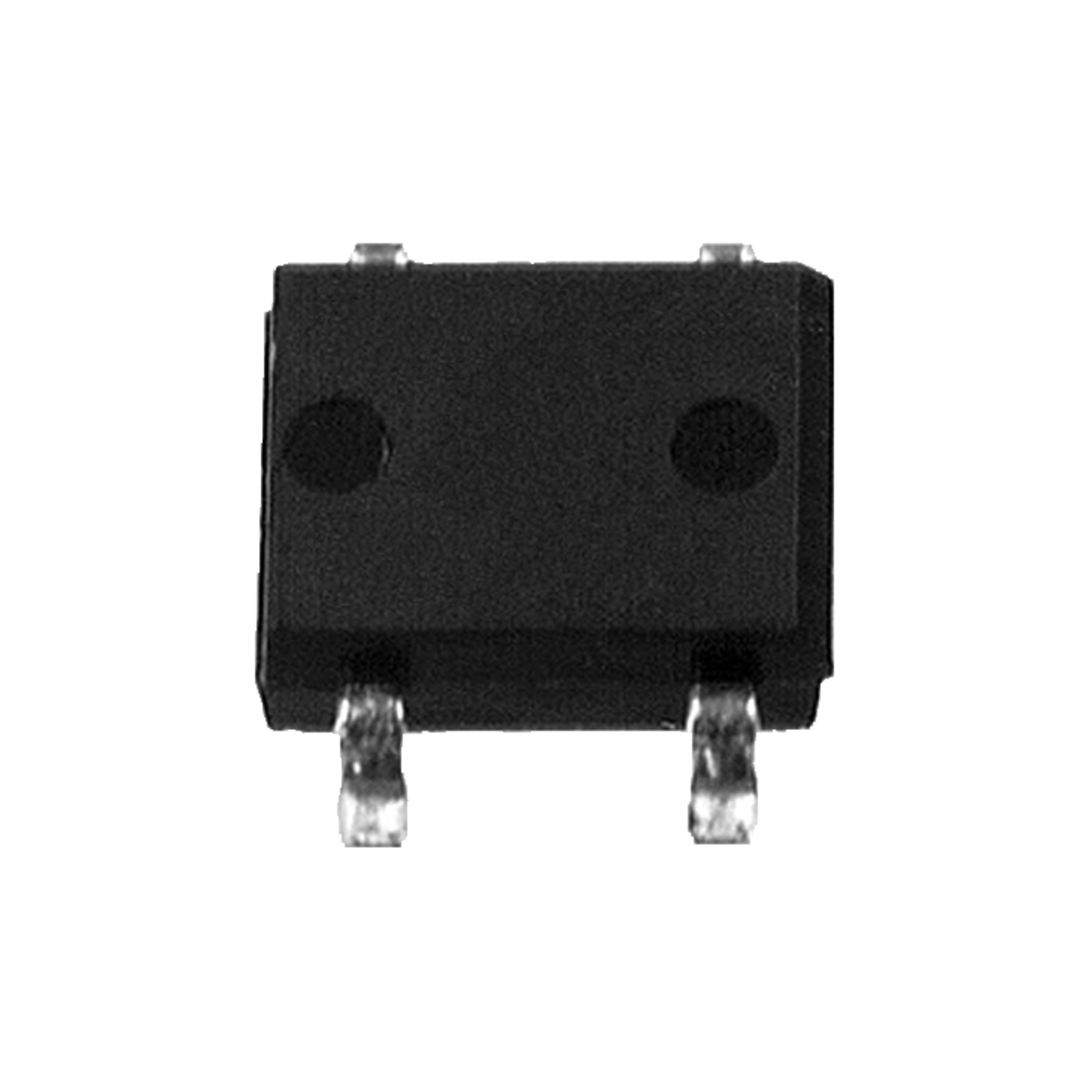

03 | | Customer Part No. Customer Project No. | 4.700 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Vishay | SMD/SMT | DFS | 1.1 V | 1.0 A | 280.0 V | 400.0 V | 5.0 µA | Tube | -55.0 °C | 150.0 °C | UL | ||||||
04 | | Manufacturers Part No. KBU608(KBU608) Continental Device India THT Bridge Rectifier 6A 560V 800V 1,0V KBU | Customer Part No. Customer Project No. | 800 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 100 or mul. of 100) | Bridge Rectifier | Continental Device India | THT | KBU | 1.0 V | 6.0 A | 560.0 V | 800.0 V | 5.0 µA | Boxed | -55.0 °C | 150.0 °C | ||||||

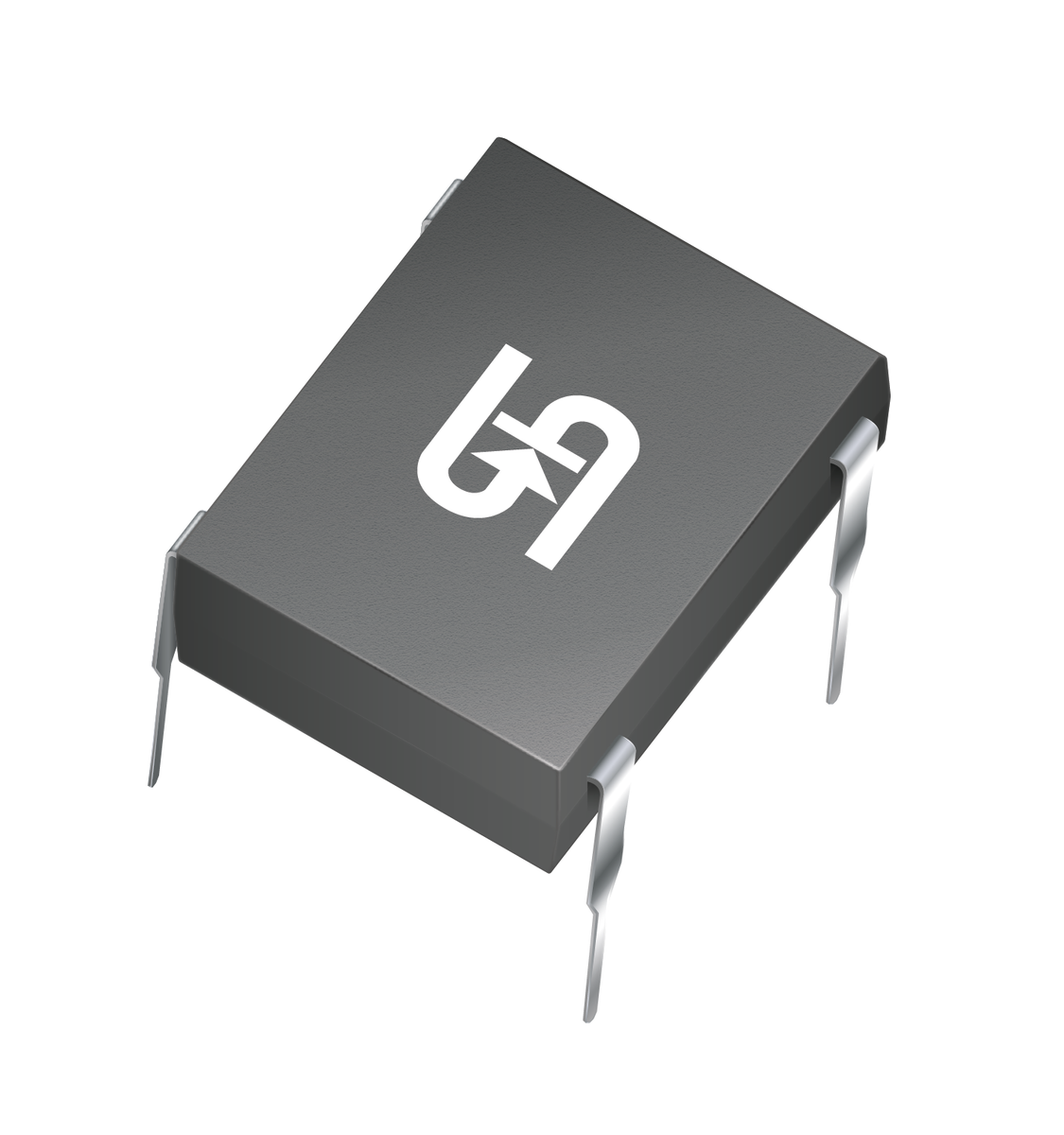

05 | | Manufacturers Part No. HDBL103G(HDBL103G) Taiwan Semiconductor THT Bridge Rectifier 1A 140V 200V 1,0V DBL | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.0 V | 1.0 A | 140.0 V | 200.0 V | 5.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
06 | | Manufacturers Part No. HDBL104G(HDBL104G) Taiwan Semiconductor THT Bridge Rectifier 1A 280V 400V 1,3V DBL | Customer Part No. Customer Project No. | 1.250 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.3 V | 1.0 A | 280.0 V | 400.0 V | 5.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
07 | | Manufacturers Part No. KBU807G(KBU807G) Taiwan Semiconductor THT Bridge Rectifier 8A 700V 1.000V 1,1V KBU | Customer Part No. Customer Project No. | 280 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 10 or mul. of 10) | Bridge Rectifier | Taiwan Semiconductor | THT | KBU | 1.1 V | 8.0 A | 700.0 V | 1000.0 V | 5.0 µA | Tray | -55.0 °C | 150.0 °C | UL | |||||
08 | | Manufacturers Part No. HDBL105G(HDBL105G) Taiwan Semiconductor THT Bridge Rectifier 1A 420V 600V 1,7V DBL | Customer Part No. Customer Project No. | 950 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.7 V | 1.0 A | 420.0 V | 600.0 V | 5.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
09 | | Manufacturers Part No. HDBL107G(HDBL107G) Taiwan Semiconductor THT Bridge Rectifier 1A 700V 1.000V 1,7V DBL | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.7 V | 1.0 A | 700.0 V | 1000.0 V | 5.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
10 | | Manufacturers Part No. DBL103G(DBL103G) Taiwan Semiconductor THT Bridge Rectifier 1A 140V 200V 1,1V DBL | Customer Part No. Customer Project No. | 22.350 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.1 V | 1.0 A | 140.0 V | 200.0 V | 2.0 µA | Tube | -55.0 °C | 150.0 °C | ||||||
11 | | Manufacturers Part No. UR3KB100(UR3KB100) Taiwan Semiconductor THT Bridge Rectifier 3A 700V 1.000V 1,0V D3K | Customer Part No. Customer Project No. | 1.490 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 5 or mul. of 5) | Bridge Rectifier | Taiwan Semiconductor | THT | D3K | 1.0 V | 3.0 A | 700.0 V | 1000.0 V | 10.0 µA | Boxed | -55.0 °C | 150.0 °C | ||||||
12 | | Manufacturers Part No. KBU1004G(KBU1004G) Taiwan Semiconductor THT Bridge Rectifier 10A 280V 400V 1,1V KBU | Customer Part No. Customer Project No. | 250 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Bridge Rectifier | Taiwan Semiconductor | THT | KBU | 1.1 V | 10.0 A | 280.0 V | 400.0 V | 5.0 µA | Tray | -55.0 °C | 150.0 °C | UL | |||||
13 | | Manufacturers Part No. UR3KB60(UR3KB60) Taiwan Semiconductor THT Bridge Rectifier 3A 420V 600V 1,0V D3K | Customer Part No. Customer Project No. | 1.240 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 5 or mul. of 5) | Bridge Rectifier | Taiwan Semiconductor | THT | D3K | 1.0 V | 3.0 A | 420.0 V | 600.0 V | 10.0 µA | Boxed | -55.0 °C | 150.0 °C | ||||||
14 | | Manufacturers Part No. DBL155G(DBL155G) Taiwan Semiconductor THT Bridge Rectifier 1,5A 420V 600V 1,1V DBL % | Customer Part No. Customer Project No. | 1.400 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.1 V | 1.5 A | 420.0 V | 600.0 V | 2.0 µA | Tube | -55.0 °C | 150.0 °C | ||||||
15 | | Manufacturers Part No. DBL156G(DBL156G) Taiwan Semiconductor THT Bridge Rectifier 1,5A 560V 800V 1,1V DBL | Customer Part No. Customer Project No. | 775 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.1 V | 1.5 A | 560.0 V | 800.0 V | 2.0 µA | Tube | -55.0 °C | 150.0 °C | ||||||
16 | | Manufacturers Part No. DBL154G(DBL154G) Taiwan Semiconductor THT Bridge Rectifier 1,5A 280V 400V 1,1V DBL | Customer Part No. Customer Project No. | 2.475 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.1 V | 1.5 A | 280.0 V | 400.0 V | 2.0 µA | Tube | -55.0 °C | 150.0 °C | ||||||
17 | | Manufacturers Part No. KBL404G(KBL404G) Taiwan Semiconductor THT Bridge Rectifier 4A 280V 400V 1,1V KBL | Customer Part No. Customer Project No. | 1.570 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 10 or mul. of 10) | Bridge Rectifier | Taiwan Semiconductor | THT | KBL | 1.1 V | 4.0 A | 280.0 V | 400.0 V | 10.0 µA | Tray | -55.0 °C | 150.0 °C | UL | |||||
18 | | Manufacturers Part No. KBU1007G(KBU1007G) Taiwan Semiconductor THT Bridge Rectifier 10A 700V 1.000V 1,1V KBU | Customer Part No. Customer Project No. | 550 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 10 or mul. of 10) | Bridge Rectifier | Taiwan Semiconductor | THT | KBU | 1.1 V | 10.0 A | 700.0 V | 1000.0 V | 5.0 µA | Tray | -55.0 °C | 150.0 °C | UL | |||||
19 | | Manufacturers Part No. KBL402G(KBL402G) Taiwan Semiconductor THT Bridge Rectifier 4A 70V 100V 1,1V KBL | Customer Part No. Customer Project No. | 90 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Bridge Rectifier | Taiwan Semiconductor | THT | KBL | 1.1 V | 4.0 A | 70.0 V | 100.0 V | 10.0 µA | Tray | -55.0 °C | 150.0 °C | UL | |||||
20 | | Manufacturers Part No. DBL157G(DBL157G) Taiwan Semiconductor THT Bridge Rectifier 1,5A 700V 1.000V 1,1V DBL | Customer Part No. Customer Project No. | 2.600 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.1 V | 1.5 A | 700.0 V | 1000.0 V | 2.0 µA | Tube | -55.0 °C | 150.0 °C | ||||||
21 | | Manufacturers Part No. DBL205G(DBL205G) Taiwan Semiconductor THT Bridge Rectifier 2A 420V 600V 1,15V DBL | Customer Part No. Customer Project No. | 5.450 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 25 or mul. of 25) | Bridge Rectifier | Taiwan Semiconductor | THT | DBL | 1.15 V | 2.0 A | 420.0 V | 600.0 V | 2.0 µA | Tube | -55.0 °C | 150.0 °C | ||||||

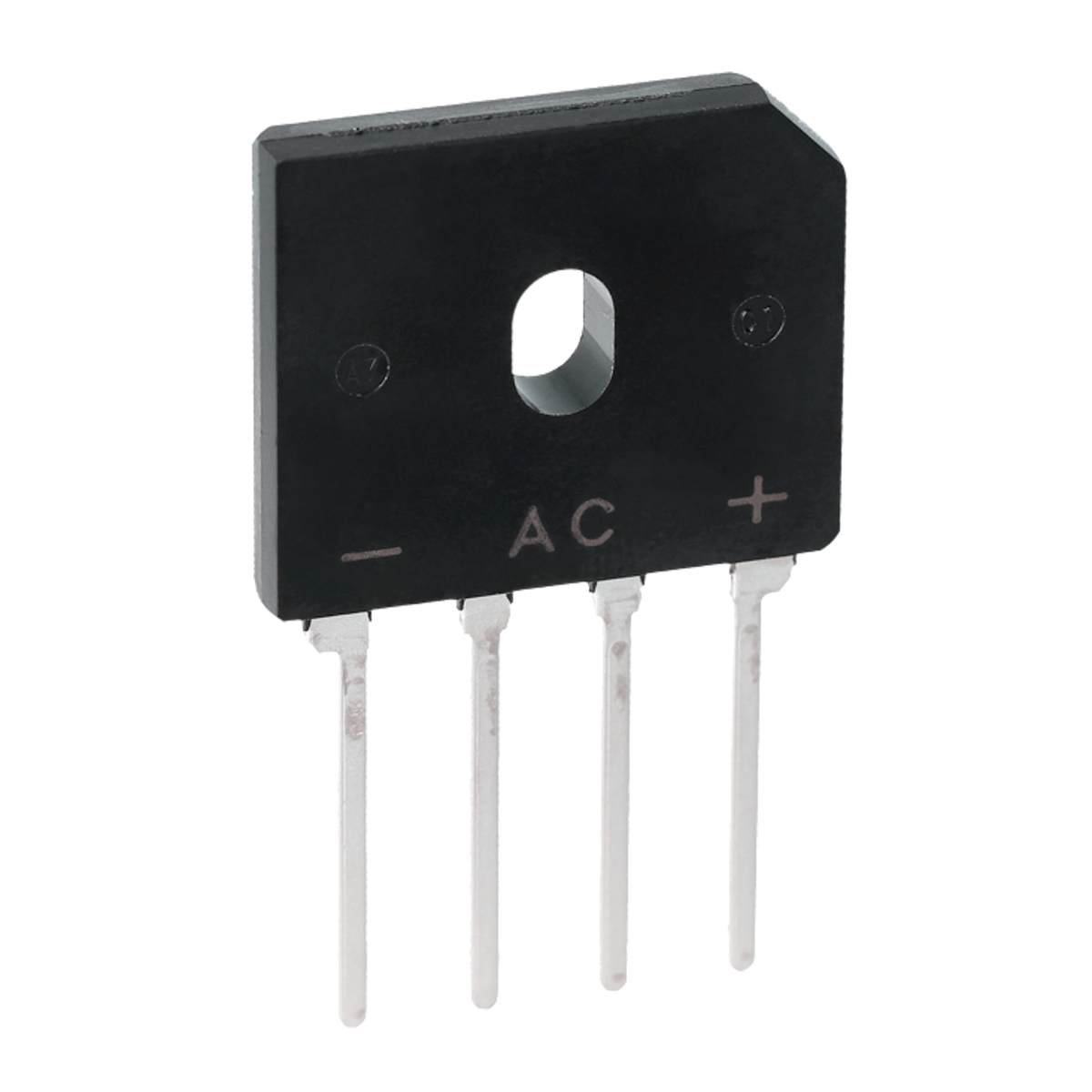

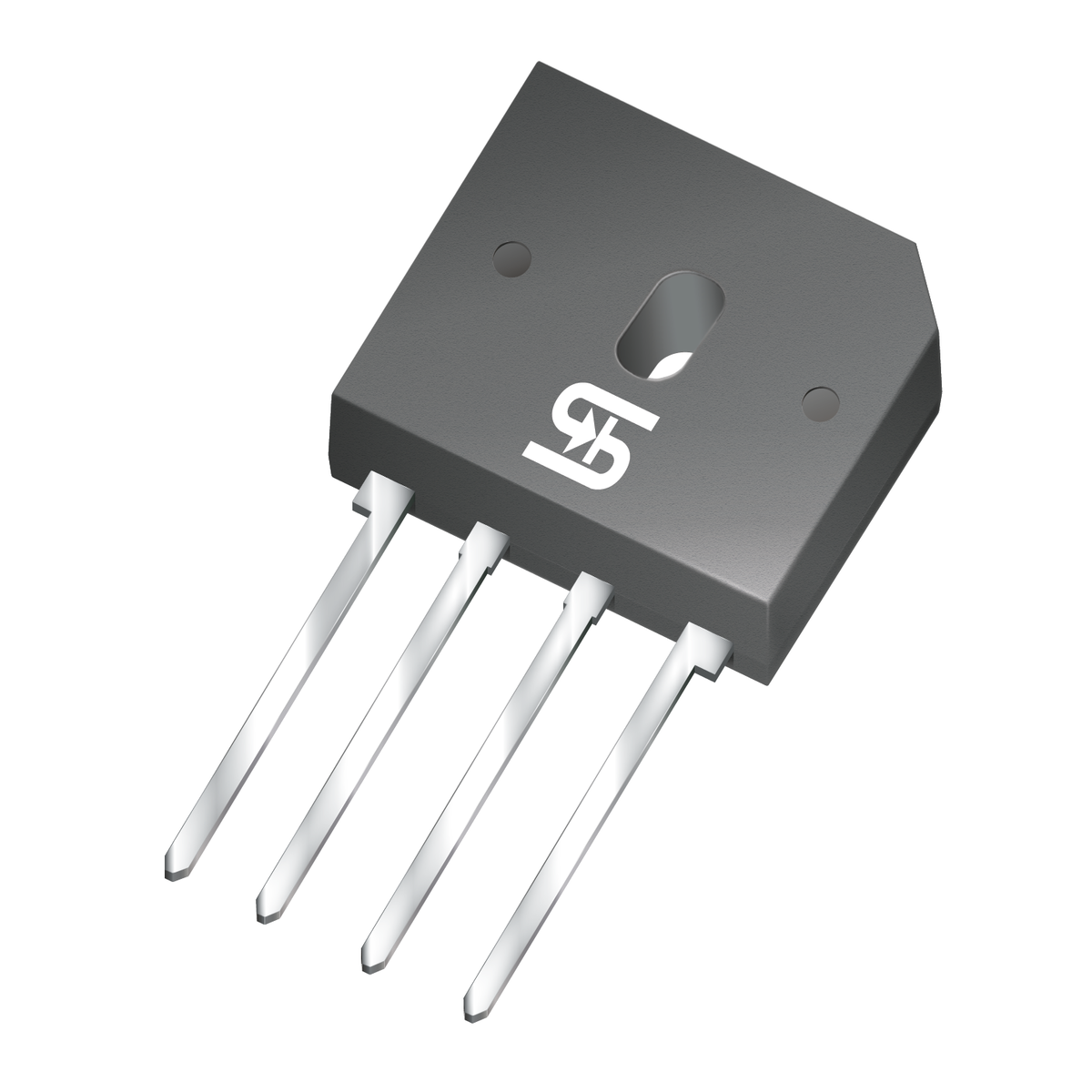

22 | | Manufacturers Part No. GBU406(GBU406) Taiwan Semiconductor THT Bridge Rectifier 4A 560V 800V 1,1V GBU | Customer Part No. Customer Project No. | 3.810 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Bridge Rectifier | Taiwan Semiconductor | THT | GBU | 1.1 V | 4.0 A | 560.0 V | 800.0 V | 5.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||

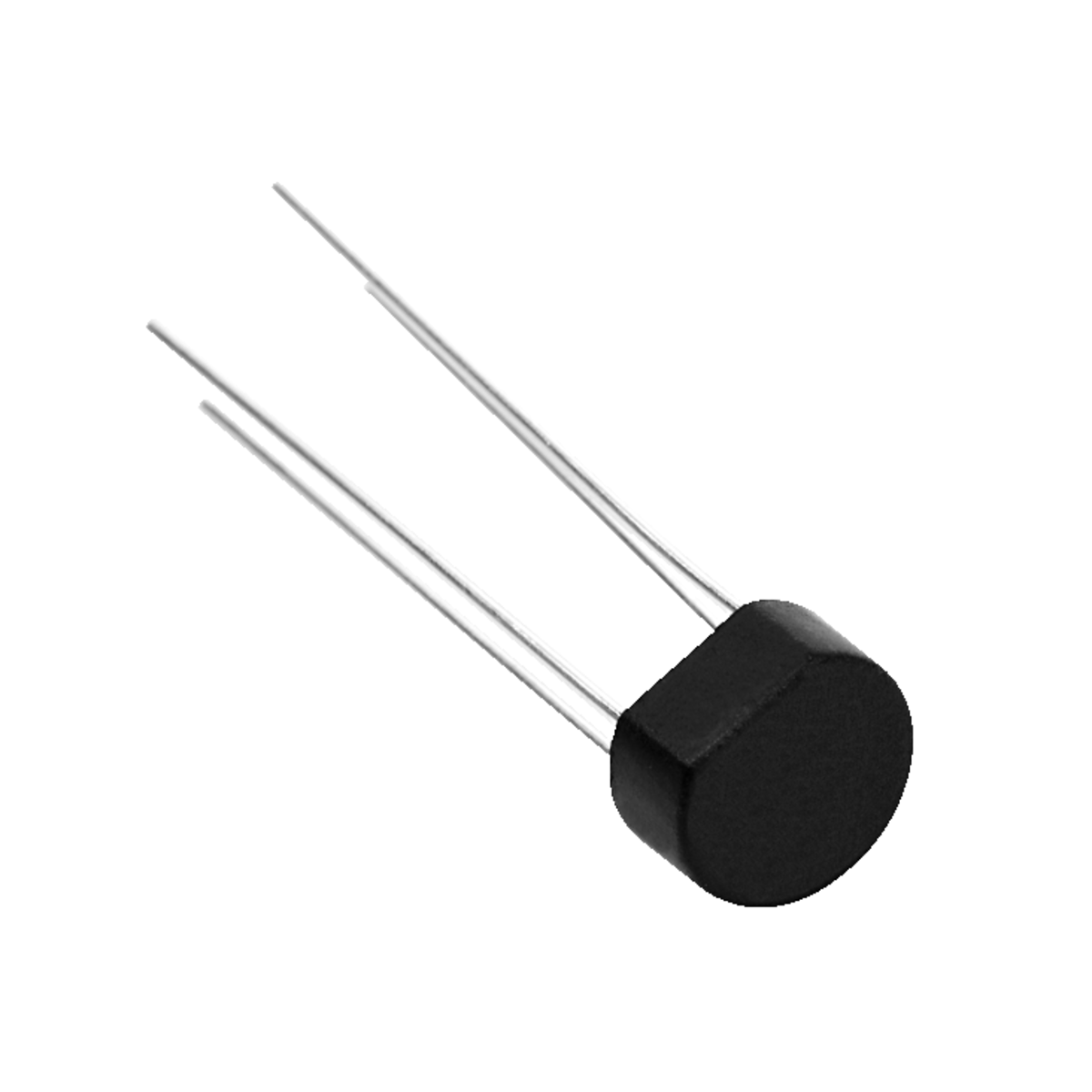

23 | | Manufacturers Part No. W01M(W01M) Continental Device India THT Bridge Rectifier 1,5A 70V 100V 1,0V WOM | Customer Part No. Customer Project No. | 4.800 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 100 or mul. of 100) | Bridge Rectifier | Continental Device India | THT | WOM | 1.0 V | 1.5 A | 70.0 V | 100.0 V | 10.0 µA | Boxed | -55.0 °C | 125.0 °C | ||||||
24 | | Manufacturers Part No. GBU407(GBU407) Taiwan Semiconductor THT Bridge Rectifier 4A 700V 1.000V 1,1V GBU | Customer Part No. Customer Project No. | 1.480 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Bridge Rectifier | Taiwan Semiconductor | THT | GBU | 1.1 V | 4.0 A | 700.0 V | 1000.0 V | 5.0 µA | Tube | -55.0 °C | 150.0 °C | UL | |||||
25 | | Manufacturers Part No. W02M(W02M) Continental Device India THT Bridge Rectifier 1,5A 140V 200V 1,0V WOM | Customer Part No. Customer Project No. | 9.100 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 100 or mul. of 100) | Bridge Rectifier | Continental Device India | THT | WOM | 1.0 V | 1.5 A | 140.0 V | 200.0 V | 10.0 µA | Boxed | -55.0 °C | 125.0 °C |
