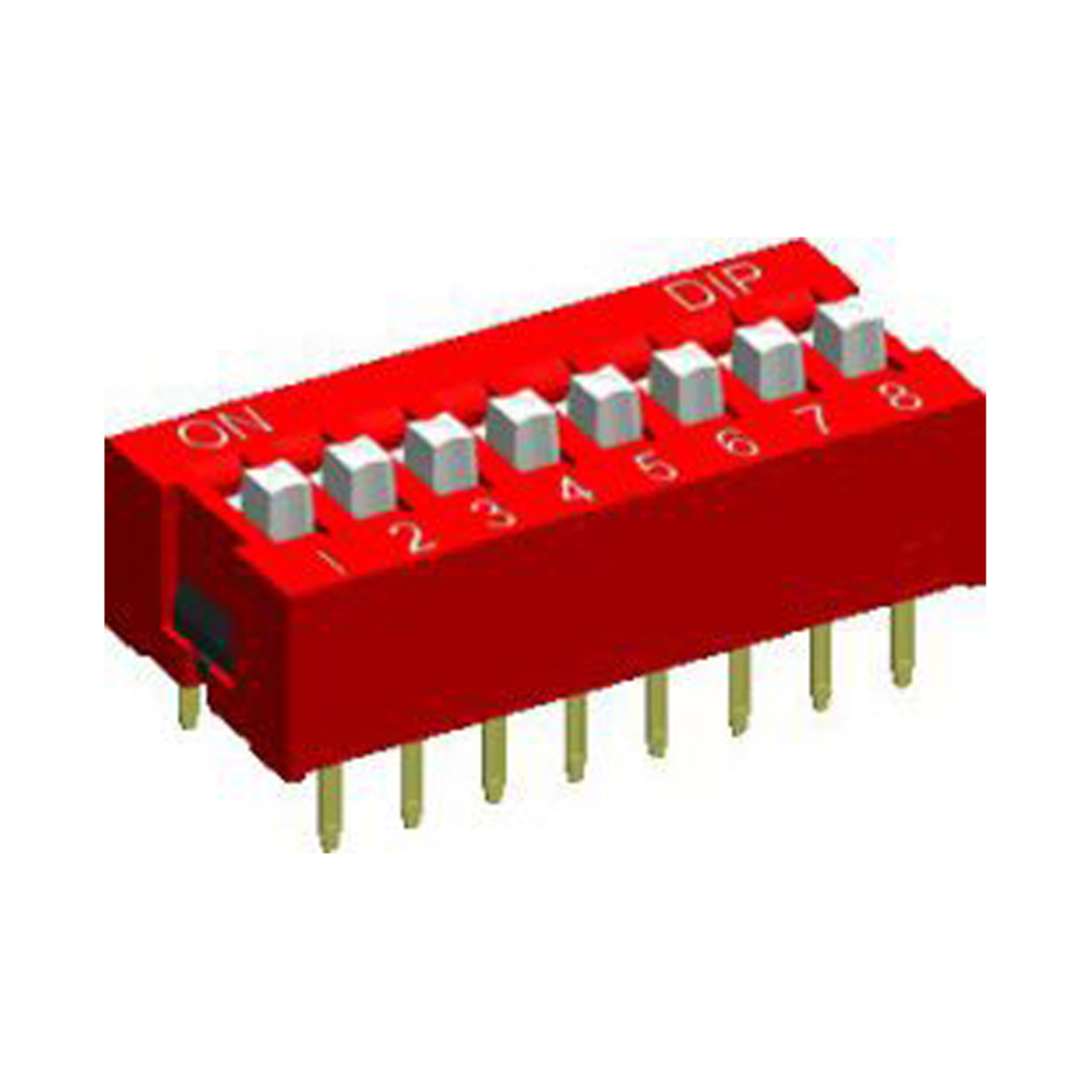

NDS-02V
Diptronics DIP/DIL/Rotary Coded Switches NDS Standard RM2,54mm 2 Switch position 2 Pol(e)
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.502 Pcs. in stock
Planned delivery time
Ø 35 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 72 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 9 or multiple of 9)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- DIP/DIL/Rotary Coded Switches
- Series
- NDS
- Body colour
- red
- Type ( axial, radial )
- Standard
- Pitch
- 2.54 mm
- Type of actuator
- Lever
- Number of switch positions
- 2
- Actuator colour
- white
- Number of poles
- 2
- illumination
- unlit
- Switching current, max.
- 0.025 A
- Actuating force, max.
- 1.000 gf
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 6.44 mm
- Dimension: Width
- 9.9 mm
- Dimension: Height
- 7.05 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 85 °C
Technical features
- Switching current, max.
- 0.025 A
- Contact resistance, max.
- 50 mOhm
- Insulation resistance, min.
- 100 MOhm
- Material: Terminals
- gold plated
Mechanical properties
- Connection
- Solder pin
- Operating path
- 2 mm
- Actuating force, max.
- 1.000 gf
- Number of switch positions
- 2
- Number of poles
- 2
