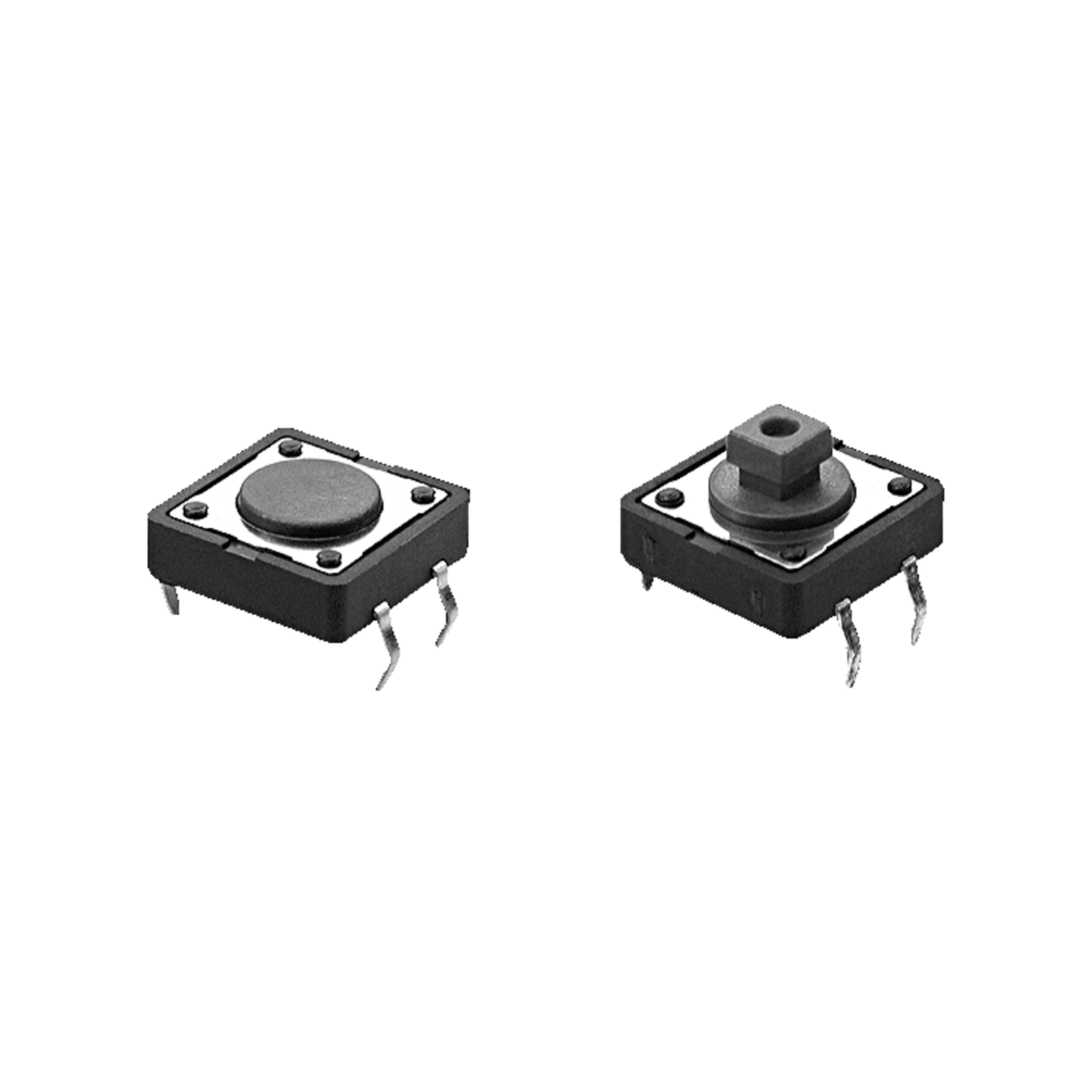

DTS-24N-V
Diptronics DTS-2 Switches 1xNO Solder pin 0,05A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.900 Pcs. in stock
Planned delivery time
Ø 35 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Switches
- Series
- DTS-2
- Body colour
- black
- contacts
- 1xNO
- Type of actuator
- Push button
- Actuator colour
- brown
- Number of poles
- 1
- illumination
- false
- Switching current, max.
- 0.05 A
- Actuating force, max.
- 1,6 N
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Soldering temperature and duration, max.
- 260°C / 5s
- Flammability
- UL94V-0
- RoHS-Conform
Specifications
Open all

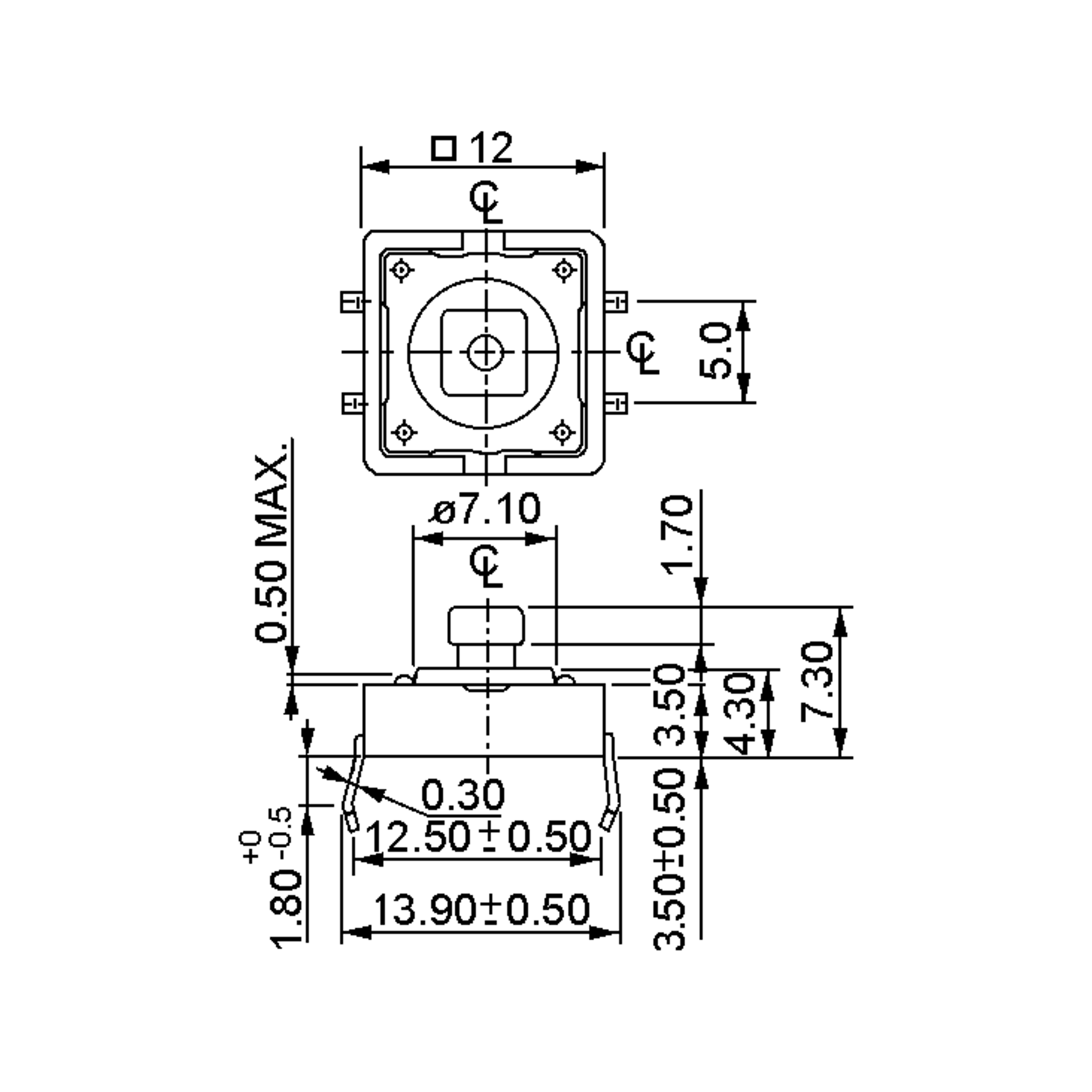

Dimensions and weights
- Dimension: Length
- 12 mm
- Dimension: Width
- 12 mm
- Dimension: Height
- 7.3 mm
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Soldering temperature and duration, max.
- 260°C / 5s
Technical features
- Switching voltage
- 12 V DC
- Test voltage
- 250 V AC, 1min.
- Mechanical service life
- 2 x 10^5 Betätigungen
- Switching current, max.
- 0.05 A
- Contact resistance, max.
- 100 mOhm
- Insulation resistance, min.
- 100 MOhm
- Material: Body
- thermoplastic nylon
- Material: Terminals
- Bronze, silver plated
Mechanical properties
- Connection
- Solder pin
- Operating path
- 0.35 mm
- Actuating force, max.
- 1,6 N
- Number of poles
- 1
Safety/Certifications
- Flammability
- UL94V-0
