HMI043WM-42ATCS

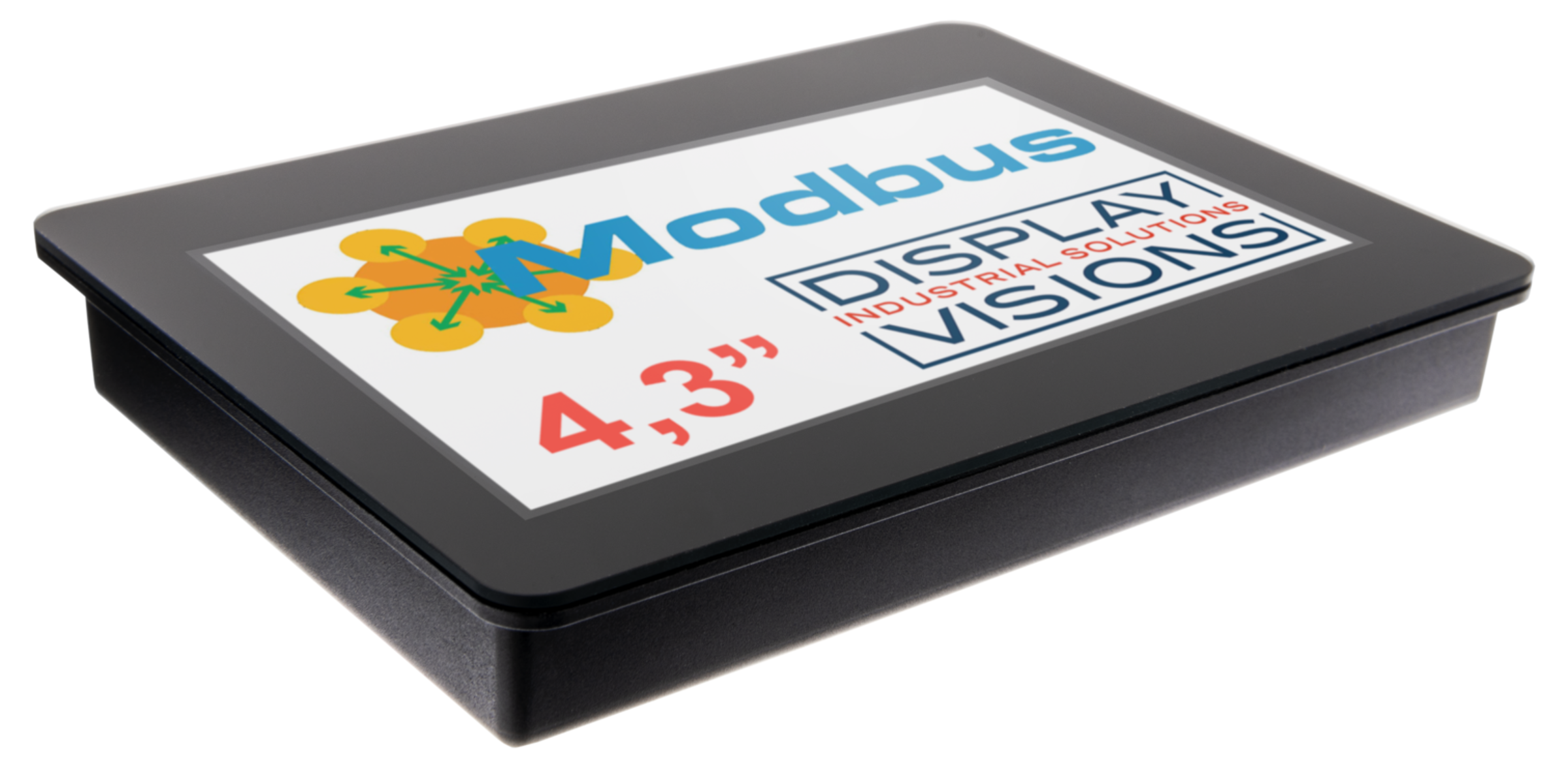

DISPLAY VISIONS Modbus Display WiFi TFT 480x272 LED white

Image similar
NEW
Manufacturer Part No.
HMI043WM-42ATCS
Schukat Part No.
HMI043WM-42ATCS
Manufacturer
DISPLAY VISIONS
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
6 V
Supply Voltage Max.
30 V
Resolution (Pixel)
480x272
Backlight Type
LED
Backlight Colour
white
Touch Panel
Projective Touch
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DISPLAY VISIONS
Type
  • Modbus Display WiFi
Series
  • HMI043
Assembly Type
  • Screw connection and clamp mounting
Module Width
  • 114 mm
Module Height
  • 84 mm
Module Thickeness
  • 18.5 mm
Features

  • Brilliant 4.3" Modbus display with touch functionality for ModbusTCP and ModbusRTU. Built-in intelligence with memory and sufficient capacity even for complex graphics. The address range is freely selectable. Interface: WiFi, RS-485. Housing for wall mounting or integration into a front panel. Power supply 6~30V=. The display supports communication with over 20 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, Allen Bradley, Mitsubishi FX, Beckhoff and many more. Free WYSIWYG editor "HMI-Designer" for Windows for creating individual screen pages.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 50 °C

Electrical properties

Backlight Type
  • LED
Resolution (Pixel)
  • 480x272
Lighting Colour
  • red, green, blue (RGB)
Touch Panel
  • Projective Touch
Screen Diagonal
  • 4.3 ''
Display-Technology
  • TFT
Supply Voltage Min.
  • 6 V
Backlight Colour
  • white
Supply Voltage Max.
  • 30 V
Pixel Width
  • 0.198 mm
Pixel Heigth
  • 0.198 mm
