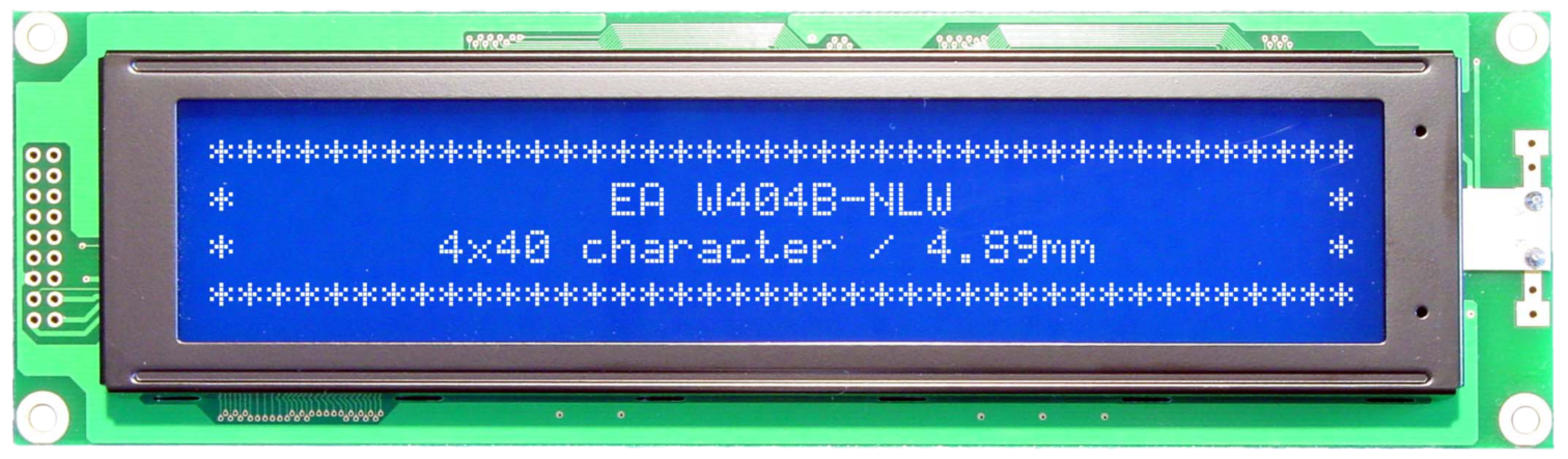

EAW404B-NLW
DISPLAY VISIONS LCD Module Dot Matrix 40x4 LED blue
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
7 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Supply Voltage Min.
- 5 V
- Characters
- 40x4
- Backlight Type
- LED
- Backlight Colour
- blue
- Active Area Heigth
- 29.5 mm
- Active Area Width
- 147 mm
- Character Heigth
- 4.89 mm
- Character Width
- 2.78 mm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Electrical properties
- (Uf) Forward Voltage
- 4.8 V
- Characters
- 40x4
- (If) Forward Current
- 75 mA
- Backlight Type
- LED
- Display Controller
- HD44780-compatible
- Display Interface
- 4-Bit-MCU
- 8-Bit-MCU
- RS232
- Active Area Heigth
- 29.5 mm
- Active Area Width
- 147 mm
- Supply Voltage Min.
- 5 V
- Backlight Colour
- blue
- Character Heigth
- 4.89 mm
- Character Width
- 2.78 mm
- Character Set
- English
- Japanese
- Character Colour
- white
