Manufacturer Part No.

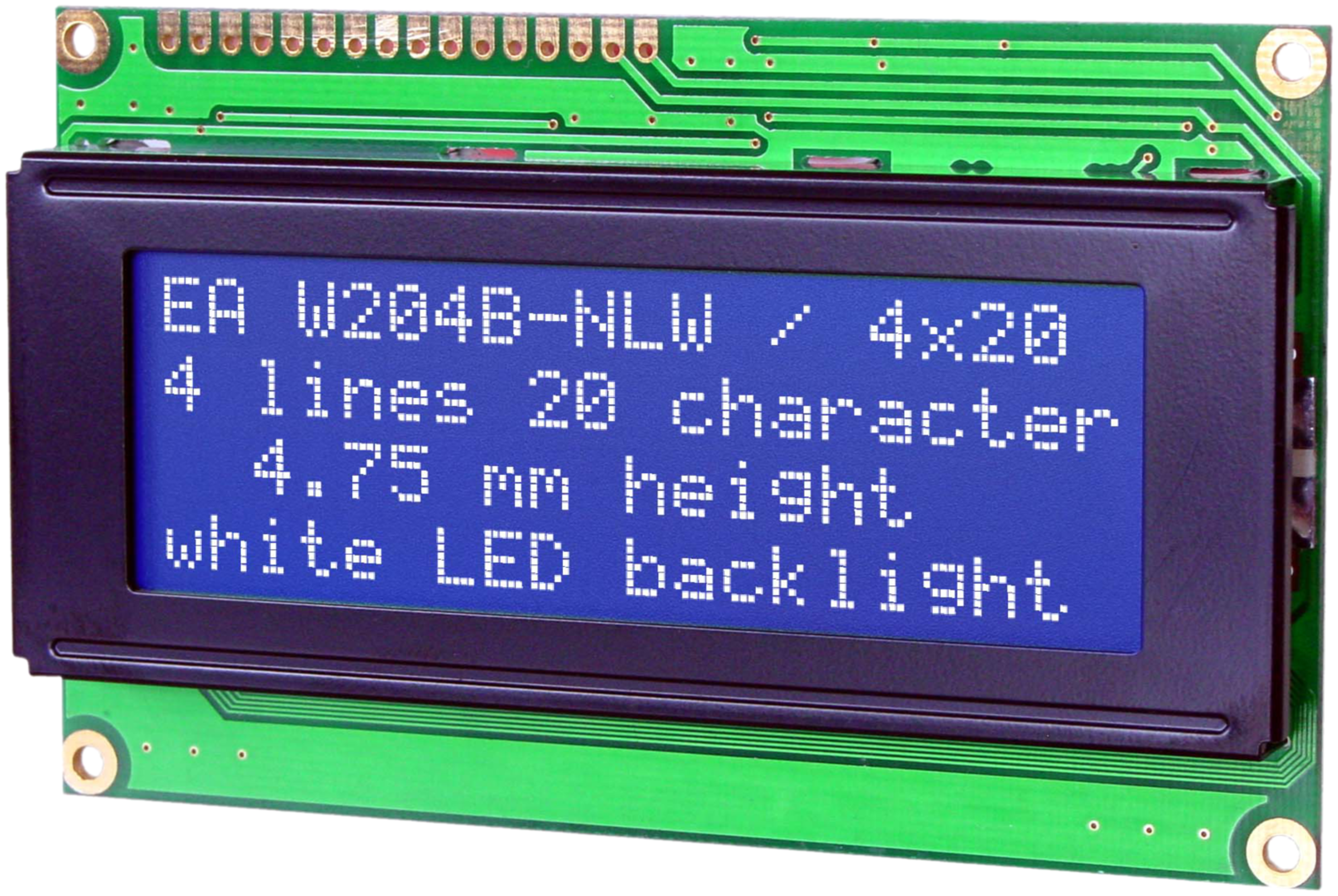

EAW204B-NLW
Schukat Part No.
EAW204B-NLW
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

125 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 7 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
5 V
Characters
20x4
Backlight Type
LED
Active Area Heigth
25.2 mm
Active Area Width
77 mm
Character Heigth
4.75 mm
Character Width
2.95 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DISPLAY VISIONS
Type
  • LCD Module
Kind
  • Dot Matrix
Series
  • EAW204
Product group
  • W4746 DISPLAY VISIONS LCD-Dot-Matrix-Modules with Backlight blue B
Module Width
  • 98 mm
Module Height
  • 60 mm
Module Thickeness
  • 13.6 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 80 °C

Electrical properties

(Uf) Forward Voltage
  • 4.7 V
Characters
  • 20x4
(If) Forward Current
  • 45 mA
Backlight Type
  • LED
Display Controller
  • HD44780-compatible
Display Interface
  • 4-Bit-MCU
  • 8-Bit-MCU
  • RS232
Active Area Heigth
  • 25.2 mm
Active Area Width
  • 77 mm
Supply Voltage Min.
  • 5 V
Character Heigth
  • 4.75 mm
Character Width
  • 2.95 mm
Character Set
  • Europe
  • Japanese
Character Colour
  • white
