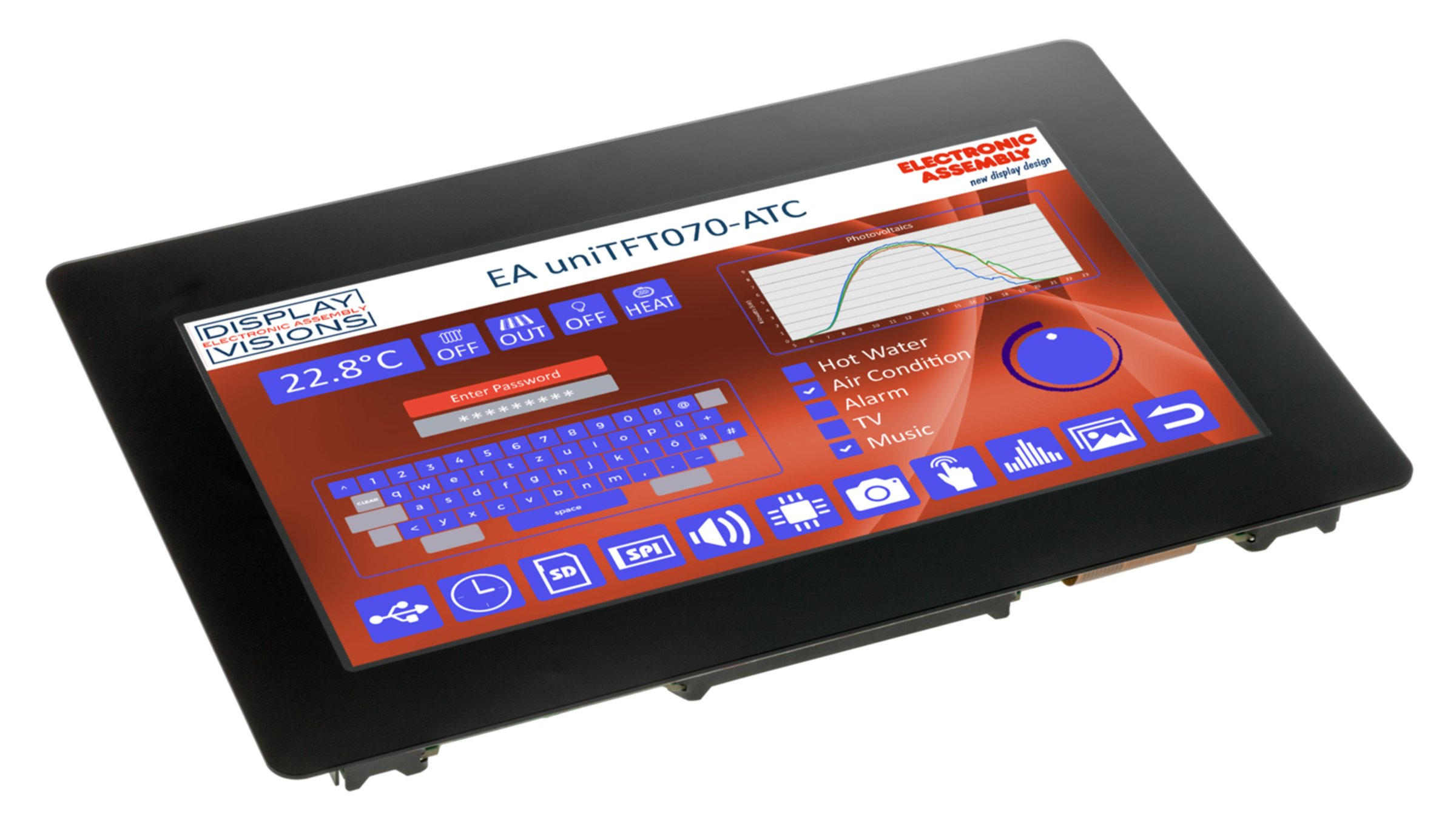

EAUNITFT070-ATC
DISPLAY VISIONS LCD Graphic Module TFT 1024x600 LED 690cd/m2
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Supply Voltage Min.
- 3.1 V
- Supply Voltage Max.
- 3.5 V
- Resolution (Pixel)
- 1024x600
- Backlight Type
- LED
- (If) Forward Current
- 890 mA
- Backlight Brightness
- 690 cd/m2
- Touch Panel
- Projective Touch
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Electrical properties
- (Uf) Forward Voltage Max.
- 9 V
- (If) Forward Current
- 890 mA
- Backlight Type
- LED
- Communication Interfaces
- I2C_2x
- RS232_2x
- SPI_2x
- USB_1x
- Resolution (Pixel)
- 1024x600
- Touch Panel
- Projective Touch
- Screen Diagonal
- 7 ''
- Display-Technology
- TFT
- Supply Voltage Min.
- 3.1 V
- Supply Voltage Max.
- 3.5 V
- Backlight Brightness
- 690 cd/m2
