EATFT052-41ANN

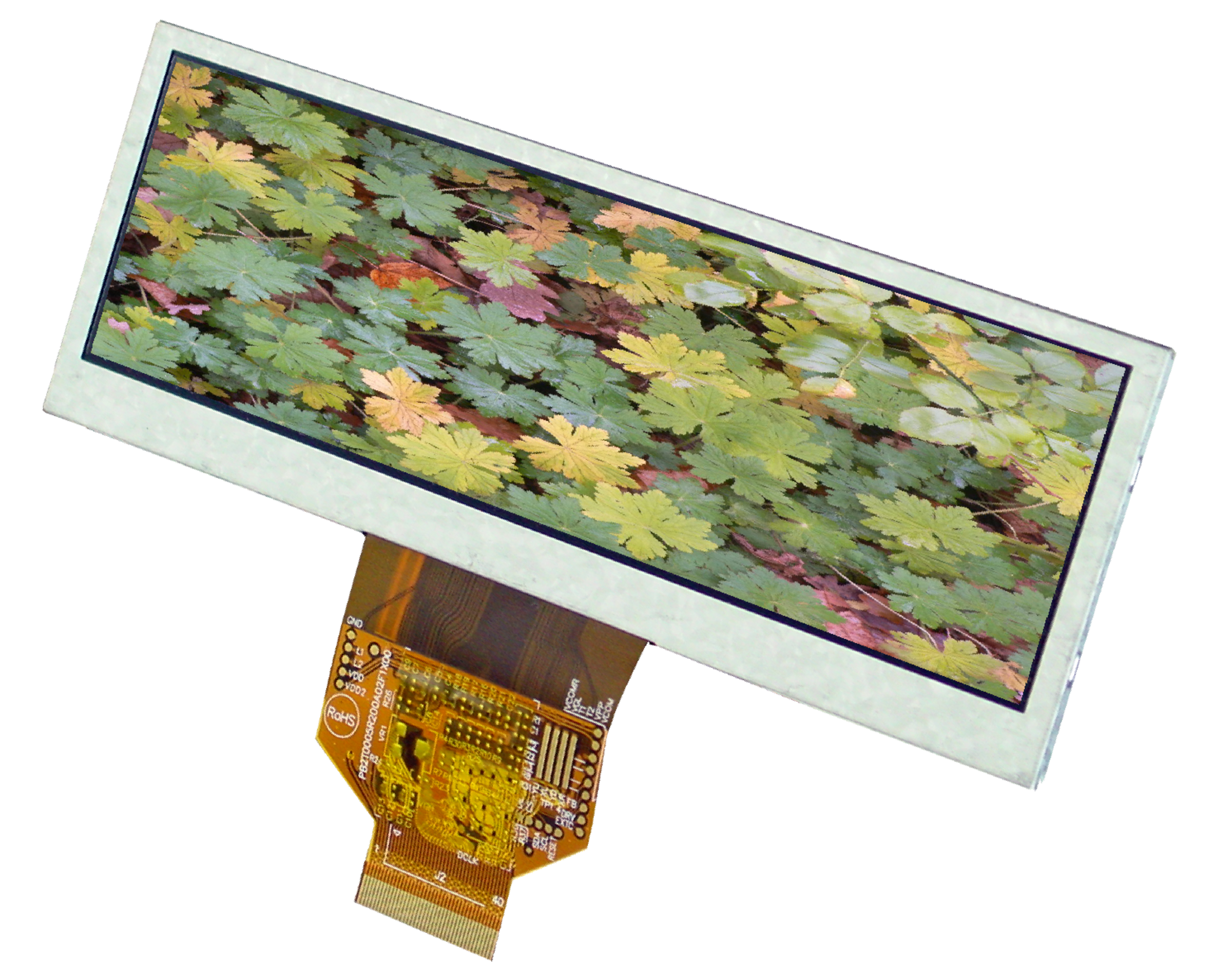

DISPLAY VISIONS LCD Graphic Module TFT 480x128 LED white 850 cd/m2

EATFT052-41ANN
Manufacturer Part No.
EATFT052-41ANN
Schukat Part No.
EATFT052-41ANN
Manufacturer
DISPLAY VISIONS
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 44 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
LCD Graphic Module
Touch Panel
No Touch
Resolution (Pixel)
480x128
Display Interface
24-Bit-RGB
Supply Voltage Min.
3 V
Supply Voltage Max.
3.6 V
(Uf) Forward Voltage
18.6 V
(If) Forward Current
80 mA
Backlight Type
LED
Backlight Colour
white
Backlight Brightness
850 cd/m2
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DISPLAY VISIONS
Type
  • LCD Graphic Module
Series
  • EATFT_AAN
Product group
  • W6851
Module Width
  • 140.4 mm
Module Height
  • 49.87 mm
Module Thickeness
  • 3 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 80 °C

Electrical Properties

(Uf) Forward Voltage
  • 18.6 V
(If) Forward Current
  • 80 mA
Backlight Type
  • LED
Display Controller
  • ST7252
Display Interface
  • 24-Bit-RGB
Resolution (Pixel)
  • 480x128
Touch Panel
  • No Touch
Screen Diagonal
  • 5.2 ''
Display-Technology
  • TFT
Supply Voltage Min.
  • 3 V
Backlight Colour
  • white
Supply Voltage Max.
  • 3.6 V
Backlight Brightness
  • 850 cd/m2
Expected Lifetime
  • 50,000 h
Pixel Width
  • 0.088 mm
Pixel Heigth
  • 0.265 mm
