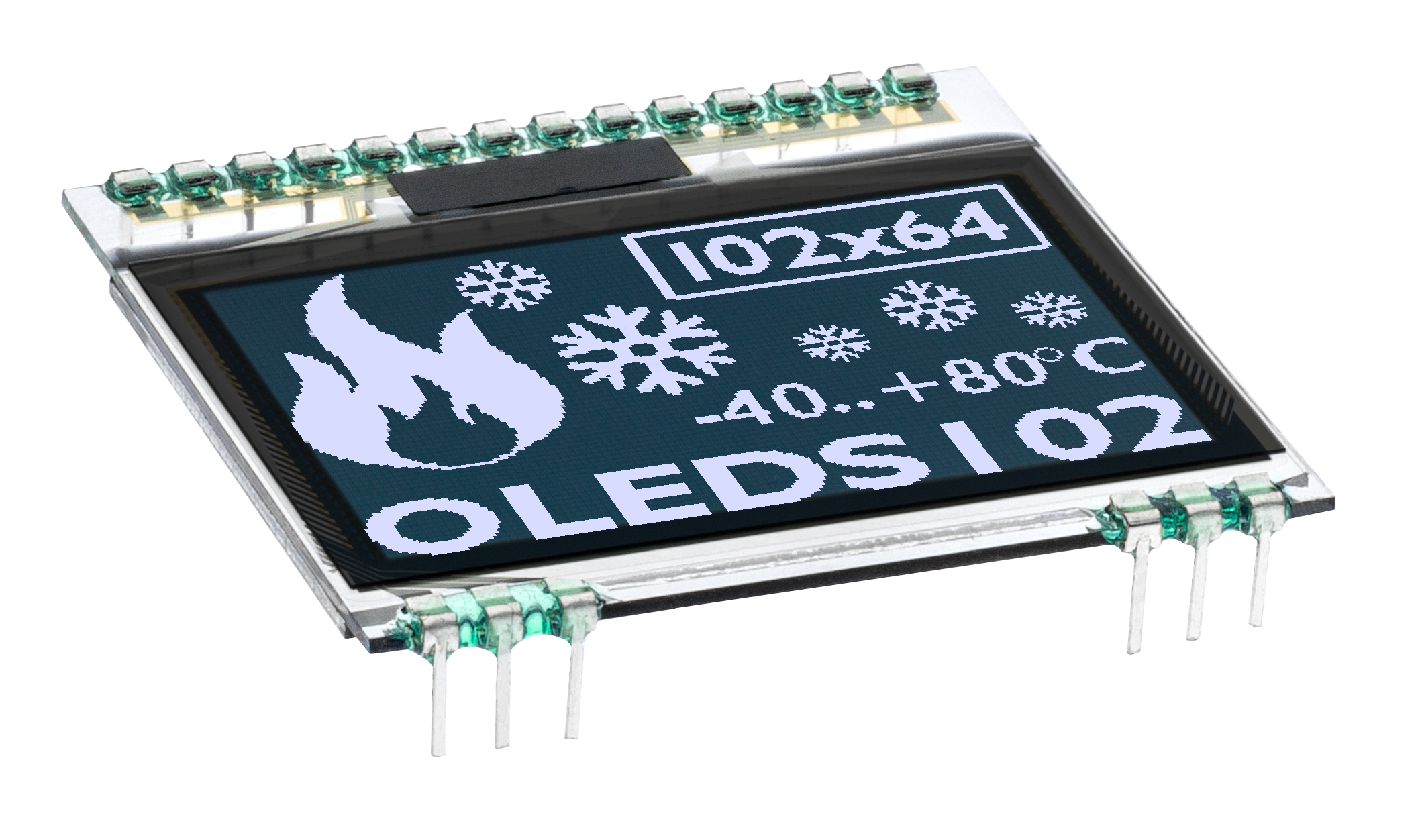

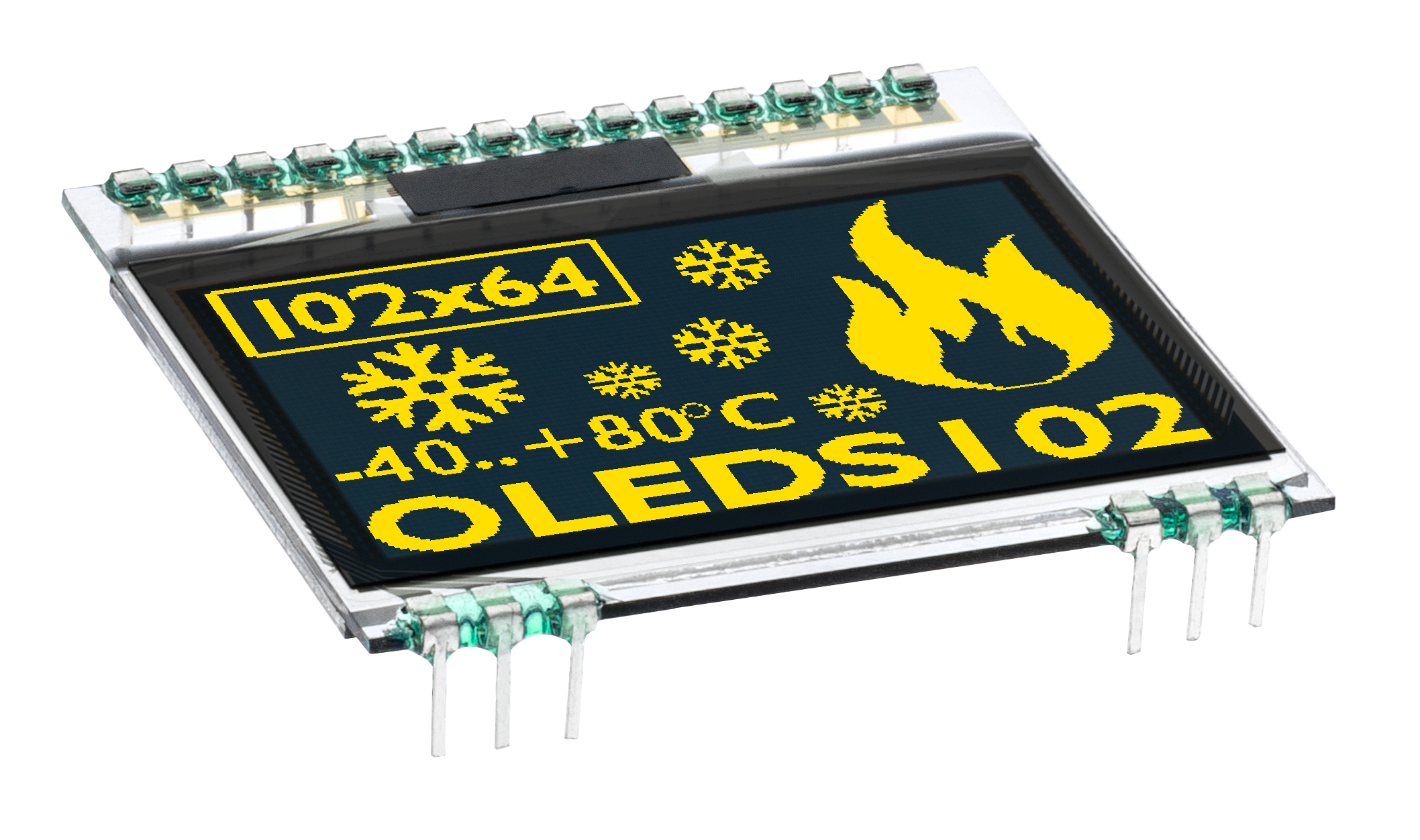

EAOLEDS102-6LGA
DISPLAY VISIONS OLED Graphic Module OLED 102x64 100cd/m2
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 140 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resolution (Pixel)
- 102x64
- Backlight Brightness
- 100 cd/m2
- Display Interface
- I2C
SPI - RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 80 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 80 °C
Electrical Properties
- Display Interface
- I2C
- SPI
- Resolution (Pixel)
- 102x64
- Lighting Colour
- yellow, green
- Screen Diagonal
- 1.7 ''
- Display-Technology
- OLED
- Logic Supply voltage min.
- 1.8 V
- Logic Supply voltage typ.
- 3 V
- Logic Supply voltage max.
- 3.3 V
- Display Supply Voltage typ.
- 12.5 V
- Display Supply Voltage max.
- 13 V
- Backlight Brightness
- 100 cd/m2
- Expected Lifetime
- 50,000 h
- Pixel Width
- 0.325 mm
- Pixel Heigth
- 0.305 mm
- Background Colour
- black
