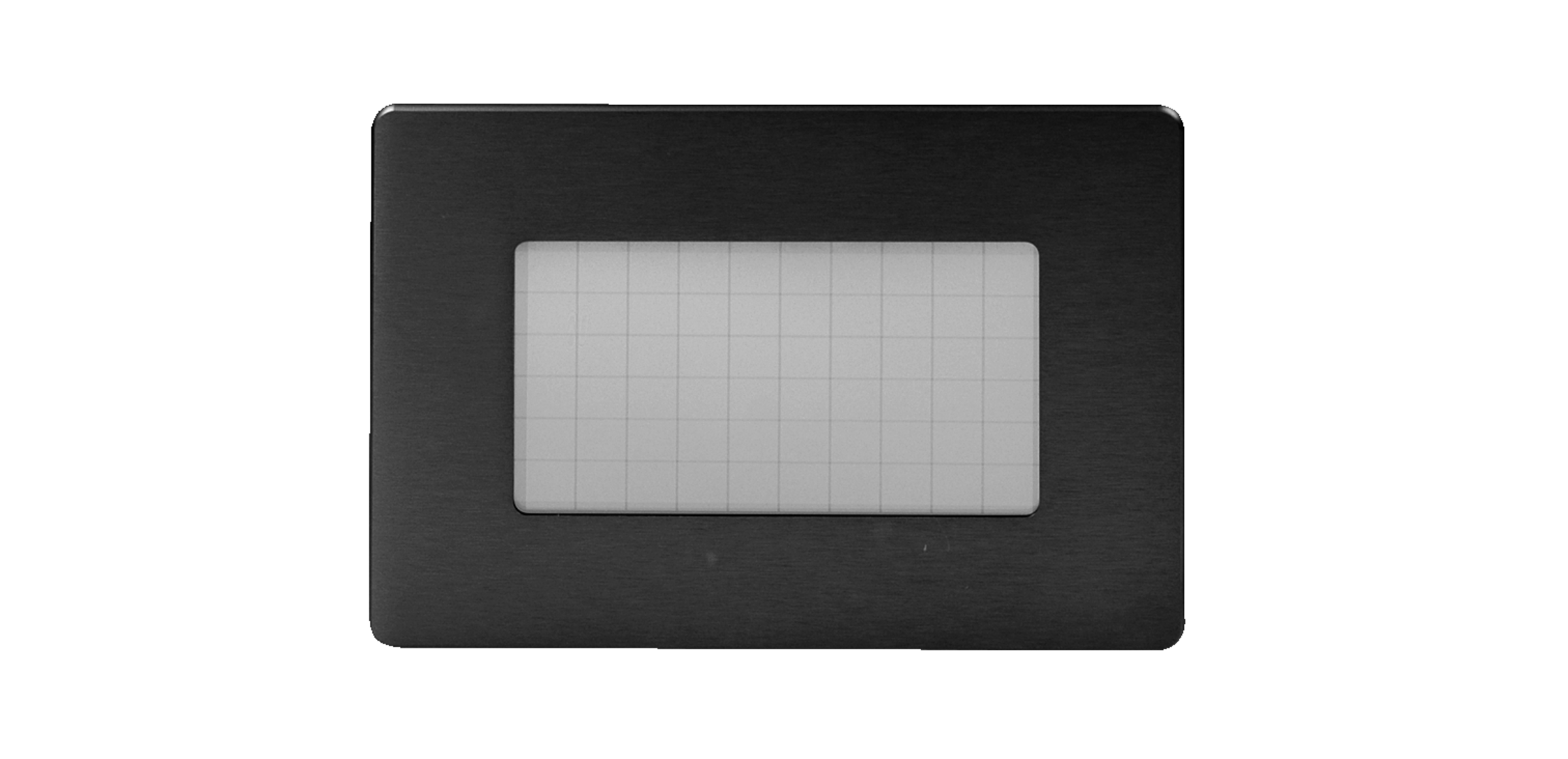

EAKIT240-7LWTK

DISPLAY VISIONS LCD Graphikmodule Kit STN 240x128 LED white

Manufacturer Part No.
EAKIT240-7LWTK
Schukat Part No.
EAKIT240-7LWTK
Manufacturer
DISPLAY VISIONS
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DISPLAY VISIONS
Type
  • LCD Graphikmodule Kit
Series
  • EAKIT_LWTK
Product group
  • W6251 DISPLAY VISIONS LCD-Graphics-Modules STN monochrome blue Bac
Module Width
  • 175 mm
Module Height
  • 124 mm
Module Thickeness
  • 37.5 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C

Electrical properties

Backlight Type
  • LED
Display Interface
  • RS232
Resolution (Pixel)
  • 240x128
Touch Panel
  • No Touch
Display-Technology
  • STN
Supply Voltage Min.
  • 5 V
Backlight Colour
  • white
Pixel Width
  • 0.4 mm
Pixel Heigth
  • 0.4 mm
