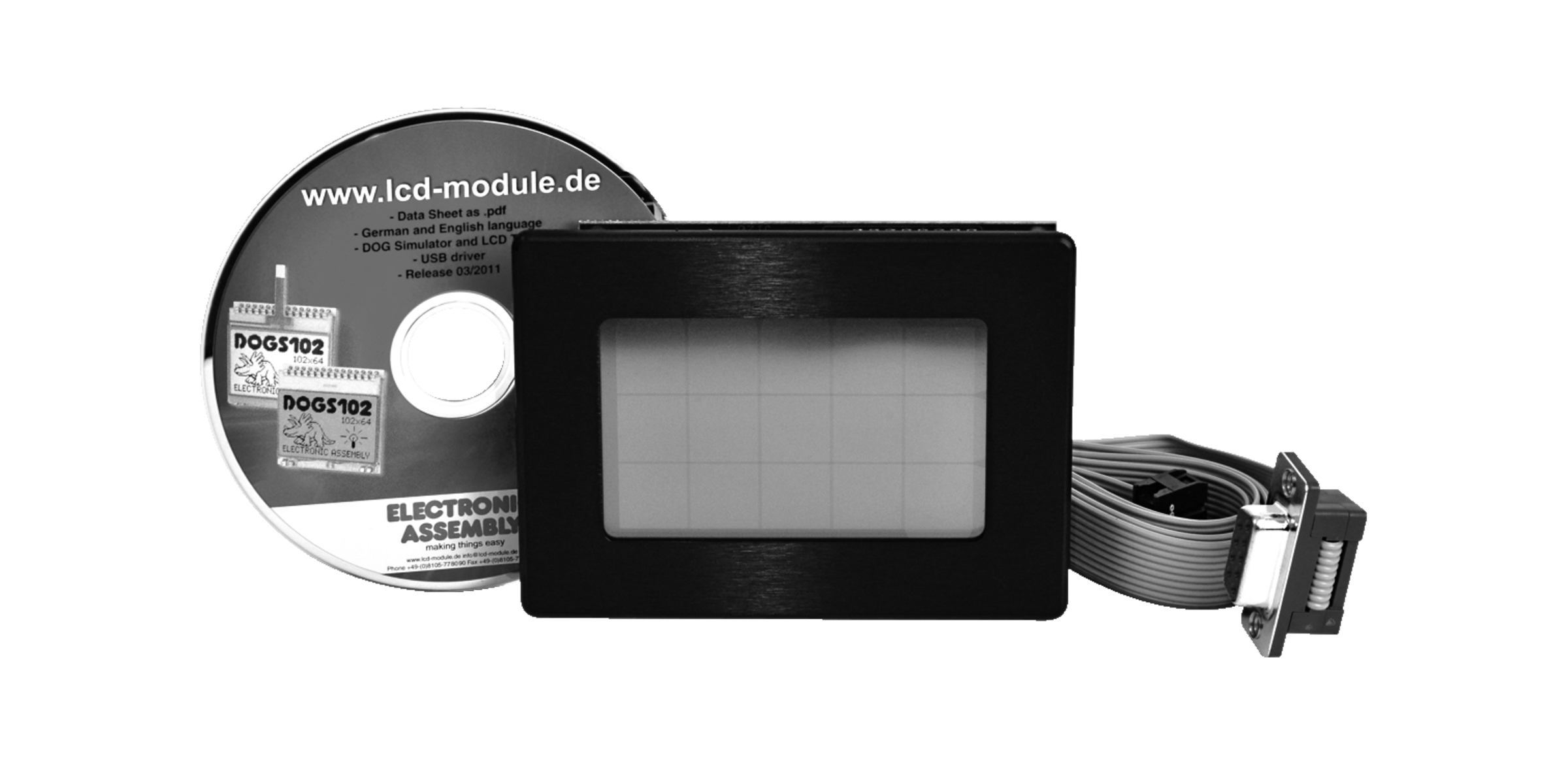

EAKIT129J-6LWTK

DISPLAY VISIONS LCD Graphikmodule Kit FSTN 128x64 LED white

Manufacturer Part No.
EAKIT129J-6LWTK
Schukat Part No.
EAKIT129J-6LWTK
Manufacturer
DISPLAY VISIONS
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DISPLAY VISIONS
Type
  • LCD Graphikmodule Kit
Series
  • EAKIT_LWTK
Product group
  • W6263 DISPLAY VISIONS LCD-Graphics-Modules FSTN monochrome white B
Module Width
  • 75 mm
Module Height
  • 60 mm
Module Thickeness
  • 26.4 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C

Electrical properties

Backlight Type
  • LED
Display Interface
  • RS232
Resolution (Pixel)
  • 128x64
Touch Panel
  • No Touch
Display-Technology
  • FSTN
Supply Voltage Min.
  • 5 V
Backlight Colour
  • white
Pixel Width
  • 0.42 mm
Pixel Heigth
  • 0.5 mm
