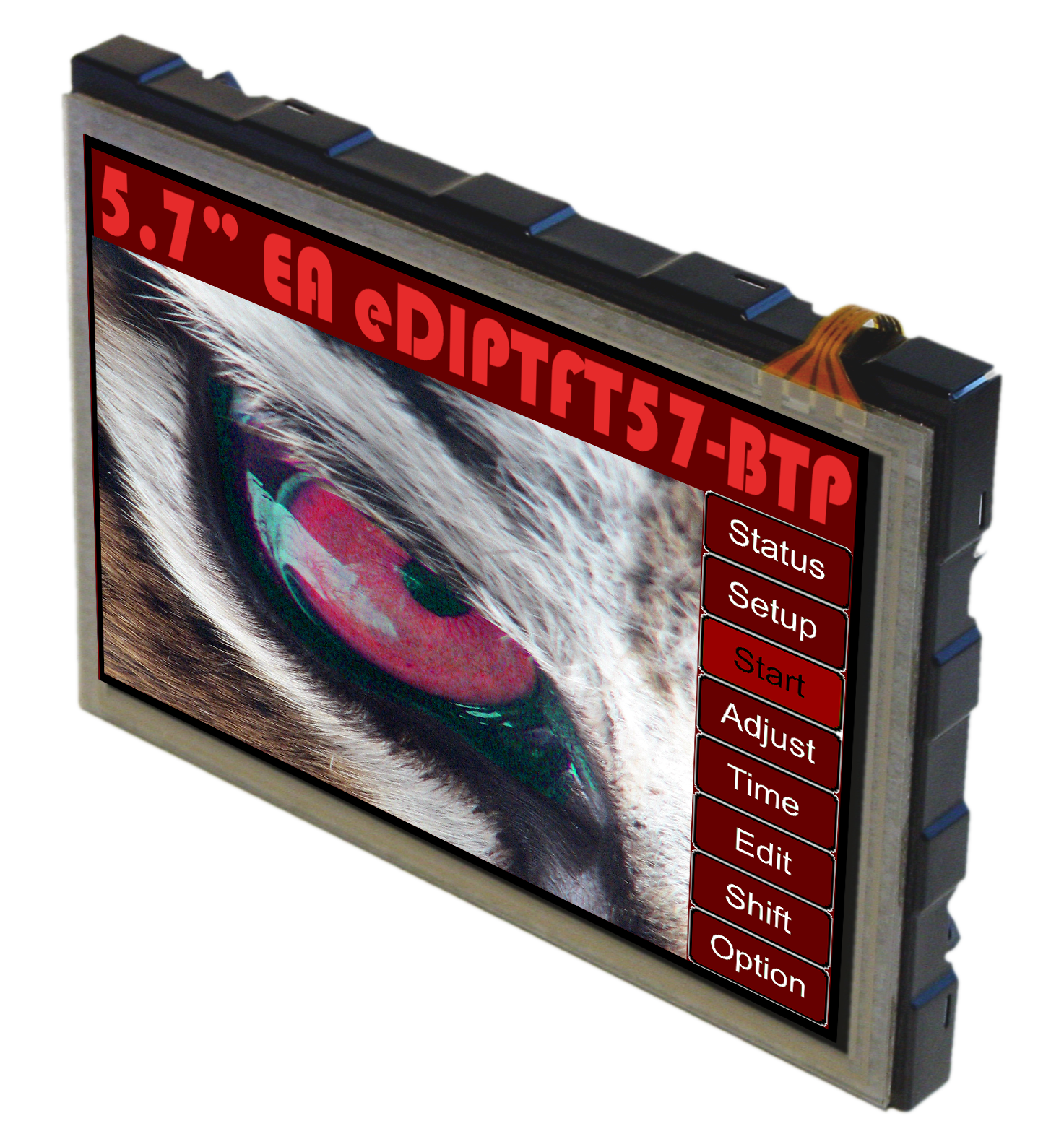

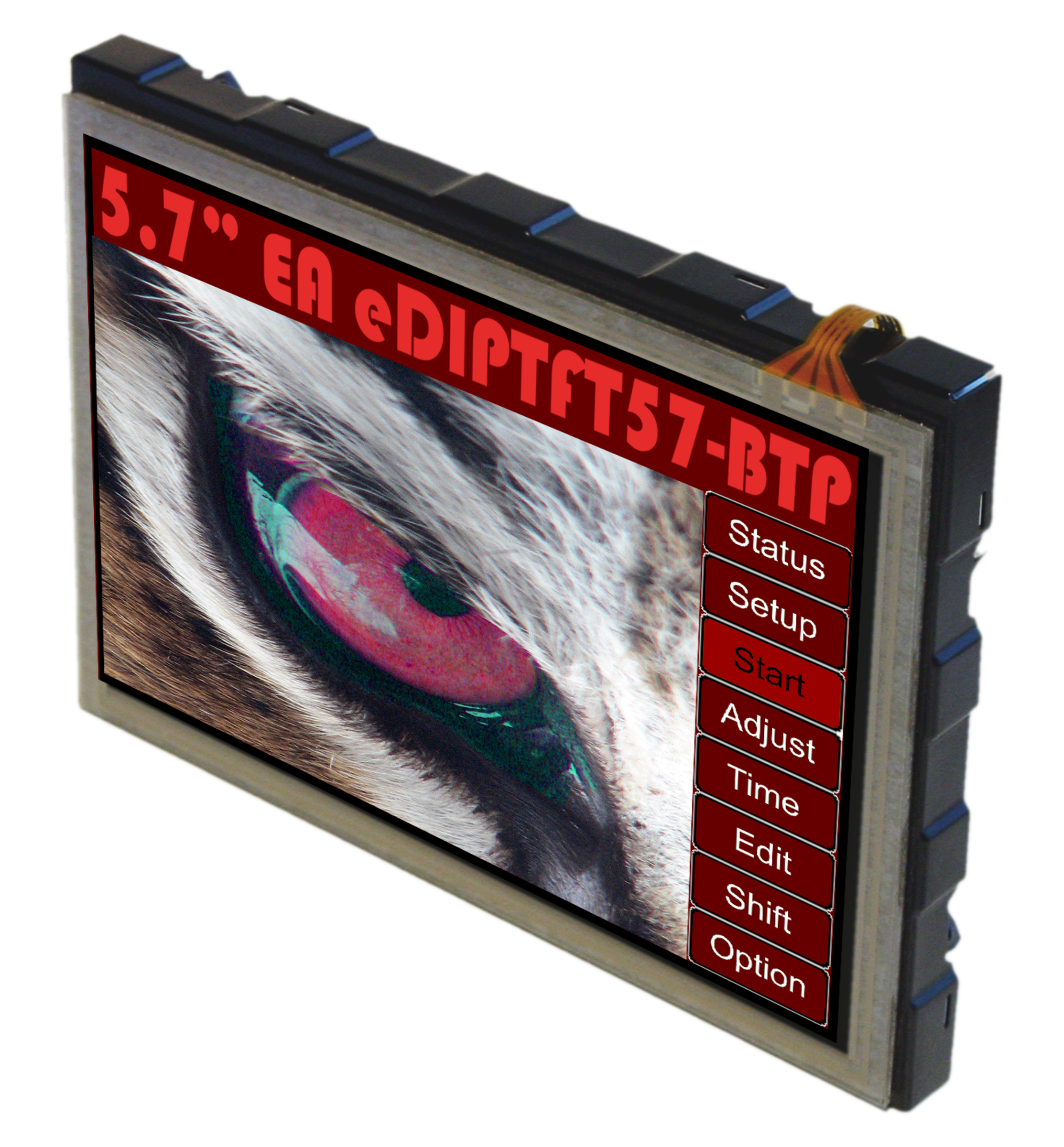

EAEDIPTFT57-BTP
DISPLAY VISIONS LCD Grafic Module TFT 640x480 LED white 530cd/m2
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Supply Voltage Min.
- 4.9 V
- Supply Voltage Max.
- 5.1 V
- Resolution (Pixel)
- 640x480
- Backlight Type
- LED
- Backlight Colour
- white
- Backlight Brightness
- 530 cd/m2
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Electrical properties
- Backlight Type
- LED
- Communication Interfaces
- I2C_1x
- RS232_1x
- SPI_1x
- Resolution (Pixel)
- 640x480
- Lighting Colour
- red, green, blue (RGB)
- Screen Diagonal
- 5.7 ''
- Display-Technology
- TFT
- Supply Voltage Min.
- 4.9 V
- Backlight Colour
- white
- Supply Voltage Max.
- 5.1 V
- Backlight Brightness
- 530 cd/m2
- Pixel Width
- 0.18 mm
