EAEDIP320J-8LATP

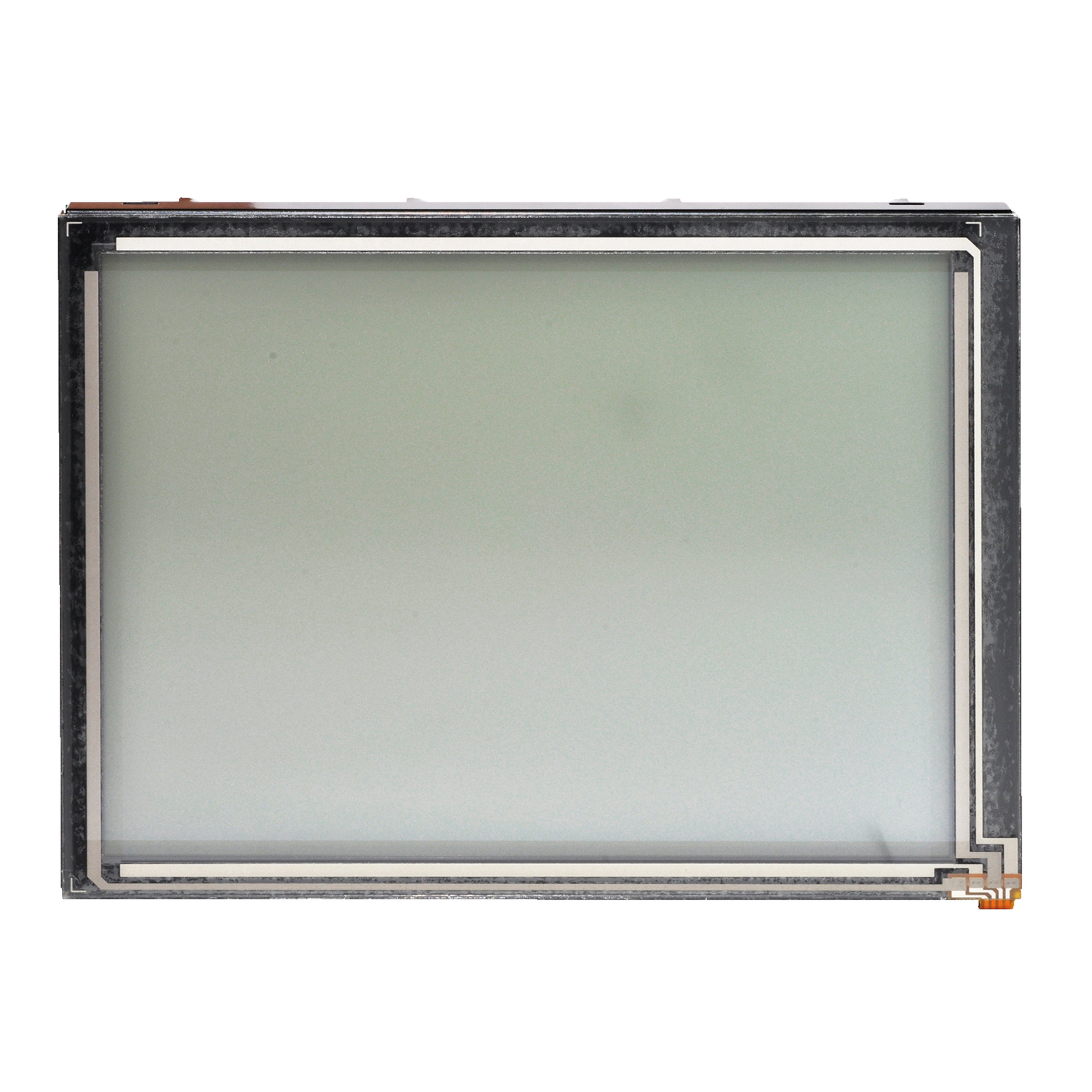

DISPLAY VISIONS LCD Graphic Module FSTN 320x240 LED amber
Manufacturer Part No.
EAEDIP320J-8LATP
Schukat Part No.
EAEDIP320J-8LATP
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.08.2023
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resolution (Pixel)
- 320x240
- Display Interface
- I2C
RS232
SPI - Supply Voltage Min.
- 5 V
- Backlight Type
- LED
- Backlight Colour
- amber
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Electrical Properties
- Backlight Type
- LED
- Display Interface
- I2C
- RS232
- SPI
- Resolution (Pixel)
- 320x240
- Touchscreen Interface
- Analog
- Display-Technology
- FSTN
- Supply Voltage Min.
- 5 V
- Backlight Colour
- amber
- Pixel Width
- 0.34 mm
- Pixel Heigth
- 0.34 mm
