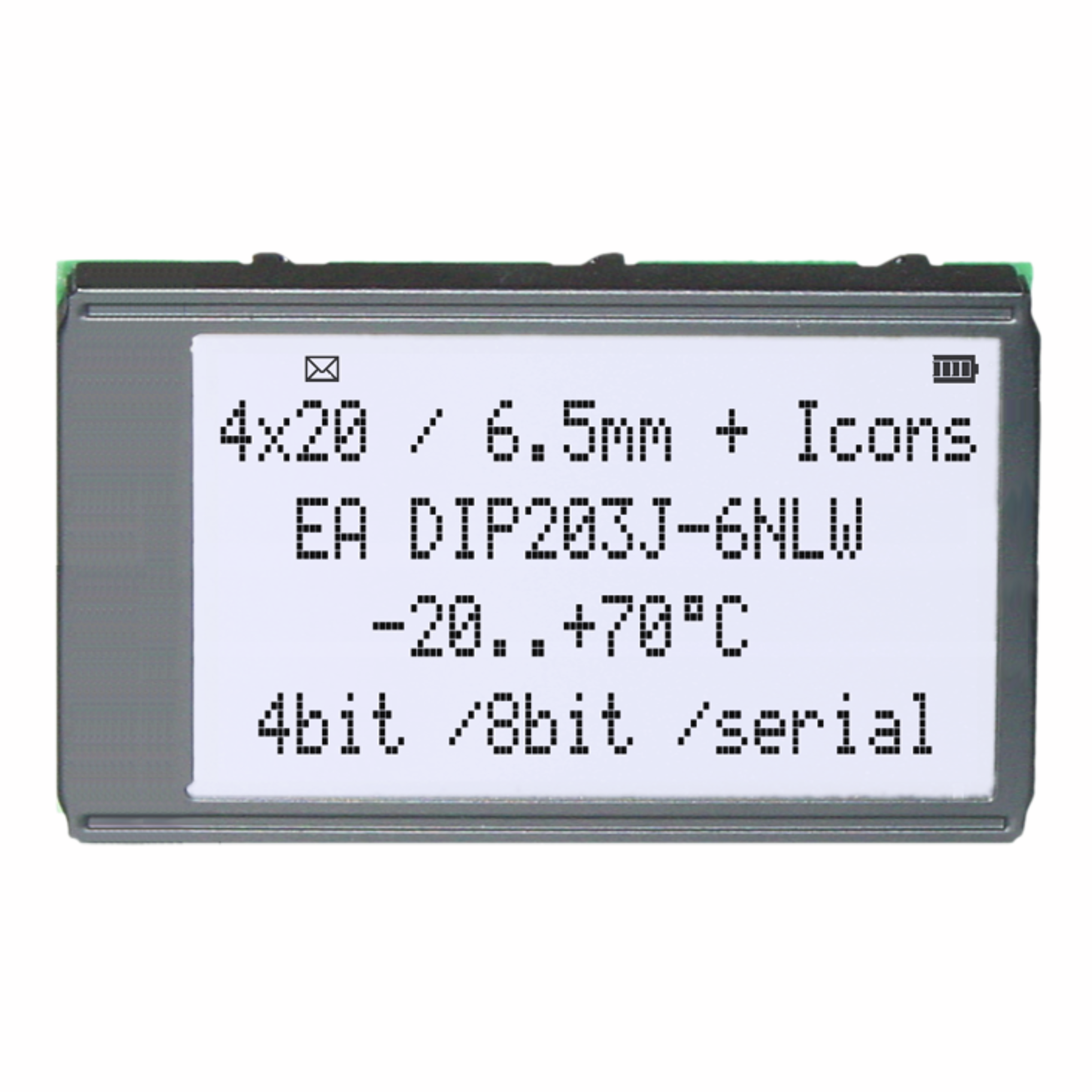

EADIP203J-6NLW
DISPLAY VISIONS LCD Module Dot Matrix 4x20 LED white
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.08.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 14 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Supply Voltage Min.
- 3.3 V
- Characters
- 4x20
- Backlight Type
- LED
- Backlight Colour
- white
- Active Area Heigth
- 38 mm
- Active Area Width
- 61 mm
- Character Heigth
- 6.45 mm
- Character Width
- 2.37 mm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Electrical Properties
- (Uf) Forward Voltage
- 3.3 V
- Characters
- 4x20
- (If) Forward Current
- 4 mA
- Backlight Type
- LED
- Display Controller
- SSD1803
- Display Interface
- 4-Bit-MCU
- 8-Bit-MCU
- SPI
- Active Area Heigth
- 38 mm
- Active Area Width
- 61 mm
- Supply Voltage Min.
- 3.3 V
- Backlight Colour
- white
- Character Heigth
- 6.45 mm
- Character Width
- 2.37 mm
- Character Set
- English
- Japanese
- Character Colour
- black
