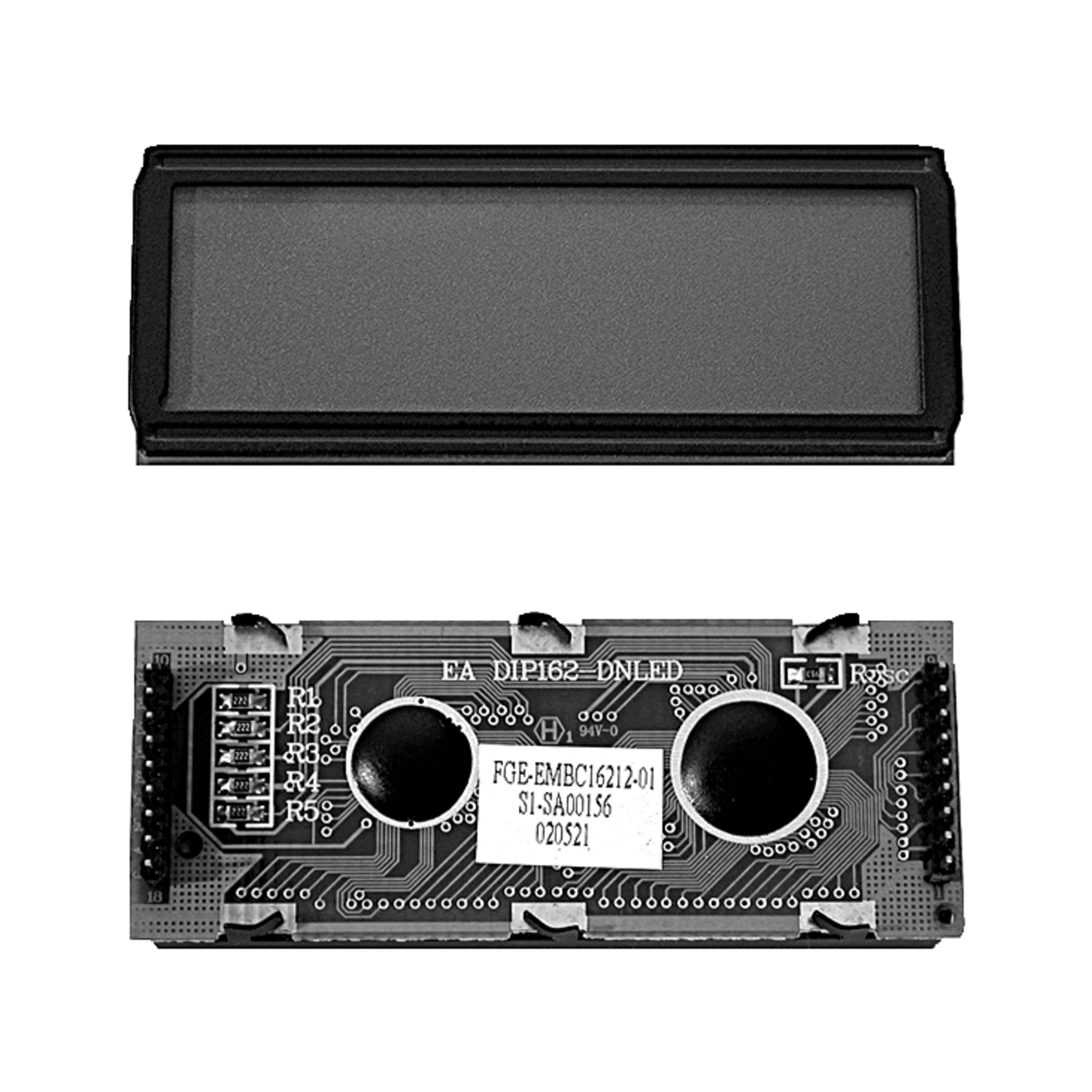

EADIP162-DNLED
DISPLAY VISIONS LCD Module Dot Matrix 16x2 LED yellow/green
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 28.11.2024
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Supply Voltage Min.
- 5 V
- Characters
- 16x2
- Backlight Type
- LED
- Backlight Colour
- yellow/green
- Active Area Heigth
- 19 mm
- Active Area Width
- 61 mm
- Character Heigth
- 6.68 mm
- Character Width
- 2.96 mm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 50 °C
Electrical Properties
- (Uf) Forward Voltage for Backlighting
- 4.1 V
- Characters
- 16x2
- (If) Forward Current for Backlighting
- 150 mA
- Backlight Type
- LED
- Display Controller
- HD44780
- Display Interface
- 4-Bit-MCU
- 8-Bit-MCU
- Active Area Heigth
- 19 mm
- Active Area Width
- 61 mm
- Supply Voltage Min.
- 5 V
- Backlight Colour
- yellow/green
- Character Heigth
- 6.68 mm
- Character Width
- 2.96 mm
- Character Set
- English
- Japanese
- Character Colour
- black
Documents
EOL_EA DIP162-DNLED EOL 2024_11_28_EN.pdf
