EADEMOPACK-RELAY

DISPLAY VISIONS DEMOPACK for driving relay 5V 30V

Manufacturer Part No.
EADEMOPACK-RELAY
Schukat Part No.
EADEMOPACK-RELAY
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
5 V
Supply Voltage Max.
30 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DISPLAY VISIONS
Type
  • DEMOPACK for driving relay
Series
  • EADEMOPACK
Features

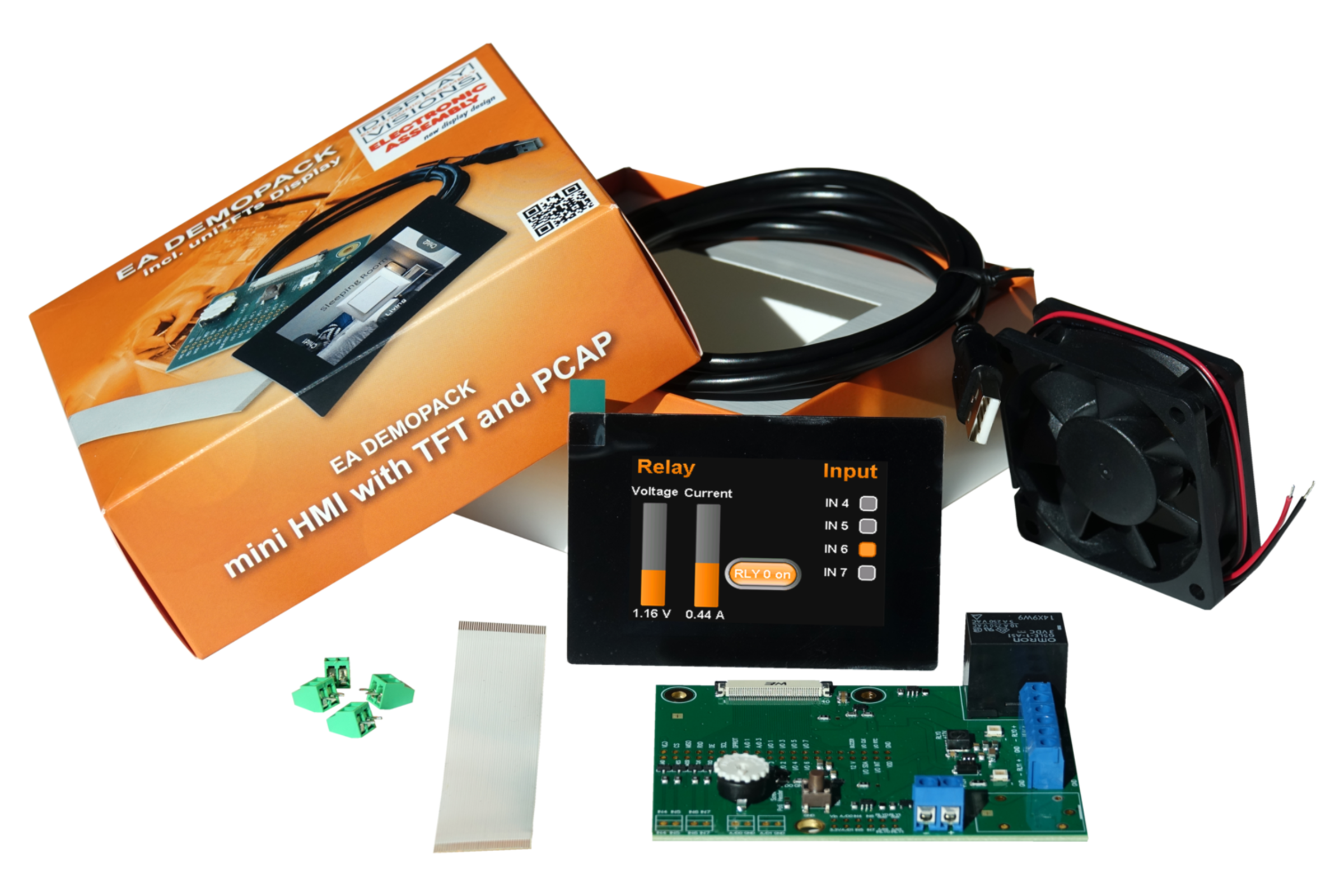

  • Demo application for controlling a relay with current measurement up to ±5A. Analog and digital inputs. With integrated voltage regulator for 5~30V (reverse polarity protected). Incl. miniature touch panel (PCAP) 2,8" TFT with graphic functions, memory and touch panel support. Programmable as stand-alone with inputs and outputs. With USB, RS-232, I²C and SPI. Move objects on the display, change measured values while they are displayed, automatically zoom in on important parameters, smoothly show and hide controls. Easily create screens from Windows using uniTFTDesigner. Includes: Miniature touch panel EA uniTFTs028-ATC, assembled add-on board, USB cable, flex cable, headers and a fan.

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 70 °C

Electrical properties

Supply Voltage Min.
  • 5 V
Supply Voltage Max.
  • 30 V
