EA8081-A3N

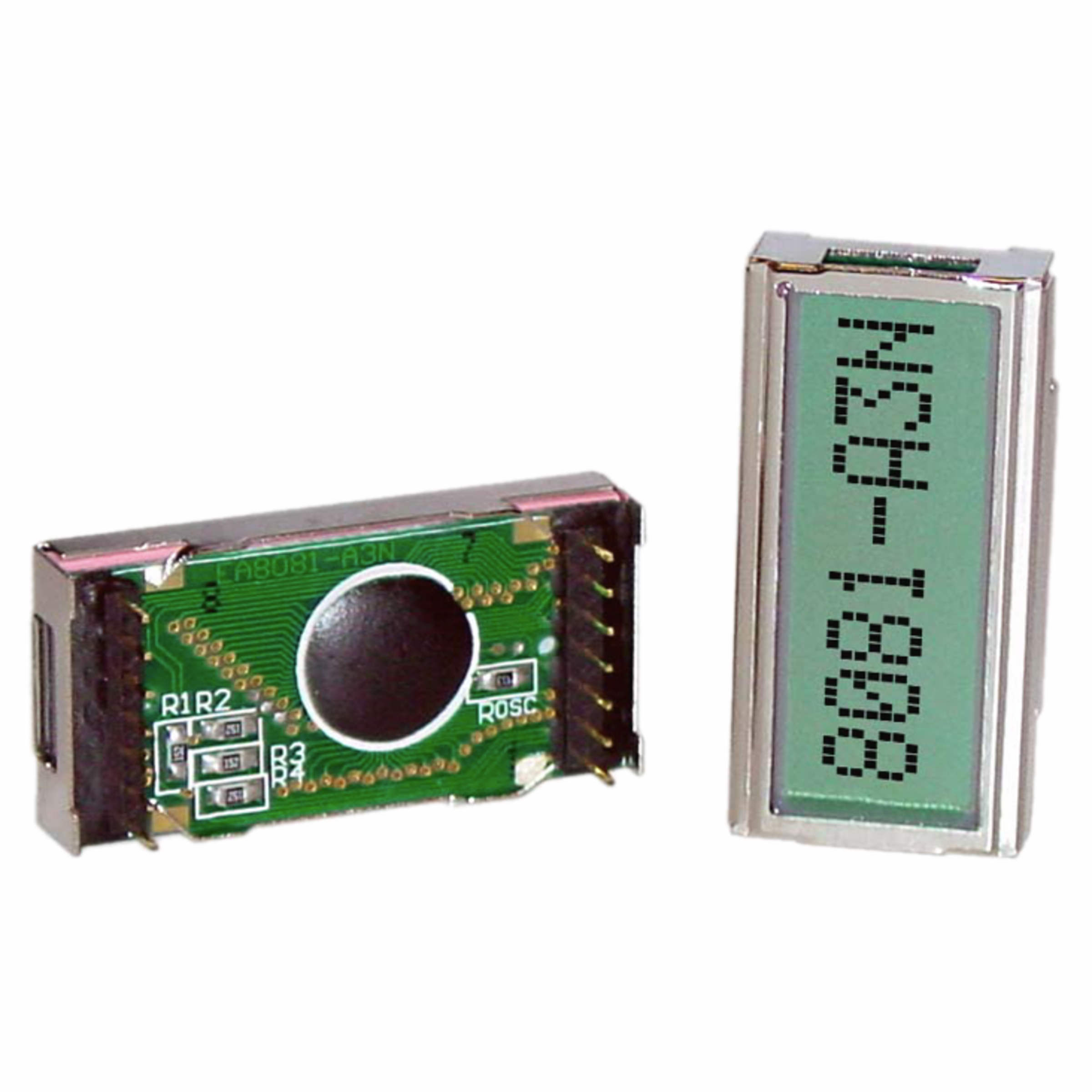

DISPLAY VISIONS LCD Module Dot Matrix 8x1 No Backlight

Manufacturer Part No.
EA8081-A3N
Schukat Part No.
EA8081-A3N
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

55 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
5 V
Characters
8x1
Backlight Type
No Backlight
Active Area Heigth
13.9 mm
Active Area Width
36.3 mm
Character Heigth
7.15 mm
Character Width
2.95 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DISPLAY VISIONS
Type
  • LCD Module
Kind
  • Dot Matrix
Series
  • EA8081
Product group
  • W4741 DISPLAY VISIONS LCD-Dot-Matrix-Modules reflective grey Backg
Module Width
  • 40 mm
Module Height
  • 20 mm
Module Thickeness
  • 7.8 mm

Operating conditions

Operating Temperature Min.
  • 0 °C
Operating Temperature Max.
  • 50 °C

Electrical properties

Characters
  • 8x1
Backlight Type
  • No Backlight
Display Controller
  • ST7066
Display Interface
  • 4-Bit-MCU
  • 8-Bit-MCU
Active Area Heigth
  • 13.9 mm
Active Area Width
  • 36.3 mm
Supply Voltage Min.
  • 5 V
Character Heigth
  • 7.15 mm
Character Width
  • 2.95 mm
Character Set
  • English
  • Japanese
Character Colour
  • black
