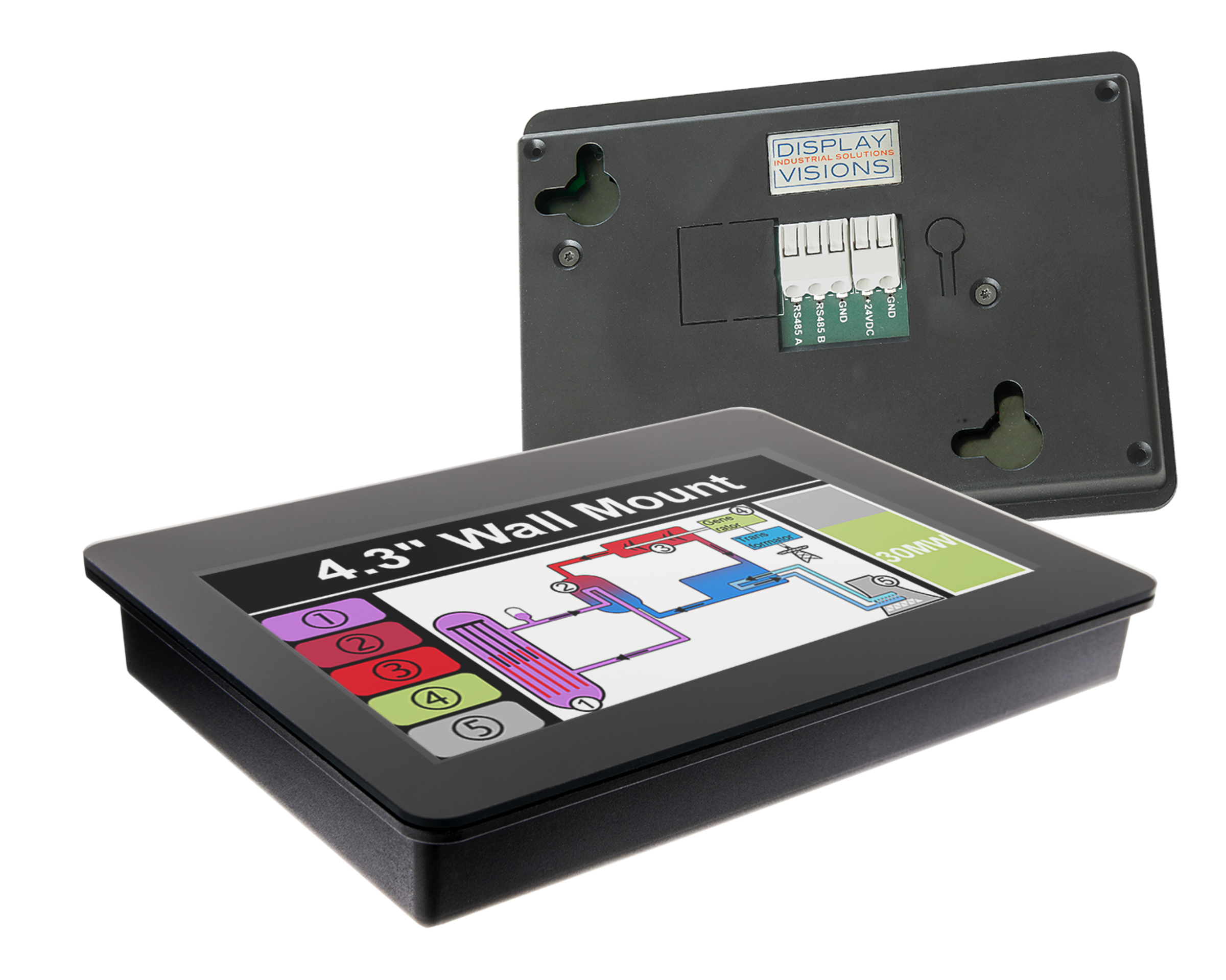

EA PLCS43-DS

DISPLAY VISIONS Satellite Touchpanel TFT 480x272 LED white 1.000cd/m2

Image similar
NEW
Manufacturer Part No.
EA PLCS43-DS
Schukat Part No.
EA PLCS43-DS
Manufacturer
DISPLAY VISIONS
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Supply Voltage Min.
5 V
Supply Voltage Max.
30 V
Resolution (Pixel)
480x272
Backlight Type
LED
Backlight Colour
white
Backlight Brightness
1,000 cd/m2
Touch Panel
Projective Touch
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DISPLAY VISIONS
Type
  • Satellite Touchpanel
Series
  • EA PLCS43
Assembly Type
  • Screw connection and clamp mounting
Module Width
  • 114 mm
Module Height
  • 84 mm
Module Thickeness
  • 15.5 mm
Features

  • 4.3" satellite display for small control units of the EA SPS series. With capacitive touch panel and almost 1000 cd/m² brightness exceptionally brilliant. With housing for wall mounting or integration into a front panel. Supply 5~30V=. As accessories, especially for the first tests, we offer a Y-cable and a USB<->RS485 adapter

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 50 °C

Electrical properties

Backlight Type
  • LED
Resolution (Pixel)
  • 480x272
Lighting Colour
  • red, green, blue (RGB)
Touch Panel
  • Projective Touch
Screen Diagonal
  • 4.3 ''
Display-Technology
  • TFT
Supply Voltage Min.
  • 5 V
Backlight Colour
  • white
Supply Voltage Max.
  • 30 V
Backlight Brightness
  • 1,000 cd/m2
Pixel Width
  • 0.198 mm
Pixel Heigth
  • 0.198 mm
