EA PLCC28-D8I4R4AR

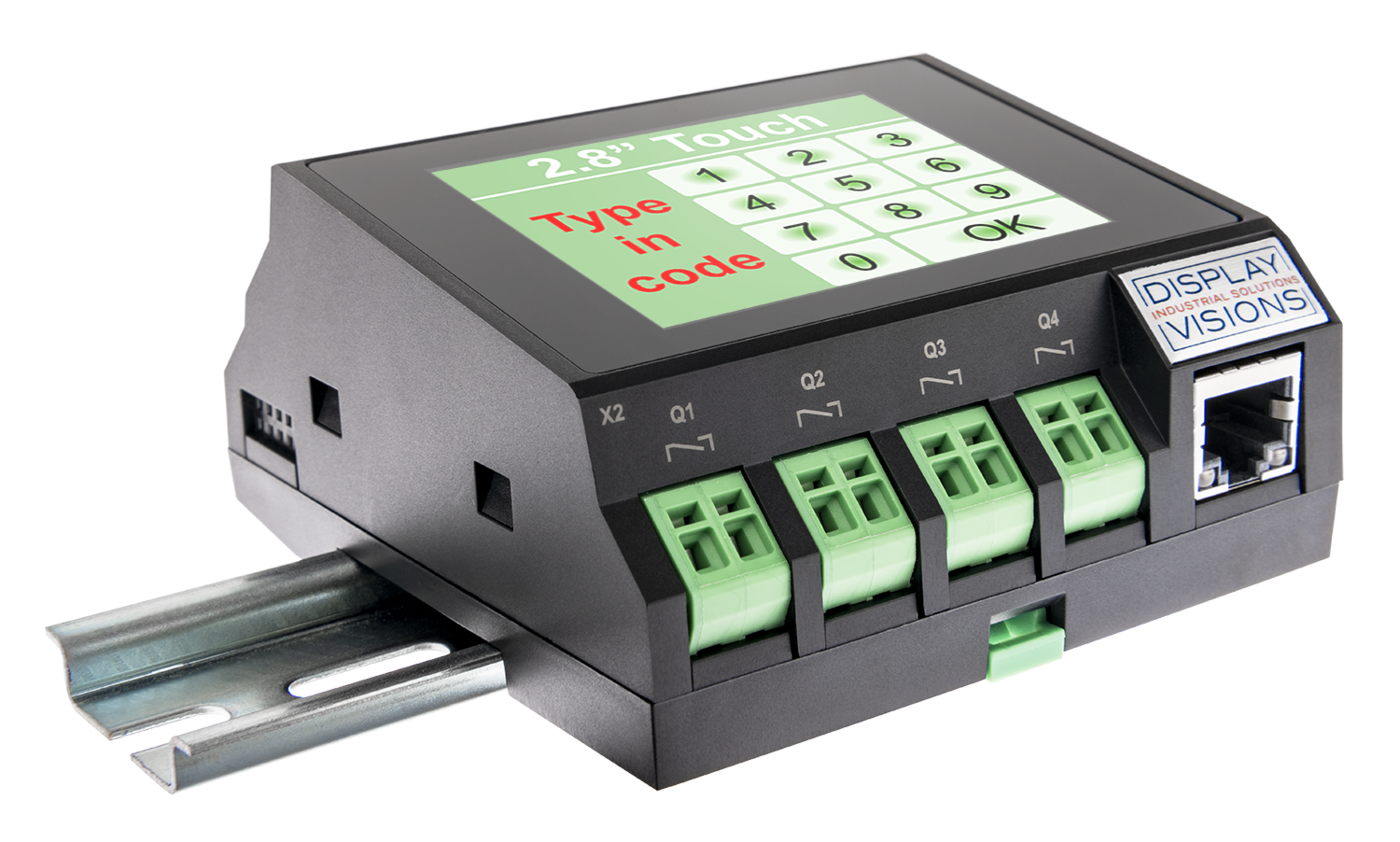

DISPLAY VISIONS Compact SPS Touch TFT 320x240 LED white

Image similar
NEW
Manufacturer Part No.
EA PLCC28-D8I4R4AR
Schukat Part No.
EA PLCC28-D8I4R4AR
Manufacturer
DISPLAY VISIONS
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Resolution (Pixel)
320x240
Backlight Type
LED
Backlight Colour
white
Touch Panel
Projective Touch
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DISPLAY VISIONS
Type
  • Compact SPS Touch
Series
  • EA PLCC28
Product group
  • W6859 DISPLAY VISIONS LCD-Grafikmodule TFT Coloured With Touch Pan
Assembly Type
  • Screw connection and clamp mounting
Module Width
  • 89 mm
Module Height
  • 90 mm
Module Thickeness
  • 46.6 mm
Features

  • Compact PLC controller with 2.8" display and touch. For control and visualisation of smaller systems. 8 digital inputs, 4 analogue inputs, RS-232, 4 relays. For communication with satellite displays via WLAN/WiFi or RS-485. Mounting on top-hat rail. IPS technology for extremely wide viewing angle and colour fidelity. As accessories, especially for the first tests, we offer a Y-cable and a USB<->RS485 adapter.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 50 °C

Electrical properties

Backlight Type
  • LED
Resolution (Pixel)
  • 320x240
Lighting Colour
  • red, green, blue (RGB)
Touch Panel
  • Projective Touch
Screen Diagonal
  • 2.8 ''
Display-Technology
  • TFT
Backlight Colour
  • white
Pixel Width
  • 0.18 mm
Pixel Heigth
  • 0.18 mm
