Results (112)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Contact Type | Design | Contact Type | Locking Type | Housing | Alignment | Number of poles | Contact Surface Input | IP Protection Class Front Side | Standards | Housing material | Insulating body | Class of Inflammability | Connector Contact | IP Class Connection Side | Dimension: Length | Dimension: Width | Dimension: Height | Dimension: Depth | Conductor cross-section, max. | Rated current | Rated voltage AC | Rated voltage DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

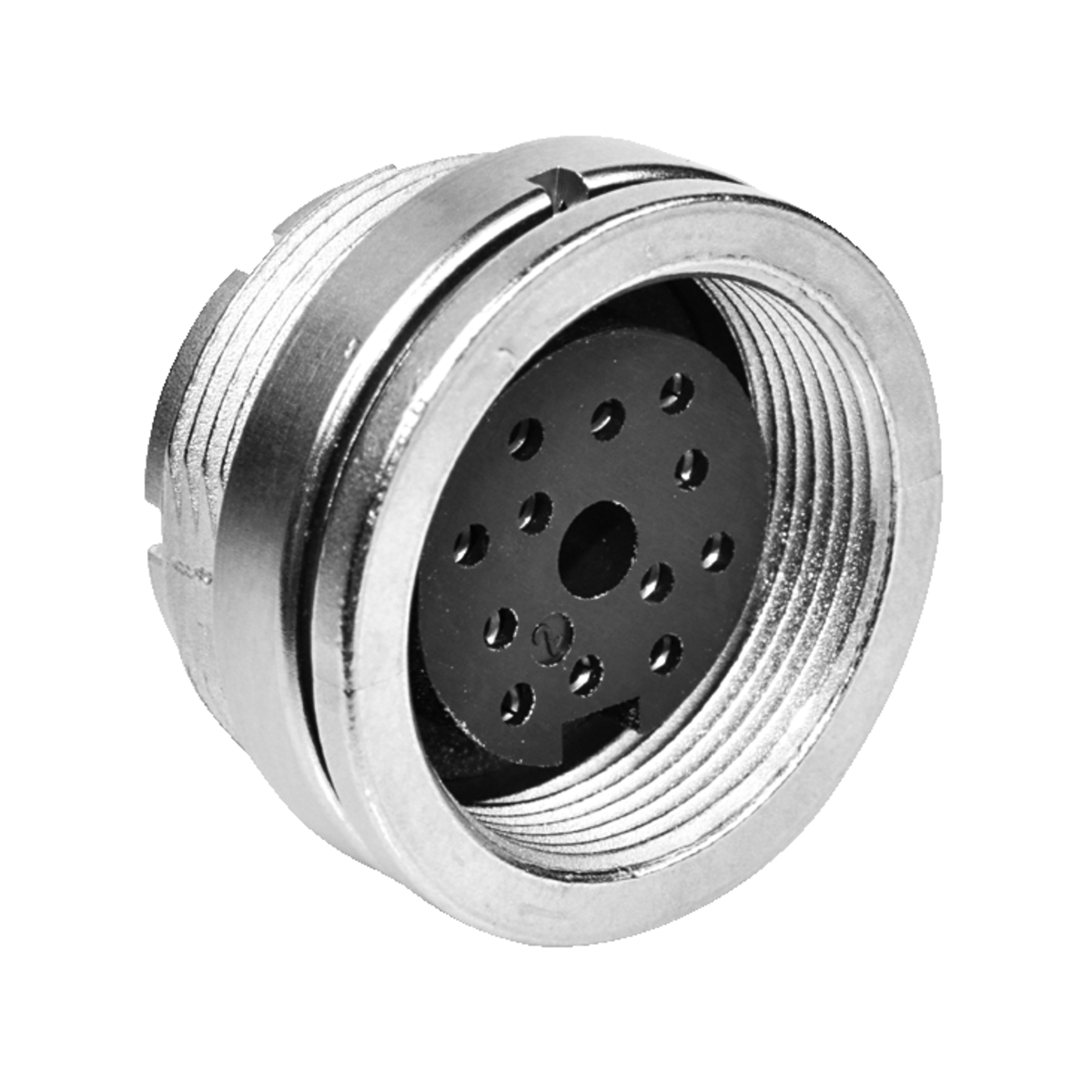

26 |  | Manufacturers Part No. 09 0132 00 12(BIN09-0132-0012) Binder M16 plug connector 723 Panel M16 Screw round straight 12 Pole Solder shielded | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 1 or mul. of 1) | Binder | M16 plug connector | Socket | Panel | Socket | Screw | round | straight | 12 | vergoldet | IP67 | DIN EN 61076-2-106 | Zinc Die-Cast nickel-plated | Polybutylenterephthalat (PBT) | UL 94 V-0 | Solder | IP67 | 11.7 mm | 0.25 mm² | 3.0 A | 60.0 V AC | |||||||||

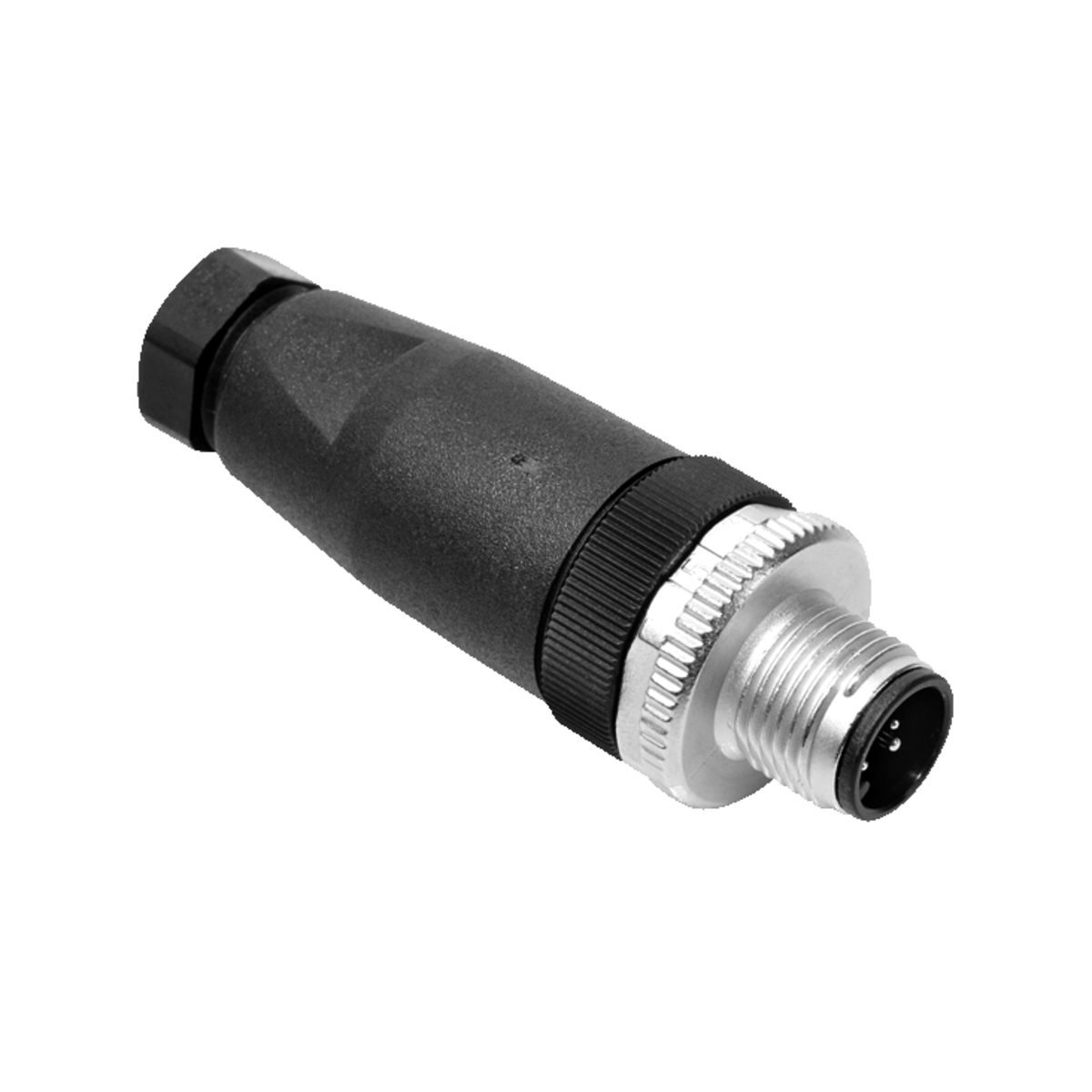

27 | | Manufacturers Part No. 99 0429 14 04(BIN99-0429-1404) Binder M16 plug connector 713 Cable M12 Screw round straight 4 Pole Screw unshielded | Customer Part No. Customer Project No. | 29 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 1 or mul. of 1) | Binder | M16 plug connector | Plug | Cable | Plug | Screw | round | straight | 4 | Optalloy | IP67 | DIN EN 61076-2-101 | Polyamide (PA) | Polyamide (PA) | Screw | IP67 | 60.0 mm | 0.75 mm² | 4.0 A | 250.0 V AC | ||||||||||
28 | | Manufacturers Part No. 99 0437 14 05(BIN99-0437-1405) Binder M12 plug connector 713 Cable M12 Screw round straight 5 Pole Screw unshielded | Customer Part No. Customer Project No. | 32 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 1 or mul. of 1) | Binder | M12 plug connector | Plug | Cable | Plug | Screw | round | straight | 5 | Optalloy | IP67 | DIN EN 61076-2-101 | Polyamide (PA) | Polyamide (PA) | Screw | IP67 | 60.0 mm | 0.75 mm² | 4.0 A | 60.0 V AC | ||||||||||

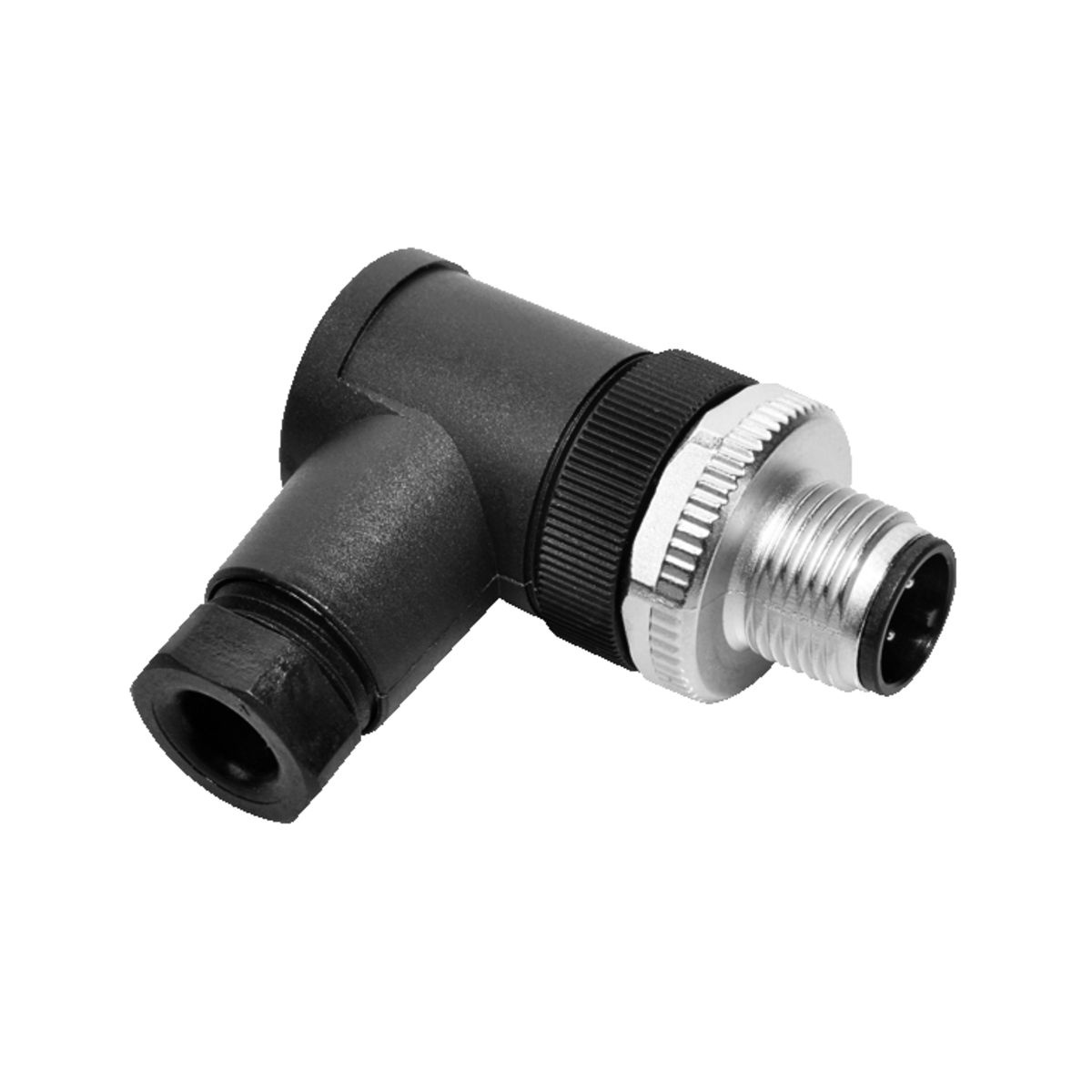

29 | | Manufacturers Part No. 99 0429 24 04(BIN99-0429-2404) Binder M12 plug connector 713 Cable M12 Screw round angled 4 Pole Screw unshielded | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 10 or mul. of 10) | Binder | M12 plug connector | Plug | Cable | Plug | Screw | round | angled | 4 | Optalloy | IP67 | DIN EN 61076-2-101 | Polyamide (PA) | Polyamide (PA) | Screw | IP67 | 41.0 mm | 40.0 mm | 0.75 mm² | 4.0 A | 250.0 V AC | |||||||||
30 | | Manufacturers Part No. 99 0437 24 05(BIN99-0437-2405) Binder M12 plug connector 713 Cable M12 Screw round angled 5 Pole Screw unshielded | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 10 or mul. of 10) | Binder | M12 plug connector | Plug | Cable | Plug | Screw | round | angled | 5 | Optalloy | IP67 | DIN EN 61076-2-101 | Polybutylenterephthalat (PBT) | Polyamide (PA) | Screw | IP67 | 41.0 mm | 40.0 mm | 0.75 mm² | 4.0 A | 60.0 V AC | |||||||||

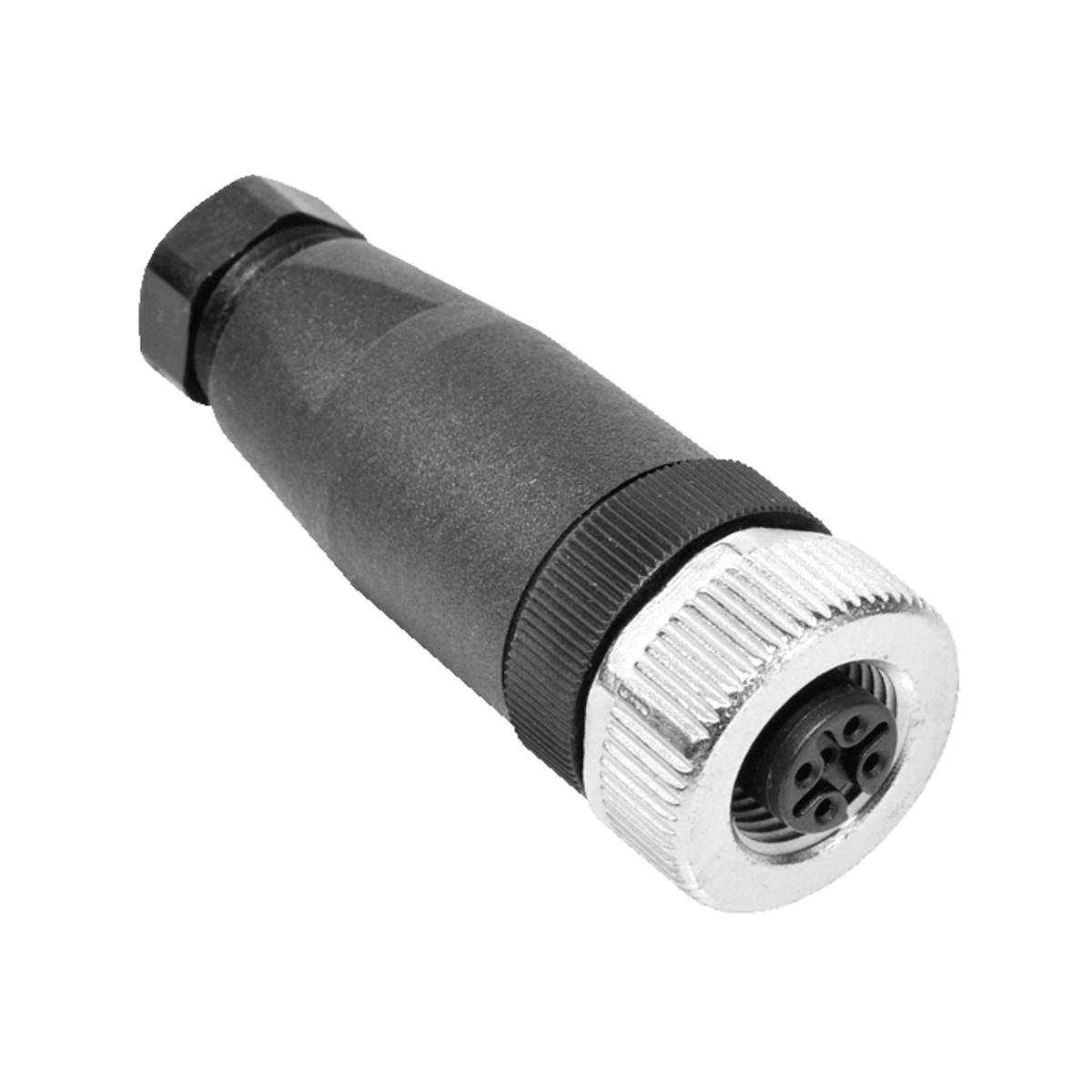

31 | | Manufacturers Part No. 99 0430 14 04(BIN99-0430-1404) Binder M12 plug connector 713 Cable M12 Screw round straight 4 Pole Screw unshielded | Customer Part No. Customer Project No. | 52 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 1 or mul. of 1) | Binder | M12 plug connector | Socket | Cable | Socket | Screw | round | straight | 4 | Optalloy | IP67 | DIN EN 61076-2-101 | Polyamide (PA) | Polyamide (PA) | Screw | IP67 | 54.0 mm | 0.75 mm² | 4.0 A | 250.0 V AC | ||||||||||
32 | | Manufacturers Part No. 99 0436 14 05(BIN99-0436-1405) Binder M12 plug connector 713 Cable M12 Screw round straight 5 Pole Screw unshielded | Customer Part No. Customer Project No. | 21 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 1 or mul. of 1) | Binder | M12 plug connector | Socket | Cable | Socket | Screw | round | straight | 5 | Optalloy | IP67 | DIN EN 61076-2-101 | Polyamide (PA) | Polyamide (PA) | Screw | IP67 | 54.0 mm | 0.75 mm² | 4.0 A | 60.0 V AC | ||||||||||
33 | | Manufacturers Part No. 99 0430 24 04(BIN99-0430-2404) Binder M12 plug connector 713 Cable M12 Screw round angled 4 Pole Screw unshielded | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Binder | M12 plug connector | Socket | Cable | Socket | Screw | round | angled | 4 | Optalloy | IP67 | DIN EN 61076-2-101 | Polybutylenterephthalat (PBT) | Polyamide (PA) | Screw | IP67 | 35.0 mm | 40.0 mm | 0.75 mm² | 4.0 A | 250.0 V AC | |||||||||

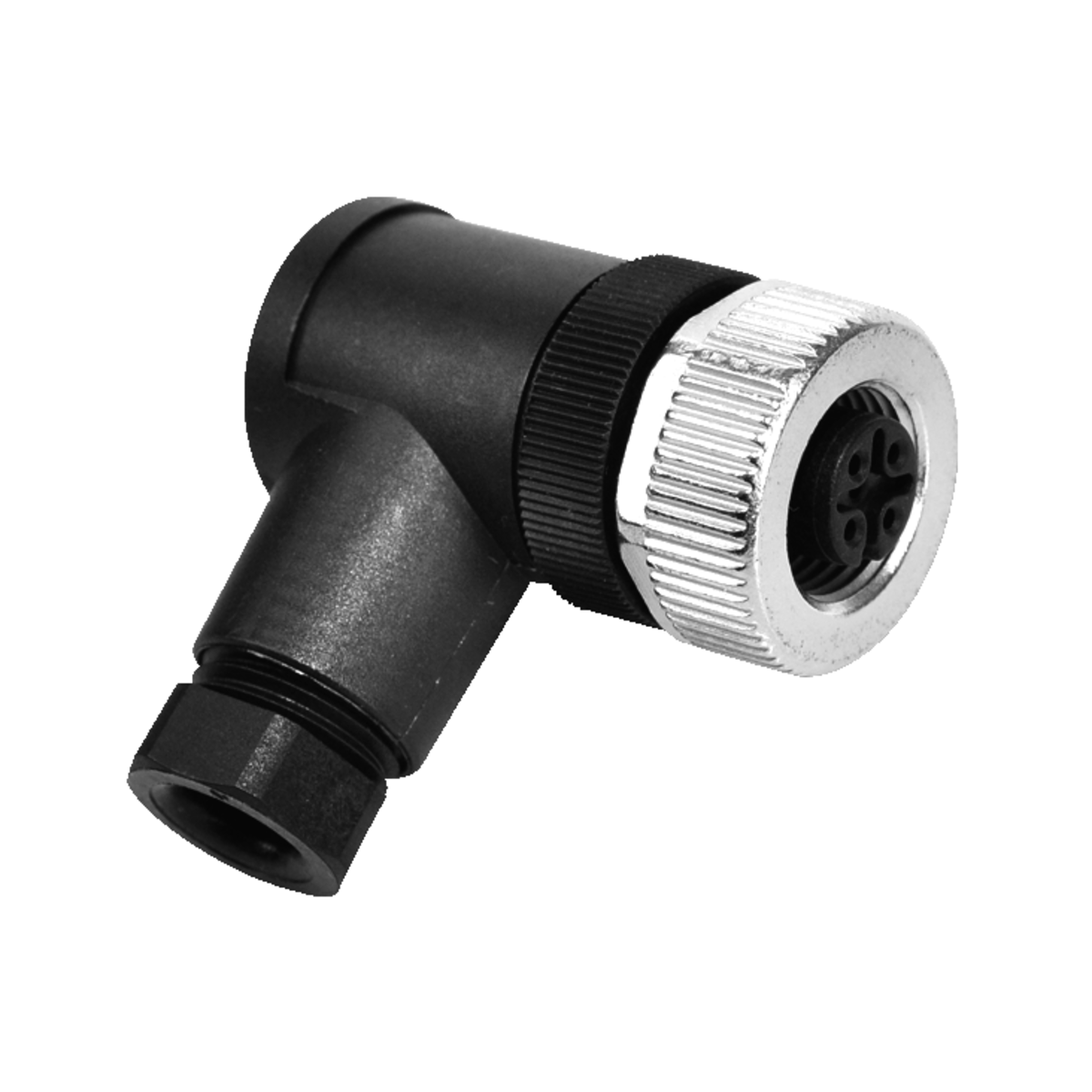

34 | | Manufacturers Part No. 99 0436 24 05(BIN99-0436-2405) Binder M12 plug connector 713 Cable M12 Screw round angled 5 Pole Screw unshielded | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 10 or mul. of 10) | Binder | M12 plug connector | Socket | Cable | Socket | Screw | round | angled | 5 | Optalloy | IP67 | DIN EN 61076-2-101 | Polybutylenterephthalat (PBT) | Polyamide (PA) | Screw | IP67 | 35.0 mm | 40.0 mm | 0.75 mm² | 4.0 A | 60.0 V AC | |||||||||

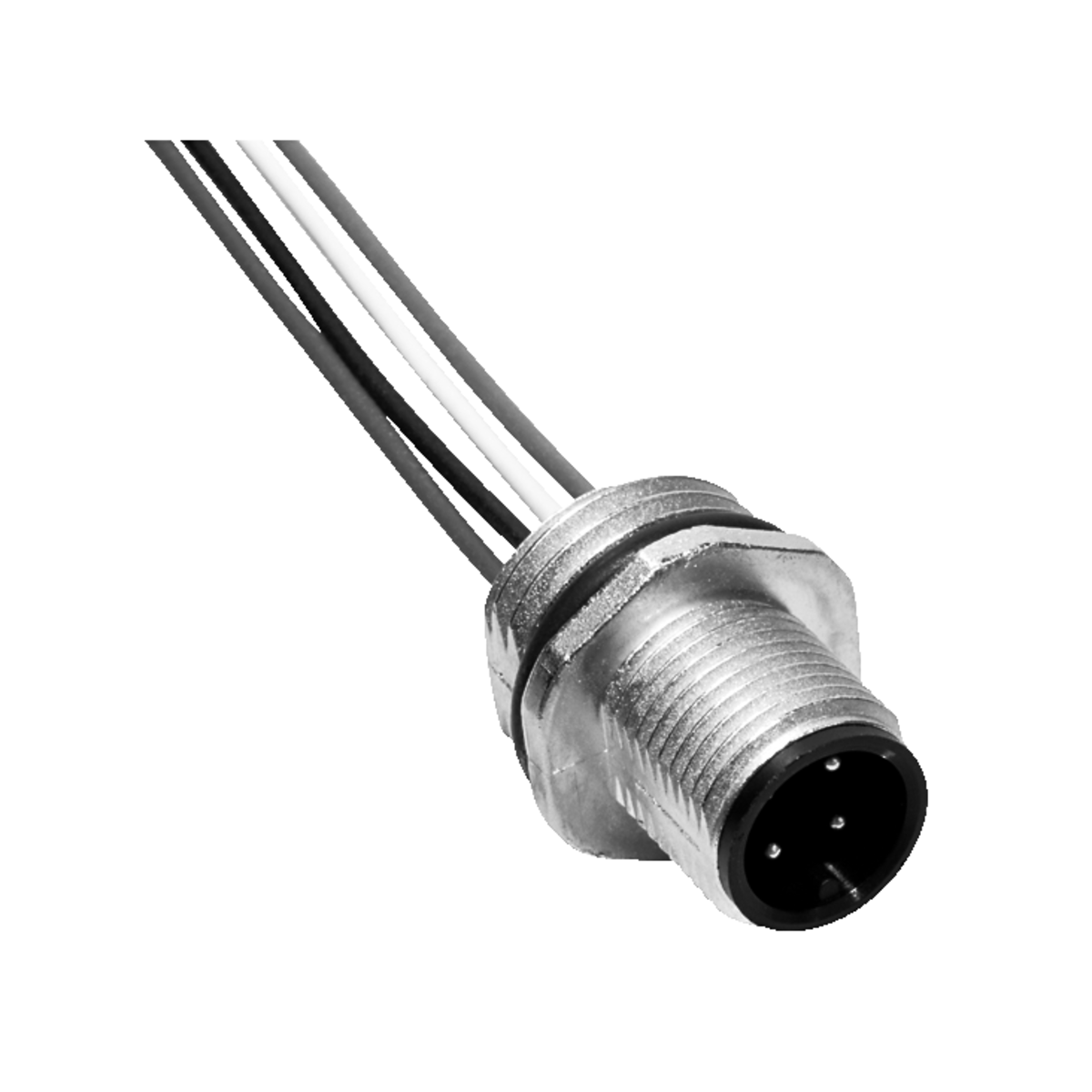

35 | | Manufacturers Part No. 09 3431 700 04(BIN09-3431-70004) Binder M12 plug connector 763 Panel M12 Screw round straight 4 Pole Solder unshielded | Customer Part No. Customer Project No. | 19 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 1 or mul. of 1) | Binder | M12 plug connector | Plug | Panel | Plug | Screw | round | straight | 4 | vergoldet | IP68 | DIN EN 61076-2-101 | Zinc Die-Cast nickel-plated | Polyamide (PA) | Solder | IP68 | 20.0 mm | 0.25 mm² | 4.0 A | 250.0 V AC | ||||||||||
36 | | Manufacturers Part No. 09 3441 700 05(BIN09-3441-70005) Binder M12 plug connector 763 Panel M12 Screw round straight 5 Pole Solder unshielded | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Binder | M12 plug connector | Plug | Panel | Plug | Screw | round | straight | 5 | vergoldet | IP68 | DIN EN 61076-2-101 | Zinc Die-Cast nickel-plated | Polyamide (PA) | Solder | IP68 | 20.0 mm | 0.25 mm² | 4.0 A | 60.0 V AC | ||||||||||
37 | | Manufacturers Part No. 09 3432 700 04(BIN09-3432-70004) Binder M12 plug connector 763 Panel M12 Screw round straight 4 Pole Solder unshielded | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 1 or mul. of 1) | Binder | M12 plug connector | Socket | Panel | Socket | Screw | round | straight | 4 | vergoldet | IP68 | DIN EN 61076-2-101 | Zinc Die-Cast nickel-plated | Polyamide (PA) | Solder | IP68 | 19.5 mm | 0.25 mm² | 4.0 A | 250.0 V AC | ||||||||||

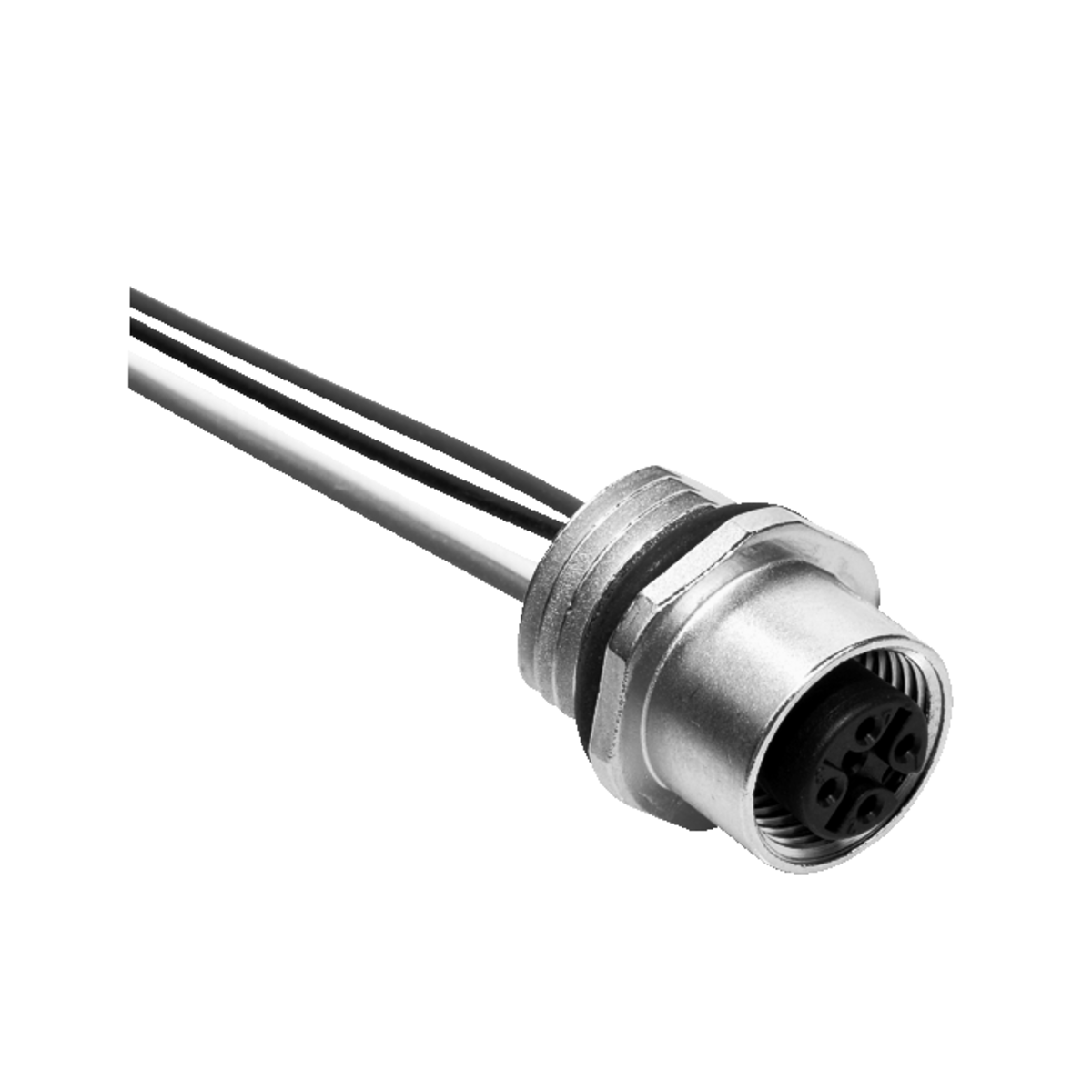

38 | | Manufacturers Part No. 09 3442 700 05(BIN09-3442-70005) Binder M12 plug connector 763 Panel M12 Screw round straight 5 Pole Solder unshielded | Customer Part No. Customer Project No. | 15 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Binder | M12 plug connector | Socket | Panel | Socket | Screw | round | straight | 5 | vergoldet | IP68 | DIN EN 61076-2-101 | Zinc Die-Cast nickel-plated | Polyamide (PA) | Solder | IP68 | 19.5 mm | 0.25 mm² | 4.0 A | 60.0 V AC | ||||||||||
39 | | Manufacturers Part No. 42-10030(SAL-8-RSW3-5-K1) Conec M8 plug connector SAL-8-RSW Cable M8 Screw round angled 3 Pole Screw | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 50 or mul. of 50) | Conec | M8 plug connector | Plug | Cable | Plug | Screw | round | angled | 3 | Nickel, vergoldet | IP67 | IEC 60512 IEC 60512-9a IEC 60529 IEC 60664-1 IEC 61076-2-104 | Thermoplast Polyurethan (TPU) GF | Polyamide (PA) | UL 94 V-0 | Screw | IP67 | 22.0 mm | 21.0 mm | 0.25 mm² | 3.0 A | 60.0 V AC | ||||||||
40 | | Manufacturers Part No. 102E10059X(FL13P) Conec Female connector 102E100_X Header 2-row straight 13 Pole Pitch2,5mm Solder | Customer Part No. Customer Project No. | 210 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 10 or mul. of 10) | Conec | Female connector | Socket | Header | Socket | 2-row | straight | 13 | versilbert | Polycarbonat (PC) GF | UL 94 V-1 | Solder | 45.8 mm | 10.0 mm | 8.0 mm | 4.0 A | 250.0 V AC | |||||||||||||
41 | | Manufacturers Part No. 102E10099X(FL31P) Conec Female connector 102E100_X Header 2-row straight 31 Pole Pitch2,5mm Solder | Customer Part No. Customer Project No. | 220 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 10 or mul. of 10) | Conec | Female connector | Socket | Header | Socket | 2-row | straight | 31 | versilbert | Polycarbonat (PC) GF | UL 94 V-1 | Solder | 90.8 mm | 10.0 mm | 8.0 mm | 4.0 A | 250.0 V AC | |||||||||||||
42 | | Manufacturers Part No. A-QM64ABT(QM64TG) Assmann WSW Male connector A-QM64AB_ Box Header 2-row straight 64 Pole Pitch2,54mm Solder | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Assmann WSW | Male connector | Pin | Box Header | Pin | 2-row | straight | 64 | Nickel, vergoldet | DIN 41612 | Polybutylenterephthalat (PBT) GF | UL 94 V-0 | Solder | 95.0 mm | 15.6 mm | 8.6 mm | 2.0 A | 125.0 V AC | ||||||||||||
43 | | Manufacturers Part No. A-BM64ABR(BM64RW) Assmann WSW Male connector A-BM64AB_ Box Header 2-row 90° 64 Pole Pitch2,54mm Solder | Customer Part No. Customer Project No. | 190 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Assmann WSW | Male connector | Pin | Box Header | Pin | 2-row | 90° | 64 | Nickel, vergoldet | DIN 41612 | Polybutylenterephthalat (PBT) GF | UL 94 V-0 | Solder | 95.0 mm | 14.6 mm | 8.6 mm | 2.0 A | 125.0 V AC | ||||||||||||
44 | | Manufacturers Part No. A-BF64ABT(BF64TG) Assmann WSW Female connector A-BF64AB_ Box Header 2-row straight 64 Pole Pitch2,54mm Solder TOP | Customer Part No. Customer Project No. | 720 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | Assmann WSW | Female connector | Socket | Box Header | Socket | 2-row | straight | 64 | Nickel, vergoldet | DIN 41612 | Polybutylenterephthalat (PBT) GF | UL 94 V-0 | Solder | 95.0 mm | 15.6 mm | 8.1 mm | 2.0 A | 125.0 V AC | ||||||||||||
45 | | Manufacturers Part No. A-QF64ABR(QF64RW) Assmann WSW Female connector A-QF64AB_ Box Header 2-row 90° 64 Pole Pitch2,54mm Solder | Customer Part No. Customer Project No. | 770 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | Assmann WSW | Female connector | Socket | Box Header | Socket | 2-row | 90° | 64 | Nickel, vergoldet | DIN 41612 | Polybutylenterephthalat (PBT) GF | UL 94 V-0 | Solder | 94.0 mm | 12.84 mm | 8.1 mm | 2.0 A | 125.0 V AC | ||||||||||||
46 | | Manufacturers Part No. A-CM32ACR(CM32RW) Assmann WSW Male connector A-CM_ACR Box Header 3-row 90° 32 Pole Pitch5,08mm Solder | Customer Part No. Customer Project No. | 190 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | Assmann WSW | Male connector | Pin | Box Header | Pin | 3-row | 90° | 32 | Nickel, vergoldet | DIN 41612 | Polybutylenterephthalat (PBT) GF | UL 94 V-0 | Solder | 94.0 mm | 15.6 mm | 10.2 mm | 2.0 A | 125.0 V AC | ||||||||||||
47 | | Manufacturers Part No. A-CM64ACR(CM64RW) Assmann WSW Male connector A-CM_ACR Box Header 3-row 90° 64 Pole Pitch2,54mm Solder TOP | Customer Part No. Customer Project No. | 1.110 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | Assmann WSW | Male connector | Pin | Box Header | Pin | 3-row | 90° | 64 | Nickel, vergoldet | DIN 41612 | Polybutylenterephthalat (PBT) GF | UL 94 V-0 | Solder | 94.0 mm | 15.6 mm | 10.2 mm | 2.0 A | 125.0 V AC | ||||||||||||
48 | | Manufacturers Part No. A-CM96ABCR(CM96RW) Assmann WSW Male connector A-CM_ACR Box Header 3-row 90° 96 Pole Pitch2,54mm Solder TOP | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Assmann WSW | Male connector | Pin | Box Header | Pin | 3-row | 90° | 96 | Nickel, vergoldet | DIN 41612 | Polybutylenterephthalat (PBT) GF | UL 94 V-0 | Solder | 94.0 mm | 17.88 mm | 10.2 mm | 2.0 A | 125.0 V AC | ||||||||||||
49 | | Manufacturers Part No. A-CF32ACT(CF32TG) Assmann WSW Female connector A-CF_ACT Box Header 3-row straight 32 Pole Pitch5,08mm Solder | Customer Part No. Customer Project No. | 510 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | Assmann WSW | Female connector | Socket | Box Header | Socket | 3-row | straight | 32 | Nickel, vergoldet | DIN 41612 | Polybutylenterephthalat (PBT) GF | UL 94 V-0 | Solder | 95.0 mm | 15.6 mm | 10.6 mm | 2.0 A | 125.0 V AC | ||||||||||||
50 | | Manufacturers Part No. A-CF64ACT(CF64TG) Assmann WSW Female connector A-CF_ACT Box Header 3-row straight 64 Pole Pitch2,54mm Solder TOP | Customer Part No. Customer Project No. | 2.330 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | Assmann WSW | Female connector | Socket | Box Header | Socket | 3-row | straight | 64 | Nickel, vergoldet | DIN 41612 | Polybutylenterephthalat (PBT) GF | UL 94 V-0 | Solder | 95.0 mm | 15.6 mm | 10.6 mm | 2.0 A | 125.0 V AC |
