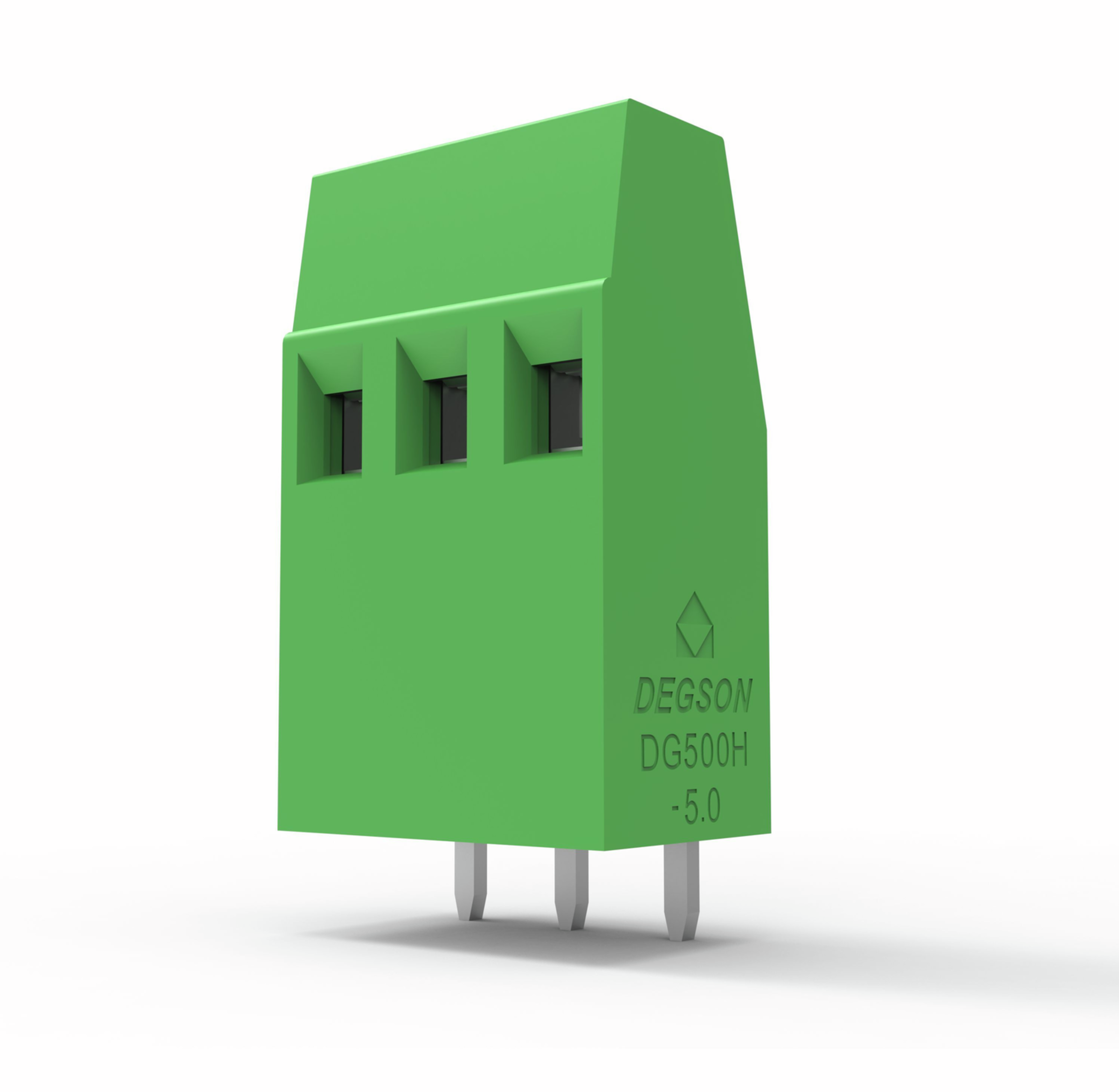

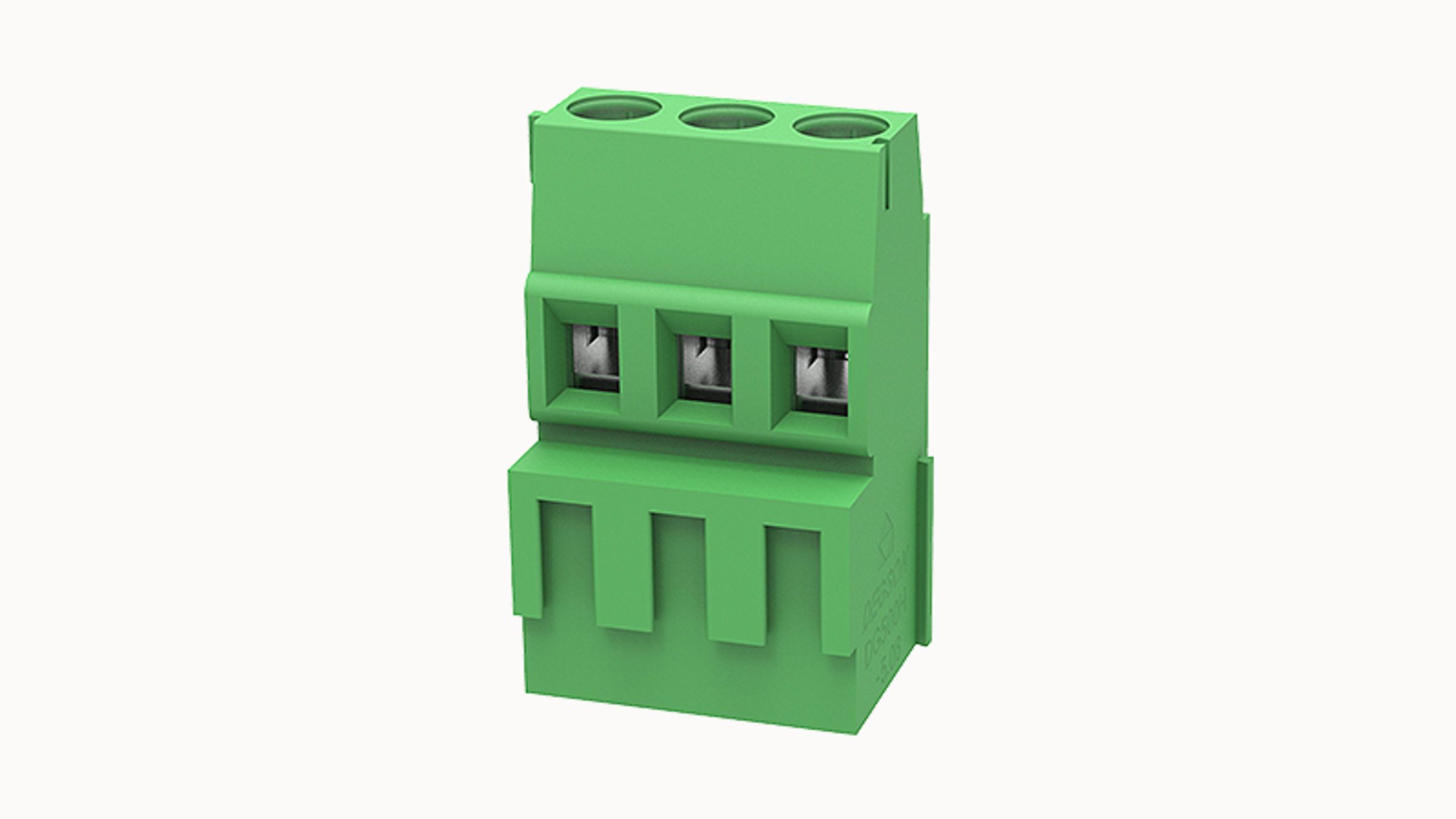

DG500H-5.0-03P-14-25A(H)
DEGSON Terminal block DG500H-5.0 vertical 3 Pole Pitch5mm green THT 15,58mm 28,7mm 28AWG 12AWG 24A 250VAC
Manufacturer Part No.
DG500H-5.0-03P-14-25A(H)
Schukat Part No.
DG500H5.0-25A03P14
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 200 or multiple of 200)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Terminal block
- Connector Contact
- THT
- Series
- DG500H-5.0
- Colour
- green
- Housing material
- Polyamide (PA) 66
- Design
- Lift principle
- Number of poles
- 3
- Standards
- IEC 60998
UL 1059 - Pitch
- 5 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- vertical
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 24 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 15.58 mm
- Dimension: Height
- 28.7 mm
- Dimension: Depth
- 12.64 mm
- Pitch
- 5 mm
- Stripping length, min.
- 6 mm
- Stripping length, max.
- 7 mm
- Conductor cross-section (AWG), min.
- 28 AWG
- Conductor cross-section (AWG), max.
- 12 AWG
- Nominal cross-section, solid, min.
- 1 mm²
- Nominal cross-section, solid, max.
- 2.5 mm²
- Nominal cross-section finely stranded, min.
- 1 mm²
- Nominal cross-section finely stranded, max.
- 2.5 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 24 A
- Rated voltage AC
- 250 V AC
- Test voltage
- 2,000 V AC
Mechanical Features
- Drilling Dimensions
- 1.6 mm
- Torque for thread
- 50 Ncm
- Housing material
- Polyamide (PA) 66
- Contact Surface Input
- vernickelt
Safety/Certifications
- Approvals
- CE
- VDE
- cURus
- Standards
- IEC 60998
- UL 1059
- Class of Inflammability
- UL 94 V-0
- Label
- TÜV
