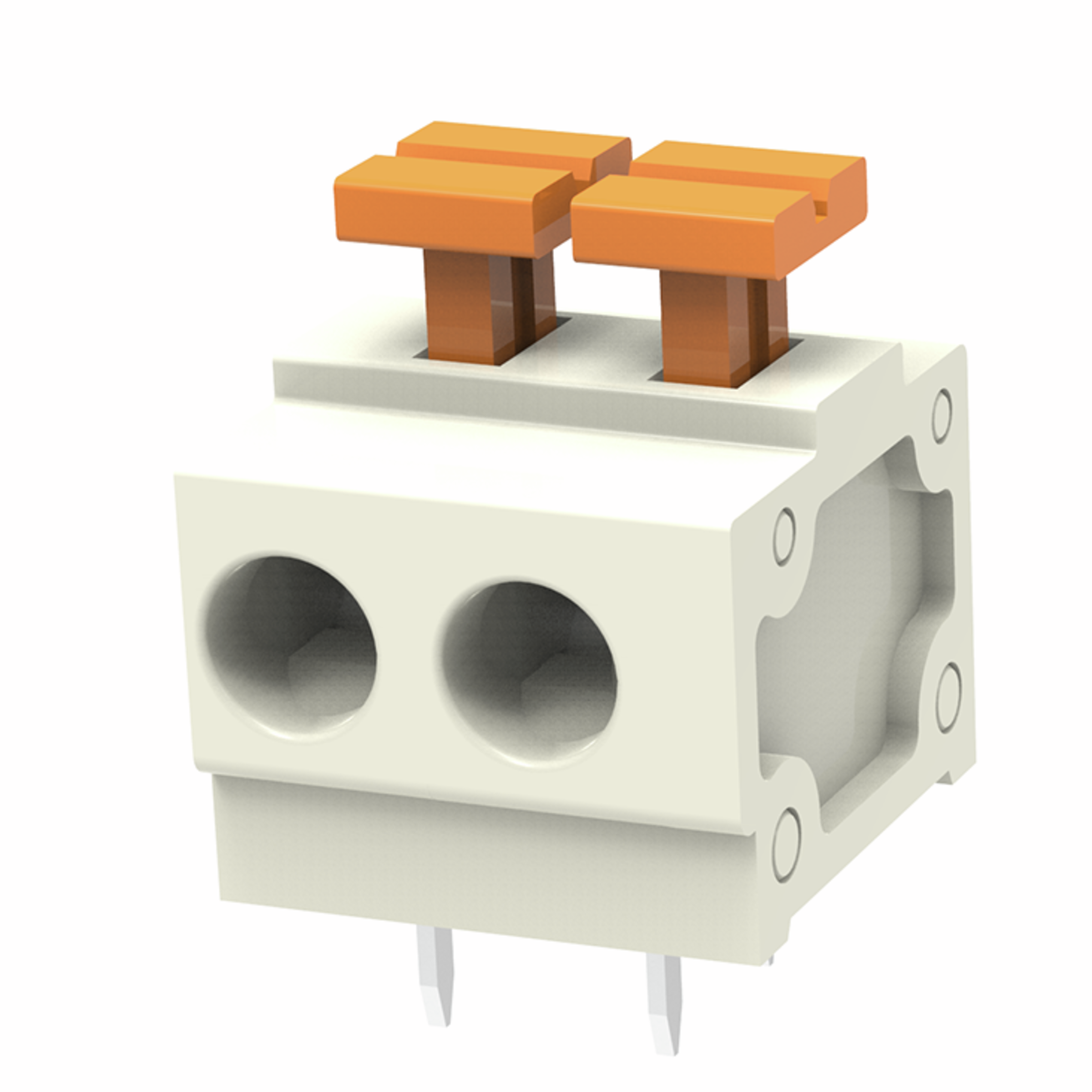

DG234-5.0-02P-11-00A(H)
DEGSON Terminal block DG234-5.0 horizontal 2 Pole Pitch5mm white Solder 11,5mm 17,5mm 30AWG 16AWG 10A 250VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
590 Pcs. in stock
Next Stock Receipt
Week 18/2026
300 Pcs.
300 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Terminal block
- Connector Contact
- Solder
- Series
- DG234-5.0
- Colour
- white
- Housing material
- Polyamide (PA) 66
- Design
- Push-In
- Number of poles
- 2
- Standards
- IEC 60947
UL 1059 - Pitch
- 5 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- horizontal
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 10 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 11.5 mm
- Dimension: Height
- 17.5 mm
- Dimension: Depth
- 12.5 mm
- Pitch
- 5 mm
- Stripping length, max.
- 10 mm
- Conductor cross-section (AWG), min.
- 30 AWG
- Conductor cross-section (AWG), max.
- 16 AWG
- Nominal cross-section, solid, min.
- 0.5 mm²
- Nominal cross-section, solid, max.
- 1.5 mm²
- Nominal cross-section finely stranded, min.
- 0.5 mm²
- Nominal cross-section finely stranded, max.
- 1.5 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Housing material
- Polyamide (PA) 66
- Contact Surface Input
- verzinnt
Safety/Certifications
- Approvals
- cURus
- Standards
- IEC 60947
- UL 1059
- Class of Inflammability
- UL 94 V-0
- Label
- TÜV
