15EDGVC-3.5-02P-14-00A(H)

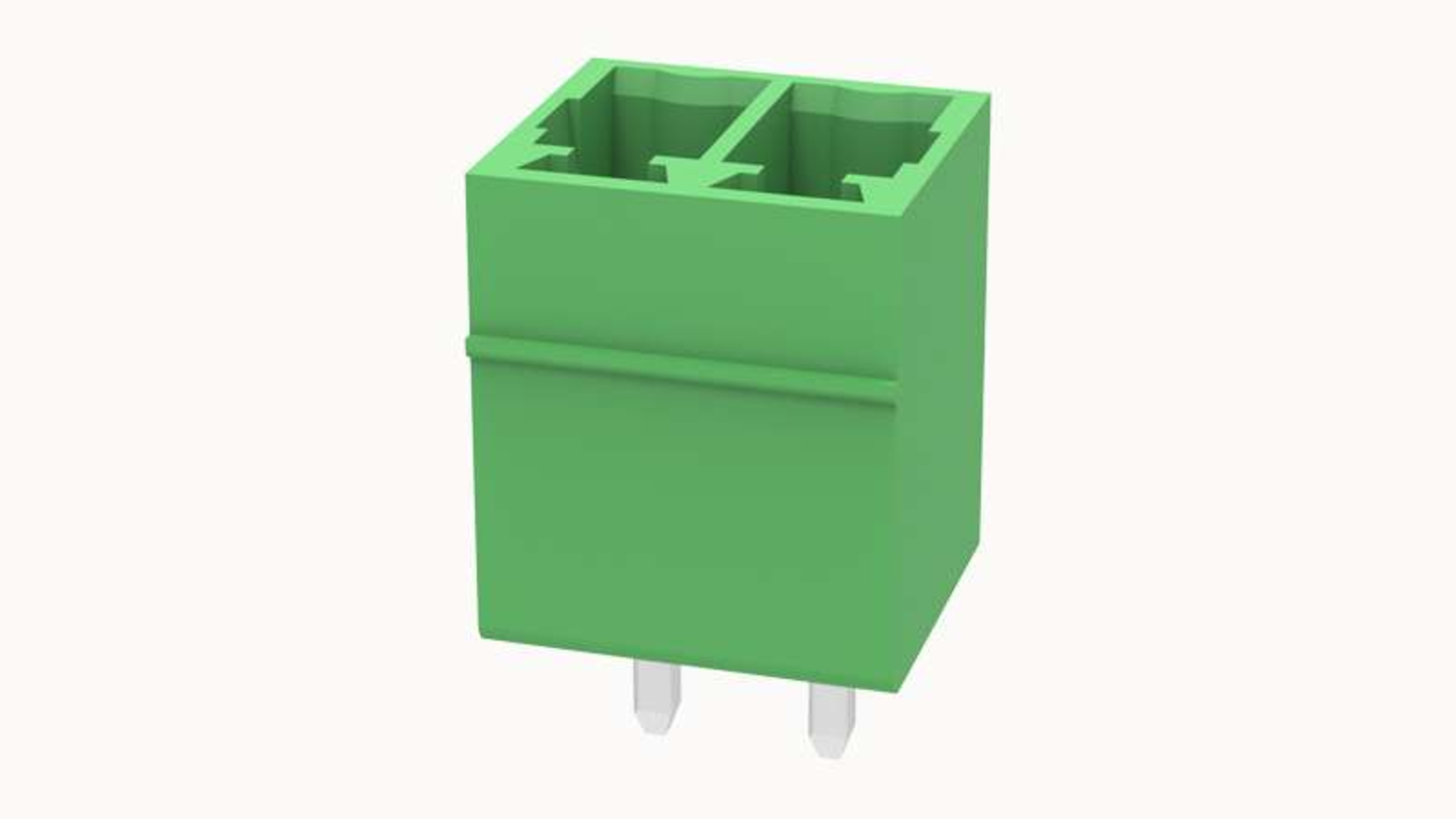

DEGSON Tray pin strip 15EDGVC-3.5 Pin Box Header 1-row straight 2 Pole Pitch3,5mm green verzinnt
Manufacturer Part No.
15EDGVC-3.5-02P-14-00A(H)
Schukat Part No.
15EDGVC-3.5-02P-14
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.400 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Tray pin strip
- Connector Contact
- Solder
- Series
- 15EDGVC-3.5
- Colour
- green
- Housing material
- Polyamide (PA) 66
- Housing
- 1-row
- Design
- Box Header
- Number of poles
- 2
- Standards
- IEC 61984
UL 1059 - Pitch
- 3.5 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- straight
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 7 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 7.8 mm
- Dimension: Height
- 12.6 mm
- Dimension: Depth
- 7.24 mm
- Pitch
- 3.5 mm
- Stripping length, min.
- 6 mm
- Stripping length, max.
- 7 mm
- Nominal cross-section, solid, min.
- 0.5 mm²
- Nominal cross-section, solid, max.
- 1.5 mm²
- Nominal cross-section finely stranded, min.
- 0.5 mm²
- Nominal cross-section finely stranded, max.
- 1.5 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 7 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Housing material
- Polyamide (PA) 66
- Contact Surface Input
- verzinnt
Safety/Certifications
- Approvals
- VDE
- cURus
- Standards
- IEC 61984
- UL 1059
- Class of Inflammability
- UL 94 V-0
- Label
- TÜV
