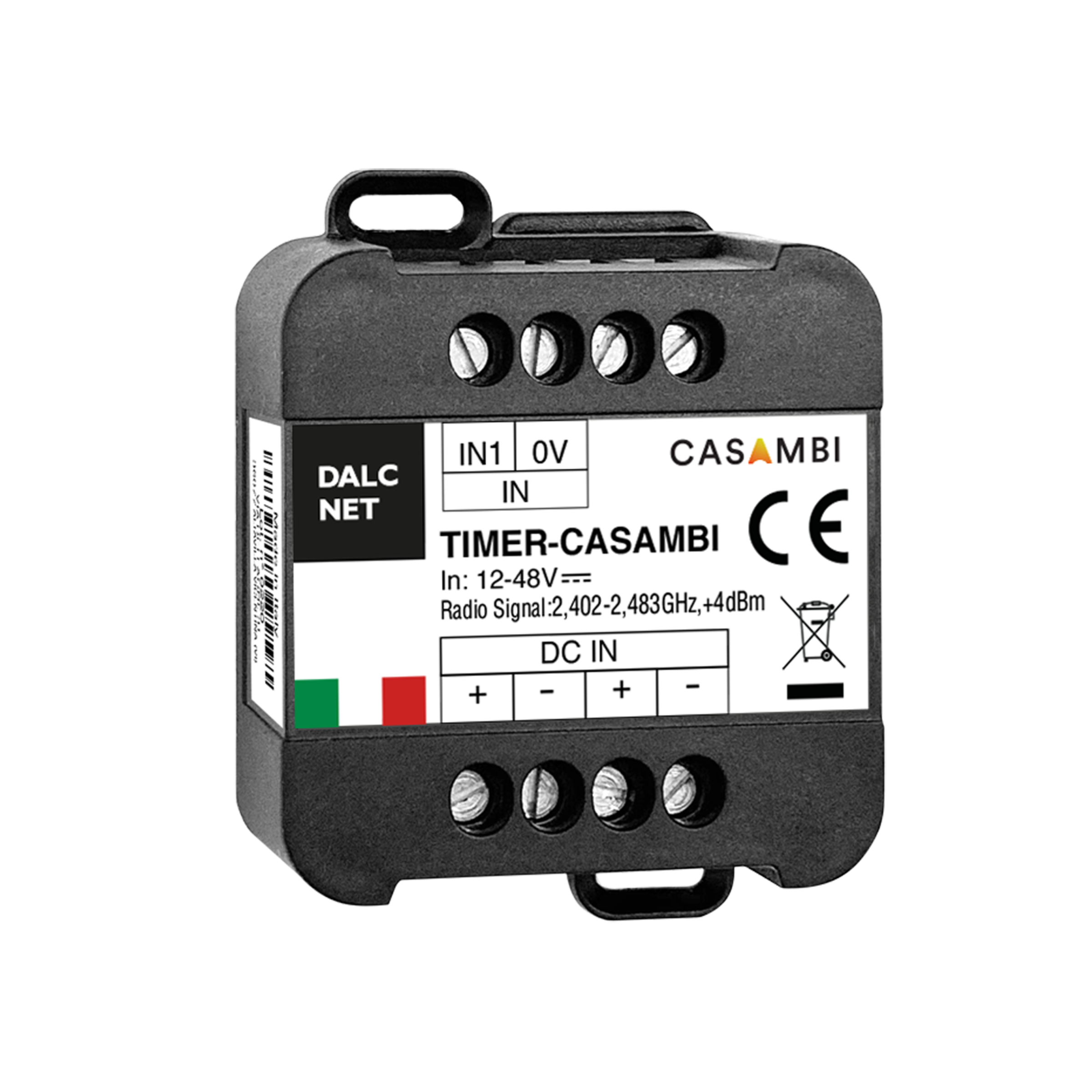

TIMER-CASAMBI

DALCNET Push Dimming Casambi Dimmer 12 V 48 V

Manufacturer Part No.
TIMER-CASAMBI
Schukat Part No.
TIMER-CASAMBI
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Next Stock Receipt
Week 49/2024
4 Pcs.
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 21 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Interfaces
Casambi
Push Dimming
Input voltage min. DC
12 V
Input voltage max. DC
48 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • TIMER
Product group
  • M7874 DALCNET Timer Casambi
Application
  • Lighting
Package/Case
  • Enclosed Plastic

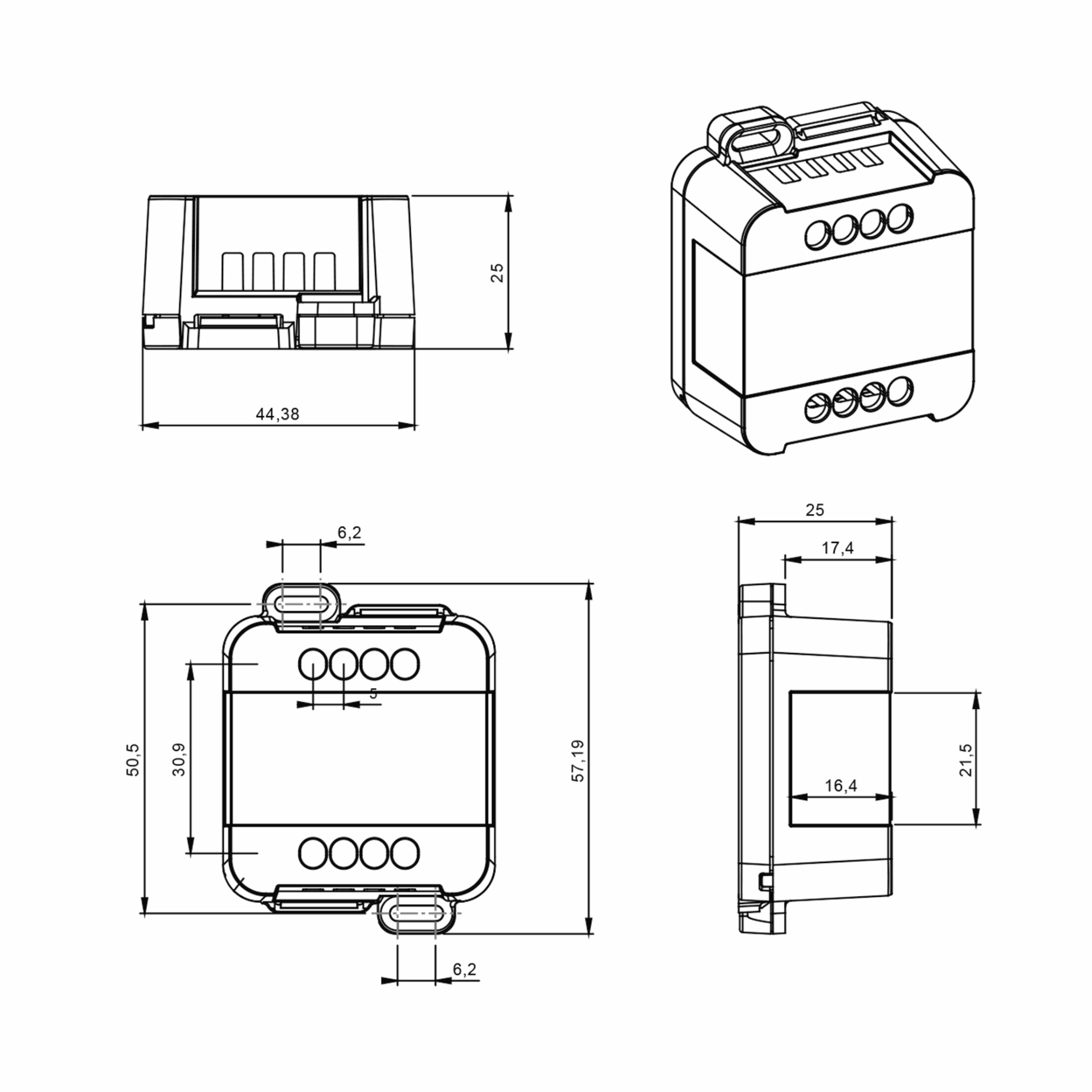

Dimension: Length
  • 45 mm
Dimension: Width
  • 58 mm
Dimension: Height
  • 25 mm
Weight
  • 40 g
Interfaces
  • Casambi
  • Push Dimming
Manufacturer's warranty (years)
  • 5
Notice
  • - Allows the time of the Casambi network to be stored for 24 hours per backup function. - Synchronisation of Casambi's scenarios and programmes in the event of a power failure or temporary loss of power supply

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 50 °C
Storage Temperature Min.
  • -25 °C
Storage Temperature Max.
  • 60 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 48 V
Connection type, input
  • Screw Terminal

Output

Overload protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
