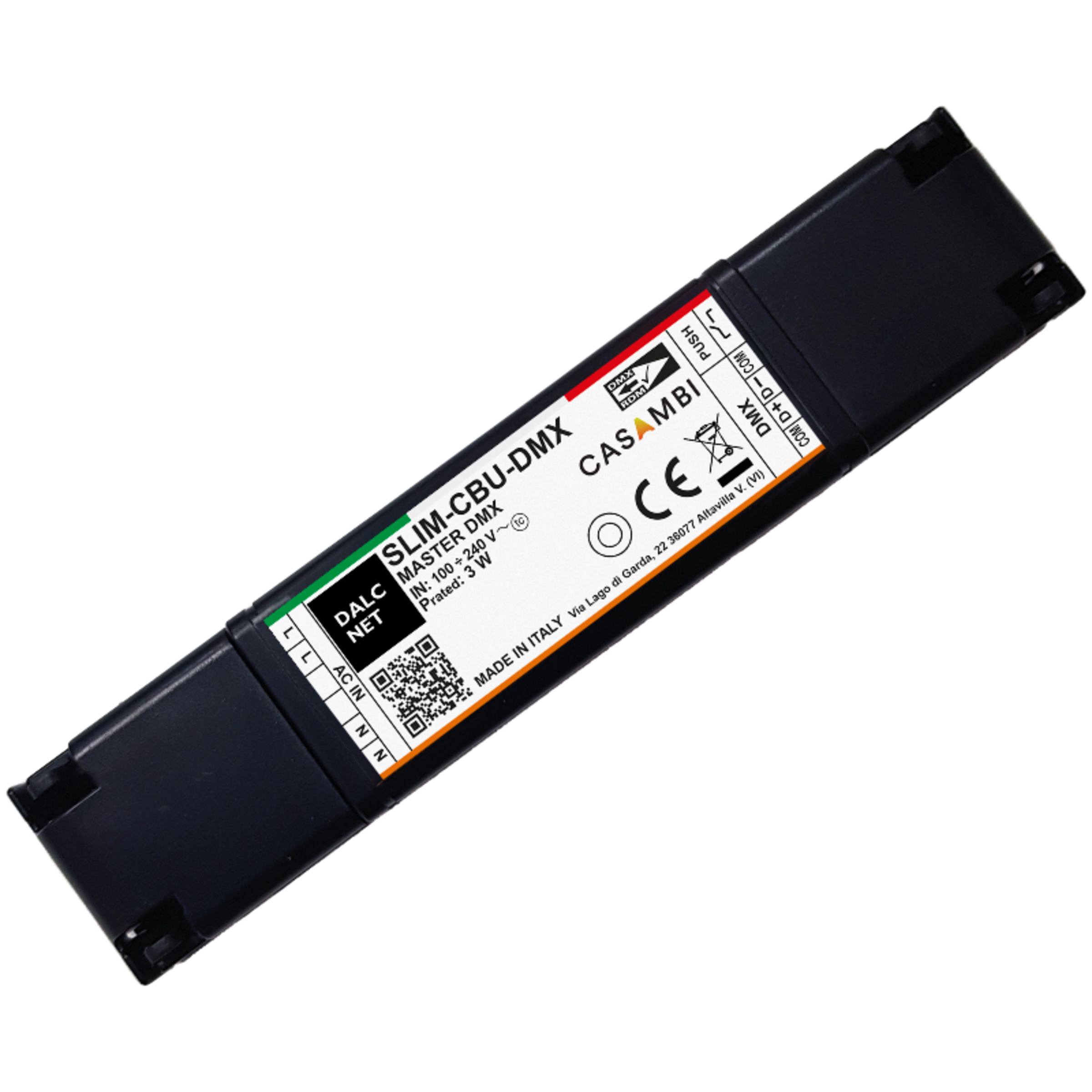

SLIM-CBU-DMX

DALCNET Casambi DMX Dimmer

SLIM-CBU-DMX
NEW
Manufacturer Part No.
SLIM-CBU-DMX
Schukat Part No.
SLIM-CBU-DMX
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 26/2026
10 Pcs.
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
CASAMBI - DMX Gateway
Number of outputs
1
Interfaces
Casambi
DMX
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • Slim_CBU
Product group
  • M7876
Application
  • Lighting
Type
  • CASAMBI - DMX Gateway
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 136.38 mm
Dimension: Width
  • 28.5 mm
Dimension: Height
  • 21 mm
Weight
  • 62 g
Interfaces
  • Casambi
  • DMX
Manufacturer's warranty (years)
  • 5
Product description
  • SLIM-CBU-DMX is a CASAMBI© Bluetooth Unit (CBU) that acts as a protocol converter between CASAMBI© and DMX networks. In master mode, the CBU receives a command from the CASAMBI© mesh network or the mobile app and converts it into a DMX command signal; in slave mode, the CBU receives a command signal from the DMX bus and translates it into a command in the CASAMBI© mesh network (sent via BLE). Both operating modes, master and slave, can be managed via the CASAMBI© app (see §Overview of Profiles: Lights for Master/Slave Conversion Profiles). The device operates on 230 VAC mains voltage at 50/60 Hz and features integrated logic protection devices, including overvoltage and input fuse protection. Various settings can be configured via the CASAMBI© app and smartphones equipped with Bluetooth technology. The CASAMBI© app can be downloaded for free from the Apple App Store and the Google Play Store.

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Number of inputs
  • 1
Nominal input voltage
  • 230 V
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 1
Overload protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Push-In Terminal

Safety/Certifications

Protection Class IP
  • IP20
Approvals
  • CE

Documents

Dalcnet_Katalog_2026.pdf
Download (pdf, 3.268 KB)

Other Products

All Products of the Series
NEW
Loading...

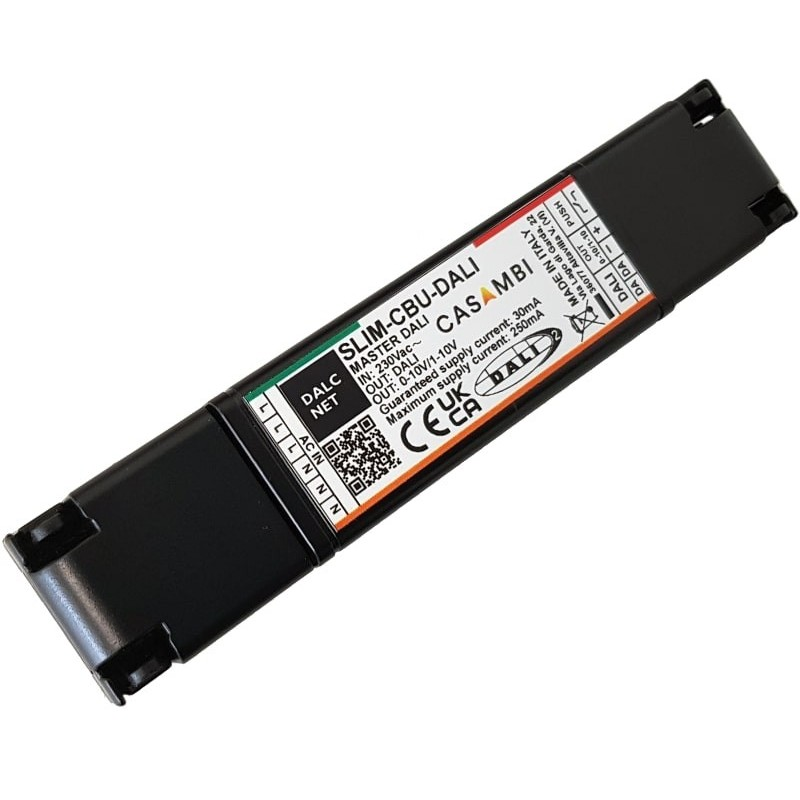

SLIM-CBU-DALI
