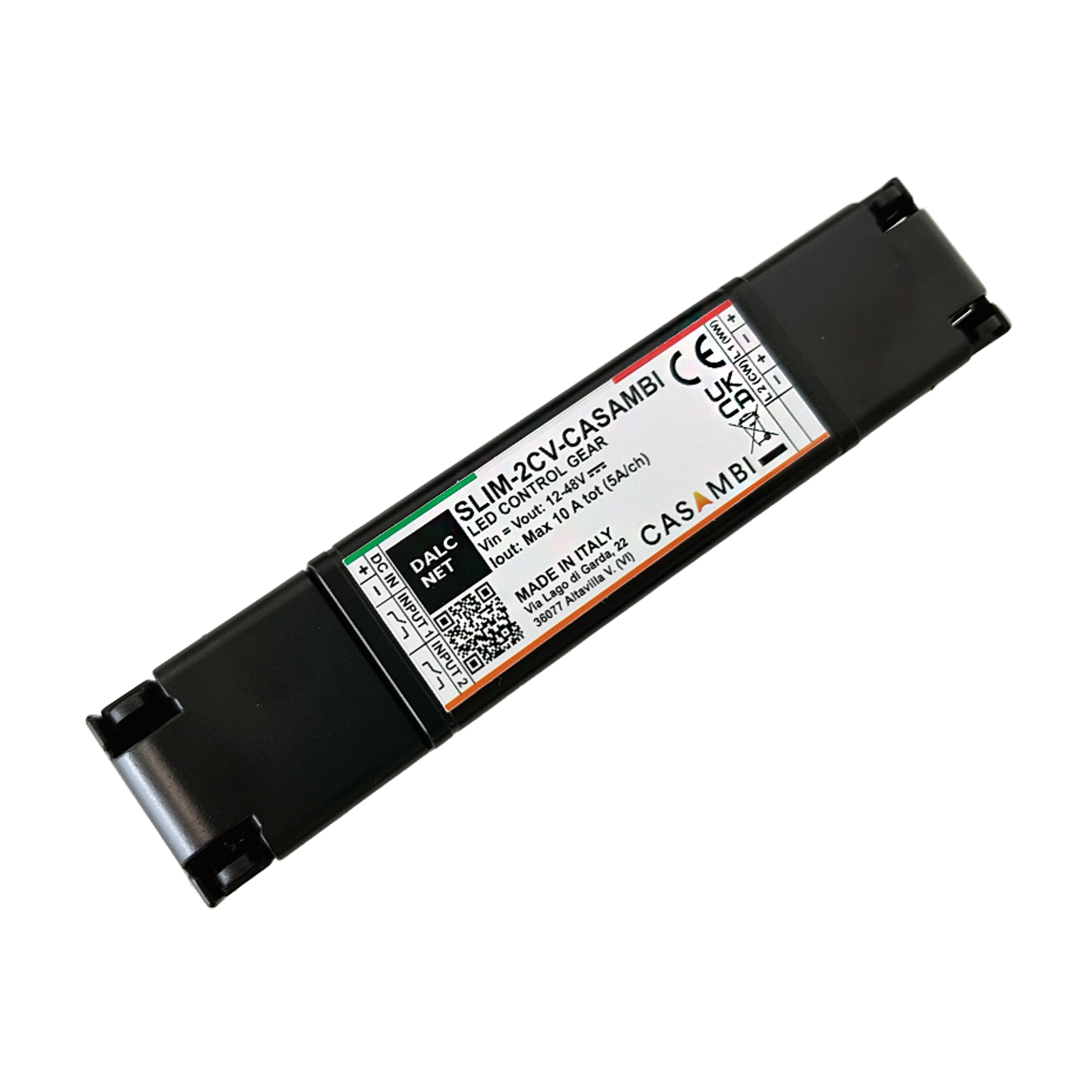

SLIM-2CV-CASAMBI

DALCNET Push Dimming Casambi Dimmer CV 240 W 5 A 12 V 48 V

SLIM-2CV-CASAMBISLIM-2CV-CASAMBI
Manufacturer Part No.
SLIM-2CV-CASAMBI
Schukat Part No.
SLIM-2CV-CASAMBI
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

16 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 16 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Dimmer
Number of outputs
2
Interfaces
Casambi
Push Dimming
Operating mode
CV
Output Power
240 W
Output current
5.000 A
Output current, channel 2
5.000 A
Input voltage min. DC
12 V
Input voltage max. DC
48 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • SLIM
Product group
  • M7872
Application
  • Lighting
Type
  • Dimmer
Operating mode
  • CV
Package/Case
  • Enclosed Plastic

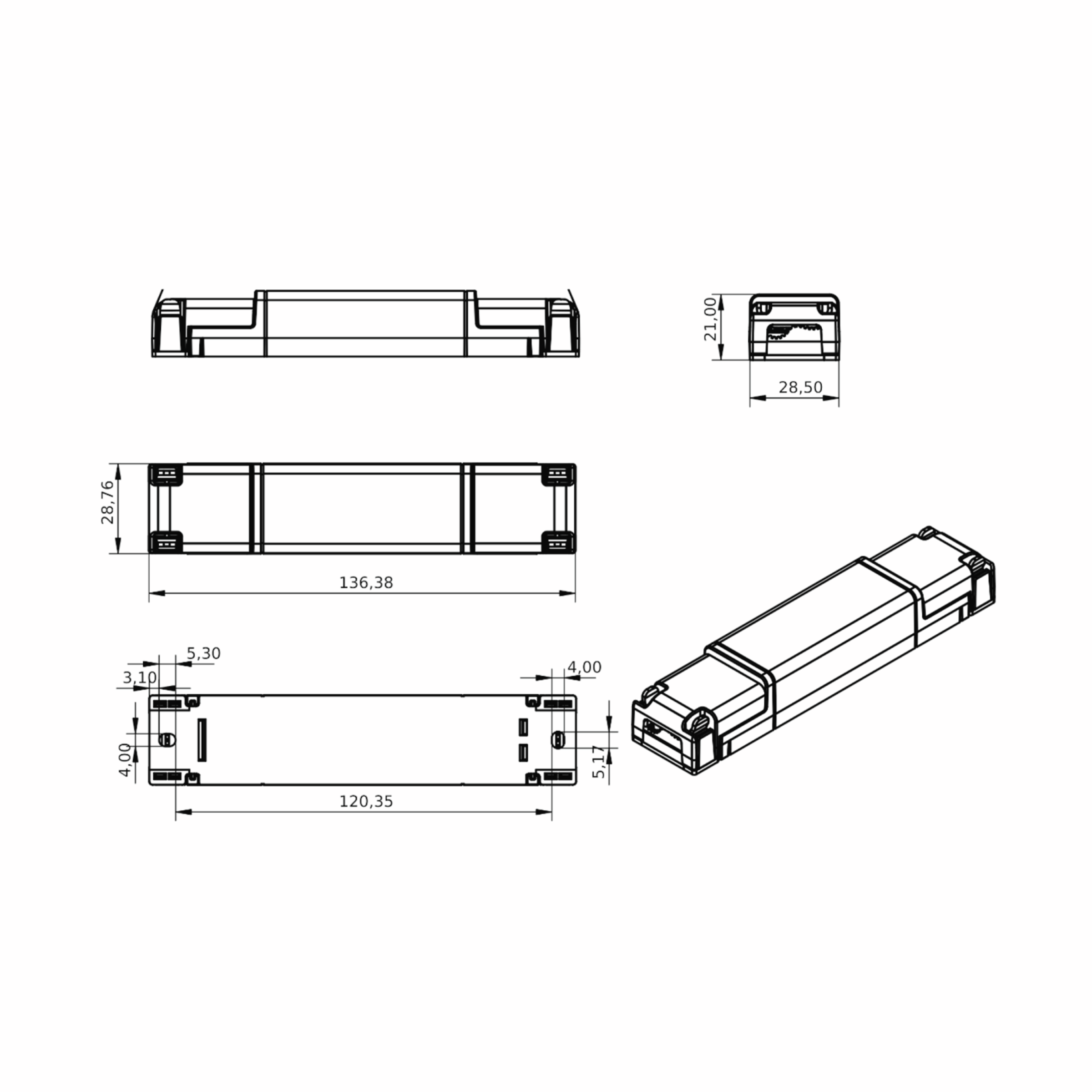

Dimension: Length
  • 136 mm
Dimension: Width
  • 29 mm
Dimension: Height
  • 22 mm
Weight
  • 53 g
Label
  • SELV
Interfaces
  • Casambi
  • Push Dimming
Manufacturer's warranty (years)
  • 5
Product description
  • The SLIM-2CV-CASAMBI is a 2-channel output dimmerLED, controllable via Bluetooth thanks to the Casambi APP or locally through two normally open buttons. The dimmerLED is suitable for driving loads such as StripLED and LED modules, White, monochromatic colour, Dynamic White and Dim to Warm at constant voltage. It’s possible to connect a power supply at 12-24-48 Vdc. The maximum value of the output current is equal to 10A. The dimmerLED has the following protections: over-power protection, under-power protection, reverse polarity protection and input fuse protection. Through the CASAMBI APP, the SLIM-2CV-CASAMBI allows you to make from simple brightness adjustments, to more complex lighting control systems, thanks to the creation of multiple scenarios, animations, timers, daylight controls, etc. The CASAMBI APP can be downloaded for free from the Apple App Store and the Google Play Store.
Features
  • Flicker Free
Application note
  • Configurable via Casambi APP

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 48 V
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 2
Output Power
  • 240 W
Output Voltage Min.
  • 12 V
Output Voltage Max.
  • 48 V
Output current
  • 5.000 A
Output current, channel 2
  • 5.000 A
Overload protection
Overvoltage protection
Overtemperature protection
Dimming type
  • PWM
Dimming range, min.
  • 0.1 %
Dimming range, max.
  • 100 %
Connection type, output
  • Push-In Terminal
Output frequency (Hz)
  • 4000

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13
