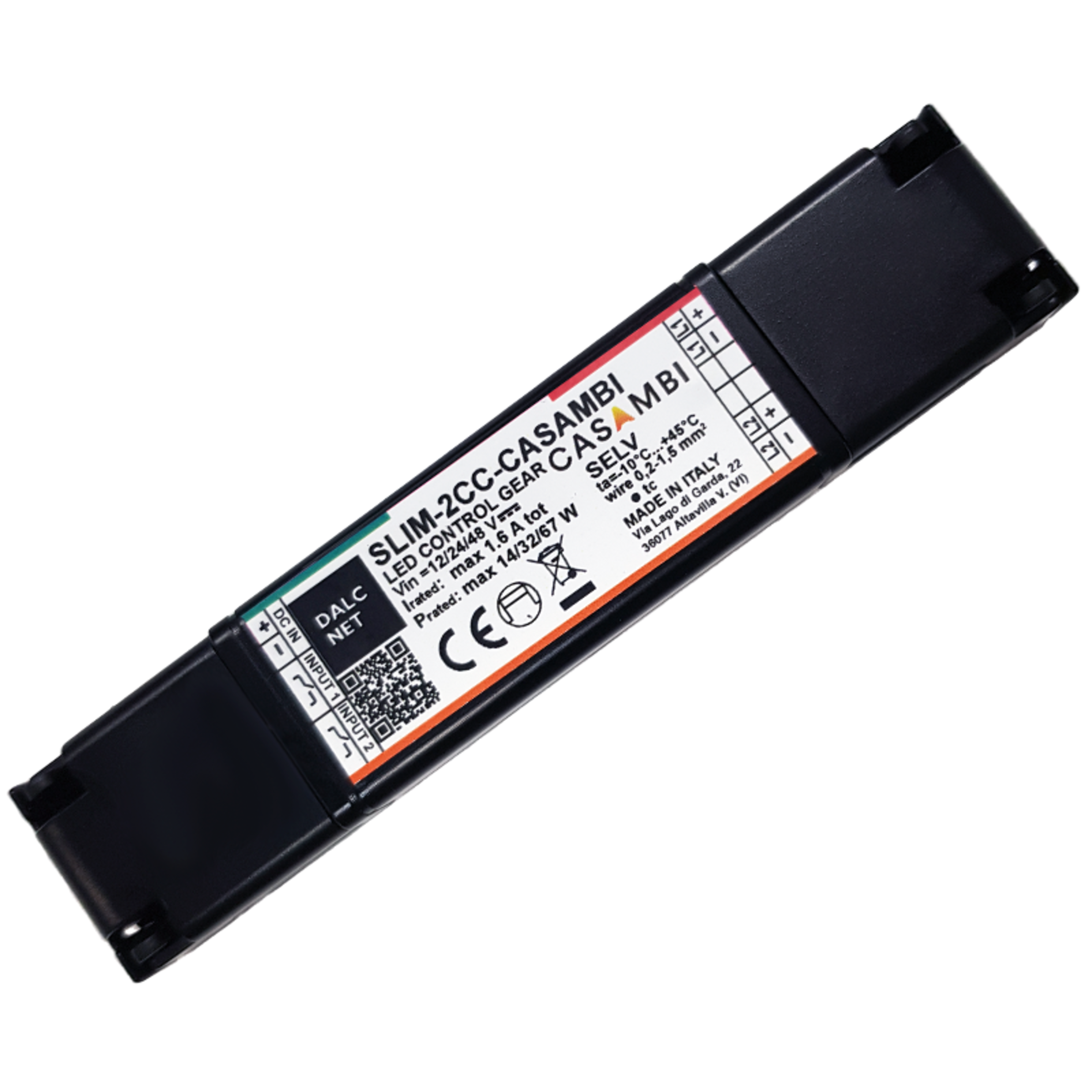

SLIM-2CC-CASAMBI

DALCNET Casambi Push Dimming Dimmer CC 34,4 W 0,8 A 12 V 48 V

SLIM-2CC-CASAMBISLIM-2CC-CASAMBI
NEW
Manufacturer Part No.
SLIM-2CC-CASAMBI
Schukat Part No.
SLIM-2CC-CASAMBI
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Dimmer
Number of outputs
2
Interfaces
Casambi
Push Dimming
Operating mode
CC
Output Power
34.4 W
Output current
0.800 A
Output current, channel 2
0.800 A
Input voltage min. DC
12 V
Input voltage max. DC
48 V
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • DALCNET
Series
  • SLIM
Product group
  • M7872
Application
  • Lighting
Type
  • Dimmer
Operating mode
  • CC
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 136.38 mm
Dimension: Width
  • 28.76 mm
Dimension: Height
  • 21 mm
Weight
  • 62 g
Label
  • SELV
Interfaces
  • Casambi
  • Push Dimming
Manufacturer's warranty (years)
  • 5
Product description
  • The SLIM-2CV-CASAMBI is a 2-channel LED output dimmer, controllable via Bluetooth using the Casambi app or locally via two push-button dimmers. The dimmer is suitable for controlling loads such as LED strips and LED modules, and for white, monochrome colour, dynamic white and colour temperature applications at constant voltage. It is possible to connect a supply voltage of 12–24–48 Vdc. The maximum output current is 10 A. The dimmer features the following protective measures: overload protection, undervoltage protection, reverse polarity protection and input fuse. Via the CASAMBI app, the SLIM-2CV-CASAMBI enables everything from simple brightness adjustments to more complex lighting controls, thanks to the creation of multiple scenes, animations, timers, daylight controls, etc. The CASAMBI app can be downloaded free of charge from the Apple App Store and the Google Play Store.
Features
  • Flicker Free
Application note
  • Configurable via Casambi APP

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 48 V
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 2
Output Power
  • 34.4 W
Output Voltage Min.
  • 12 V
Output Voltage Max.
  • 48 V
Output current
  • 0.800 A
Output current, channel 2
  • 0.800 A
Overload protection
Overvoltage protection
Overtemperature protection
Dimming type
  • PWM
Dimming range, min.
  • 1 %
Dimming range, max.
  • 100 %
Connection type, output
  • Push-In Terminal
Output frequency (Hz)
  • 3400

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13

Documents

Dalcnet_Katalog_2026.pdf
Download (pdf, 3.268 KB)
