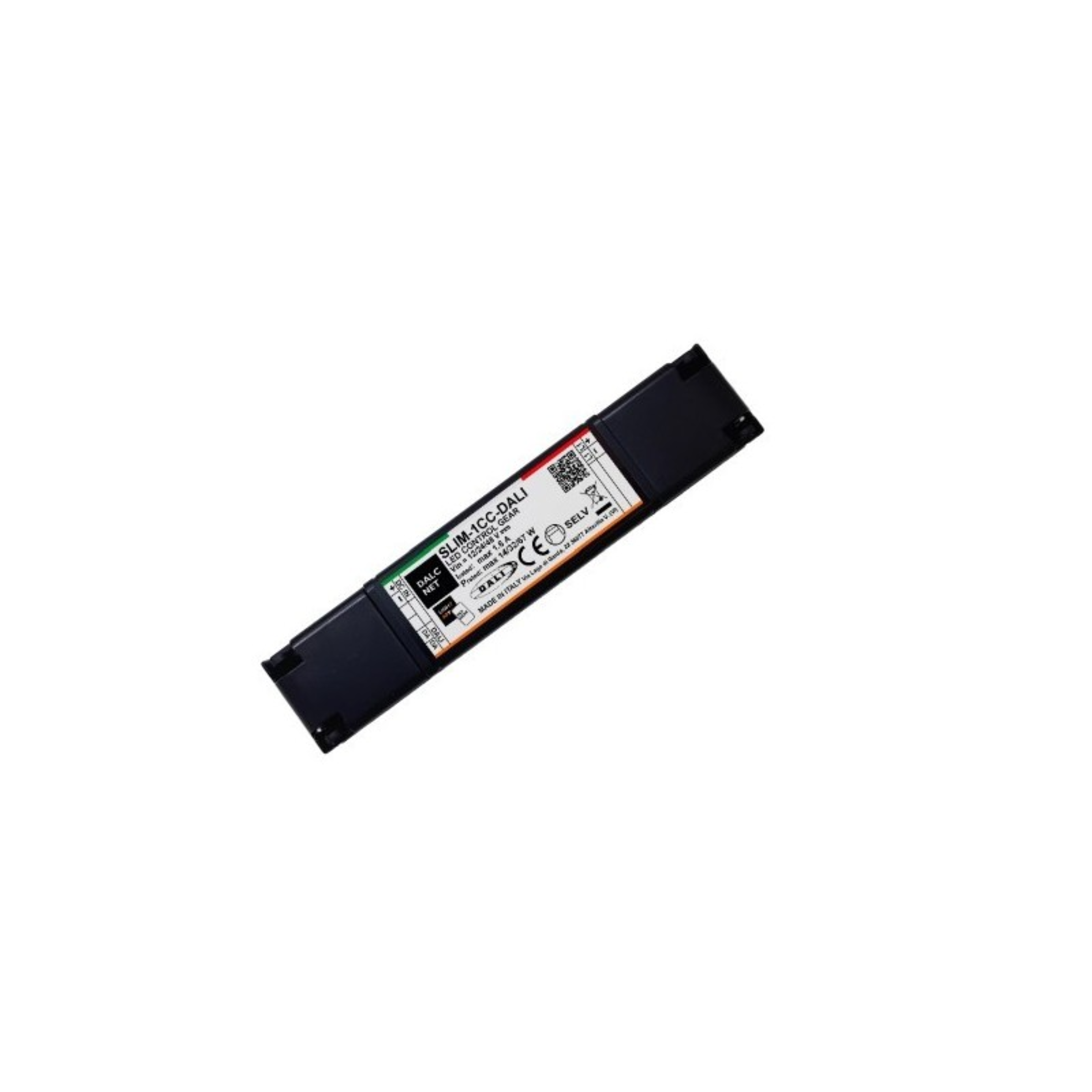

SLIM-1CC-DALI

DALCNET Dali Dimmer CC 76,2 W 1,6 A 12 V 48 V

SLIM-1CC-DALISLIM-1CC-DALI
NEW
Manufacturer Part No.
SLIM-1CC-DALI
Schukat Part No.
SLIM-1CC-DALI
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Dimmer
Number of outputs
1
Interfaces
Dali
Operating mode
CC
Output Power
76.2 W
Output current
1.600 A
Output current, channel 2
5.000 A
Input voltage min. DC
12 V
Input voltage max. DC
48 V
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • DALCNET
Series
  • SLIM
Product group
  • M7872
Application
  • Lighting
Type
  • Dimmer
Operating mode
  • CC
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 136.38 mm
Dimension: Width
  • 28.76 mm
Dimension: Height
  • 21 mm
Weight
  • 56 g
Label
  • SELV
Interfaces
  • Dali
Manufacturer's warranty (years)
  • 5
Product description
  • SLIM-1CC-DALI is a 1-channel Hybrid modulated Constant Current (CC) LED dimmer, which can be connected to a SELV constant voltage (12 ÷ 48) Vdc power supply. Hybrid modulation consists of a smart selection between Amplitude Modulation (AM) and Pulse-Width Modulation (PWM), depending on the current delivered by the output stage: typically, the AM modulation operates for high output currents (> 350 mA), instead of PWM modulation that applies for lower currents. The dimmer is suitable for driving loads such as Spotlight and white, single-colour, LED modules at constant current and can be controlled via DALI (Digital Addressable Lighting Interface) digital protocol. SLIM-1CC-DALI can deliver a maximum output current of 1.6 A and has the following detections and protections: open-circuit and short-circuit detection, over-voltage and under-voltage protections, reverse polarity protection and input fuse protection. Through the Dalcnet LightApp© mobile application and smartphones equipped with Near Field Communication (NFC) technology, it is possible to configure multiple parameters when the device is powered OFF, including maximum output current, adjustment curve and maximum/minimum brightness levels. Dalcnet LightApp© can be downloaded free of charge from the Apple APP Store and Google Play Store.
Features
  • Flicker Free
Application note
  • Configurable via Casambi APP

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 48 V
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 1
Output Power
  • 76.2 W
Output Voltage Min.
  • 12 V
Output Voltage Max.
  • 48 V
Output current
  • 1.600 A
Output current, channel 2
  • 5.000 A
Overload protection
Overvoltage protection
Overtemperature protection
Dimming type
  • PWM
Dimming range, min.
  • 0.1 %
Dimming range, max.
  • 100 %
Connection type, output
  • Push-In Terminal
Output frequency (Hz)
  • 3400

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13

Documents

Dalcnet_Katalog_2026.pdf
Download (pdf, 3.268 KB)
