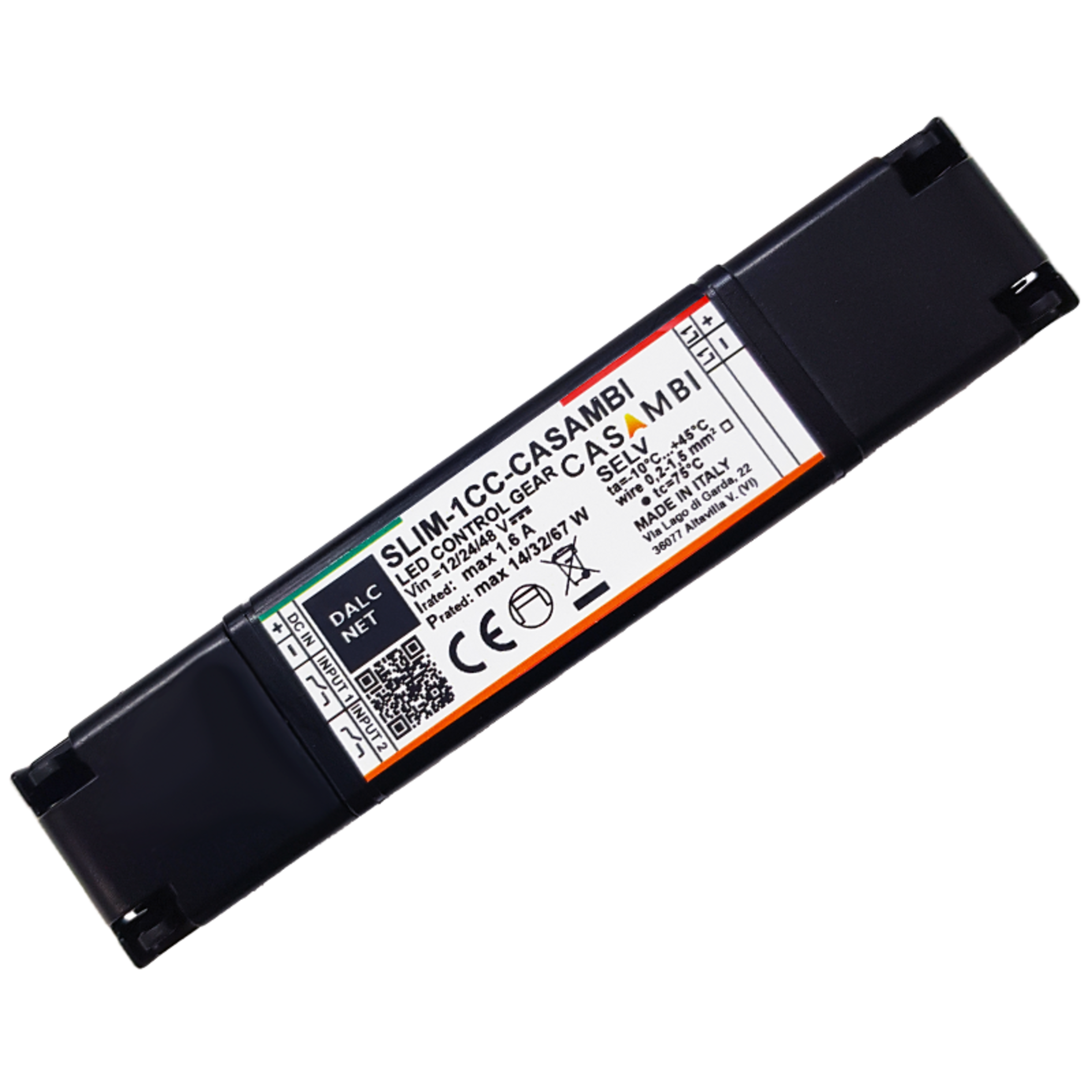

SLIM-1CC-CASAMBI

DALCNET Push Dimming Casambi Dimmer CC 76,2 W 5 A 12 V 48 V

SLIM-1CC-CASAMBI
NEW
Manufacturer Part No.
SLIM-1CC-CASAMBI
Schukat Part No.
SLIM-1CC-CASAMBI
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Dimmer
Number of outputs
2
Interfaces
Casambi
Push Dimming
Operating mode
CC
Output Power
76.2 W
Output current
5.000 A
Output current, channel 2
5.000 A
Input voltage min. DC
12 V
Input voltage max. DC
48 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • SLIM
Product group
  • M7872
Application
  • Lighting
Type
  • Dimmer
Operating mode
  • CC
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 136.38 mm
Dimension: Width
  • 28.76 mm
Dimension: Height
  • 22 mm
Weight
  • 53 g
Label
  • SELV
Interfaces
  • Casambi
  • Push Dimming
Manufacturer's warranty (years)
  • 5
Product description
  • SLIM-1CC-CASAMBI is a 1-channel Constant Current (CC) modulated LED dimmer, which can be powered from a SELV constant voltage (12 ÷ 48) Vdc power supply. The dimmer is suitable for driving loads such as Spotlight and white, single-colour, LED modules at constant current and can be controlled remotely via Bluetooth through the CASAMBI© mobile application or locally by means two N.O. pushbuttons. SLIM-1CC-CASAMBI can deliver a maximum output current of 1.6 A and has the following detections and protections: open-circuit and short-circuit internal protection, over-power and under-power protections, reverse polarity protection and input fuse protection. SLIM-1CC-CASAMBI enables you to make not only simple brightness adjustments but also more dynamic lighting control systems. This is made possible through the creation of multiple scenarios, animations, timers, daylight controls, and more. Through the CASAMBI© mobile application and smartphones equipped with Bluetooth technology, it is possible to configure multiple parameters, including maximum output current and maximum/minimum brightness levels. CASAMBI© mobile application can be downloaded free of charge from the Apple APP Store and Google Play Store.
Features
  • Flicker Free
Application note
  • Configurable via Casambi APP

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 48 V
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 2
Output Power
  • 76.2 W
Output Voltage Min.
  • 12 V
Output Voltage Max.
  • 48 V
Output current
  • 5.000 A
Output current, channel 2
  • 5.000 A
Overload protection
Overvoltage protection
Overtemperature protection
Dimming type
  • PWM
Dimming range, min.
  • 1 %
Dimming range, max.
  • 100 %
Connection type, output
  • Push-In Terminal
Output frequency (Hz)
  • 3400

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13

Documents

Dalcnet_Katalog_2026.pdf
Download (pdf, 3.268 KB)

Other Products

All Products of the Series
NEW
Loading...

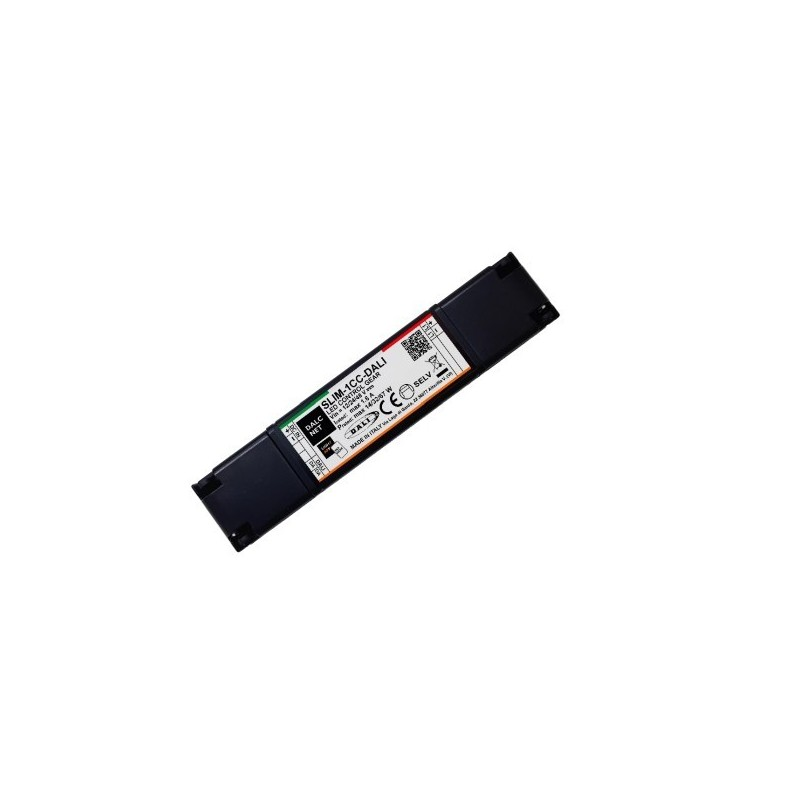

SLIM-1CC-DALI
DALCNET
Dali Dimmer CC 76,2 W 1,6 A 12 V 48 V
from €38.98
NEW
Loading...

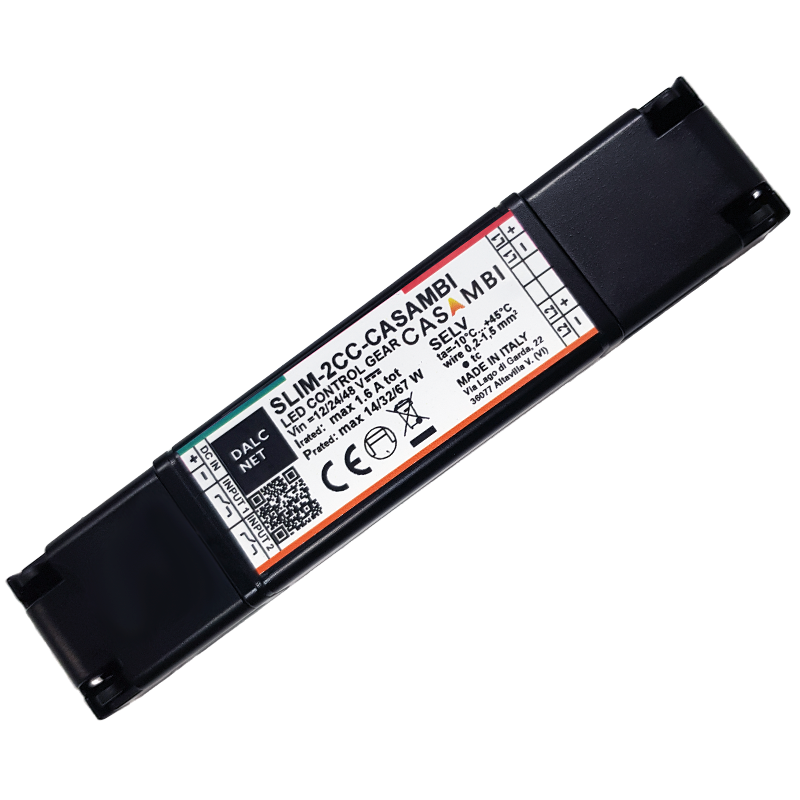

SLIM-2CC-CASAMBI
DALCNET
Casambi Push Dimming Dimmer CC 34,4 W 0,8 A 12 V 48 V
from €104.40
Loading...

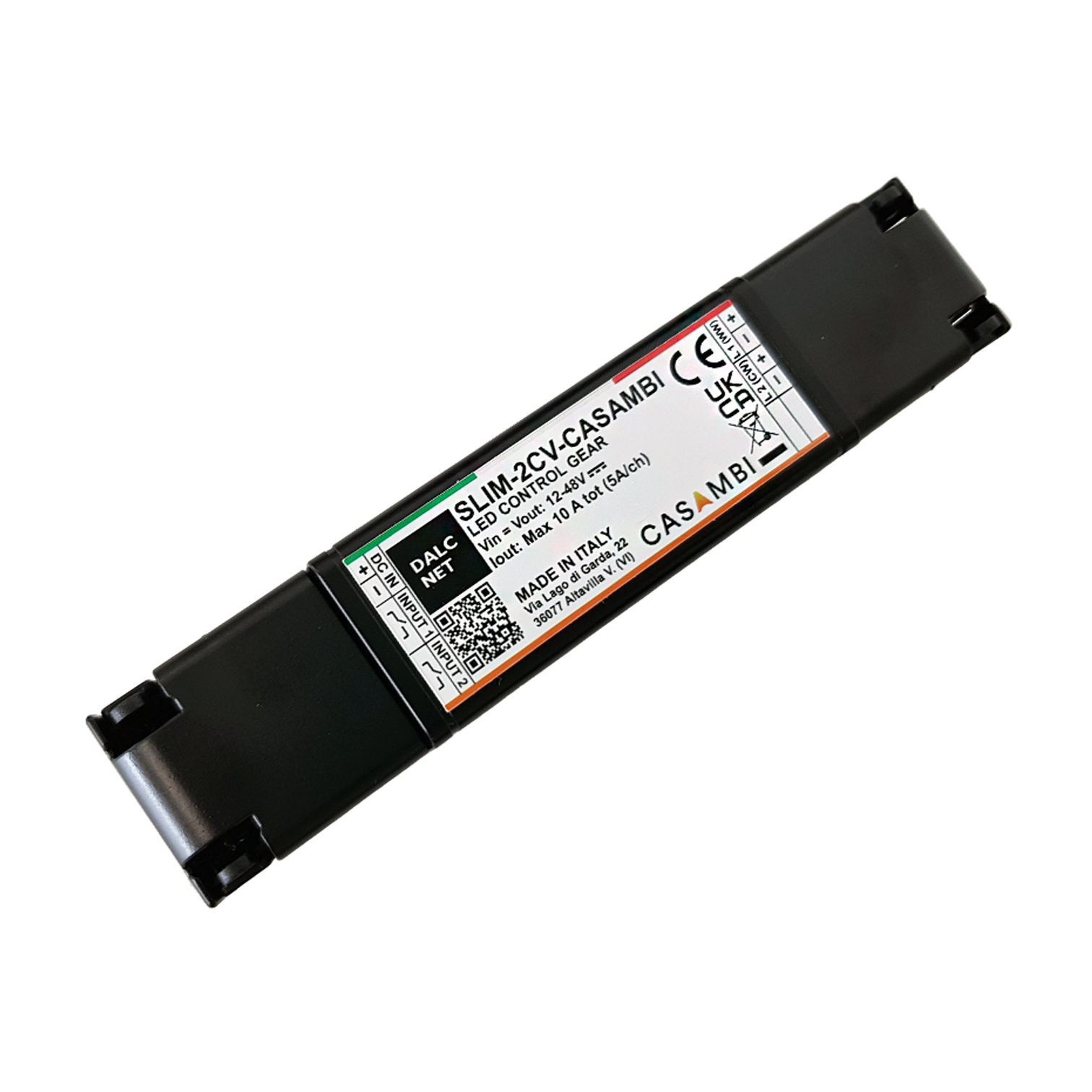

SLIM-2CV-CASAMBI
