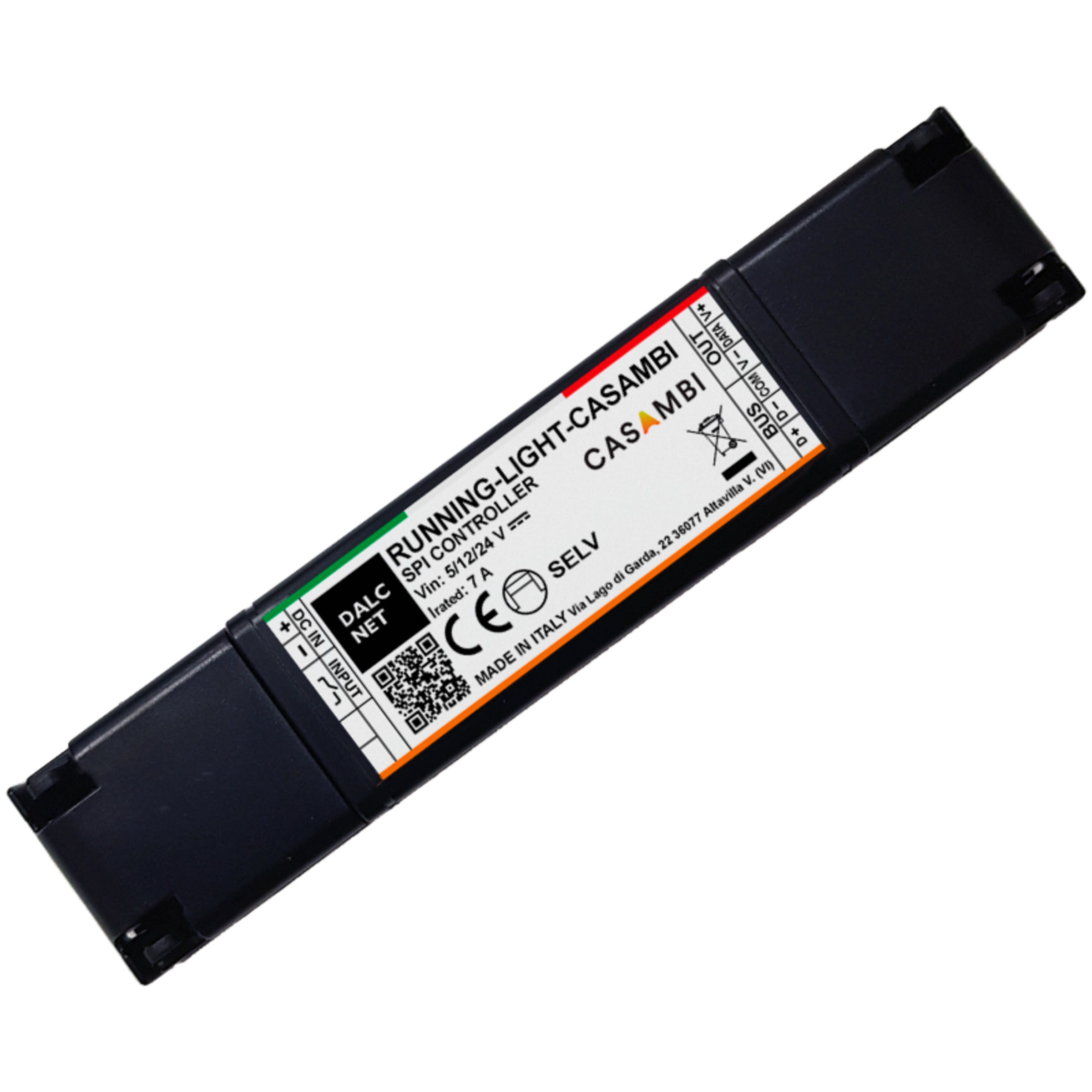

RUNNING-LIGHT-CASAMBI

DALCNET Casambi Push Dimming Dimmer CV 168 W 7 A 5 V 24 V

RUNNING-LIGHT-CASA
NEW
Manufacturer Part No.
RUNNING-LIGHT-CASAMBI
Schukat Part No.
RUNNING-LIGHT-CASA
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
SPI Controller
Number of outputs
1
Interfaces
Casambi
Push Dimming
Operating mode
CV
Output Power
168 W
Output current
7.000 A
Input voltage min. DC
5 V
Input voltage max. DC
24 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • Running Light
Product group
  • M7873
Application
  • Lighting
Type
  • SPI Controller
Operating mode
  • CV
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 136.38 mm
Dimension: Width
  • 28.5 mm
Dimension: Height
  • 21 mm
Weight
  • 56 g
Label
  • SELV
Interfaces
  • Casambi
  • Push Dimming
Manufacturer's warranty (years)
  • 5
Product description
  • RUNNING-LIGHT-CASAMBI is an SPI controller for pixel-to-pixel LED control on digital (programmable/addressable) LED strip, supplied by a constant voltage (5 ÷ 24) Vdc from an external SELV power supply. The controller is suitable for driving Digital-LED RGB/RGBW/TW strips at constant voltage. The controller can be controlled remotely via Bluetooth Low Energy (BLE) or locally via a Normally Open (N.O.) pushbutton. RUNNING-LIGHT-CASAMBI can deliver a maximum output current of 7 A and has the following protections: over-voltage and under-voltage protections, reverse polarity protection and input fuse protection. Through the PIXEL-REPEATER module (sold separately) connected to the BUS interface is possible to duplicate the effects to a second pixel-to-pixel Digital-LED strip placed at a distance up to 250 m from the controller. RUNNING-LIGHT-CASAMBI enables you to make not only simple brightness adjustments but also more dynamic lighting control systems. This is made possible through the creation of multiple scenarios, animations, effects, timers, daylight controls, and more. Through the CASAMBI© mobile application and smartphones equipped with Bluetooth technology, it is possible to configure multiple parameters, including up to 8 different light effects, colour, speed, direction, pixel length, and transition parameters. CASAMBI© mobile application can be downloaded free of charge from the Apple APP Store and Google Play Store.

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Number of inputs
  • 1
Nominal input voltage
  • 12 V
Input voltage min. DC
  • 5 V
Input voltage max. DC
  • 24 V
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 1
Output Power
  • 168 W
Output current
  • 7.000 A
Overload protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Push-In Terminal

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1

Documents

Dalcnet_Katalog_2026.pdf
Download (pdf, 3.268 KB)

Other Products

All Products of the Series
NEW
Loading...
PIXEL-REPEATER
DALCNET
Dimmer 168 W 7 A 5 V 48 V
from €17.31
NEW
Loading...

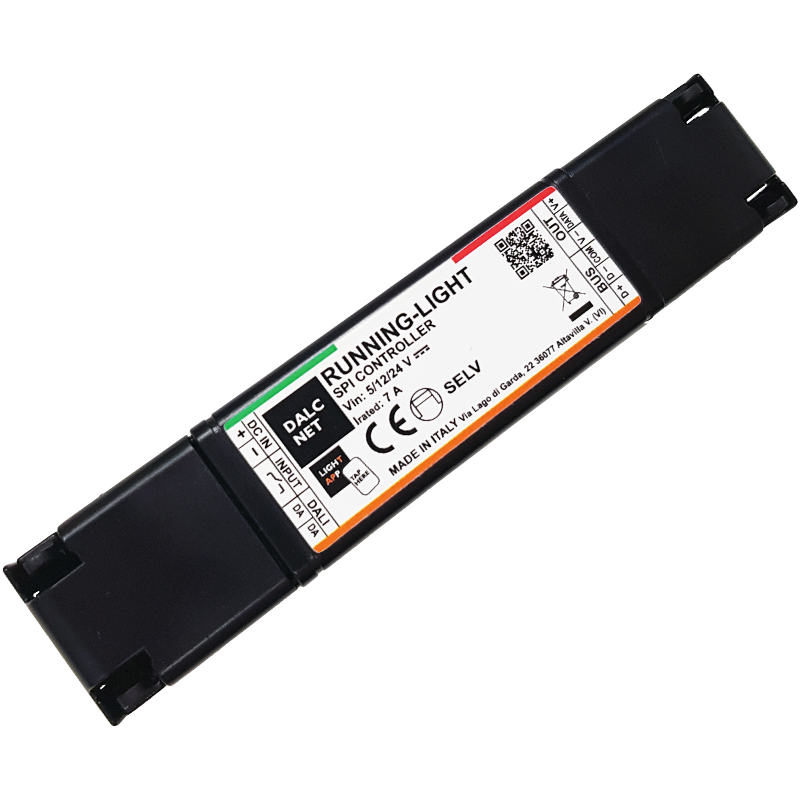

RUNNING-LIGHT
