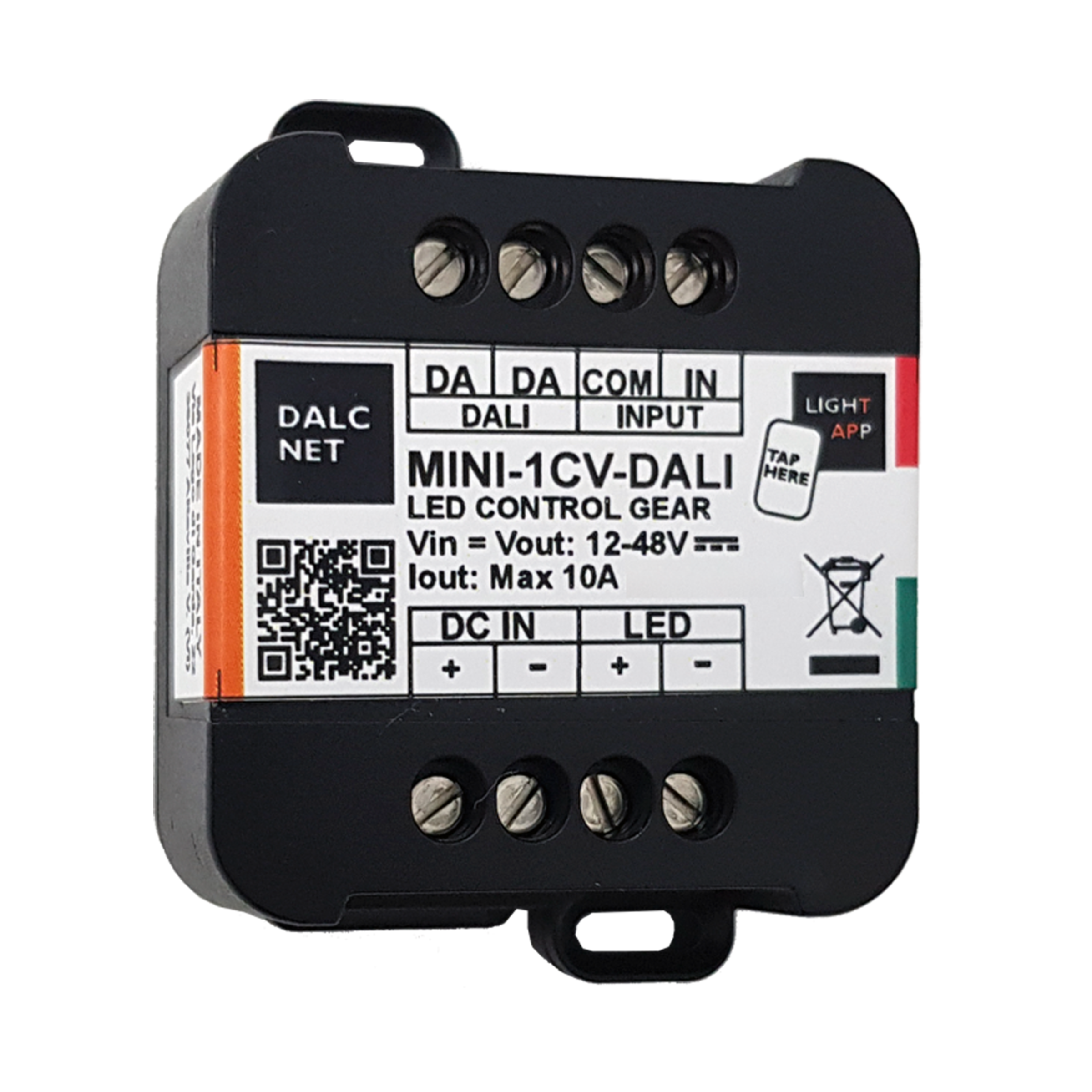

MINI-1CV-DALI

DALCNET 0-10 Volt 1-10 Volt Dali Resistiv Push Dimming Dimmer CV 480 W 10 A 12 V 48 V

MINI-1CV-DALIMINI-1CV-DALI
Manufacturer Part No.
MINI-1CV-DALI
Schukat Part No.
MINI-1CV-DALI
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

28 Pcs. in stock

Next Stock Receipt
Week 19/2026
50 Pcs.
Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 21 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Dimmer
Number of outputs
1
Interfaces
0-10 Volt
1-10 Volt
Dali
Push Dimming
Resistiv
Operating mode
CV
Output Power
480 W
Output current
10.000 A
Input voltage min. DC
12 V
Input voltage max. DC
48 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • MINI
Product group
  • M7860
Application
  • Lighting
Type
  • Dimmer
Operating mode
  • CV
Package/Case
  • Enclosed Plastic

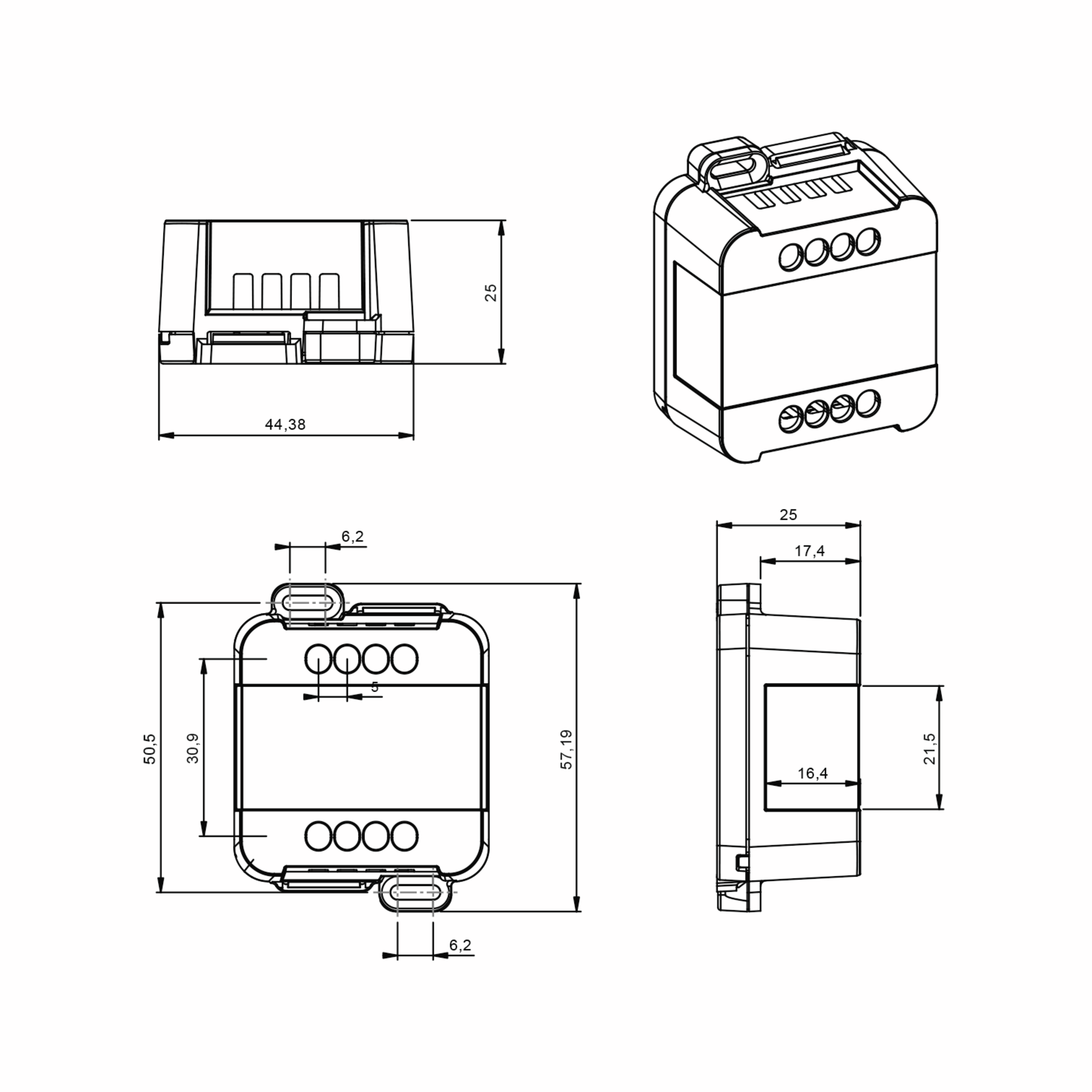

Dimension: Length
  • 44 mm
Dimension: Width
  • 57 mm
Dimension: Height
  • 25 mm
Weight
  • 47 g
Interfaces
  • 0-10 Volt
  • 1-10 Volt
  • Dali
  • Push Dimming
  • Resistiv
Manufacturer's warranty (years)
  • 5
Product description
  • The MINI-1CV-DALI is a single-channel LED dimmer, controllable with DALI protocol or with a normally open push-button, a 0-10V/1-10V signal or potentiometer. The LED dimmer is suitable for driving loads such as LED strips and LED modules, White and single-color constant voltage. It is possible to connect a power supply at 12-24-48 Vdc. The maximum value of the output current is 10A. The LED dimmer has the following protections: over voltage protection, undervoltage protection, reverse polarity protection, input fuse protection, short circuit protection, short circuit detection and open circuit detection. Using the Dalcnet LightApp mobile application you can configure multiple parameters of the MINI-1CV-DALI such as Dimming frequency, Dimming curve, max and min brightness level, Fade time etc. LightApp is free to download from the Apple App Store and Google Play Store.
Features
  • Flicker Free
Application note
  • Configurable via Dalcnet LightApp

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 48 V
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 480 W
Output Voltage Min.
  • 12 V
Output Voltage Max.
  • 48 V
Output current
  • 10.000 A
Overload protection
Overvoltage protection
Overtemperature protection
Dimming type
  • PWM
Dimming range, min.
  • 0.1 %
Dimming range, max.
  • 100 %
Connection type, output
  • Screw Terminal
Output frequency (Hz)
  • 4000

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13

Documents

Dalcnet_Katalog_2026.pdf
Download (pdf, 3.268 KB)
PCN_Dalcnet_EN.pdf
Download (pdf, 170 KB)

Other Products

All Products of the Series
Loading...

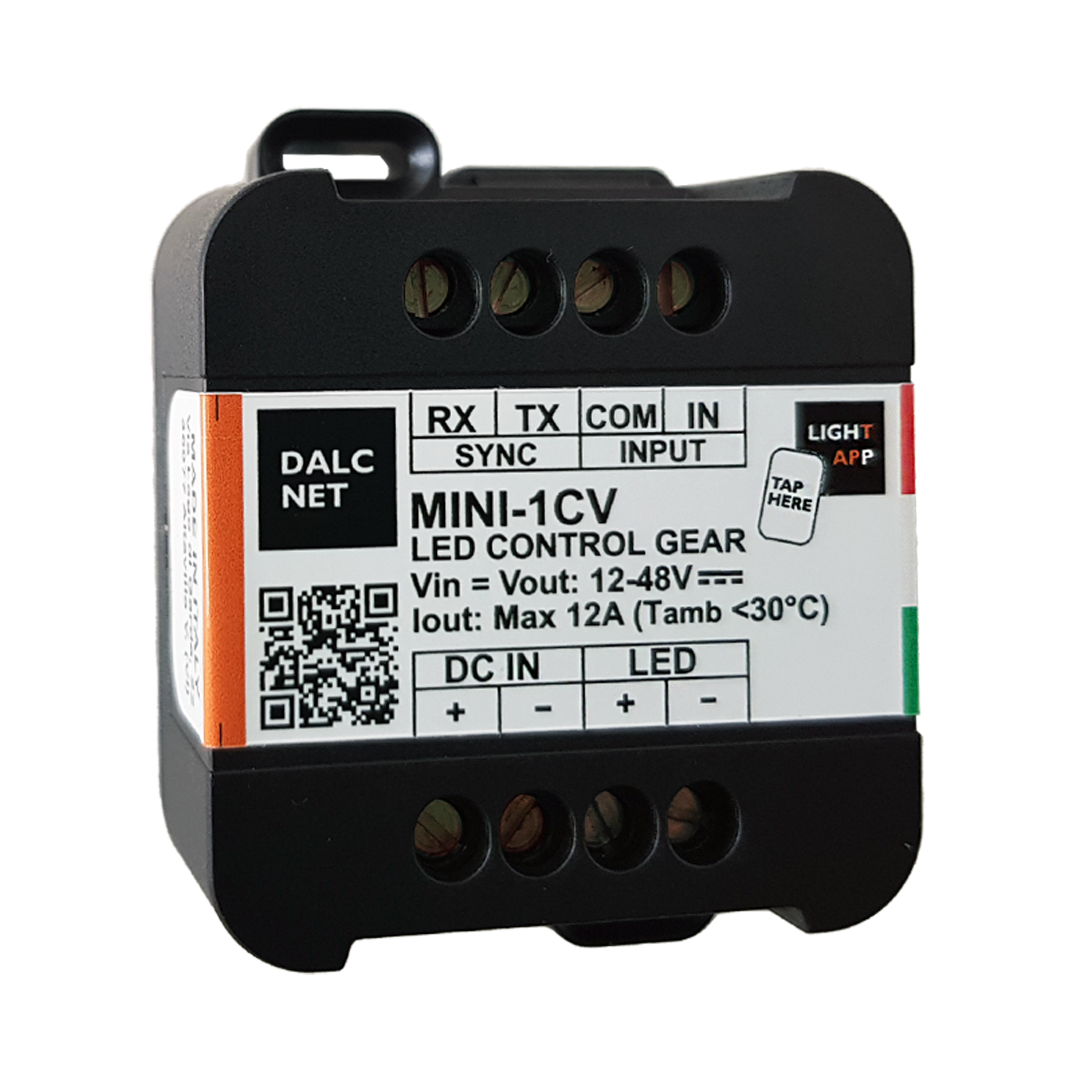

MINI-1CV
DALCNET
0-10 Volt 1-10 Volt Push Dimming Resistiv Dimmer CV 576 W 12 A 12 V 48 V
from €27.19
Loading...

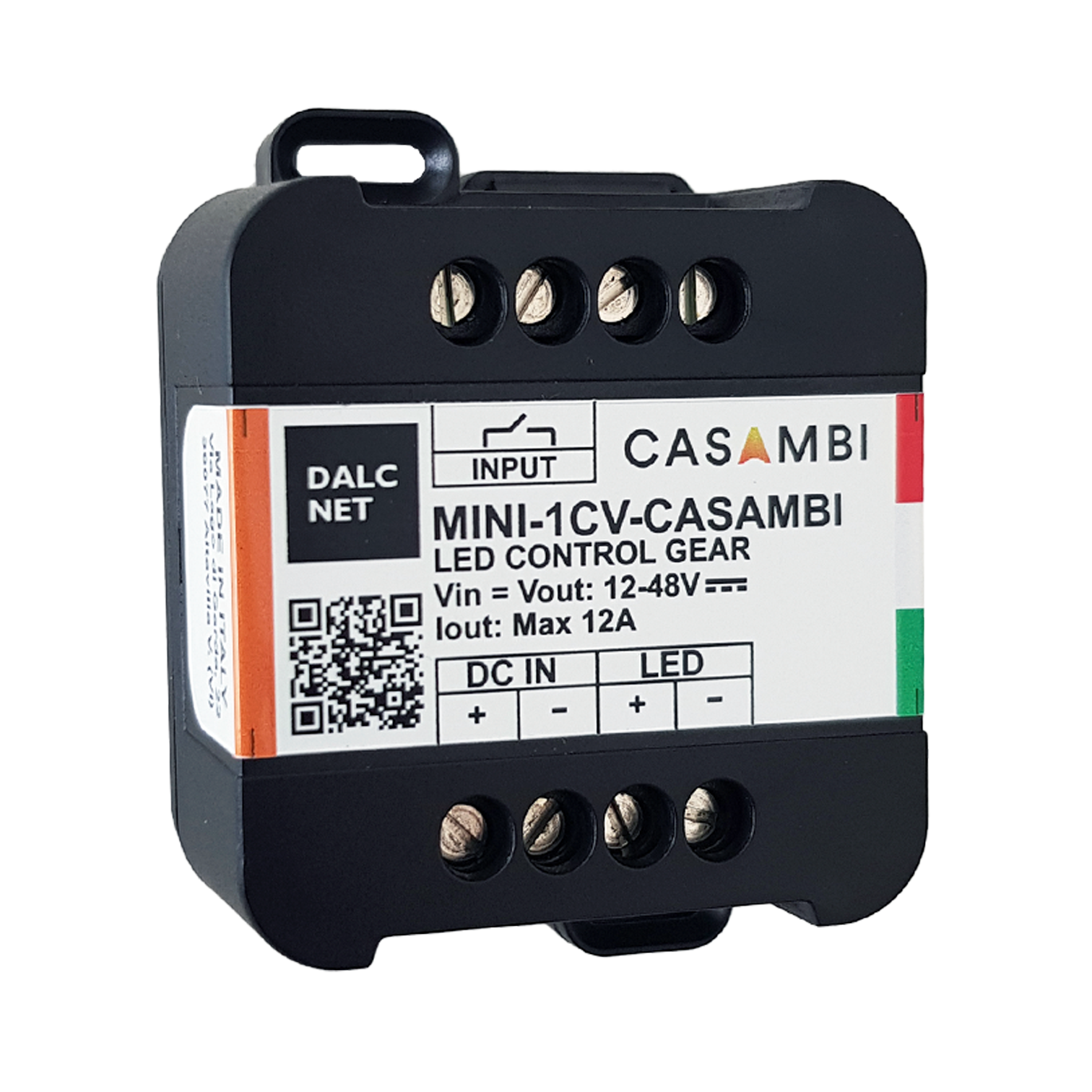

MINI-1CV-CASAMBI
