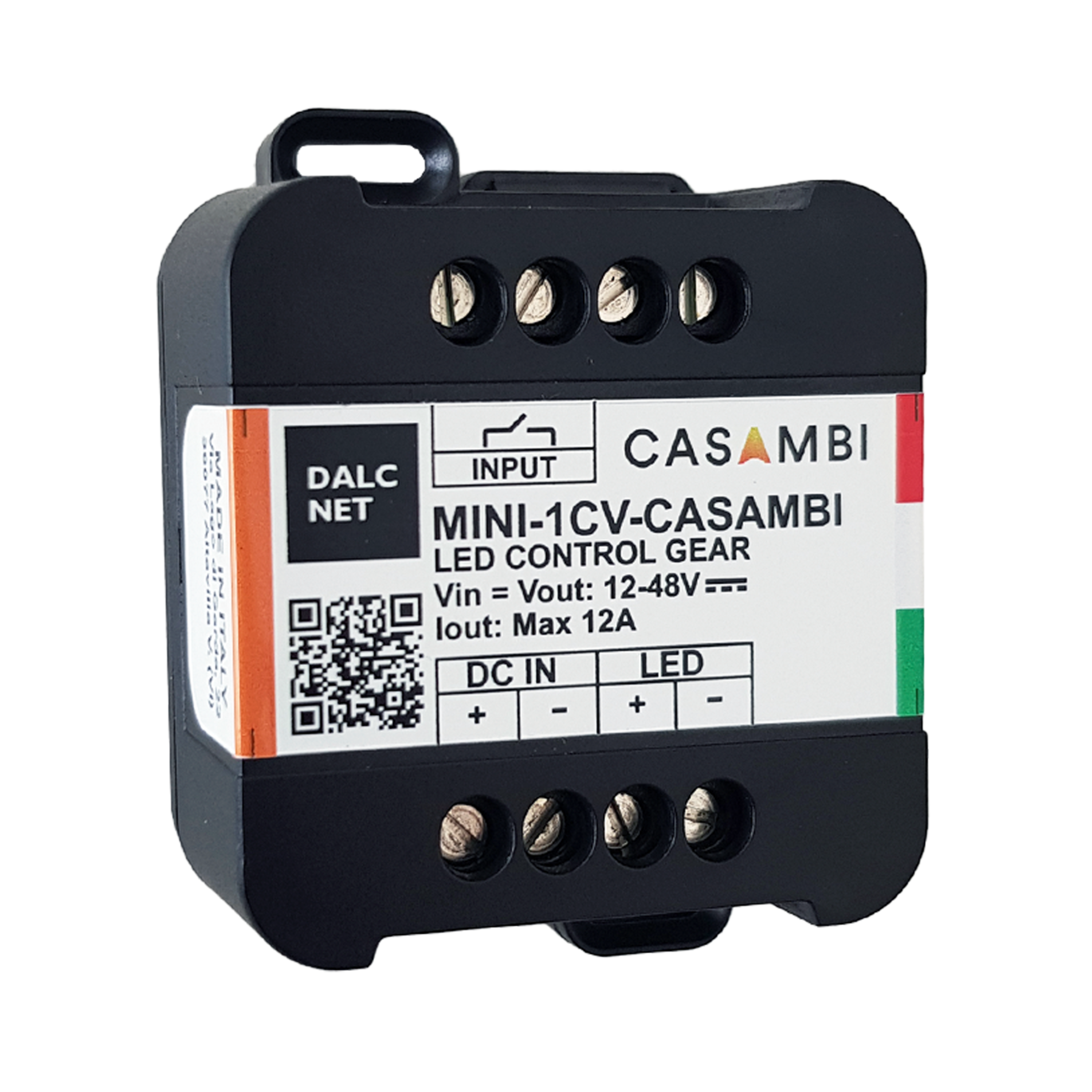

MINI-1CV-CASAMBI

DALCNET Casambi Push Dimming Dimmer CV 576 W 12 A 12 V 48 V

MINI-1CV-CASAMBIMINI-1CV-CASAMBI
Manufacturer Part No.
MINI-1CV-CASAMBI
Schukat Part No.
MINI-1CV-CASAMBI
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

36 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 21 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Dimmer
Number of outputs
1
Interfaces
Casambi
Push Dimming
Operating mode
CV
Output Power
576 W
Output current
12.000 A
Input voltage min. DC
12 V
Input voltage max. DC
48 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • MINI
Product group
  • M7860
Application
  • Lighting
Type
  • Dimmer
Operating mode
  • CV
Package/Case
  • Enclosed Plastic

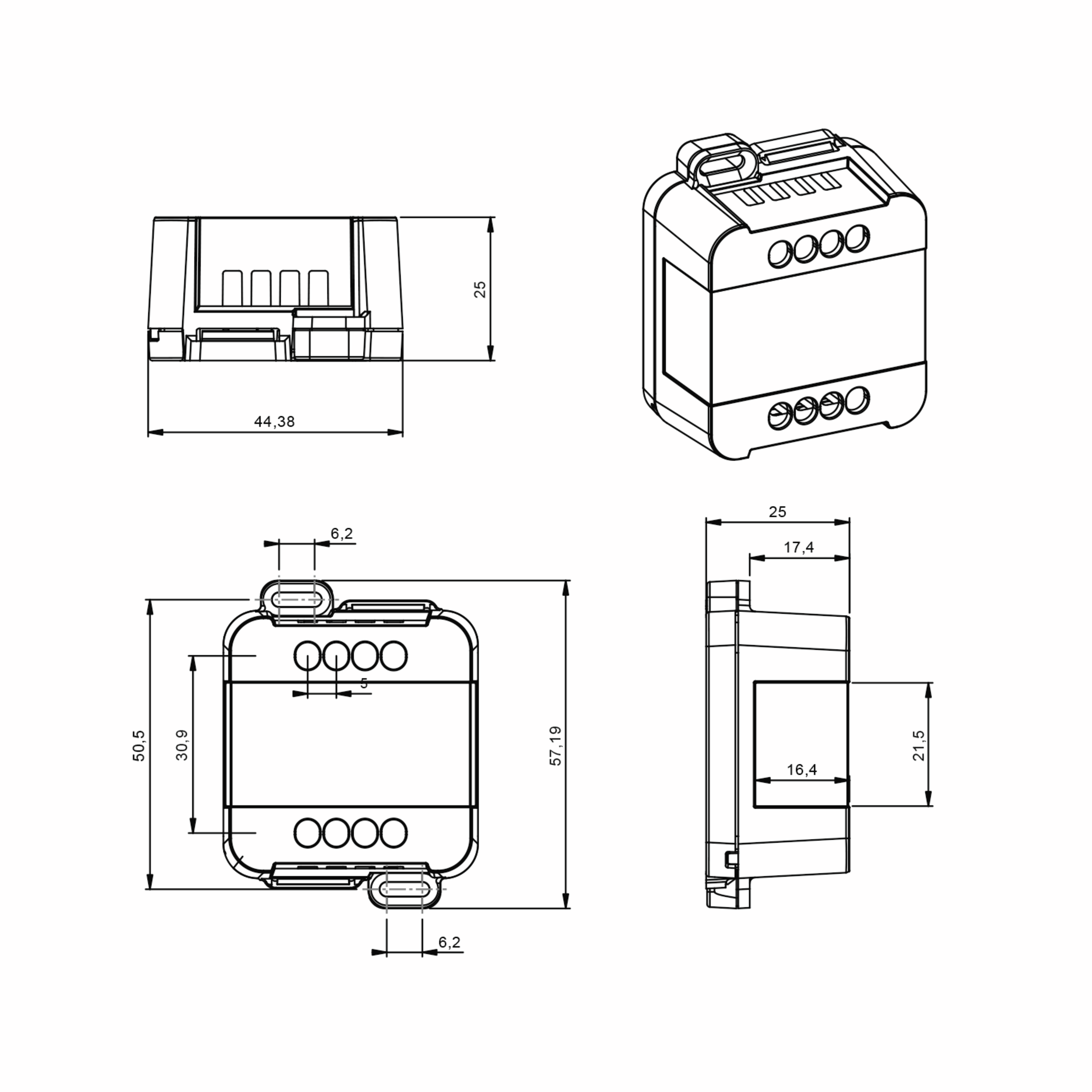

Dimension: Length
  • 44 mm
Dimension: Width
  • 57 mm
Dimension: Height
  • 25 mm
Weight
  • 44 g
Interfaces
  • Casambi
  • Push Dimming
Manufacturer's warranty (years)
  • 5
Product description
  • MINI-1CV-CASAMBI is a single channel LED dimmer, controllable via Bluetooth using the Casambi APP or locally with a normally open push button. The LED dimmer is suitable for driving Strip LED and LED modules, White and monochromatic constant voltage loads. It is possible connect a power supply at 12-24-48 Vdc. The maximum total output current is 12A. The LED dimmer has over voltage protection, under voltage protection, reverse polarity protection and input fuse protection. By means of the CASAMBI APP, the MINI-1CV-CASAMBI allows you to make a variety of effects: from simple brightness adjustments to more complex lighting control system, thanks to the creation of multiple scenarios, animations, timers, daylight control etc. CASAMBI APP can be downloaded for free on Apple App Store and Google Play Store.
Features
  • Flicker Free
Application note
  • Configurable via Dalcnet LightApp

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 48 V
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 576 W
Output Voltage Min.
  • 12 V
Output Voltage Max.
  • 48 V
Output current
  • 12.000 A
Overload protection
Overvoltage protection
Overtemperature protection
Dimming type
  • PWM
Dimming range, min.
  • 0.1 %
Dimming range, max.
  • 100 %
Connection type, output
  • Screw Terminal
Output frequency (Hz)
  • 4000

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13

Documents

Dalcnet_Katalog_2026.pdf
Download (pdf, 3.268 KB)
PCN_Dalcnet_EN.pdf
Download (pdf, 170 KB)

Other Products

All Products of the Series
Loading...

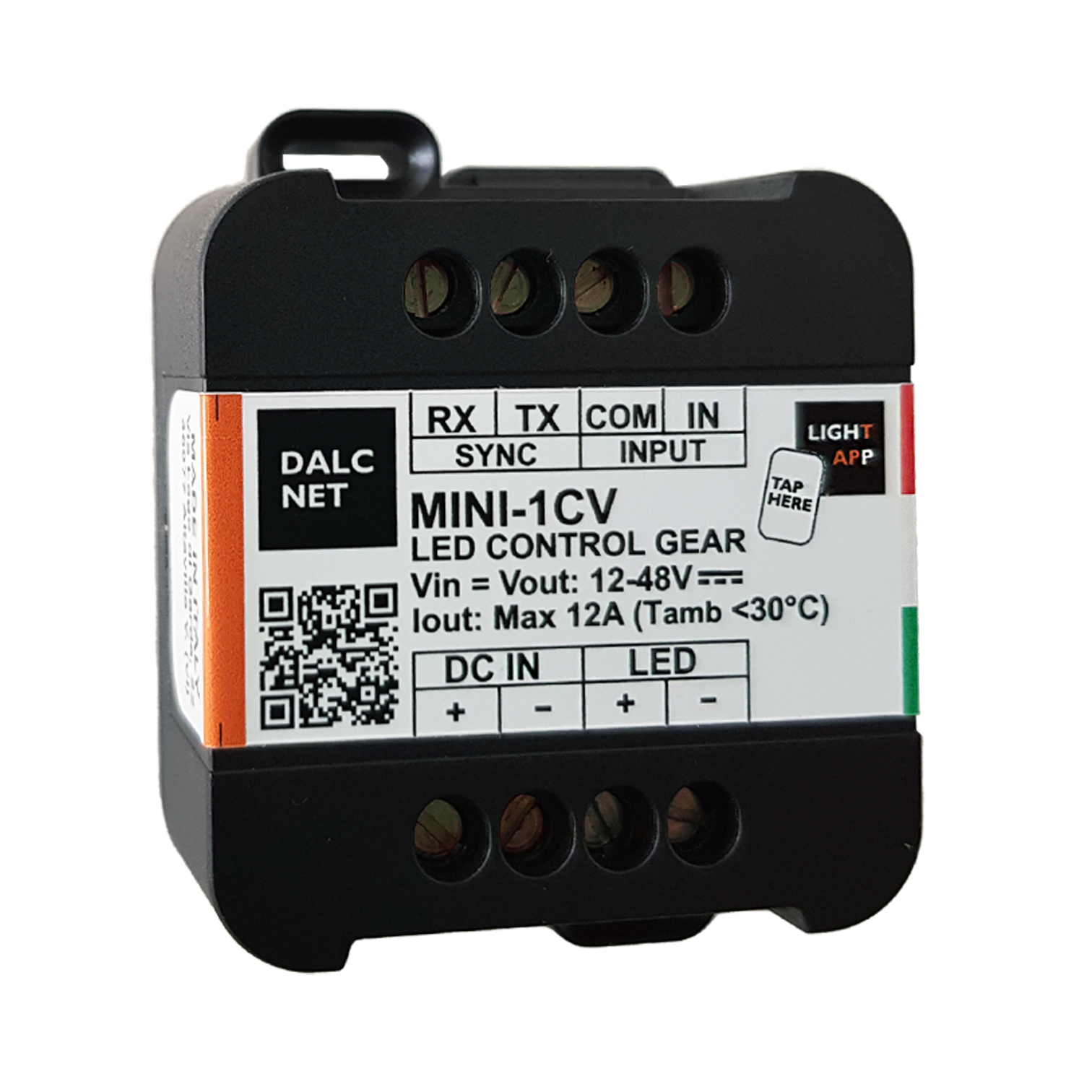

MINI-1CV
DALCNET
0-10 Volt 1-10 Volt Push Dimming Resistiv Dimmer CV 576 W 12 A 12 V 48 V
from €27.19
Loading...

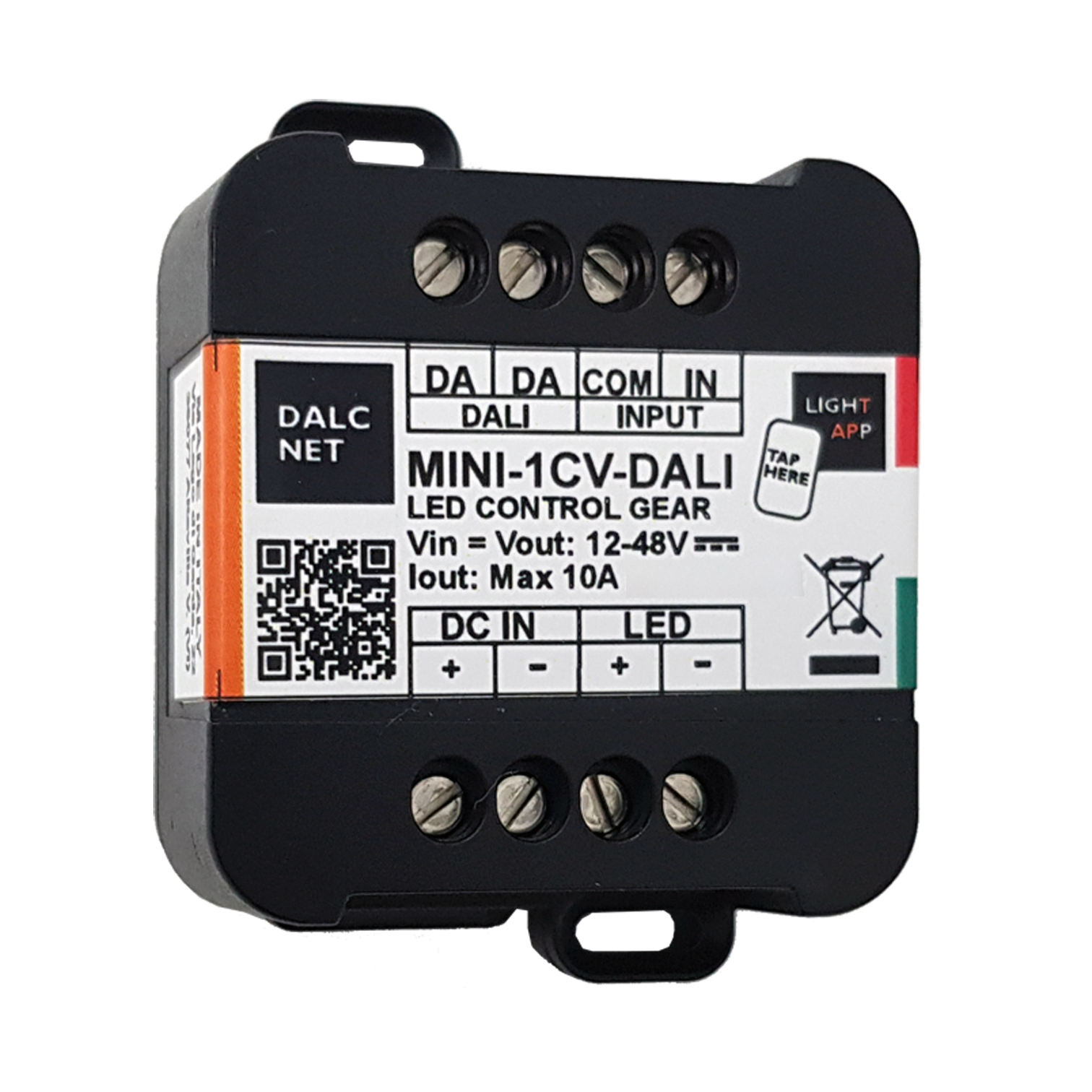

MINI-1CV-DALI
