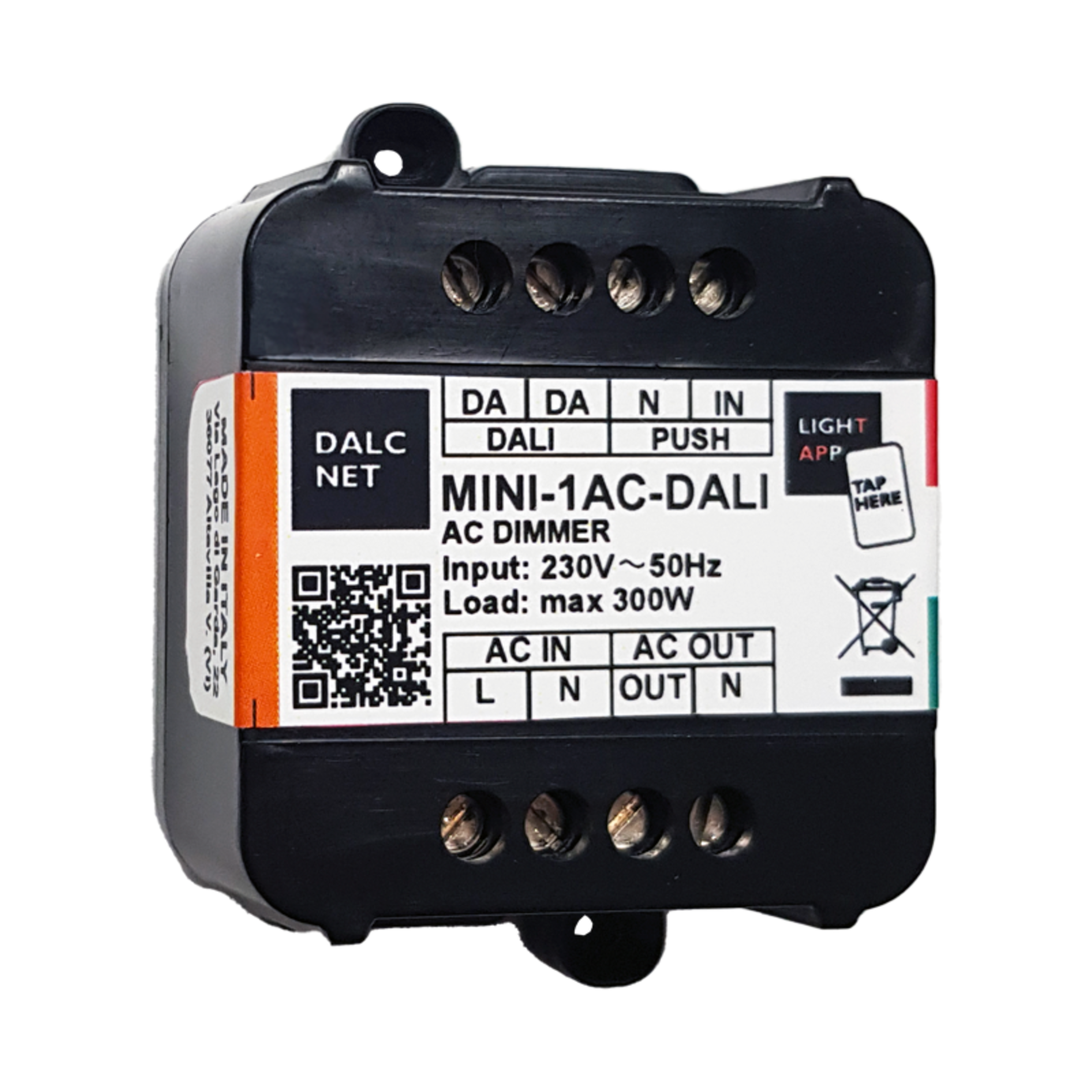

MINI-1AC-DALI

DALCNET Dali Push Dimming Dimmer Phasecut 350 W 1,52 A

MINI-1AC-DALI
NEW
Manufacturer Part No.
MINI-1AC-DALI
Schukat Part No.
MINI-1AC-DALI
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 26/2026
10 Pcs.
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Dimmer
Number of outputs
1
Interfaces
Dali
Push Dimming
Operating mode
Phasecut
Output Power
350 W
Output current
1.520 A
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • MINI-AC
Product group
  • M7861
Application
  • Lighting
Type
  • Dimmer
Operating mode
  • Phasecut
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 44 mm
Dimension: Width
  • 57 mm
Dimension: Height
  • 25 mm
Weight
  • 80 g
Interfaces
  • Dali
  • Push Dimming
Manufacturer's warranty (years)
  • 5
Product description
  • MINI-1AC-DALI is a single-channel Alternating Current (AC) Trailing Edge dimmer, which can be connected to the 230 Vac mains power supply and is suitable for driving single-color AC loads such as incandescent and halogen lamps, LED switching lamps, LED strips/lamps and dimmable drivers in Trailing Edge mode. MINI-1AC-DALI can be controlled via digital DALI (Digital Addressable Lighting Interface) protocol or locally via N.O. (Normally Open) button connected to the phase, neutral or as a dry contact. The type of wiring is recognized when it is turned on and the dimmer is automatically configured to work with the control connected. The AC dimmer is equipped with an internal 1 A fuse, protecting the internal circuitry, which makes the installation of an external fuse optional. The maximum output current is 1.52 A and has the following protections: input fuse protection, output short-circuit protection, short-circuit detection, and output open-circuit detection. Through the Dalcnet LightApp© mobile application and smartphone equipped with Near Field Communication (NFC) technology, it is possible to configure multiple parameters with the device turned off, including the adjustment curve, maximum / minimum brightness levels, fade-in / fade-out time ramps. Dalcnet LightApp© is free to download from the Apple APP Store and Google Play Store.
Features
  • NFC-Function

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Nominal input voltage
  • 230 V
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 350 W
Output Voltage Min.
  • 230 V
Output Voltage Max.
  • 230 V
Output current
  • 1.520 A
Overload protection
Overvoltage protection
Overtemperature protection
Dimming range, min.
  • 5 %
Dimming range, max.
  • 100 %
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1

Documents

Dalcnet_Katalog_2026.pdf
Download (pdf, 3.268 KB)

Other Products

All Products of the Series
NEW
Loading...

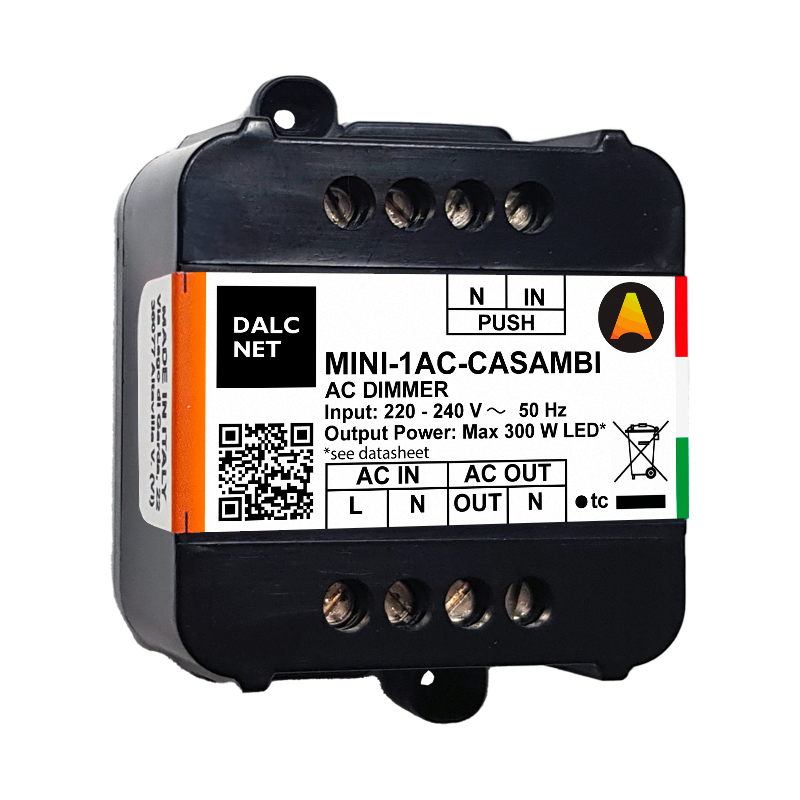

MINI-1AC-CASAMBI
