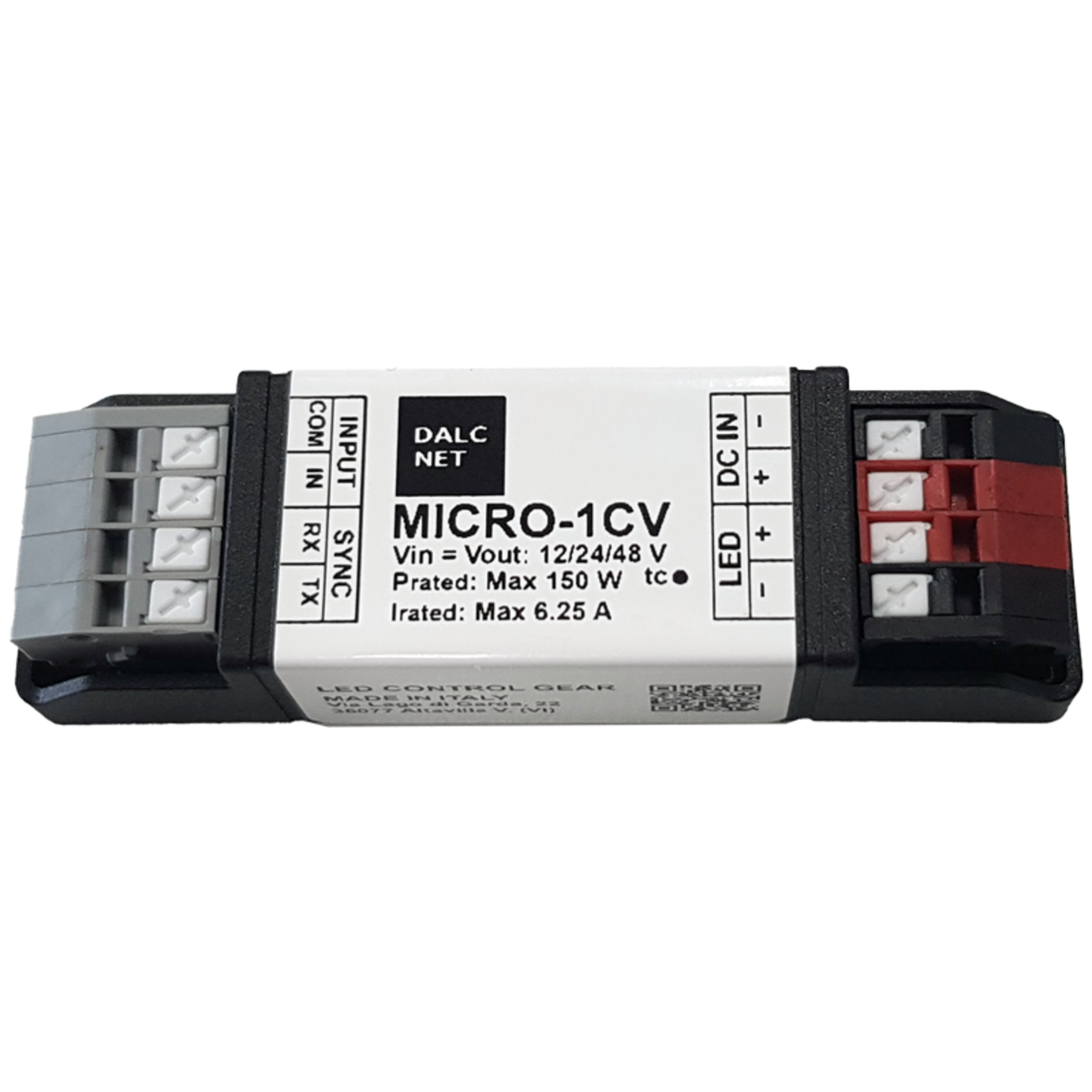

MICRO-1CV

DALCNET Push Dimming 0-10 Volt 1-10 Volt Resistiv Dimmer CV 78 W 6,5 A 12 V 48 V

MICRO-1CV
NEW
Manufacturer Part No.
MICRO-1CV
Schukat Part No.
MICRO-1CV
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 26/2026
10 Pcs.
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Dimmer
Number of outputs
1
Interfaces
0-10 Volt
1-10 Volt
Push Dimming
Resistiv
Operating mode
CV
Output Power
78 W
Output current
6.500 A
Input voltage min. DC
12 V
Input voltage max. DC
48 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • MICRO
Product group
  • M7860
Application
  • Lighting
Type
  • Dimmer
Operating mode
  • CV
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 71.7 mm
Dimension: Width
  • 21 mm
Dimension: Height
  • 15.5 mm
Weight
  • 14 g
Label
  • SELV
Interfaces
  • 0-10 Volt
  • 1-10 Volt
  • Push Dimming
  • Resistiv
Manufacturer's warranty (years)
  • 5
Product description
  • MICRO-1CV is a 1-channel Pulse Width Modulation (PWM) Constant Voltage (CV) LED dimmer. It can be powered from a constant voltage (12 ÷ 48) Vdc SELV power supply and is suitable for driving a load such as Strip LED and White/Monochrome LED modules at constant voltage. The dimmer can be controlled via Normally Open (N.O.) push-button, analog input 0/1-10V, or via a 10 kΩ potentiometer; the automatic detection of the local control that ensures the proper functionality related to the type of the connected control. MICRO-1CV can deliver a maximum output power up to 78 W (@12V) or 150 W (@24/48V) and has the following protections: over-voltage and under-voltage protections, reverse polarity protection, input fuse protection and open-circuit protection. Through the Push Menu are possible to configure multiple parameters including dimming frequency, Fade In/Out time values and minimum brightness level.
Features
  • DC compatible

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Number of inputs
  • 1
Nominal input voltage
  • 24 V
Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 48 V
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 1
Output Power
  • 78 W
Output Voltage Min.
  • 12 V
Output Voltage Max.
  • 48 V
Output current
  • 6.500 A
Overload protection
Overvoltage protection
Overtemperature protection
Dimming type
  • PWM
Dimming range, min.
  • 0.1 %
Dimming range, max.
  • 100 %
Connection type, output
  • Push-In Terminal
Output frequency (Hz)
  • 1200

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015

Documents

Dalcnet_Katalog_2026.pdf
Download (pdf, 3.268 KB)
