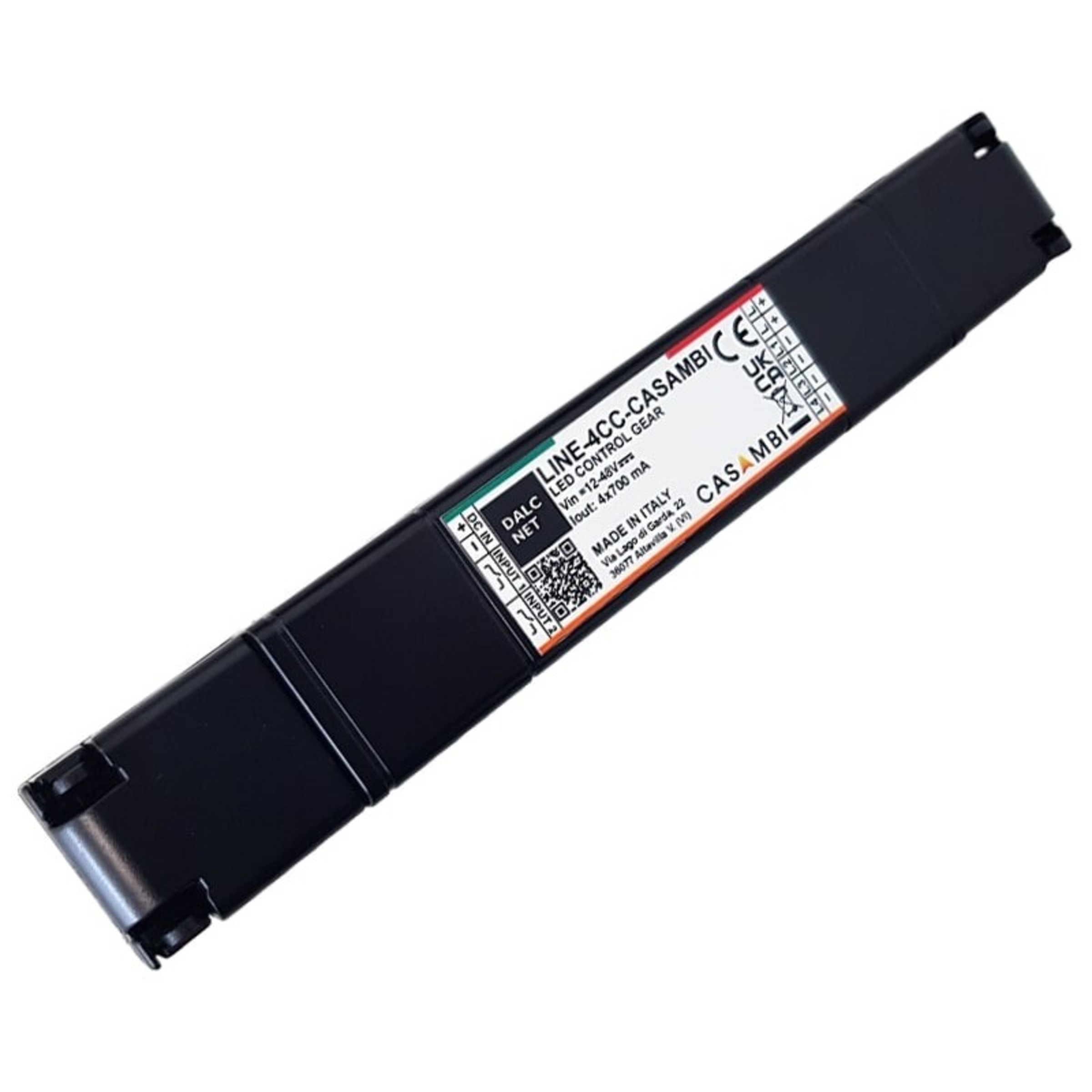

LINE-4CC-CASAMBI

DALCNET Casambi Push Dimming Dimmer CC 154,8 W 0,9 A 12 V 48 V

LINE-4CC-CASAMBI
NEW
Manufacturer Part No.
LINE-4CC-CASAMBI
Schukat Part No.
LINE-4CC-CASAMBI
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Dimmer
Number of outputs
4
Interfaces
Casambi
Push Dimming
Operating mode
CC
Output Power
154.8 W
Output current
0.900 A
Output current, channel 2
0.900 A
Output current, channel 3
0.900 A
Output current, channel 4
0.900 A
Input voltage min. DC
12 V
Input voltage max. DC
48 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • LINE
Product group
  • M7872
Application
  • Lighting
Type
  • Dimmer
Operating mode
  • CC
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 186 mm
Dimension: Width
  • 29 mm
Dimension: Height
  • 21 mm
Weight
  • 77 g
Label
  • SELV
Interfaces
  • Casambi
  • Push Dimming
Manufacturer's warranty (years)
  • 5
Product description
  • The LINE-4CC-CASAMBI is a 4-channel output dimmer LED, controllable via Bluetooth thanks to the Casambi APP or locally through two normally open buttons.The dimmer LED is suitable for driving loads such as Spot-Light and LED modules, White, monochromatic colour, Dynamic White, RGB and RGB+W at constant current. You can connect a power supply at 12-24-48 Vdc. The maximum value of the output current is from 150mA and 900mA. The dimmer LED has the following protections: over-power protection, under-power protection, reverse polarity protection and input fuse protection.The LINE-4CC-CASAMBI enables you to make not only simple brightness adjustments but also more intricate lighting control systems. This is made possible through the creation of multiple scenarios, animations, timers, daylight controls, and more. The CASAMBI APP can be downloaded for free from the Apple App Store and the Google Play Store.
Features
  • Flicker Free
Application note
  • Configurable via Casambi APP

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 48 V
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 4
Output Power
  • 154.8 W
Output Voltage Min.
  • 12 V
Output Voltage Max.
  • 48 V
Output current
  • 0.900 A
Output current, channel 2
  • 0.900 A
Output current, channel 3
  • 0.900 A
Output current, channel 4
  • 0.900 A
Overload protection
Overvoltage protection
Overtemperature protection
Dimming type
  • PWM
Dimming range, min.
  • 1 %
Dimming range, max.
  • 100 %
Connection type, output
  • Push-In Terminal
Output frequency (Hz)
  • 3400

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13

Documents

Dalcnet_Katalog_2026.pdf
Download (pdf, 3.268 KB)

Other Products

All Products of the Series
NEW
Loading...

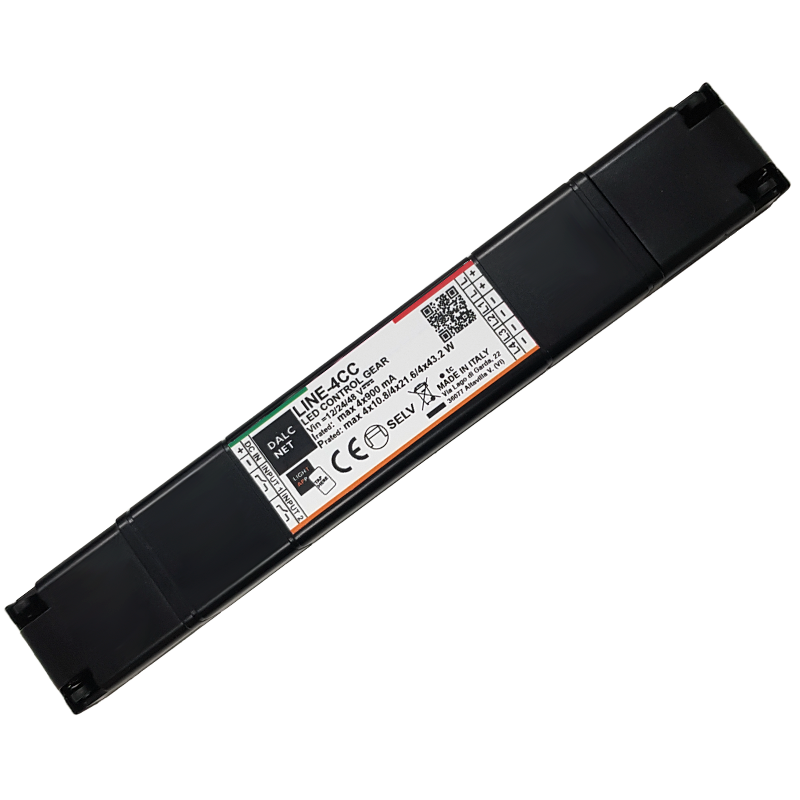

LINE-4CC
DALCNET
Push Dimming Dimmer CC 154,8 W 0,9 A 12 V 48 V
from €63.24
NEW
Loading...

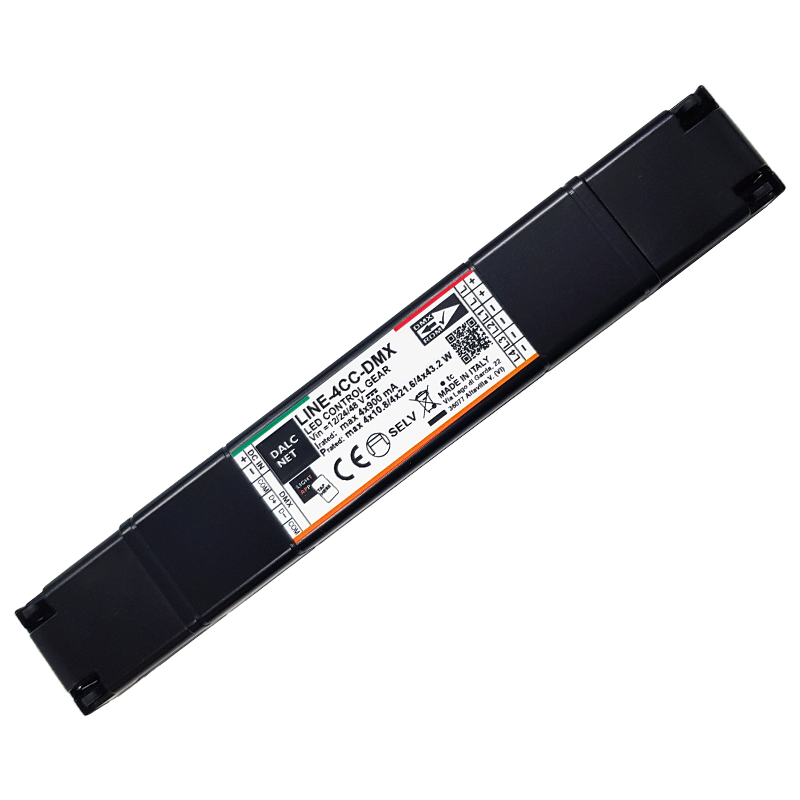

LINE-4CC-DMX
DALCNET
DMX Dimmer CC 154,8 W 0,9 A 12 V 48 V
from €72.59
NEW
Loading...

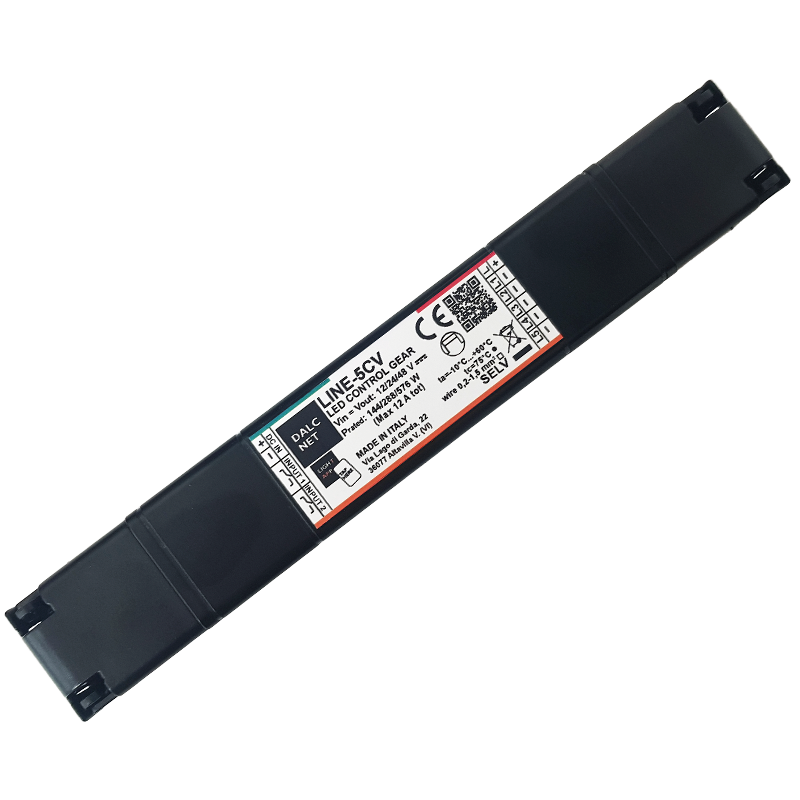

LINE-5CV
DALCNET
Push Dimming Dimmer CV 576 W 5 A 12 V 48 V
from €63.31
Loading...

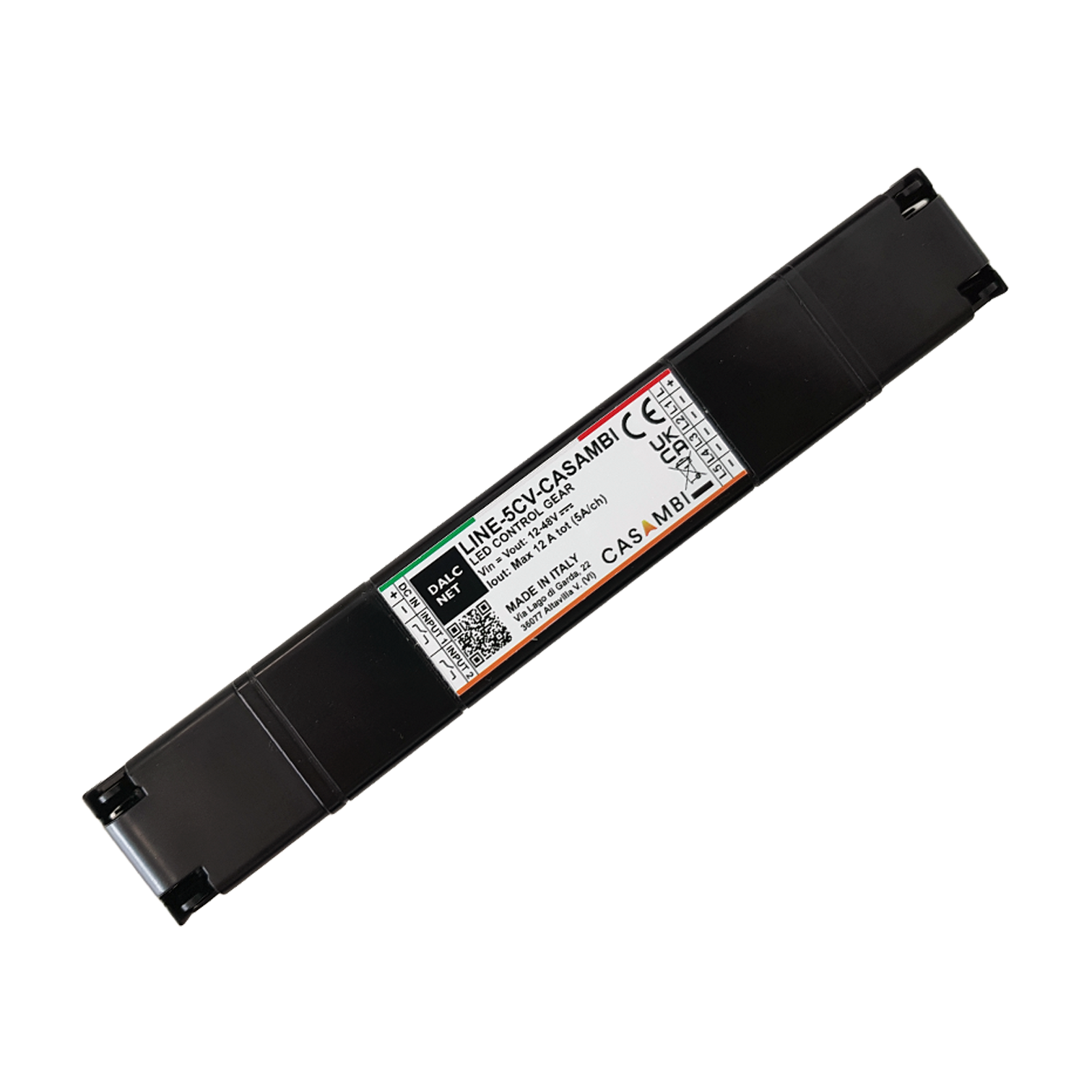

LINE-5CV-CASAMBI
DALCNET
Casambi Push Dimming Dimmer CV 579 W 5 A 12 V 48 V
from €104.71
NEW
Loading...

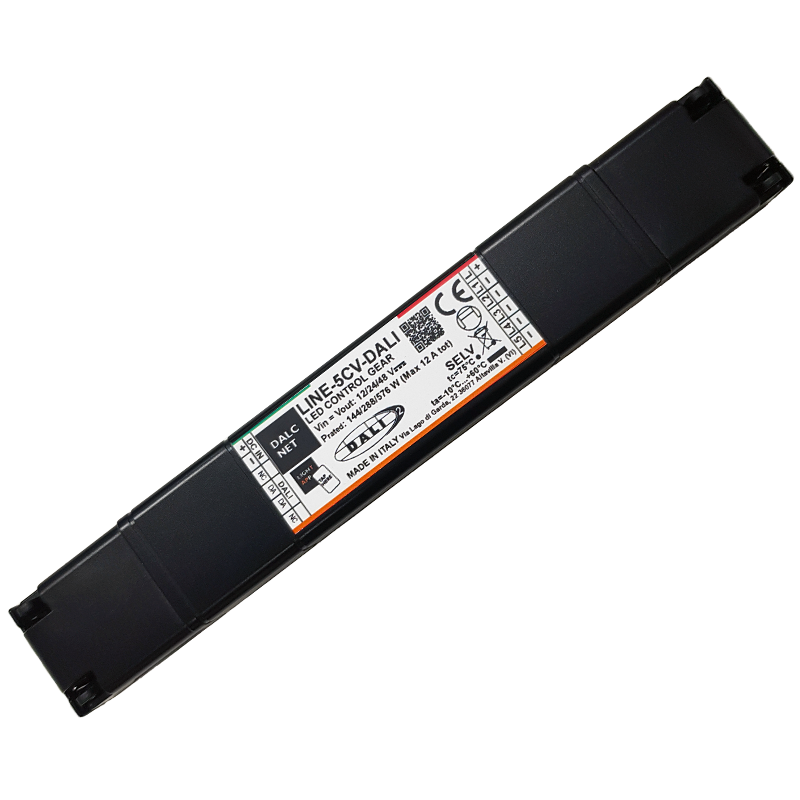

LINE-5CV-DALI
DALCNET
Dali Dimmer CV 576 W 5 A 12 V 48 V
from €63.65
NEW
Loading...

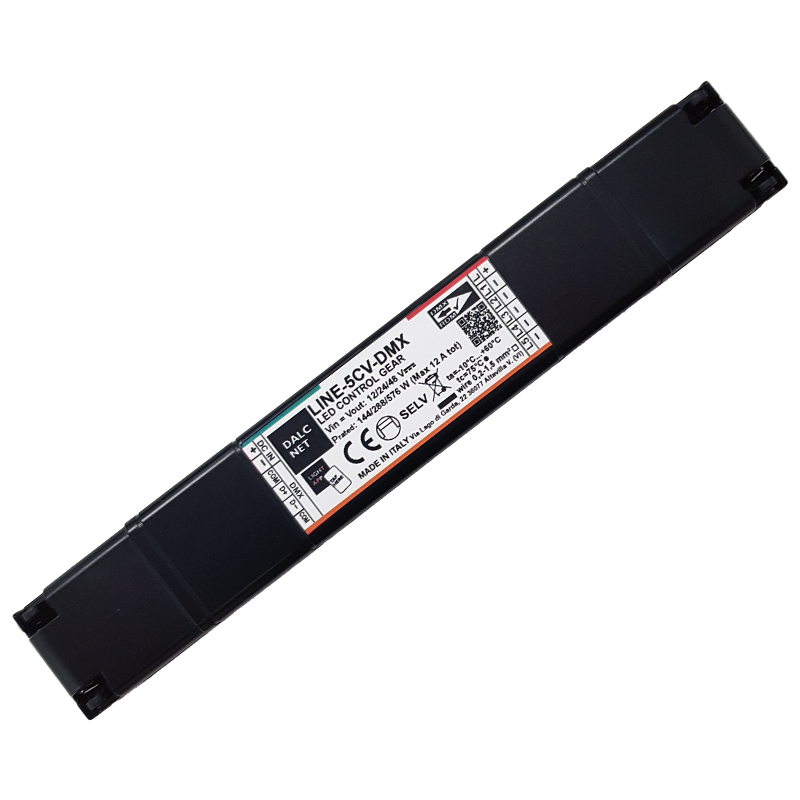

LINE-5CV-DMX
