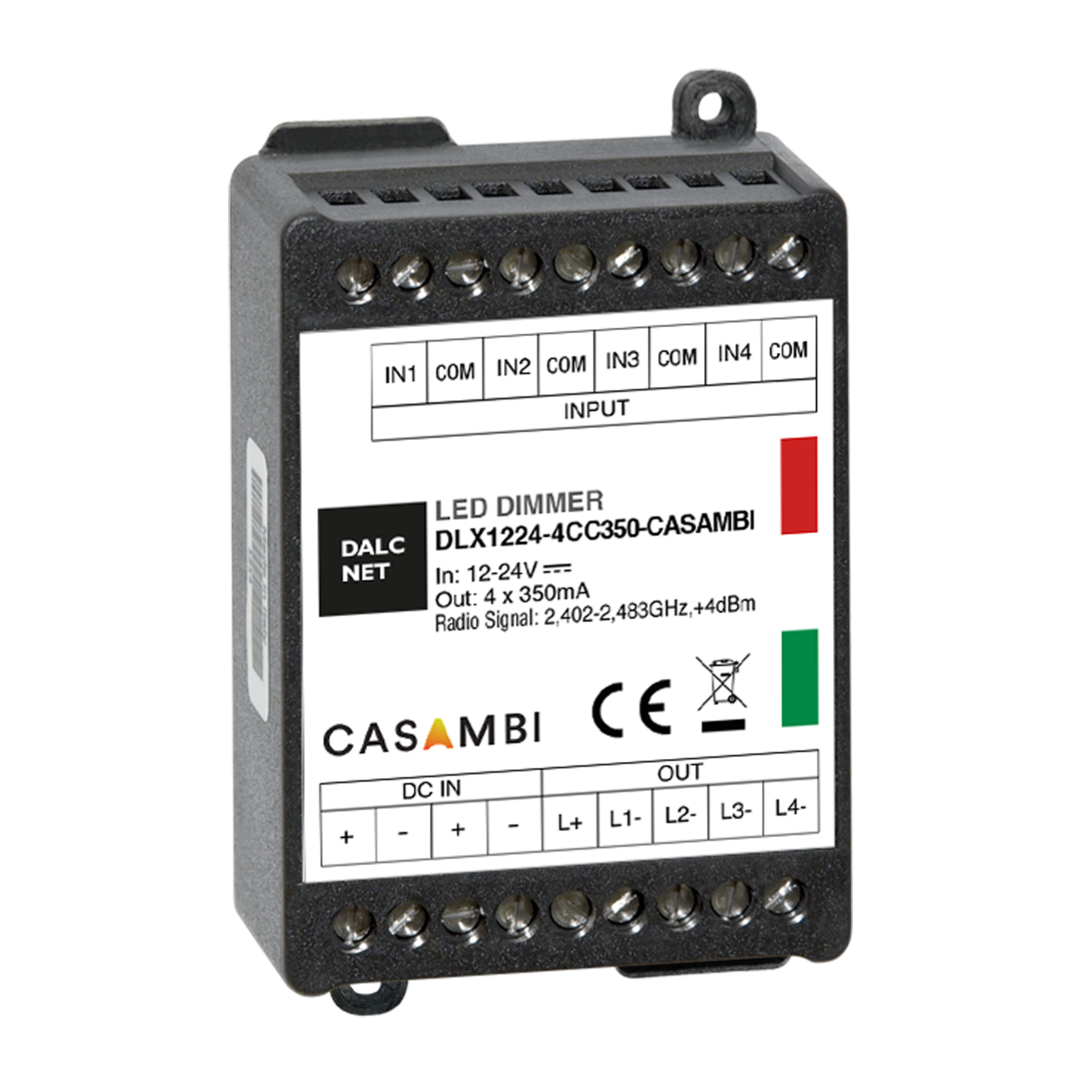

DLX1224-4CC350-CASAMBI

DALCNET Casambi Push Dimming Dimmer CC 33,6 W 0,35 A 12 V 24 V

Manufacturer Part No.
DLX1224-4CC350-CASAMBI
Schukat Part No.
DLX1224-4CC350-CAS
Manufacturer
DALCNET
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Number of outputs
4
Interfaces
Casambi
Push Dimming
Operating mode
CC
Output Power
33.6 W
Output current
0.350 A
Output current, channel 2
0.350 A
Output current, channel 3
0.350 A
Output current, channel 4
0.350 A
Input voltage min. DC
12 V
Input voltage max. DC
24 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • DALCNET
Series
  • DLX
Product group
  • M7866 DALCNET DLX Dimmer
Application
  • Lighting
Operating mode
  • CC
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 88 mm
Dimension: Width
  • 54 mm
Dimension: Height
  • 25 mm
Weight
  • 80 g
Interfaces
  • Casambi
  • Push Dimming
Manufacturer's warranty (years)
  • 5
Notice
  • Configurable via Casambi APP

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 40 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 60 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 12 V
Input voltage max. DC
  • 24 V
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 4
Output Power
  • 33.6 W
Output Voltage Min.
  • 12 V
Output Voltage Max.
  • 24 V
Output current
  • 0.350 A
Output current, channel 2
  • 0.350 A
Output current, channel 3
  • 0.350 A
Output current, channel 4
  • 0.350 A
Overload protection
Overvoltage protection
Overtemperature protection
Dimming type
  • PWM
Dimming range, min.
  • 0.1 %
Dimming range, max.
  • 100 %
Connection type, output
  • Screw Terminal
Output frequency (Hz)
  • 600

Safety/Certifications

Protection class
  • III
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
