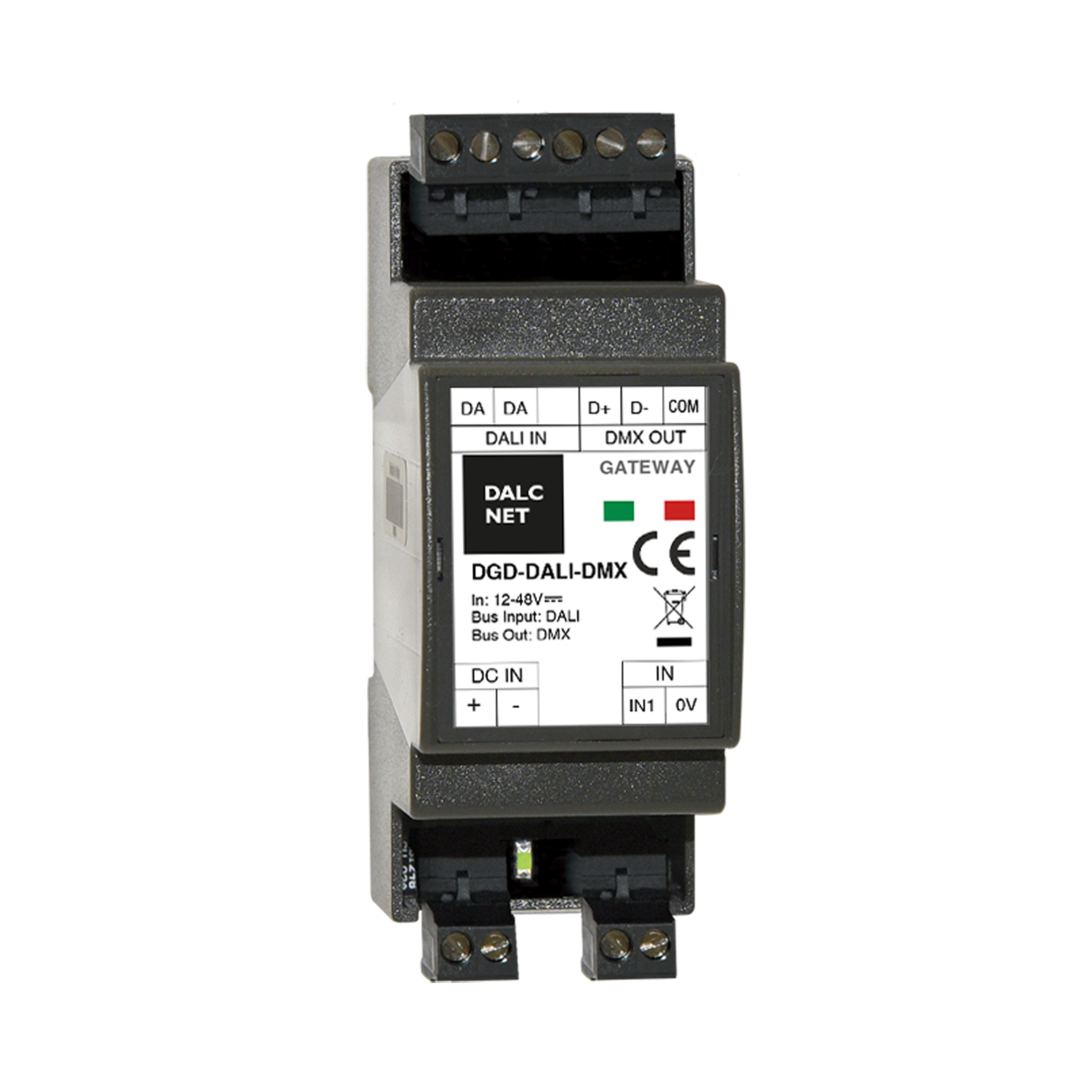

DGD-DALI-DMX
DALCNET Dali DMX Dimmer 12 V 48 V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 7 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Interfaces
- DMX
Dali - Input voltage min. DC
- 12 V
- Input voltage max. DC
- 48 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 40 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 60 °C
Input
- Nominal input voltage
- 24 V
- Input voltage min. DC
- 12 V
- Input voltage max. DC
- 48 V
- Connection type, input
- Screw Terminal
Output
- Overload protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Screw Terminal
Safety/Certifications
- Protection class
- III
- Protection Class IP
- IP10
- Approvals
- CE
- EN
- Standards (EMC)
- EN 55015
- Standards (safety)
- EN 61347-1
