Results (570)
Not discontinued
In stock
RoHS compliant
Datasheet
New
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Package/Case | Frequency | Frequency tolerance | Load capacity | Ageing, max. | Load, max. | Operating Temperature Min. | Operating Temperature Max. | Dimension: Length | Dimension: Width | Dimension: Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
376 | Manufacturers Part No. IC15014.7456M12EF1B(IC15M14.7456) Red Frequency SMD Crystal IC 15 Ceramic case 14,7456MHz 30ppm 5,2mm x 3,4mm x 1,1mm 12pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | SMD Crystal | Ceramic case | 14.7456 MHz | 30 ppm | 12.0 pF | ±2 ppm/Jahr | -20.0 °C | 70.0 °C | 5.2 mm | 3.4 mm | 1.1 mm | |||||||
377 | Manufacturers Part No. QCS25.0000F18B23R(QCS25.0000F18B) QANTEK SMD Crystal QCS 25MHz ±20ppm 12,5mm x 4,8mm x 4,4mm 18pF | Customer Part No. Customer Project No. | 920 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 10 or mul. of 10) | QANTEK | SMD Crystal | 25.0 MHz | ±20 ppm | 18.0 pF | ±3 ppm/Jahr | 1 mW | -40.0 °C | 85.0 °C | 12.5 mm | 4.8 mm | 4.4 mm | |||||||

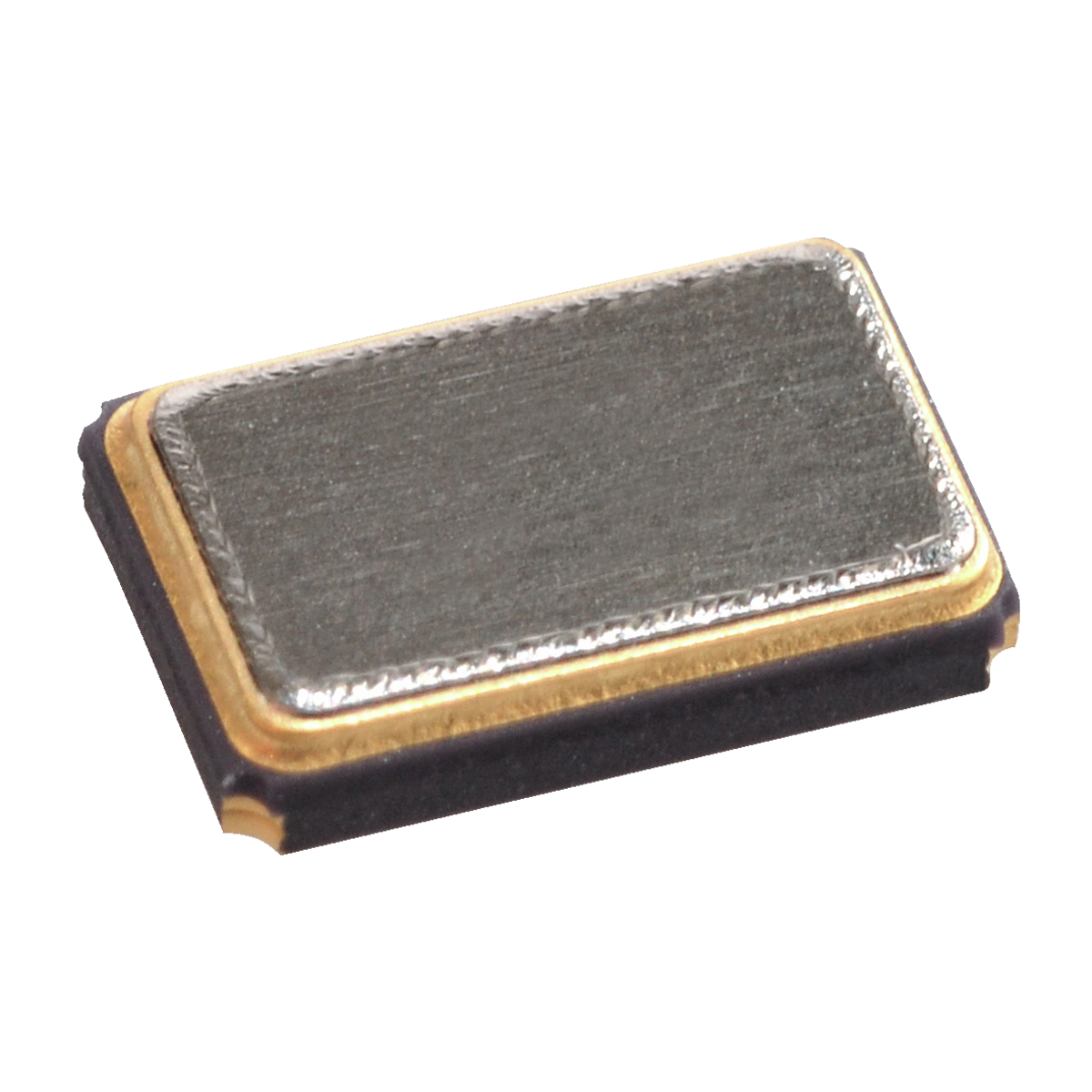

378 | Manufacturers Part No. IC1311.0592M12.0EF1B(IC13M11.0592) Red Frequency SMD Crystal IC 13 Ceramic case 11,0592MHz 30ppm 3,4mm x 2,7mm x 0,75mm 12pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | SMD Crystal | Ceramic case | 11.0592 MHz | 30 ppm | 12.0 pF | ±5 ppm/Jahr | -20.0 °C | 70.0 °C | 3.4 mm | 2.7 mm | 0.75 mm | |||||||
379 | Manufacturers Part No. IC25010.240M30.0EE1C(IC25TH10.24) Red Frequency Crystal, wired IC 25 Metal housing 10,24MHz 30ppm 11mm x 4,6mm x 13,5mm 30pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | Crystal, wired | Metal housing | 10.24 MHz | 30 ppm | 30.0 pF | ±3 ppm/Jahr | 500 µW | -10.0 °C | 60.0 °C | 11.0 mm | 4.6 mm | 13.5 mm | ||||||
380 | Manufacturers Part No. IC25016.000M30.0EE1B(IC25TH16.0) Red Frequency Crystal, wired IC 25 Metal housing 16MHz 30ppm 11mm x 4,6mm x 13,5mm 30pF | Customer Part No. Customer Project No. | 1.000 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | Red Frequency | Crystal, wired | Metal housing | 16.0 MHz | 30 ppm | 30.0 pF | ±3 ppm/Jahr | 500 µW | -20.0 °C | 70.0 °C | 11.0 mm | 4.6 mm | 13.5 mm | ||||||
381 | Manufacturers Part No. IC25018.000M30.0EE1C(IC25TH18.0) Red Frequency Crystal, wired IC 25 Metal housing 18MHz 30ppm 11mm x 4,6mm x 13,5mm 30pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | Crystal, wired | Metal housing | 18.0 MHz | 30 ppm | 30.0 pF | ±3 ppm/Jahr | 500 µW | -10.0 °C | 60.0 °C | 11.0 mm | 4.6 mm | 13.5 mm | ||||||
382 | Manufacturers Part No. IC25002.000M30.0EE1C(IC25TH2.0) Red Frequency Crystal, wired IC 25 Metal housing 2MHz 30ppm 11mm x 4,6mm x 13,5mm 30pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | Crystal, wired | Metal housing | 2.0 MHz | 30 ppm | 30.0 pF | ±3 ppm/Jahr | 500 µW | -10.0 °C | 60.0 °C | 11.0 mm | 4.6 mm | 13.5 mm | ||||||
383 | Manufacturers Part No. IC2502.4576M30.0EE1C(IC25TH2.4576) Red Frequency Crystal, wired IC 25 Metal housing 2,4576MHz 30ppm 11mm x 4,6mm x 13,5mm 30pF | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Red Frequency | Crystal, wired | Metal housing | 2.4576 MHz | 30 ppm | 30.0 pF | ±3 ppm/Jahr | 500 µW | -10.0 °C | 60.0 °C | 11.0 mm | 4.6 mm | 13.5 mm | ||||||
384 | Manufacturers Part No. IC25020.000M30.0EE1C(IC25TH20.0) Red Frequency Crystal, wired IC 25 Metal housing 20MHz 30ppm 11mm x 4,6mm x 13,5mm 30pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | Crystal, wired | Metal housing | 20.0 MHz | 30 ppm | 30.0 pF | ±3 ppm/Jahr | 500 µW | -10.0 °C | 60.0 °C | 11.0 mm | 4.6 mm | 13.5 mm | ||||||
385 | Manufacturers Part No. IC25027.000M32.0EE1C(IC25TH27.0) Red Frequency Crystal, wired IC 25 Metal housing 27MHz 30ppm 11mm x 4,6mm x 13,5mm 32pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 1000 or mul. of 1000) | Red Frequency | Crystal, wired | Metal housing | 27.0 MHz | 30 ppm | 32.0 pF | ±3 ppm/Jahr | 500 µW | -10.0 °C | 60.0 °C | 11.0 mm | 4.6 mm | 13.5 mm | ||||||
386 | Manufacturers Part No. IC25027.000M32.0EE3C(IC25TH27.0-3OT) Red Frequency Crystal, wired IC 25 Metal housing 27MHz 30ppm 11mm x 4,6mm x 13,5mm 30pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | Crystal, wired | Metal housing | 27.0 MHz | 30 ppm | 30.0 pF | ±3 ppm/Jahr | 500 µW | -10.0 °C | 60.0 °C | 11.0 mm | 4.6 mm | 13.5 mm | ||||||
387 | Manufacturers Part No. IC25048.000MSEREE3C(IC25TH48.0-3OT) Red Frequency Crystal, wired IC 25 Metal housing 48MHz 30ppm 11mm x 4,6mm x 13,5mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 10 or mul. of 10) | Red Frequency | Crystal, wired | Metal housing | 48.0 MHz | 30 ppm | ±3 ppm/Jahr | 500 µW | -10.0 °C | 60.0 °C | 11.0 mm | 4.6 mm | 13.5 mm | |||||||
388 | Manufacturers Part No. HC49S4HSMD4.91520MAF30/30-120R(QSMD004.915) Abundance SMD Crystal HC49-S4-SMD Metal housing 4,9152MHz ±30ppm 13mm x 4,73mm x 4,2mm 16pF | Customer Part No. Customer Project No. | 3.470 Pcs. Planned Delivery Time Ø 29 Weeks Available (from stock) | (at least 10 or mul. of 10) | Abundance | SMD Crystal | Metal housing | 4.9152 MHz | ±30 ppm | 16.0 pF | ±5 ppm/Jahr | 1,0 mW | -10.0 °C | 60.0 °C | 13.0 mm | 4.73 mm | 4.2 mm | ||||||
389 | Manufacturers Part No. IC15011.0592M12EF1B(IC15M11.0592) Red Frequency SMD Crystal IC 15 Ceramic case 11,0592MHz 30ppm 5,2mm x 3,4mm x 1,1mm 12pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | SMD Crystal | Ceramic case | 11.0592 MHz | 30 ppm | 12.0 pF | ±2 ppm/Jahr | -20.0 °C | 70.0 °C | 5.2 mm | 3.4 mm | 1.1 mm | |||||||
390 | Manufacturers Part No. IC15012.000M12.0EF1B(IC15M12) Red Frequency SMD Crystal IC 15 Ceramic case 12MHz 30ppm 5,2mm x 3,4mm x 1,1mm 12pF | Customer Part No. Customer Project No. | 1.375 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 5 or mul. of 5) | Red Frequency | SMD Crystal | Ceramic case | 12.0 MHz | 30 ppm | 12.0 pF | ±2 ppm/Jahr | -20.0 °C | 70.0 °C | 5.2 mm | 3.4 mm | 1.1 mm | |||||||
391 | Manufacturers Part No. 49S4HSMD7.3728M-AF-303090R-32P(QSMD007.372) Abundance SMD Crystal HC49-S4-SMD Metal housing 7,3728MHz ±30ppm 13mm x 4,73mm x 4,2mm 32pF | Customer Part No. Customer Project No. | 7.900 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Abundance | SMD Crystal | Metal housing | 7.3728 MHz | ±30 ppm | 32.0 pF | ±5 ppm/Jahr | 1,0 mW | -10.0 °C | 60.0 °C | 13.0 mm | 4.73 mm | 4.2 mm | ||||||
392 | Manufacturers Part No. HC49S4HSMD11.0592MAF30/30-70R3(QSMD011.059) Abundance SMD Crystal HC49-S4-SMD Metal housing 11,0592MHz ±30ppm 13mm x 4,73mm x 4,2mm 30pF | Customer Part No. Customer Project No. | 15.950 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 10 or mul. of 10) | Abundance | SMD Crystal | Metal housing | 11.0592 MHz | ±30 ppm | 30.0 pF | ±5 ppm/Jahr | 1,0 mW | -10.0 °C | 60.0 °C | 13.0 mm | 4.73 mm | 4.2 mm | ||||||
393 | Manufacturers Part No. IC15018.000M12.0EF1B(IC15M18) Red Frequency SMD Crystal IC 15 Ceramic case 18MHz 30ppm 5,2mm x 3,4mm x 1,1mm 12pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | SMD Crystal | Ceramic case | 18.0 MHz | 30 ppm | 12.0 pF | ±2 ppm/Jahr | -20.0 °C | 70.0 °C | 5.2 mm | 3.4 mm | 1.1 mm | |||||||
394 | Manufacturers Part No. IC2109.8304M30.0EE1B(IC21SMD9.8304) Red Frequency SMD Crystal IC 21 Metal housing 9,8304MHz ±30ppm 13,3mm x 5mm x 4mm 30pF | Customer Part No. Customer Project No. | 630 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 10 or mul. of 10) | Red Frequency | SMD Crystal | Metal housing | 9.8304 MHz | ±30 ppm | 30.0 pF | ±3 ppm/Jahr | 1,0 mW | -20.0 °C | 70.0 °C | 13.3 mm | 5.0 mm | 4.0 mm | ||||||
395 | Manufacturers Part No. IC21027.000M30.0EE1C(IC21SMD27.0) Red Frequency SMD Crystal IC 21 Metal housing 27MHz ±30ppm 13,3mm x 5mm x 4mm 30pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | SMD Crystal | Metal housing | 27.0 MHz | ±30 ppm | 30.0 pF | ±3 ppm/Jahr | 1,0 mW | -10.0 °C | 60.0 °C | 13.3 mm | 5.0 mm | 4.0 mm | ||||||
396 | Manufacturers Part No. 49SX3SMD4-11.0592M-AF-30/30(49SX3SMD4-11.0592M) Abundance SMD Crystal 49SX3SMD4 Plastic housing 11,0592MHz ±50ppm 12,5mm x 4,85mm x 5mm 16pF | Customer Part No. Customer Project No. | 3.435 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 5 or mul. of 5) | Abundance | SMD Crystal | Plastic housing | 11.0592 MHz | ±50 ppm | 16.0 pF | ±5 ppm/Jahr | 500 µW | -20.0 °C | 70.0 °C | 12.5 mm | 4.85 mm | 5.0 mm | ||||||
397 | Manufacturers Part No. Q22FA1280046812(Q22FA12800468) Epson SMD Crystal FA-128 Plastic housing 24MHz 10ppm 2mm x 1,6mm x 0,5mm 9pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 16 Weeks Available on order | (at least 250 or mul. of 250) | Epson | SMD Crystal | Plastic housing | 24.0 MHz | 10 ppm | 9.0 pF | 1 ppm/Jahr | 100 µW | -40.0 °C | 85.0 °C | 2.0 mm | 1.6 mm | 0.5 mm | ||||||
398 | Manufacturers Part No. IC2304.433619M16EE1C(IC23TH4.433619) Red Frequency Crystal, wired IC23 Metal housing 4,433619MHz ±30ppm 10,7mm x 4,3mm x 3,5mm 16pF | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available on order | (at least 500 or mul. of 500) | Red Frequency | Crystal, wired | Metal housing | 4.433619 MHz | ±30 ppm | 16.0 pF | ±3 ppm/Jahr | 500 µW | -10.0 °C | 60.0 °C | 10.7 mm | 4.3 mm | 3.5 mm | ||||||
399 | Manufacturers Part No. HC49S4H-13.56M-30/30-50R-10P(QMIM013.56) Abundance Miniature Crystal HC49/U-S Metal housing 13,56MHz ±50ppm 3,8mm x 11,05mm x 3,5mm 10pF | Customer Part No. Customer Project No. | 2.880 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 10 or mul. of 10) | Abundance | Miniature Crystal | Metal housing | 13.56 MHz | ±50 ppm | 10.0 pF | ±5 ppm/Jahr | 1,0 mW | -10.0 °C | 60.0 °C | 3.8 mm | 11.05 mm | 3.5 mm | ||||||
400 | Manufacturers Part No. 49S4H4.0000M-AF-30/30-150R-30R(QMIM004) Abundance Miniature Crystal HC49/U-S Metal housing 4MHz ±50ppm 3,8mm x 11,05mm x 3,5mm 30pF | Customer Part No. Customer Project No. | 11.060 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Abundance | Miniature Crystal | Metal housing | 4.0 MHz | ±50 ppm | 30.0 pF | ±5 ppm/Jahr | 1,0 mW | -10.0 °C | 60.0 °C | 3.8 mm | 11.05 mm | 3.5 mm |
