Results (906)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Contact Type | Design | Locking Type | Housing | Alignment | Number of poles | Pitch | Contact Surface Input | Housing material | Colour | Connector Contact | Strain Relief | Conductor cross-section, min. | Conductor cross-section (AWG), min. | Conductor cross-section, max. | Conductor cross-section (AWG), max. | Rated current | Operating Temperature Min. | Operating Temperature Max. | Test voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
901 |  | Manufacturers Part No. 15EDGRC-2.5-03P-14-00A(H)(15EDGRC-2.5-03P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 3 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 3 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 5.0 A | -40.0 °C | 105.0 °C | ||||||||||||
902 | | Manufacturers Part No. 15EDGRC-2.5-08P-14-00A(H)(15EDGRC-2.5-08P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 8 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 8 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 5.0 A | -40.0 °C | 105.0 °C | ||||||||||||
903 | | Manufacturers Part No. 15EDGRC-2.5-05P-14-00A(H)(15EDGRC-2.5-05P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 5 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 5 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 5.0 A | -40.0 °C | 105.0 °C | ||||||||||||
904 | | Manufacturers Part No. 15EDGRC-2.5-12P-14-00A(H)(15EDGRC-2.5-12P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 12 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 5.330 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 12 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 5.0 A | -40.0 °C | 105.0 °C | ||||||||||||
905 | | Manufacturers Part No. 15EDGKD-2.5-12P-14-00A(H)(15EDGKD-2.5-12P-14) DEGSON PCB connector 15EDGKD-2.5 Spring Header Latching lug 1-row straight 12 Pole Pitch2,5mm green 250VAC | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | PCB connector | Spring | Header | Latching lug | 1-row | straight | 12 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Push-In | no | 0.2 mm² | 26.0 AWG | 0.5 mm² | 20.0 AWG | 5.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | |||||

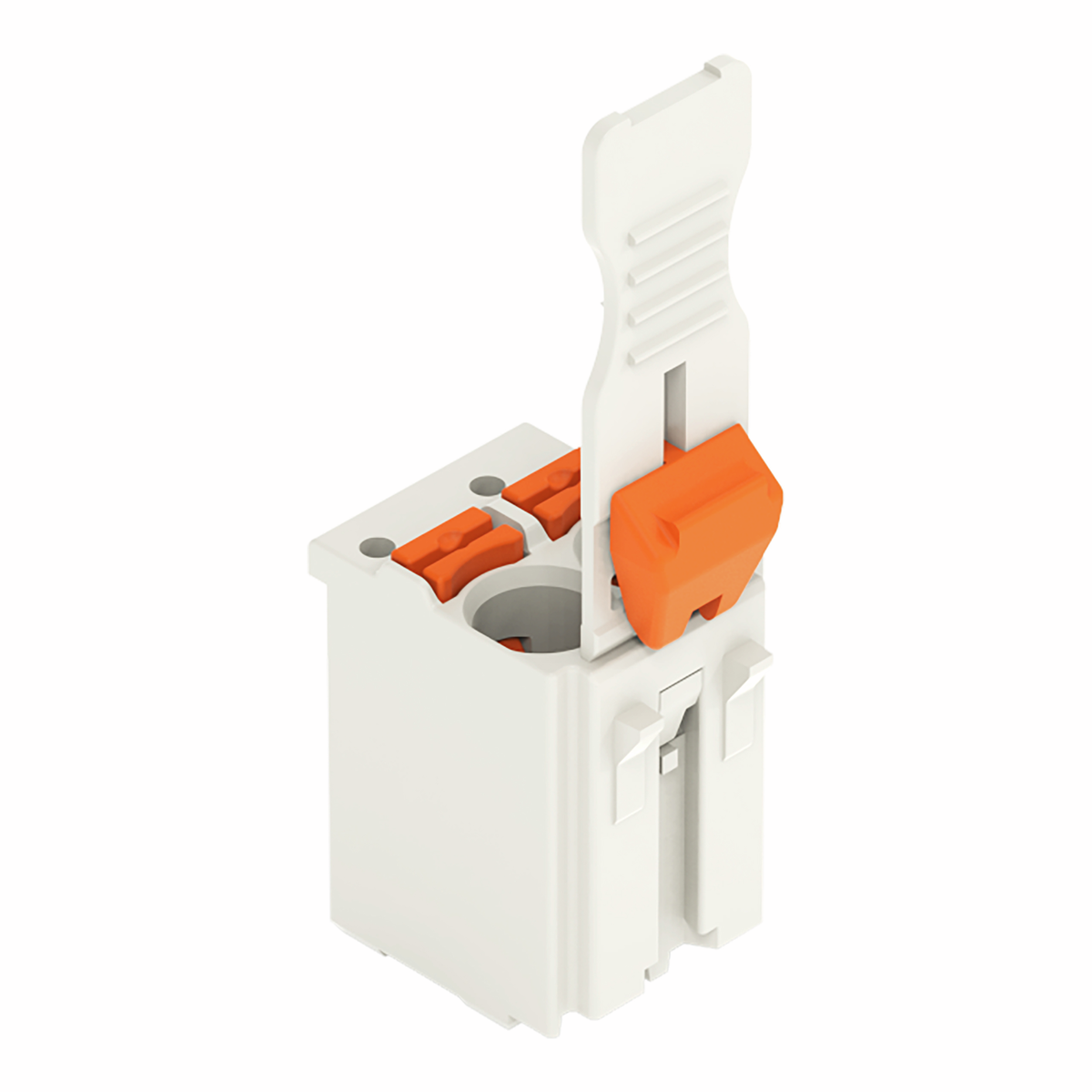

906 | | Manufacturers Part No. 2092-1102/002-000(2092-1102/002-000) WAGO Female connector 2092 Spring Header Latching lug 1-row straight 2 Pole Pitch5mm light gray 320VAC | Customer Part No. Customer Project No. | 1.100 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Female connector | Spring | Header | Latching lug | 1-row | straight | 2 | 5.0 mm | verzinnt | Polyphthalamid (PPA) GF | light gray | Cage clamp | no | 24.0 AWG | 12.0 AWG | 16.0 A | -60.0 °C | 100.0 °C | 4000.0 V AC |
