Results (906)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Contact Type | Design | Locking Type | Housing | Alignment | Number of poles | Pitch | Contact Surface Input | Housing material | Colour | Connector Contact | Strain Relief | Conductor cross-section, min. | Conductor cross-section (AWG), min. | Conductor cross-section, max. | Conductor cross-section (AWG), max. | Rated current | Operating Temperature Min. | Operating Temperature Max. | Test voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
276 |  | Manufacturers Part No. 2EDGVC-5.0-03P-14-100A(H)(2EDGVC-5.0-03P-14) DEGSON Tray pin strip 2EDGVC-5.0 Pin Box Header 1-row straight 3 Pole Pitch5,0mm green verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 3 | 5.0 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 20.0 A | -40.0 °C | 105.0 °C | ||||||||||||

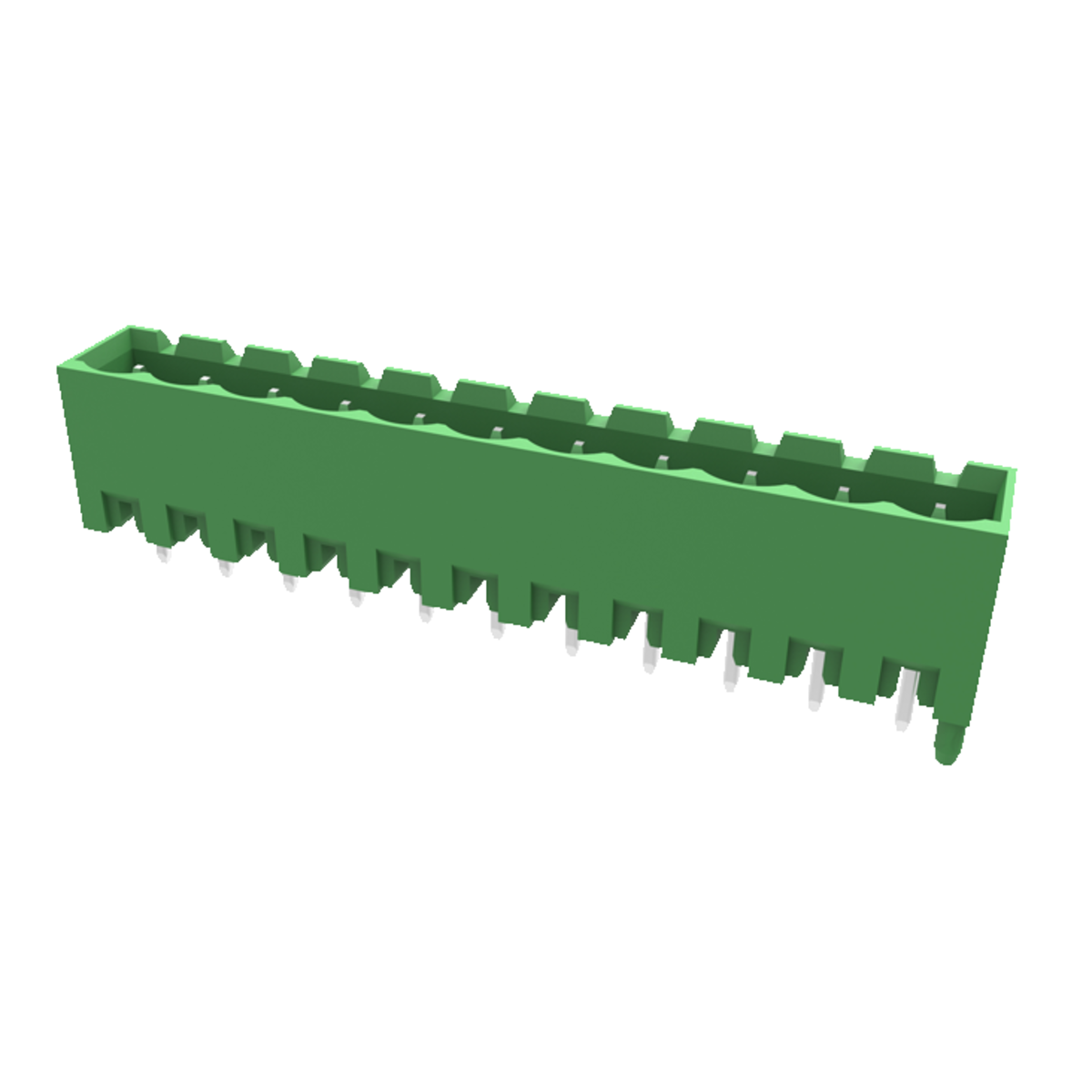

277 | | Manufacturers Part No. 2EDGVC-5.0-04P-14-100A(H)(2EDGVC-5.0-04P-14) DEGSON Tray pin strip 2EDGVC-5.0 Pin Box Header 1-row straight 4 Pole Pitch5,0mm green verzinnt | Customer Part No. Customer Project No. | 3.710 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 4 | 5.0 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 20.0 A | -40.0 °C | 105.0 °C | ||||||||||||
278 | | Manufacturers Part No. 2EDGKB-5.08-03P-14-1000A(H)(2EDGKB-5.08-03P-14) DEGSON PCB connector 2EDGKB-5.08 Spring Header Latching lug 1-row 90° 3 Pole Pitch5,08mm green 320VAC | Customer Part No. Customer Project No. | 620 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | DEGSON | PCB connector | Spring | Header | Latching lug | 1-row | 90° | 3 | 5.08 mm | verzinnt | Polyamide (PA) 66 | green | Screw-cage clamp | no | 1.0 mm² | 28.0 AWG | 2.5 mm² | 12.0 AWG | 18.0 A | -40.0 °C | 105.0 °C | 4000.0 V AC | |||||
279 | | Manufacturers Part No. 2EDGKB-5.0-04P-14-1000A(H)(2EDGKB-5.0-04P-14) DEGSON PCB connector 2EDGKB-5.0 Spring Header Latching lug 1-row 90° 4 Pole Pitch5mm green 320VAC | Customer Part No. Customer Project No. | 400 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | DEGSON | PCB connector | Spring | Header | Latching lug | 1-row | 90° | 4 | 5.0 mm | verzinnt | Polyamide (PA) 66 | green | Screw-cage clamp | no | 1.0 mm² | 28.0 AWG | 2.5 mm² | 12.0 AWG | 18.0 A | -40.0 °C | 105.0 °C | 4000.0 V AC | |||||

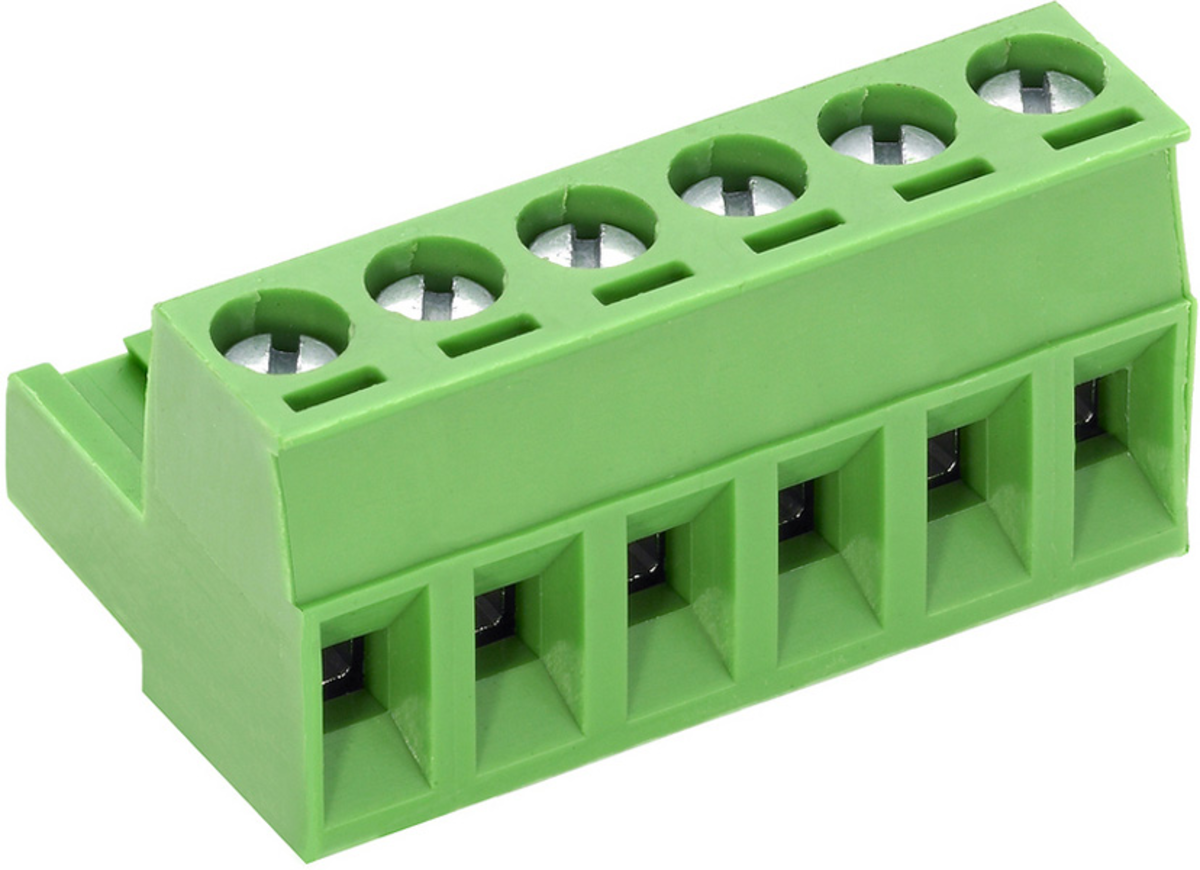

280 | | Manufacturers Part No. AKZ950/10-5.08-GRÜN(ARKZ950/10-GN) PTR HARTMANN PCB connector AKZ950 Spring Header Latching lug 1-row straight 10 Pole Pitch5,08mm green 250VAC | Customer Part No. Customer Project No. | 70 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 10 | 5.08 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 22.0 AWG | 12.0 AWG | 12.0 A | -40.0 °C | 105.0 °C | 4000.0 V AC | ||||||||
281 | | Manufacturers Part No. AKZ950/5-5.08-GRUEN(ARKZ950/5) PTR HARTMANN PCB connector AKZ950 Spring Header Latching lug 1-row straight 5 Pole Pitch5,08mm green 250VAC | Customer Part No. Customer Project No. | 640 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 5 | 5.08 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 22.0 AWG | 12.0 AWG | 12.0 A | -40.0 °C | 105.0 °C | 4000.0 V AC | ||||||||
282 | | Manufacturers Part No. 2EDGRC-5.08-03P-14-100A(H)(2EDGRC-5.08-03P-14) DEGSON Tray pin strip 2EDGRC-5.08 Pin Box Header 1-row 90° 3 Pole Pitch5,08mm green verzinnt | Customer Part No. Customer Project No. | 830 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 3 | 5.08 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 20.0 A | -40.0 °C | 105.0 °C | ||||||||||||

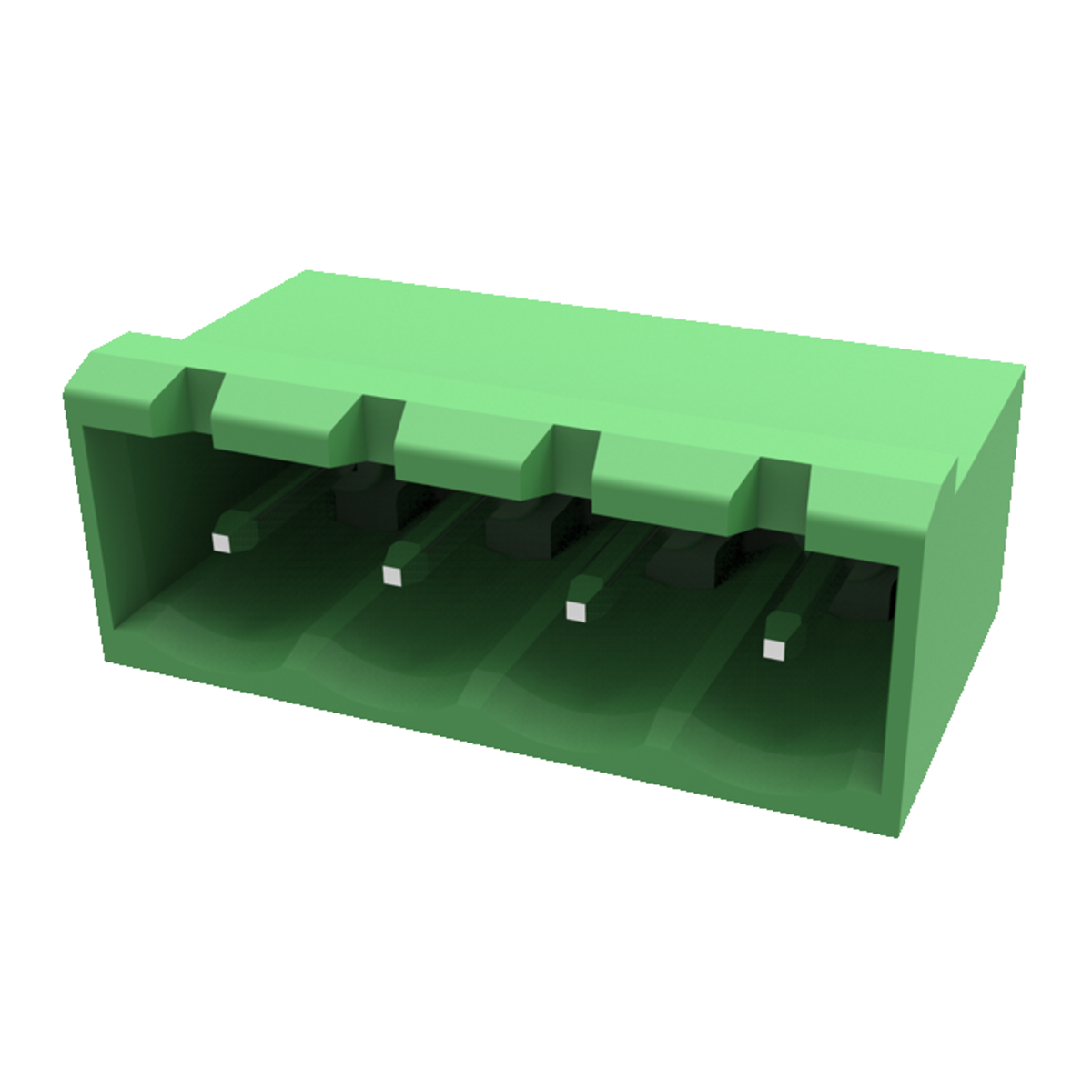

283 | | Manufacturers Part No. 2EDGRC-5.08-04P-14-100A(H)(2EDGRC-5.08-04P-14) DEGSON Tray pin strip 2EDGRC-5.08 Pin Box Header 1-row 90° 4 Pole Pitch5,08mm green verzinnt | Customer Part No. Customer Project No. | 870 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 4 | 5.08 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 20.0 A | -40.0 °C | 105.0 °C | ||||||||||||

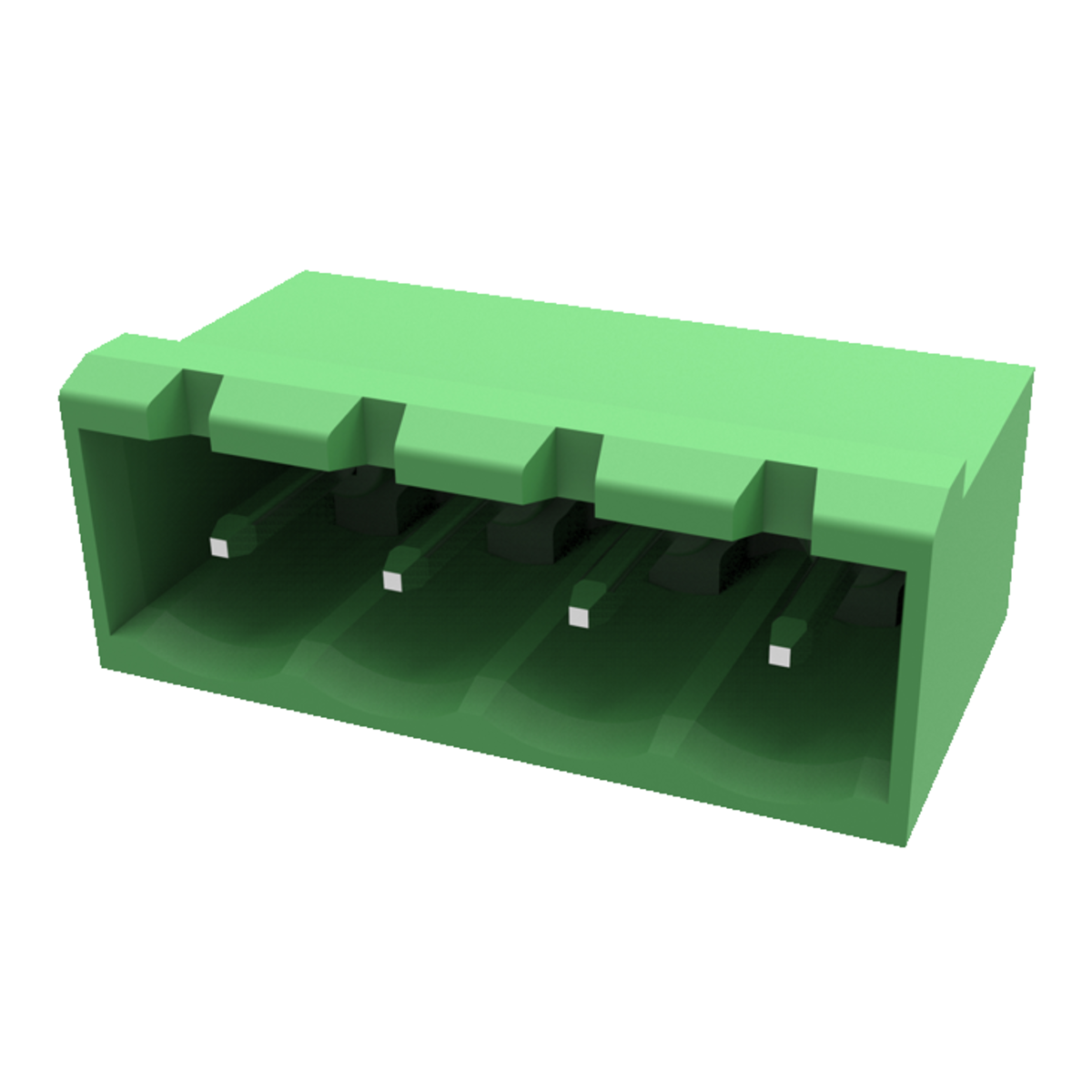

284 | | Manufacturers Part No. 2EDGRC-5.0-03P-14-100A(H)(2EDGRC-5.0-03P-14) DEGSON Tray pin strip 2EDGRC-5.0 Pin Box Header 1-row 90° 3 Pole Pitch5,08mm green verzinnt | Customer Part No. Customer Project No. | 820 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 3 | 5.08 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 20.0 A | -40.0 °C | 105.0 °C | ||||||||||||

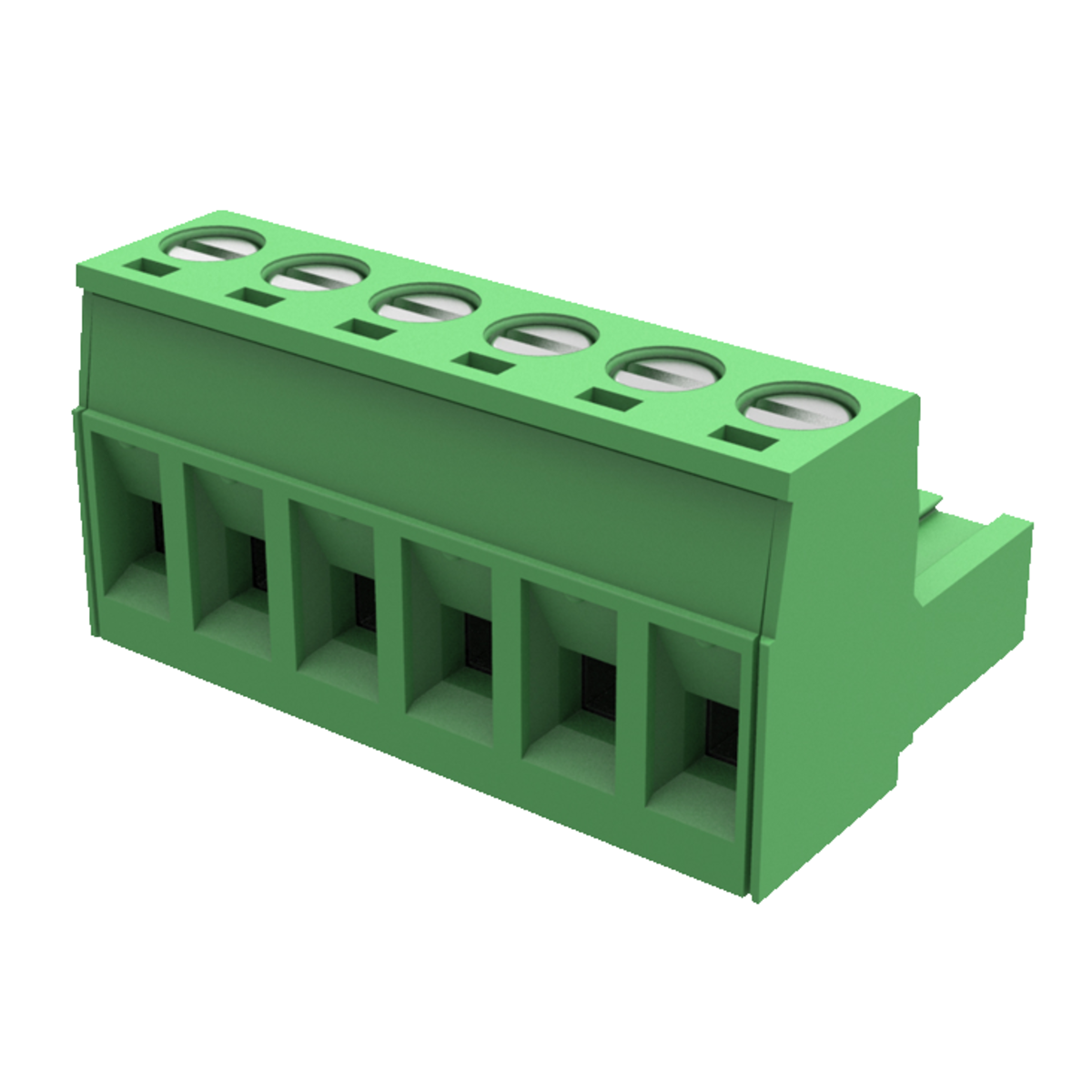

285 | | Manufacturers Part No. 2EDGK-5.08-02P-14-1000A(H)(2EDGK-5.08-02P-14) DEGSON PCB connector 2EDGK-5.08 Spring Header Latching lug 1-row straight 2 Pole Pitch5,08mm green 320VAC | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | DEGSON | PCB connector | Spring | Header | Latching lug | 1-row | straight | 2 | 5.08 mm | verzinnt | Polyamide (PA) 66 | green | Screw-cage clamp | no | 1.0 mm² | 28.0 AWG | 2.5 mm² | 12.0 AWG | 20.0 A | -40.0 °C | 105.0 °C | 4000.0 V AC | |||||
286 | | Manufacturers Part No. 2EDGK-5.0-03P-14-1000A(H)(2EDGK-5.0-03P-14) DEGSON PCB connector 2EDGK-5.0 Spring Header Latching lug 1-row straight 3 Pole Pitch5mm green 320VAC | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | DEGSON | PCB connector | Spring | Header | Latching lug | 1-row | straight | 3 | 5.0 mm | verzinnt | Polyamide (PA) 66 | green | Screw-cage clamp | no | 1.0 mm² | 28.0 AWG | 2.5 mm² | 12.0 AWG | 20.0 A | -40.0 °C | 105.0 °C | 4000.0 V AC | |||||
287 | | Manufacturers Part No. 2EDGK-5.0-05P-14-1000A(H)(2EDGK-5.0-05P-14) DEGSON PCB connector 2EDGK-5.0 Spring Header Latching lug 1-row straight 5 Pole Pitch5mm green 320VAC | Customer Part No. Customer Project No. | 520 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | DEGSON | PCB connector | Spring | Header | Latching lug | 1-row | straight | 5 | 5.0 mm | verzinnt | Polyamide (PA) 66 | green | Screw-cage clamp | no | 1.0 mm² | 28.0 AWG | 2.5 mm² | 12.0 AWG | 20.0 A | -40.0 °C | 105.0 °C | 4000.0 V AC | |||||

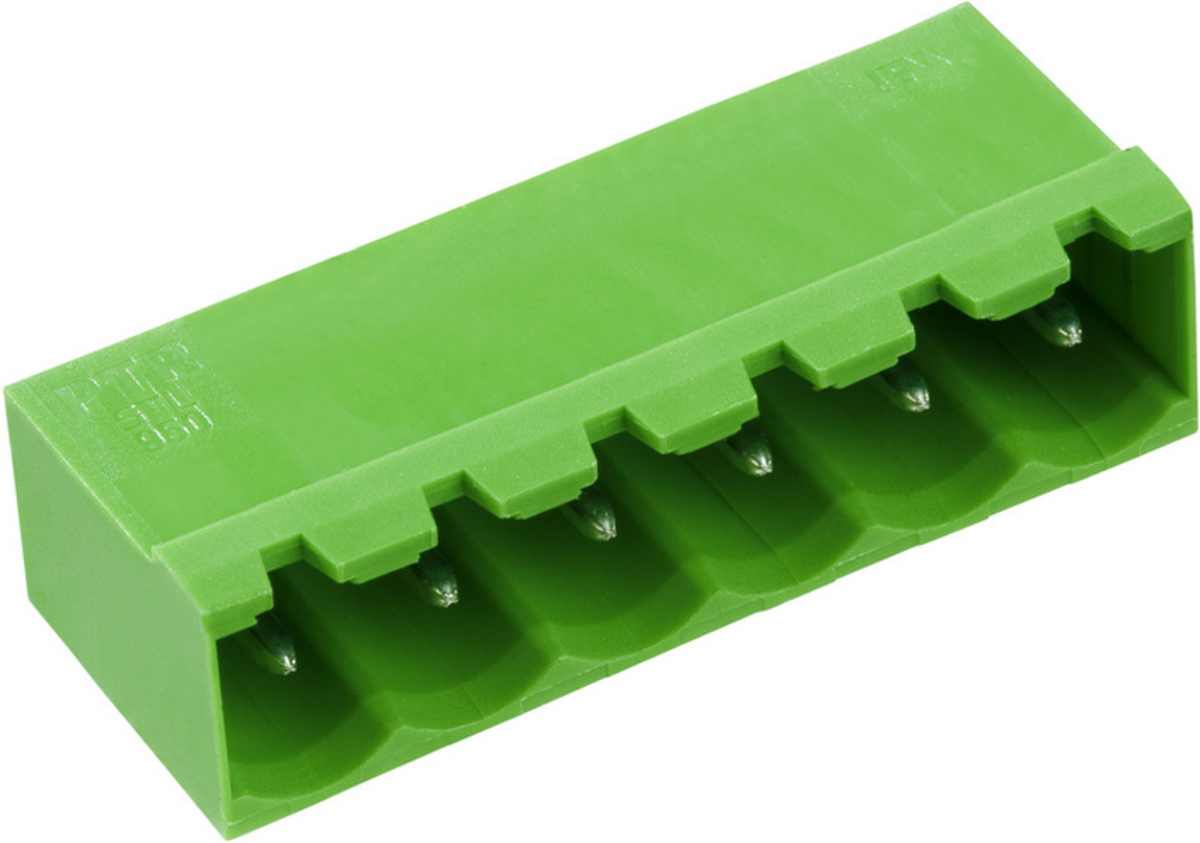

288 | | Manufacturers Part No. STL950/2G-5.0-H-GRUEN(STL950WH2) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 2 Pole Pitch5mm green | Customer Part No. Customer Project No. | 1.700 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | horizontal | 2 | 5.0 mm | Polyamide (PA) 66 | green | Solder | 12.0 A | -40.0 °C | 105.0 °C | 4.0 V AC | ||||||||||||
289 | | Manufacturers Part No. STL950/5G-5.0-H-GRUEN(STL950WH5) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 5 Pole Pitch5mm green | Customer Part No. Customer Project No. | 2.230 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | horizontal | 5 | 5.0 mm | Polyamide (PA) 66 | green | Solder | 12.0 A | -40.0 °C | 105.0 °C | 4.0 V AC | ||||||||||||
290 | | Manufacturers Part No. STL950/3G-5.0-H-GRUEN(STL950WH3) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 3 Pole Pitch5mm green | Customer Part No. Customer Project No. | 1.680 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | horizontal | 3 | 5.0 mm | Polyamide (PA) 66 | green | Solder | 12.0 A | -40.0 °C | 105.0 °C | 4.0 V AC | ||||||||||||
291 | | Manufacturers Part No. AK950/4-5.0-GRUEN(ARK950/4) PTR HARTMANN PCB connector AK950 Spring Header Latching lug 1-row straight 4 Pole Pitch5mm green 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 4 | 5.0 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 22.0 AWG | 12.0 AWG | 12.0 A | -40.0 °C | 105.0 °C | 4000.0 V AC | ||||||||
292 | | Manufacturers Part No. AK950/6-5.0-GRUEN(ARK950/6) PTR HARTMANN PCB connector AK950 Spring Header Latching lug 1-row straight 6 Pole Pitch5mm green 250VAC | Customer Part No. Customer Project No. | 170 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 6 | 5.0 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 22.0 AWG | 12.0 AWG | 12.0 A | -40.0 °C | 105.0 °C | 4000.0 V AC | ||||||||
293 | | Manufacturers Part No. AK4551/10KD-3.5-GRÜN(AK4551-10) PTR HARTMANN PCB connector AK4551 Spring Header Latching lug 1-row straight 10 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 130 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 10 | 3.5 mm | Polyamide (PA) 66 | green | Push-In | no | 26.0 AWG | 16.0 AWG | 10.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
294 | | Manufacturers Part No. AK4551/6KD-3.5-GRÜN(AK4551-6) PTR HARTMANN PCB connector AK4551 Spring Header Latching lug 1-row straight 6 Pole Pitch3,5mm green 160VAC | Customer Part No. Customer Project No. | 130 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 6 | 3.5 mm | Polyamide (PA) 66 | green | Push-In | no | 26.0 AWG | 16.0 AWG | 10.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
295 | | Manufacturers Part No. 15EDGK-3.5-02P-14-00A(H)(15EDGK-3.5-02P-14) DEGSON PCB connector 15EDGK-3.5 Spring Header Latching lug 1-row straight 2 Pole Pitch3,5mm green 250VAC | Customer Part No. Customer Project No. | 900 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | PCB connector | Spring | Header | Latching lug | 1-row | straight | 2 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Screw-cage clamp | no | 0.5 mm² | 28.0 AWG | 1.5 mm² | 16.0 AWG | 7.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | |||||
296 | | Manufacturers Part No. AK1550/2-3.5-GRUEN(AK1550/2) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 2 Pole Pitch3,5mm green 160VAC TOP | Customer Part No. Customer Project No. | 8.520 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 2 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
297 | | Manufacturers Part No. AK1550/4-3.5-GRUEN(AK1550/4) PTR HARTMANN PCB connector AK1550 Spring Header Latching lug 1-row straight 4 Pole Pitch3,5mm green 160VAC TOP | Customer Part No. Customer Project No. | 2.160 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | PCB connector | Spring | Header | Latching lug | 1-row | straight | 4 | 3.5 mm | Polyamide (PA) 66 | green | Screw-cage clamp | no | 28.0 AWG | 16.0 AWG | 8.0 A | -40.0 °C | 105.0 °C | 2500.0 V AC | ||||||||
298 | | Manufacturers Part No. 15EDGVC-3.5-04P-14-00A(H)(15EDGVC-3.5-04P-14) DEGSON Tray pin strip 15EDGVC-3.5 Pin Box Header 1-row straight 4 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 100 Pcs. Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 4 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 7.0 A | -40.0 °C | 105.0 °C | ||||||||||||

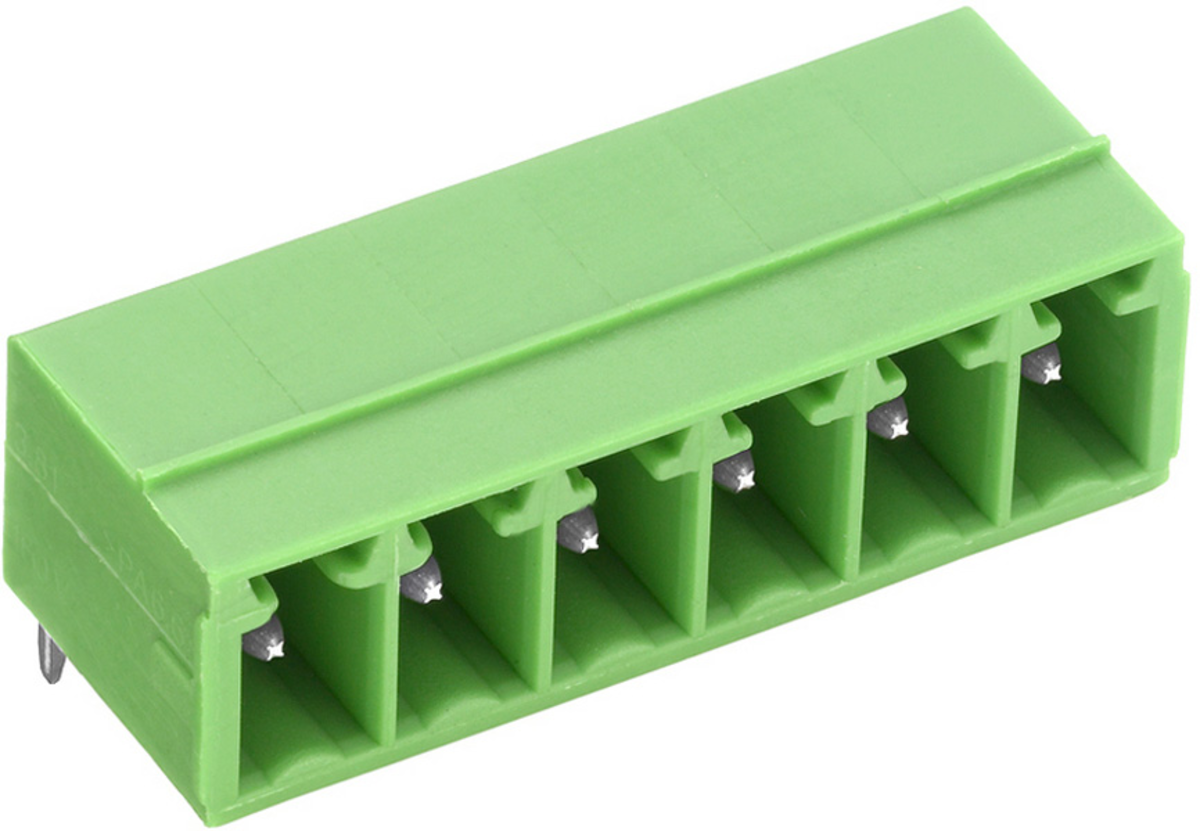

299 | | Manufacturers Part No. STL1550/16G-3.5-H-GRUEN(STL1550WH16) PTR HARTMANN Tray pin strip STL1550 Pin Box Header 1-row horizontal 16 Pole Pitch3,5mm green | Customer Part No. Customer Project No. | 280 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | horizontal | 16 | 3.5 mm | Polyamide (PA) 66 | green | Solder | 10.0 A | -30.0 °C | 105.0 °C | |||||||||||||
300 | | Manufacturers Part No. STL1550/4G-3.5-V-GRUEN(STL1550WV4) PTR HARTMANN Tray pin strip STL1550 Pin Box Header 1-row vertical 4 Pole Pitch3,5mm green | Customer Part No. Customer Project No. | 2.630 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | Pin | Box Header | 1-row | vertical | 4 | 3.5 mm | Polyamide (PA) 66 | green | Solder | 10.0 A | -30.0 °C | 105.0 °C |
