Results (528)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Product Family | Design | Actuation | Alignment | Number of poles | Pitch | Contact Material Input | Contact Surface Input | Housing material | Colour | Class of Inflammability | Connector Contact | Connector Material | Conductor cross-section (AWG), min. | Conductor cross-section (AWG), max. | Nominal cross-section, solid, min. | Nominal cross-section, solid, max. | Nominal cross-section finely stranded, min. | Nominal cross-section finely stranded, max. | Dimension: Width | Dimension: Height | Dimension: Depth | Rated current | Rated voltage AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
376 |  | Manufacturers Part No. AKZ700/2-5.08-H-GRÜN(AKZ700/2-H-GN) PTR HARTMANN Terminal block AKZ700 horizontal 2 Pole Pitch5,08mm green Solder 10,76mm 14,5mm 30AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AKZ700/..-5.08-H-GREEN | Lift principle | with srew clamp | horizontal | 2 | 5.08 mm | Polyamide (PA) 66 | green | UL 94 V-0 | Solder | 30.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 10.76 mm | 14.5 mm | 21.1 mm | 24.0 A | 250.0 V AC | ||||||||
377 | | Manufacturers Part No. AKZ700/3-5.08-H-GRÜN(AKZ700/3-5.08-H-GR) PTR HARTMANN Terminal block AKZ700 horizontal 3 Pole Pitch5,08mm green Solder 15,84mm 14,5mm 30AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 150 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AKZ700/..-5.08-H-GREEN | Lift principle | with srew clamp | horizontal | 3 | 5.08 mm | Polyamide (PA) 66 | green | UL 94 V-0 | Solder | 30.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 15.84 mm | 14.5 mm | 21.1 mm | 24.0 A | 250.0 V AC | ||||||||
378 | | Manufacturers Part No. AKZ700/4-5.08-H-GRÜN(AKZ700/4-H-GN) PTR HARTMANN Terminal block AKZ700 horizontal 4 Pole Pitch5,08mm green Solder 20,92mm 14,5mm 30AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AKZ700/..-5.08-H-GREEN | Lift principle | with srew clamp | horizontal | 4 | 5.08 mm | Polyamide (PA) 66 | green | UL 94 V-0 | Solder | 30.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 20.92 mm | 14.5 mm | 21.1 mm | 24.0 A | 250.0 V AC | ||||||||
379 | | Manufacturers Part No. AKZ700/5-5.08-H-GRÜN(AKZ700/5-H-GN) PTR HARTMANN Terminal block AKZ700 horizontal 5 Pole Pitch5,08mm green Solder 26mm 14,5mm 30AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 200 or mul. of 200) | PTR HARTMANN | Terminal block | AKZ700/..-5.08-H-GREEN | Lift principle | with srew clamp | horizontal | 5 | 5.08 mm | Polyamide (PA) 66 | green | UL 94 V-0 | Solder | 30.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 26.0 mm | 14.5 mm | 21.1 mm | 24.0 A | 250.0 V AC | ||||||||
380 | | Manufacturers Part No. AKZ700/6-5.08-H-GRÜN(AKZ700/6-H-GN) PTR HARTMANN Terminal block AKZ700 horizontal 6 Pole Pitch5,08mm green Solder 31,08mm 14,5mm 30AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AKZ700/..-5.08-H-GREEN | Lift principle | with srew clamp | horizontal | 6 | 5.08 mm | Polyamide (PA) 66 | green | UL 94 V-0 | Solder | 30.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 31.08 mm | 14.5 mm | 21.1 mm | 24.0 A | 250.0 V AC | ||||||||
381 | | Manufacturers Part No. DG500-5.08-02P-14-00A(H)(DG500-5.08-02P-14) DEGSON Terminal block DG500-5.08 horizontal 2 Pole Pitch5,08mm green Solder 10,16mm 17,5mm 30AWG 12AWG 18A 250VAC | Customer Part No. Customer Project No. | 150 Pcs. Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Terminal block | Lift principle | with srew clamp | horizontal | 2 | 5.08 mm | verzinnt | Polyamide (PA) 66 | green | UL 94 V-0 | Solder | 30.0 AWG | 12.0 AWG | 1.0 mm² | 2.5 mm² | 1.0 mm² | 2.5 mm² | 10.16 mm | 17.5 mm | 10.0 mm | 18.0 A | 250.0 V AC | ||||||||
382 | | Manufacturers Part No. DG500-5.08-03P-14-00A(H)(DG500-5.08-03P-14) DEGSON Terminal block DG500-5.08 horizontal 3 Pole Pitch5,08mm green Solder 15,24mm 17,5mm 30AWG 12AWG 18A 250VAC | Customer Part No. Customer Project No. | 1.750 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Terminal block | Lift principle | with srew clamp | horizontal | 3 | 5.08 mm | verzinnt | Polyamide (PA) 66 | green | UL 94 V-0 | Solder | 30.0 AWG | 12.0 AWG | 1.0 mm² | 2.5 mm² | 1.0 mm² | 2.5 mm² | 15.24 mm | 17.5 mm | 10.0 mm | 18.0 A | 250.0 V AC | ||||||||
383 | | Manufacturers Part No. AKZ120/2DS-5.08-V-BLAU(ARK120/2) PTR HARTMANN Terminal block AKZ120 vertical 2 Pole Pitch5,08mm blue Solder 10,86mm 17mm 22AWG 12AWG 24A 250VAC TOP | Customer Part No. Customer Project No. | 5.700 Pcs. Available (from stock) | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AKZ120/..DS-5.08-V-GREY | Wire guard type | with srew clamp | vertical | 2 | 5.08 mm | Polyamide (PA) 66 | blue | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.2 mm² | 2.5 mm² | 0.2 mm² | 2.5 mm² | 10.86 mm | 17.0 mm | 9.0 mm | 24.0 A | 250.0 V AC | ||||||||
384 | | Manufacturers Part No. AKZ120/3DS-5.08-V-BLAU(ARK120/3) PTR HARTMANN Terminal block AKZ120 vertical 3 Pole Pitch5,08mm blue Solder 15,94mm 17mm 22AWG 12AWG 24A 250VAC TOP | Customer Part No. Customer Project No. | 6.050 Pcs. Available (from stock) | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AKZ120/..DS-5.08-V-GREY | Wire guard type | with srew clamp | vertical | 3 | 5.08 mm | Polyamide (PA) 66 | blue | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.2 mm² | 2.5 mm² | 0.2 mm² | 2.5 mm² | 15.94 mm | 17.0 mm | 9.0 mm | 24.0 A | 250.0 V AC | ||||||||
385 | | Manufacturers Part No. AKZ120/4DS-5.08-V-BLAU(AKZ120/4-BL) PTR HARTMANN Terminal block AKZ120 vertical 4 Pole Pitch5,08mm blue Solder 21,02mm 17mm 22AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AKZ120/..DS-5.08-V-GREY | Wire guard type | with srew clamp | vertical | 4 | 5.08 mm | Polyamide (PA) 66 | blue | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.2 mm² | 2.5 mm² | 0.2 mm² | 2.5 mm² | 21.02 mm | 17.0 mm | 9.0 mm | 24.0 A | 250.0 V AC | ||||||||
386 | | Manufacturers Part No. AKZ120/5DS-5.08-V-BLAU(AKZ120/5-BL) PTR HARTMANN Terminal block AKZ120 vertical 5 Pole Pitch5,08mm blue Solder 26,1mm 17mm 22AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AKZ120/..DS-5.08-V-GREY | Wire guard type | with srew clamp | vertical | 5 | 5.08 mm | Polyamide (PA) 66 | blue | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.2 mm² | 2.5 mm² | 0.2 mm² | 2.5 mm² | 26.1 mm | 17.0 mm | 9.0 mm | 24.0 A | 250.0 V AC | ||||||||
387 | | Manufacturers Part No. AKZ120/6DS-5.08-V-BLAU(AKZ120/6-BL) PTR HARTMANN Terminal block AKZ120 vertical 6 Pole Pitch5,08mm blue Solder 31,18mm 17mm 22AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 250 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AKZ120/..DS-5.08-V-GREY | Wire guard type | with srew clamp | vertical | 6 | 5.08 mm | Polyamide (PA) 66 | blue | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.2 mm² | 2.5 mm² | 0.2 mm² | 2.5 mm² | 31.18 mm | 17.0 mm | 9.0 mm | 24.0 A | 250.0 V AC | ||||||||

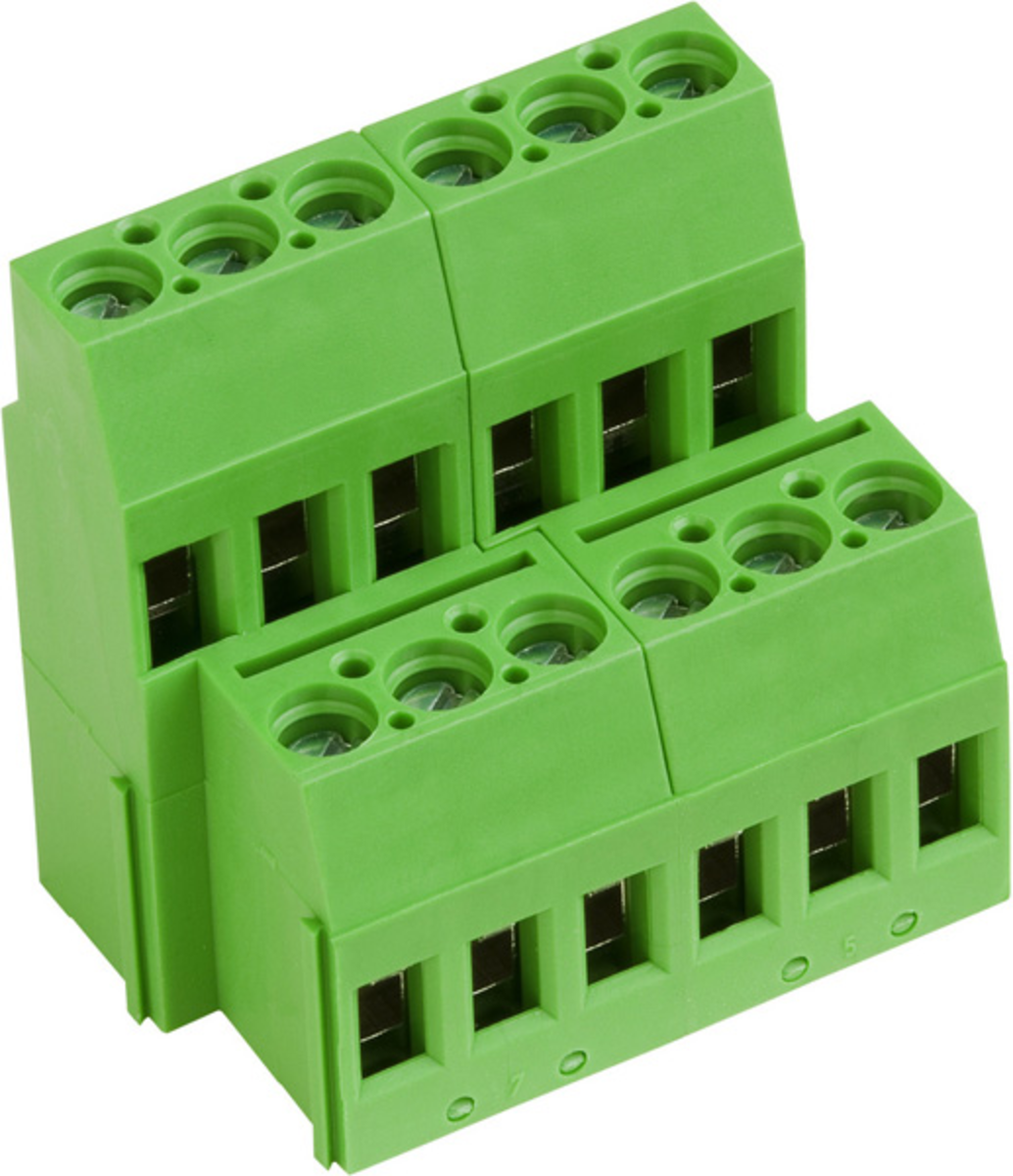

388 | | Manufacturers Part No. AKZ750/2-5.08-V-GRUEN(AKZ750/2) PTR HARTMANN Terminal block AKZ750 vertical 2x2 Pole Pitch5,08mm green Solder 13,3mm 38mm 30AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AKZ750/..-5.08-V-GREEN | Lift principle | with srew clamp | vertical | 2x2 | 5.08 mm | Polyamide (PA) 66 | green | UL 94 V-0 | Solder | 30.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 13.3 mm | 38.0 mm | 21.5 mm | 24.0 A | 250.0 V AC | ||||||||
389 | | Manufacturers Part No. AKZ750/3-5.08-V-GRUEN(AKZ750/3) PTR HARTMANN Terminal block AKZ750 vertical 2x3 Pole Pitch5,08mm green Solder 18,38mm 38mm 30AWG 12AWG 24A 250VAC | Customer Part No. Customer Project No. | 320 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AKZ750/..-5.08-V-GREEN | Lift principle | with srew clamp | vertical | 2x3 | 5.08 mm | Polyamide (PA) 66 | green | UL 94 V-0 | Solder | 30.0 AWG | 12.0 AWG | 0.2 mm² | 4.0 mm² | 0.2 mm² | 2.5 mm² | 18.38 mm | 38.0 mm | 21.5 mm | 24.0 A | 250.0 V AC | ||||||||
390 | | Manufacturers Part No. ETB3A020B000Z(ETB3A020B000Z) ECE Terminal block ETB3A horizontal 2 Pole Pitch5,08mm blue Solder 10,16mm 13mm 24AWG 14AWG 16A 300VAC | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 50 or mul. of 50) | ECE | Terminal block | Wire guard type | with srew clamp | horizontal | 2 | 5.08 mm | Polyamide (PA) 66 | blue | UL 94 V-0 | Solder | 24.0 AWG | 14.0 AWG | 2.5 mm² | 10.16 mm | 13.0 mm | 7.5 mm | 16.0 A | 300.0 V AC | ||||||||||||
391 | | Manufacturers Part No. ETB3A030B000Z(ETB3A030B000Z) ECE Terminal block ETB3A horizontal 3 Pole Pitch5,08mm blue Solder 15,24mm 13mm 24AWG 14AWG 16A 300VAC | Customer Part No. Customer Project No. | 450 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 50 or mul. of 50) | ECE | Terminal block | Wire guard type | with srew clamp | horizontal | 3 | 5.08 mm | Polyamide (PA) 66 | blue | UL 94 V-0 | Solder | 24.0 AWG | 14.0 AWG | 2.5 mm² | 15.24 mm | 13.0 mm | 7.5 mm | 16.0 A | 300.0 V AC | ||||||||||||

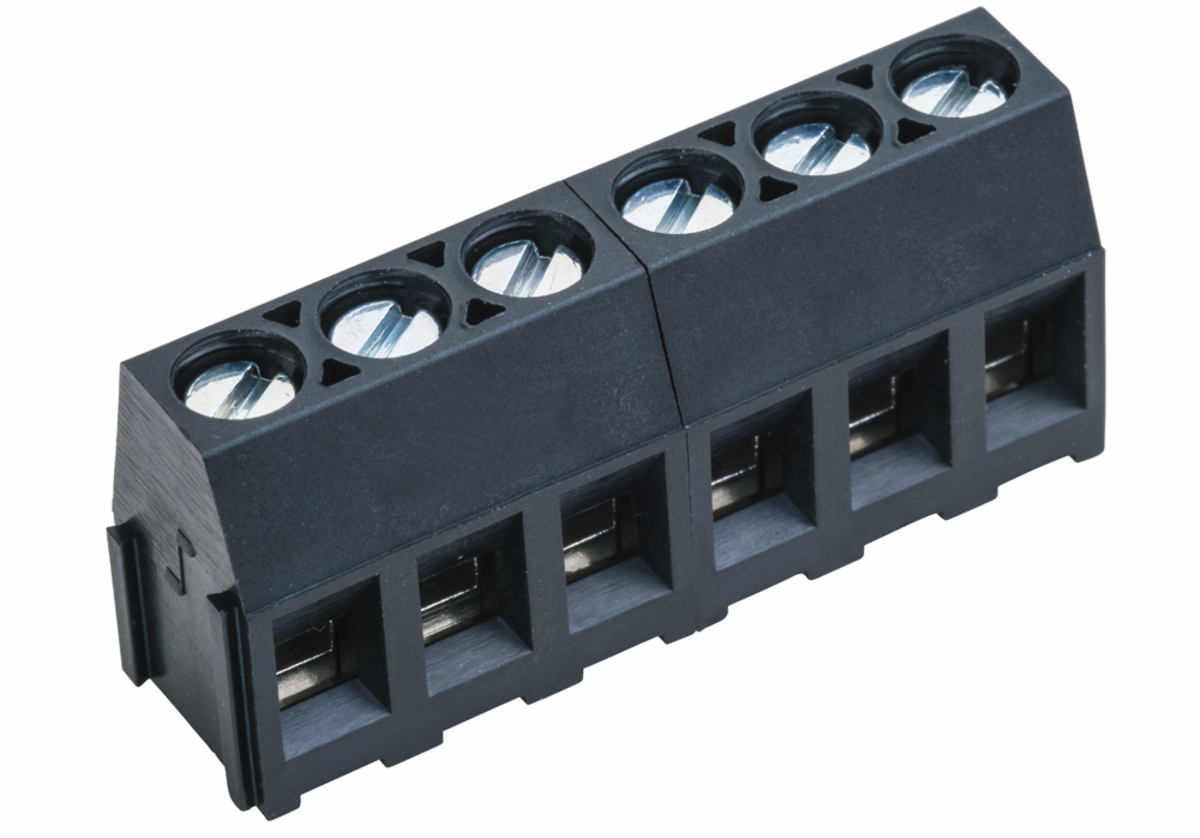

392 | | Manufacturers Part No. AKZ350/2-5.08-V-P3.5-BK-HT(AKZ350/2-V-BK-HT) PTR HARTMANN Terminal block AKZ350 vertical 2 Pole Pitch5,08mm black Solder 10,76mm 17mm 22AWG 12AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 420 Pcs. Planned Delivery Time Ø 9 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AKZ350/..-5.08-V-P3.5-BK-HT | Lift principle | with srew clamp | vertical | 2 | 5.08 mm | Polyphthalamid (PPA) | black | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.14 mm² | 2.5 mm² | 0.14 mm² | 1.5 mm² | 10.76 mm | 17.0 mm | 9.0 mm | 17.5 A | 250.0 V AC | ||||||||
393 | | Manufacturers Part No. AKZ350/3-5.08-V-P3.5-BK-HT(AKZ350/3-V-BK-HT) PTR HARTMANN Terminal block AKZ350 vertical 3 Pole Pitch5,08mm black Solder 15,84mm 17mm 22AWG 12AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 200 or mul. of 200) | PTR HARTMANN | Terminal block | AKZ350/..-5.08-V-P3.5-BK-HT | Lift principle | with srew clamp | vertical | 3 | 5.08 mm | Polyphthalamid (PPA) | black | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.14 mm² | 2.5 mm² | 0.14 mm² | 1.5 mm² | 15.84 mm | 17.0 mm | 9.0 mm | 17.5 A | 250.0 V AC | ||||||||
394 | | Manufacturers Part No. AKZ350/4-5.08-V-P3.5-BK-HT(AKZ350/4-V-BK-HT) PTR HARTMANN Terminal block AKZ350 vertical 4 Pole Pitch5,08mm black Solder 20,92mm 17mm 22AWG 12AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AKZ350/..-5.08-V-P3.5-BK-HT | Lift principle | with srew clamp | vertical | 4 | 5.08 mm | Polyphthalamid (PPA) | black | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.14 mm² | 2.5 mm² | 0.14 mm² | 1.5 mm² | 20.92 mm | 17.0 mm | 9.0 mm | 17.5 A | 250.0 V AC | ||||||||
395 | | Manufacturers Part No. AKZ350/5-5.08-V-P3.5-BK-HT(AKZ350/5-V-BK-HT) PTR HARTMANN Terminal block AKZ350 vertical 5 Pole Pitch5,08mm black Solder 26mm 17mm 22AWG 12AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 200 or mul. of 200) | PTR HARTMANN | Terminal block | AKZ350/..-5.08-V-P3.5-BK-HT | Lift principle | with srew clamp | vertical | 5 | 5.08 mm | Polyphthalamid (PPA) | black | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.14 mm² | 2.5 mm² | 0.14 mm² | 1.5 mm² | 26.0 mm | 17.0 mm | 9.0 mm | 17.5 A | 250.0 V AC | ||||||||
396 | | Manufacturers Part No. AKZ350/6-5.08-V-P3.5-BK-HT(AKZ350/6-V-BK-HT) PTR HARTMANN Terminal block AKZ350 vertical 6 Pole Pitch5,08mm black Solder 31,08mm 17mm 22AWG 12AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 80 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Terminal block | AKZ350/..-5.08-V-P3.5-BK-HT | Lift principle | with srew clamp | vertical | 6 | 5.08 mm | Polyphthalamid (PPA) | black | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.14 mm² | 2.5 mm² | 0.14 mm² | 1.5 mm² | 31.08 mm | 17.0 mm | 9.0 mm | 17.5 A | 250.0 V AC | ||||||||
397 | | Manufacturers Part No. AKZ350/7-5.08-V-P3.5-BK-HT(AKZ350/7-V-BK-HT) PTR HARTMANN Terminal block AKZ350 vertical 7 Pole Pitch5,08mm black Solder 36,16mm 17mm 22AWG 12AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 100 or mul. of 100) | PTR HARTMANN | Terminal block | AKZ350/..-5.08-V-P3.5-BK-HT | Lift principle | with srew clamp | vertical | 7 | 5.08 mm | Polyphthalamid (PPA) | black | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.14 mm² | 2.5 mm² | 0.14 mm² | 1.5 mm² | 36.16 mm | 17.0 mm | 9.0 mm | 17.5 A | 250.0 V AC | ||||||||
398 | | Manufacturers Part No. AKZ350/8-5.08-V-P3.5-BK-HT(AKZ350/8-V-BK-HT) PTR HARTMANN Terminal block AKZ350 vertical 8 Pole Pitch5,08mm black Solder 41,26mm 17mm 22AWG 12AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 100 or mul. of 100) | PTR HARTMANN | Terminal block | AKZ350/..-5.08-V-P3.5-BK-HT | Lift principle | with srew clamp | vertical | 8 | 5.08 mm | Polyphthalamid (PPA) | black | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.14 mm² | 2.5 mm² | 0.14 mm² | 1.5 mm² | 41.26 mm | 17.0 mm | 9.0 mm | 17.5 A | 250.0 V AC | ||||||||
399 | | Manufacturers Part No. AKZ350/9-5.08-V-P3.5-BK-HT(AKZ350/9-V-BK-HT) PTR HARTMANN Terminal block AKZ350 vertical 9 Pole Pitch5,08mm black Solder 46,32mm 17mm 22AWG 12AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 100 or mul. of 100) | PTR HARTMANN | Terminal block | AKZ350/..-5.08-V-P3.5-BK-HT | Lift principle | with srew clamp | vertical | 9 | 5.08 mm | Polyphthalamid (PPA) | black | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.14 mm² | 2.5 mm² | 0.14 mm² | 1.5 mm² | 46.32 mm | 17.0 mm | 9.0 mm | 17.5 A | 250.0 V AC | ||||||||
400 | | Manufacturers Part No. AKZ350/10-5.08-V-P3.5-BK-HT(AKZ350/10-V-BK-HT) PTR HARTMANN Terminal block AKZ350 vertical 10 Pole Pitch5,08mm black Solder 51,4mm 17mm 22AWG 12AWG 17,5A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 50 or mul. of 50) | PTR HARTMANN | Terminal block | AKZ350/..-5.08-V-P3.5-BK-HT | Lift principle | with srew clamp | vertical | 10 | 5.08 mm | Polyphthalamid (PPA) | black | UL 94 V-0 | Solder | 22.0 AWG | 12.0 AWG | 0.14 mm² | 2.5 mm² | 0.14 mm² | 1.5 mm² | 51.4 mm | 17.0 mm | 9.0 mm | 17.5 A | 250.0 V AC |
