Results (528)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Product Family | Design | Actuation | Alignment | Number of poles | Pitch | Contact Material Input | Contact Surface Input | Housing material | Colour | Class of Inflammability | Connector Contact | Connector Material | Conductor cross-section (AWG), min. | Conductor cross-section (AWG), max. | Nominal cross-section, solid, min. | Nominal cross-section, solid, max. | Nominal cross-section finely stranded, min. | Nominal cross-section finely stranded, max. | Dimension: Width | Dimension: Height | Dimension: Depth | Rated current | Rated voltage AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

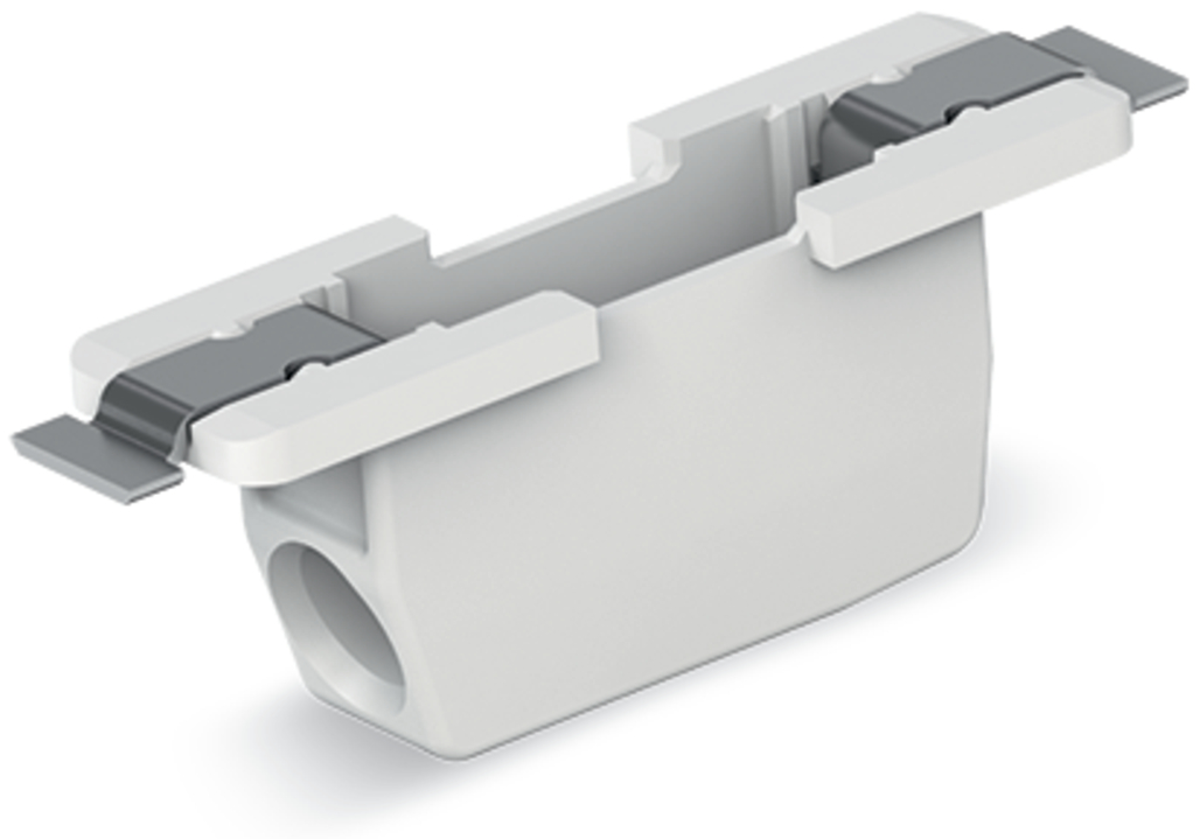

301 |  | Manufacturers Part No. 2070-451/998-406(2070-451/998-406) WAGO Terminal block 2070 horizontal 1 Pole Pitch6,5mm white SMD 5,3mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 954 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 1 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 5.3 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

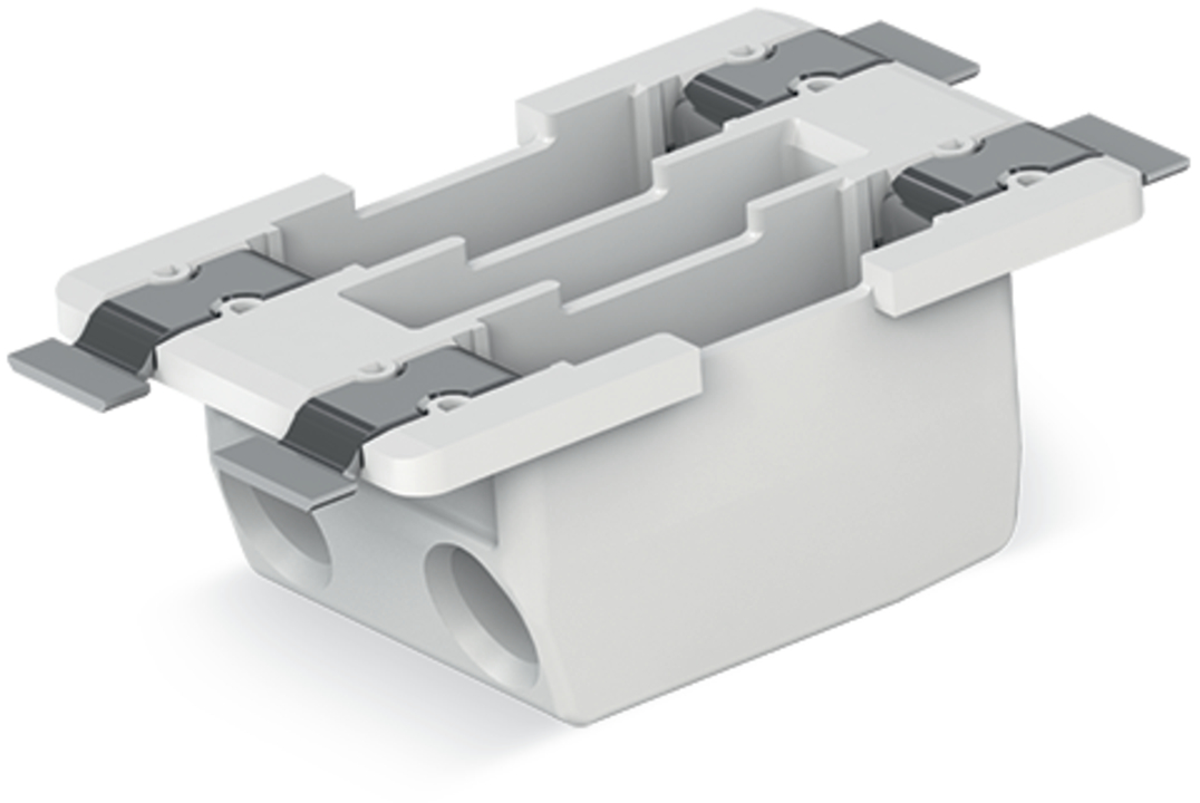

302 | | Manufacturers Part No. 2070-452/998-406(2070-452/998-406) WAGO Terminal block 2070 horizontal 2 Pole Pitch6,5mm white SMD 11,8mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 2.355 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 2 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 11.8 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

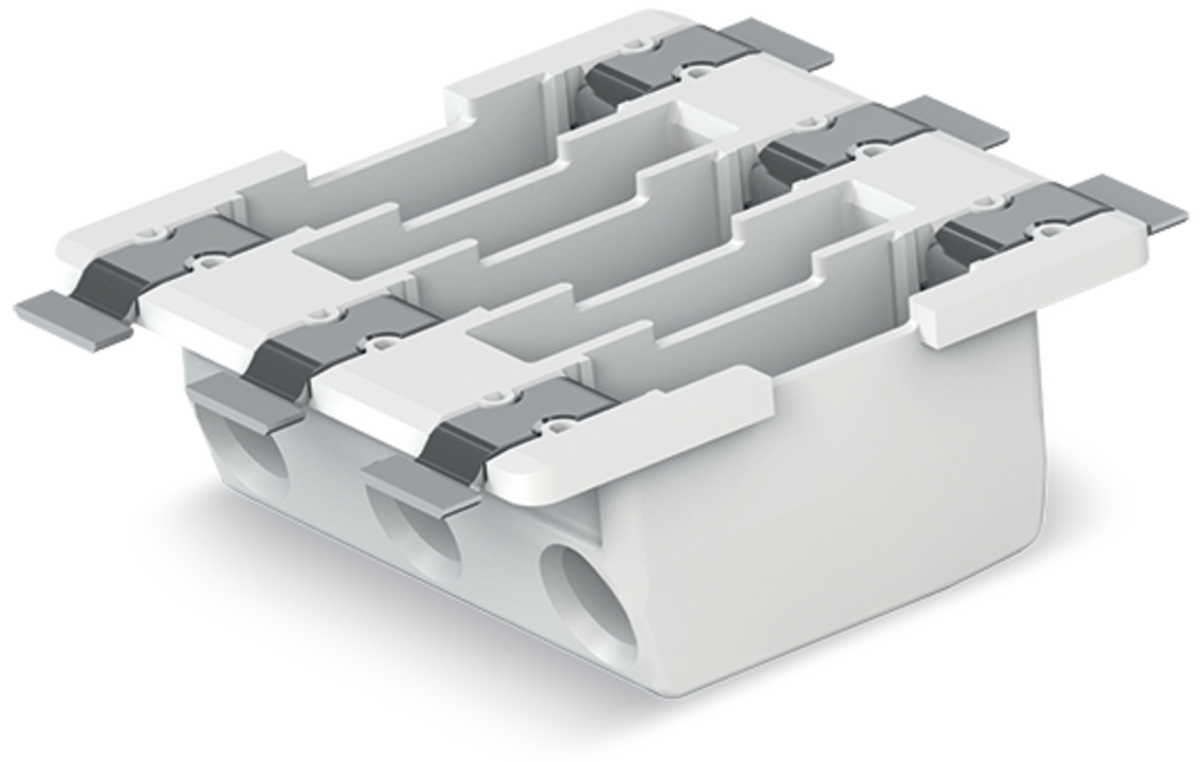

303 | | Manufacturers Part No. 2070-453/998-406(2070-453/998-406) WAGO Terminal block 2070 horizontal 3 Pole Pitch6,5mm white SMD 15,8mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 1.590 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 3 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 15.8 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

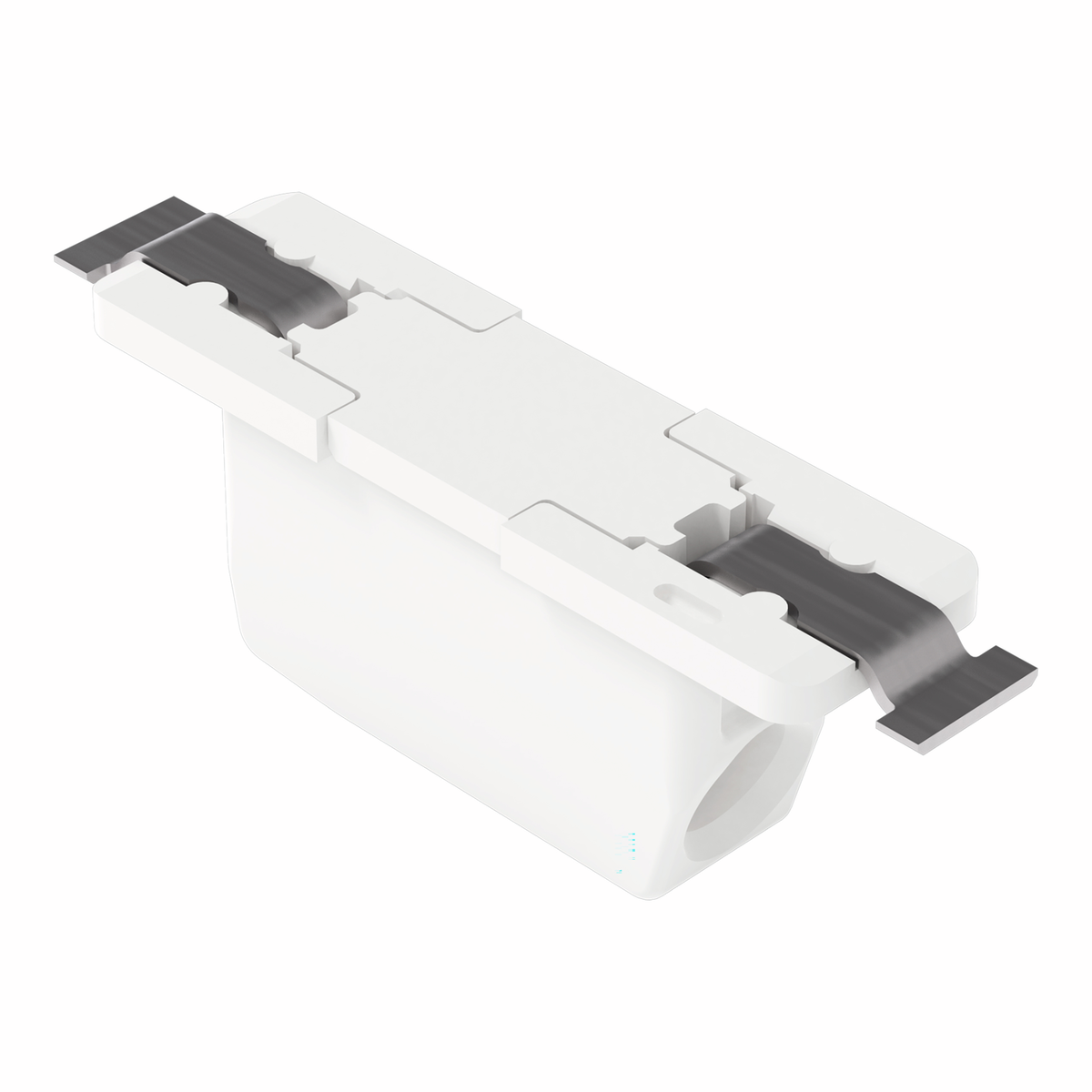

304 | | Manufacturers Part No. 2070-461/998-406(2070-461/998-406) WAGO Terminal block 2070 horizontal 1 Pole Pitch6,5mm white SMD 5,3mm 7,45mm 24AWG 18AWG 9A 320VAC % | Customer Part No. Customer Project No. | 3.105 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 3 or mul. of 3) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 1 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 5.3 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

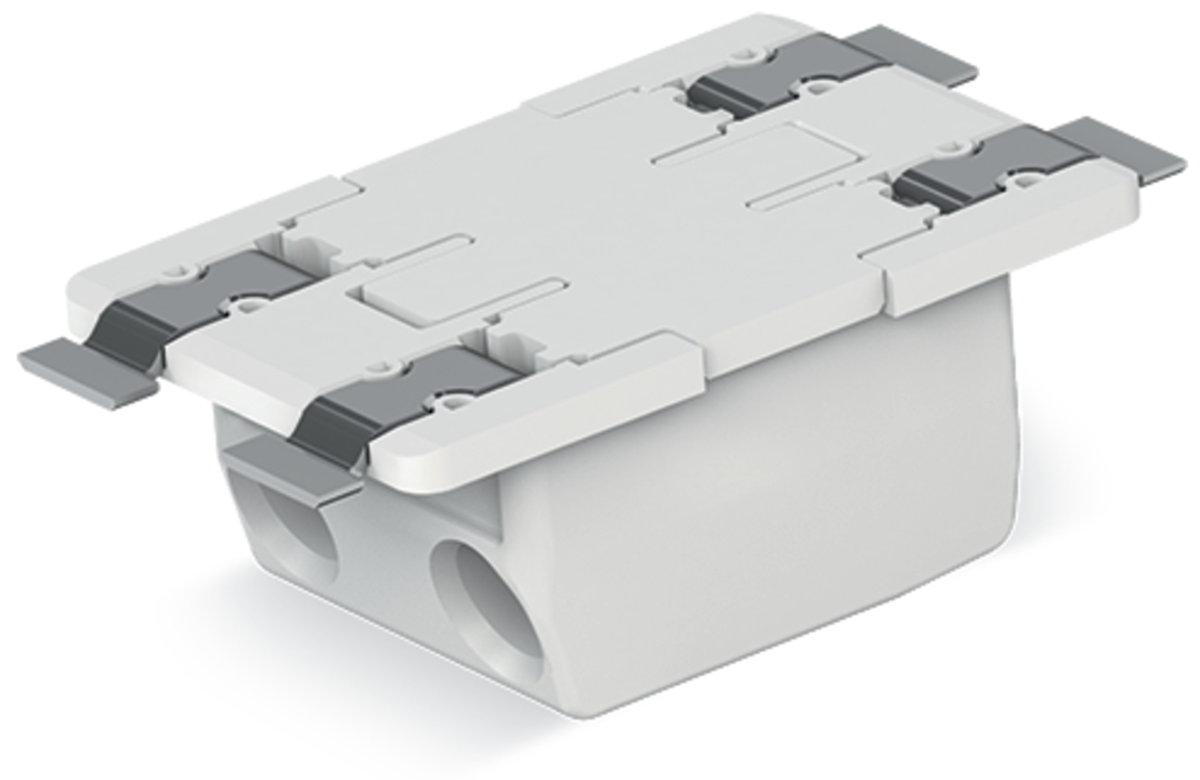

305 | | Manufacturers Part No. 2070-462/998-406(2070-462/998-406) WAGO Terminal block 2070 horizontal 2 Pole Pitch6,5mm white SMD 11,8mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 1.913 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 2 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 11.8 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

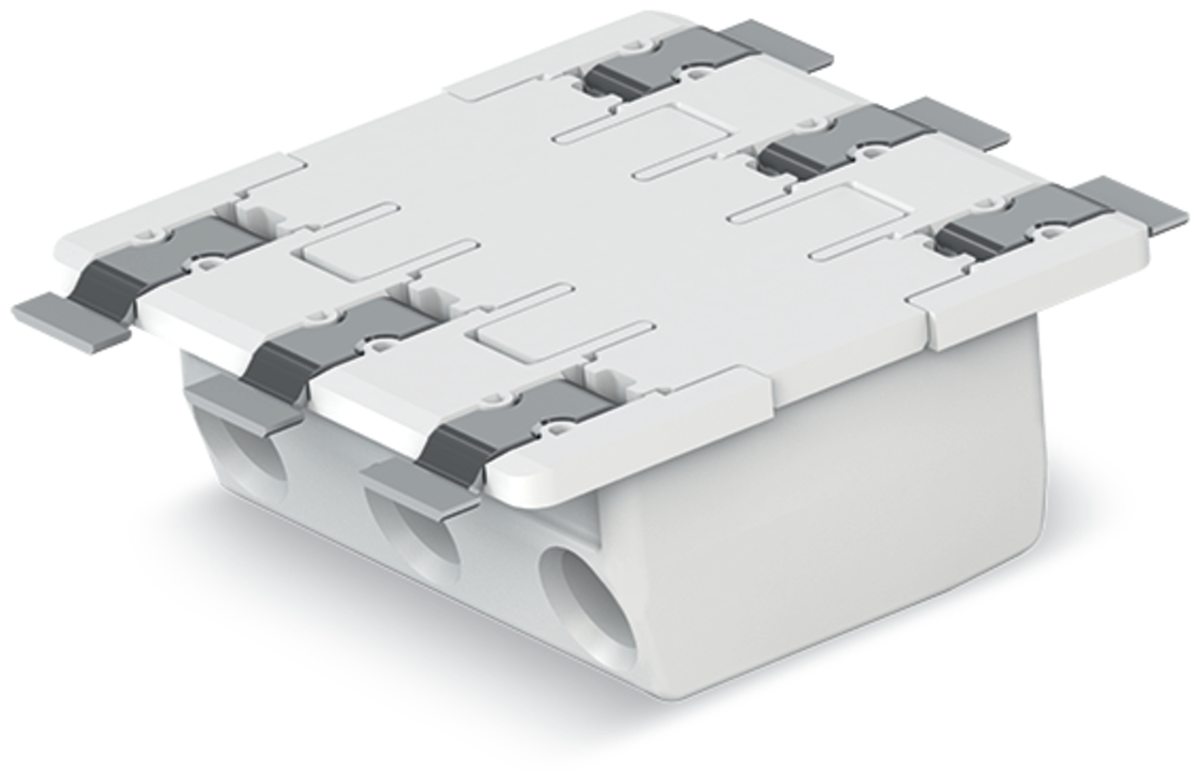

306 | | Manufacturers Part No. 2070-463/998-406(2070-463/998-406) WAGO Terminal block 2070 horizontal 3 Pole Pitch6,5mm white SMD 15,8mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 1.590 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 3 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 15.8 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

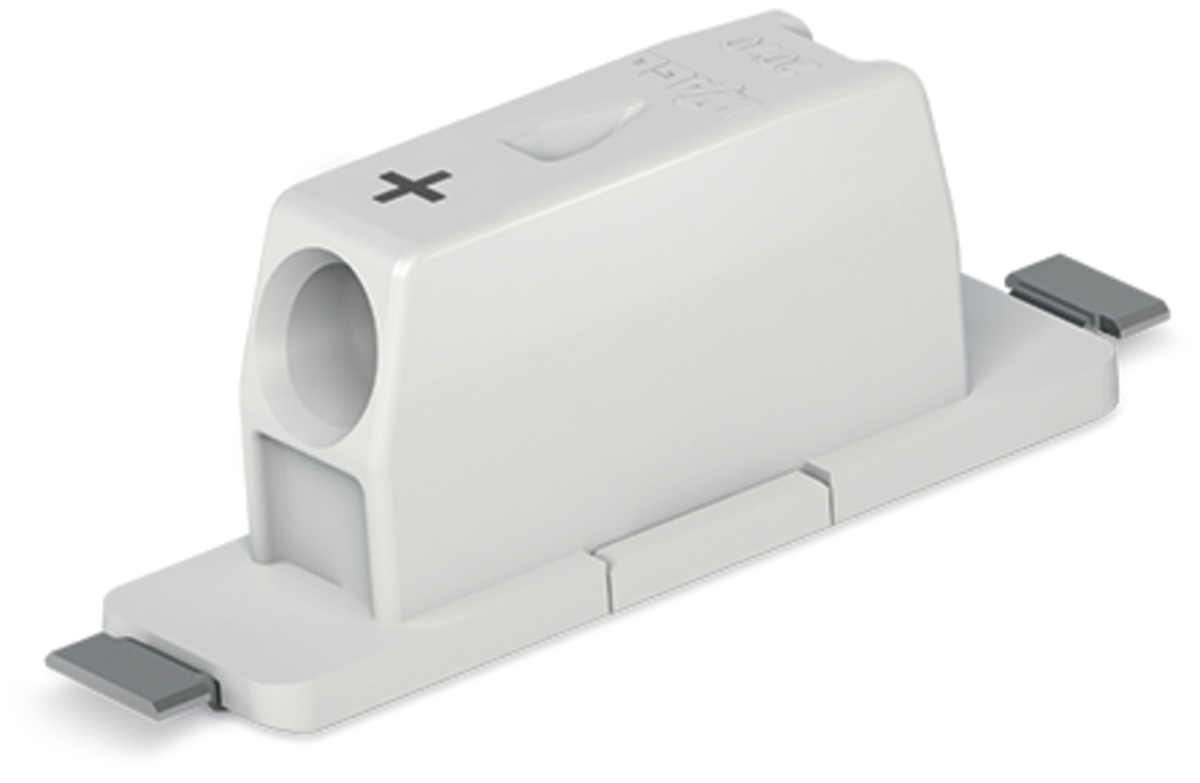

307 | | Manufacturers Part No. 2070-521/998-406(2070-521/998-406) WAGO Terminal block 2070 horizontal 1 Pole Pitch6,5mm white SMD 5,3mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 954 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 1 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 5.3 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

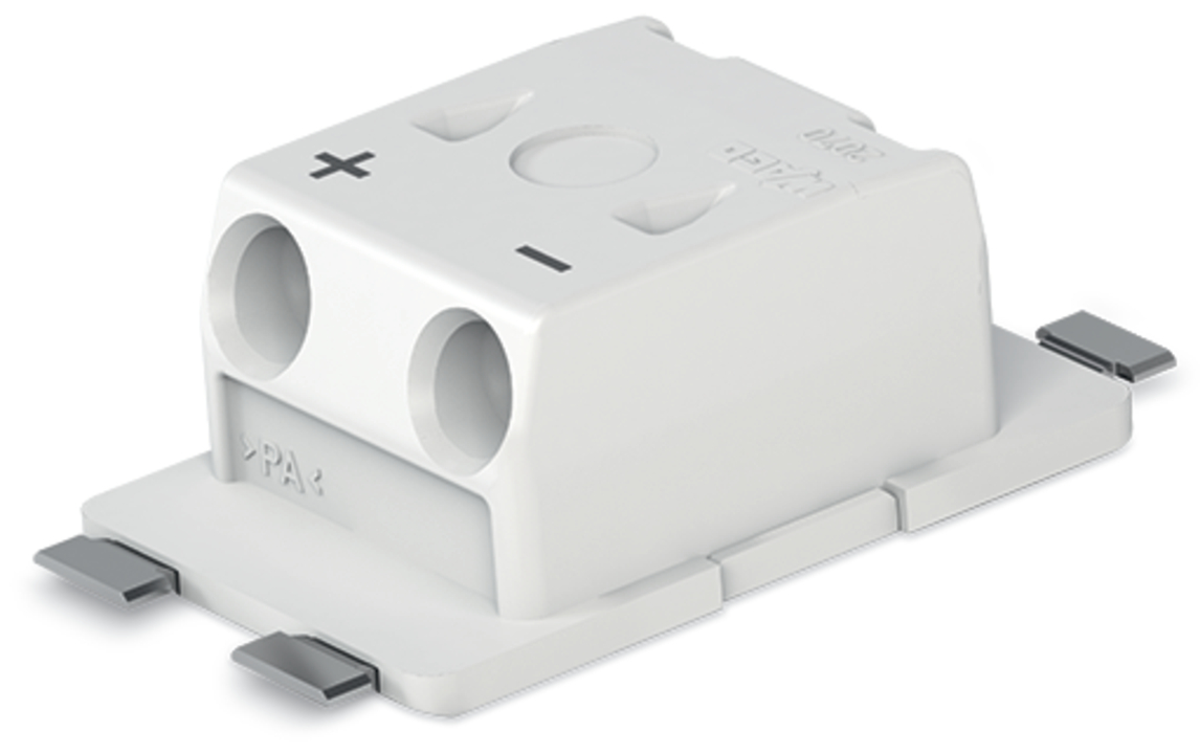

308 | | Manufacturers Part No. 2070-522/998-406(2070-522/998-406) WAGO Terminal block 2070 horizontal 2 Pole Pitch6,5mm white SMD 11,8mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 2.315 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 2 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 11.8 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

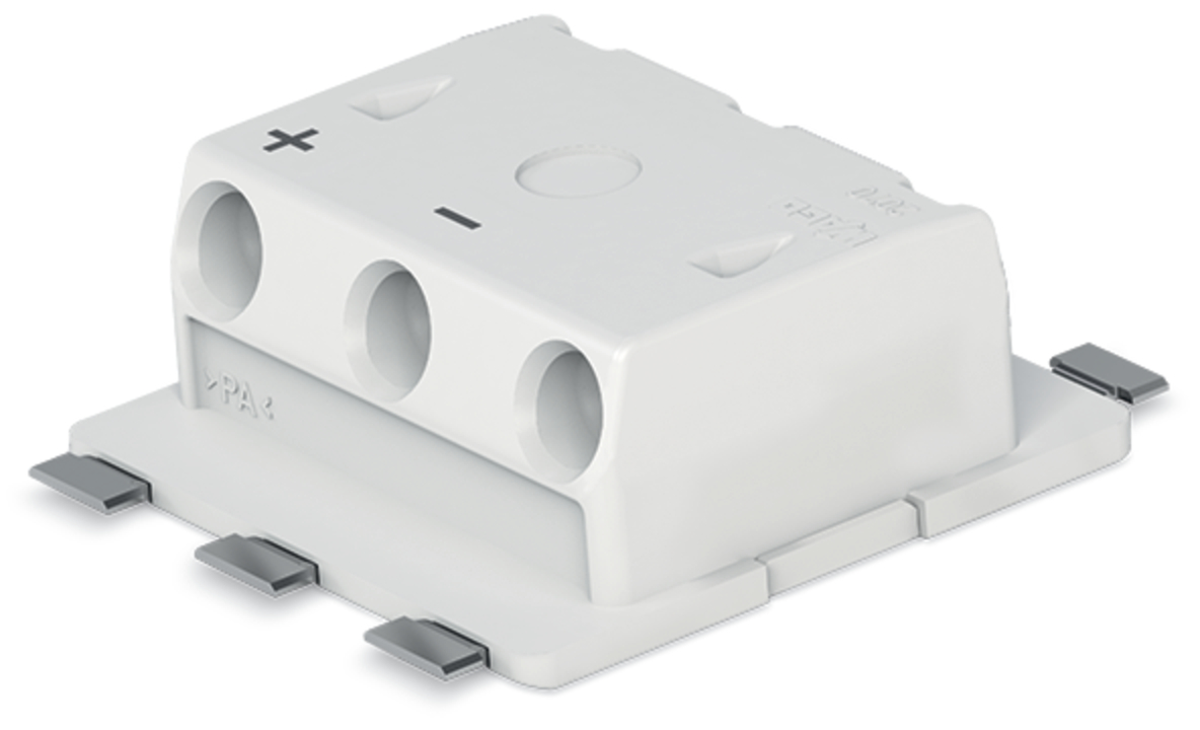

309 | | Manufacturers Part No. 2070-523/998-406(2070-523/998-406) WAGO Terminal block 2070 horizontal 3 Pole Pitch6,5mm white SMD 15,8mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 1.590 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 3 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 15.8 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||
310 | | Manufacturers Part No. 2070-541/998-406(2070-541/998-406) WAGO Terminal block 2070 horizontal 1 Pole Pitch6,5mm white SMD 5,3mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 954 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 1 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 5.3 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

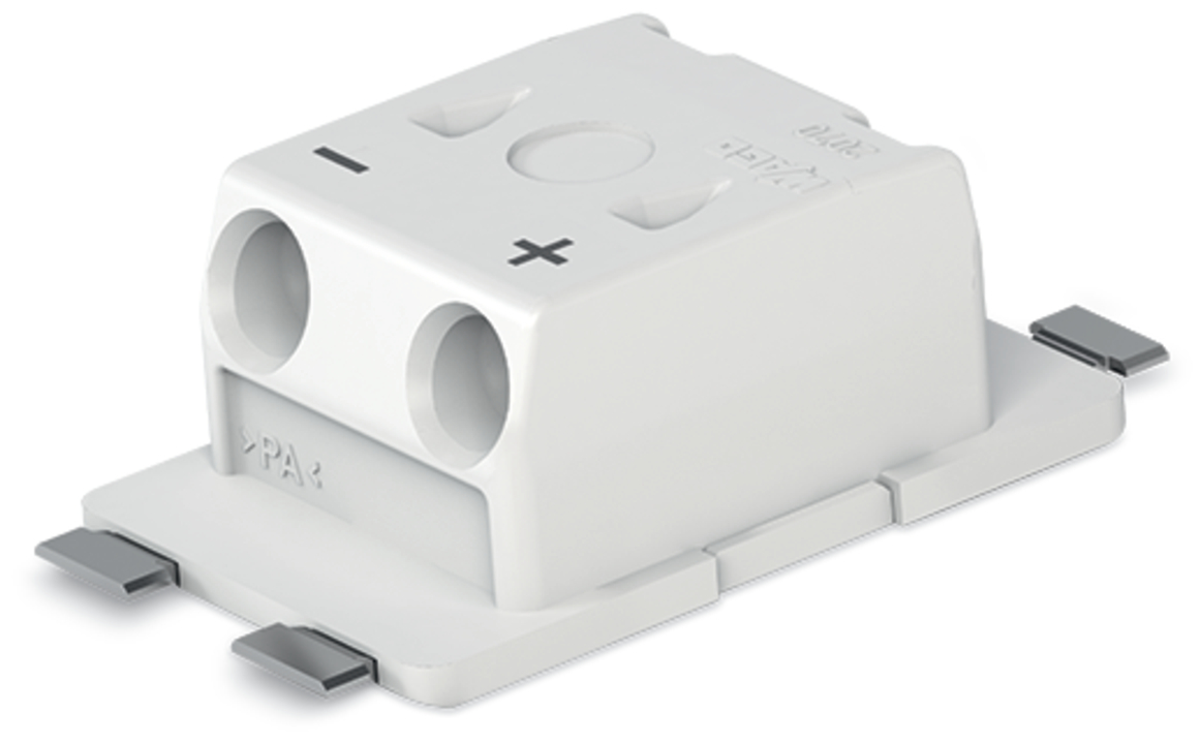

311 | | Manufacturers Part No. 2070-542/998-406(2070-542/998-406) WAGO Terminal block 2070 horizontal 2 Pole Pitch6,5mm white SMD 11,8mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 2.265 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 2 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 11.8 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

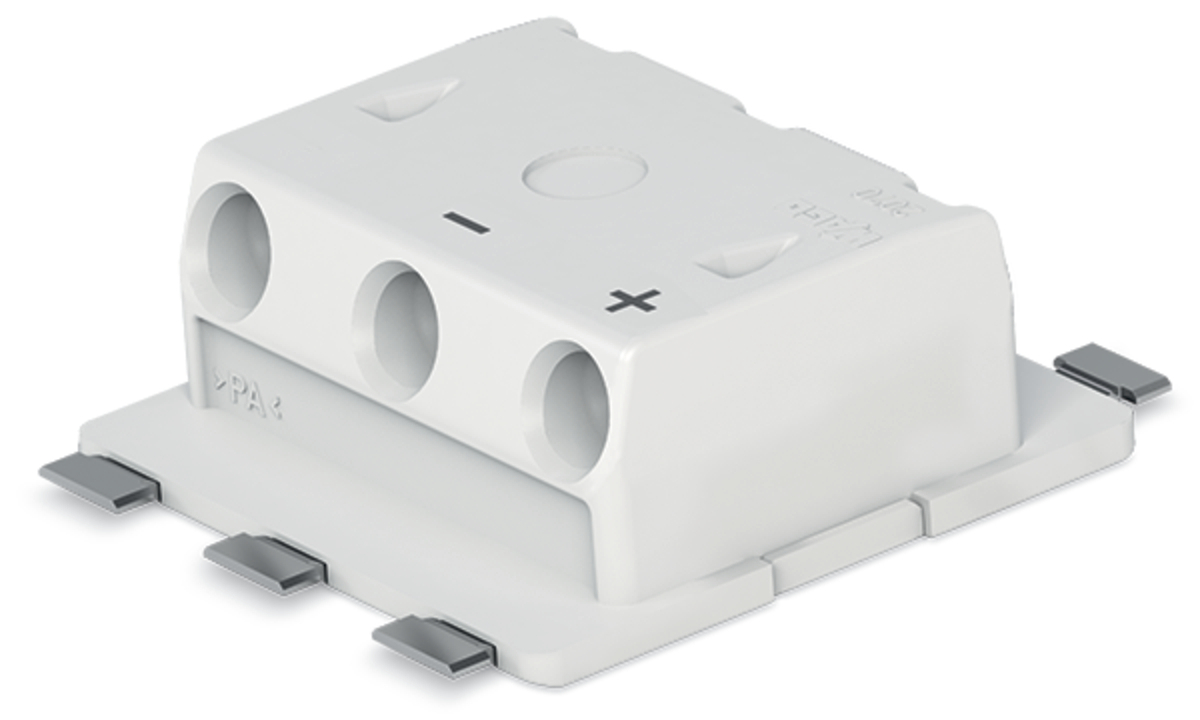

312 | | Manufacturers Part No. 2070-543/998-406(2070-543/998-406) WAGO Terminal block 2070 horizontal 3 Pole Pitch6,5mm white SMD 15,8mm 7,45mm 24AWG 18AWG 9A 320VAC | Customer Part No. Customer Project No. | 1.590 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 3 | 6.5 mm | Polyphthalamid (PPA) GF | white | UL 94 V-0 | SMD | 24.0 AWG | 18.0 AWG | 0.2 mm² | 0.75 mm² | 0.2 mm² | 0.75 mm² | 15.8 mm | 7.45 mm | 22.2 mm | 9.0 A | 320.0 V AC | ||||||||

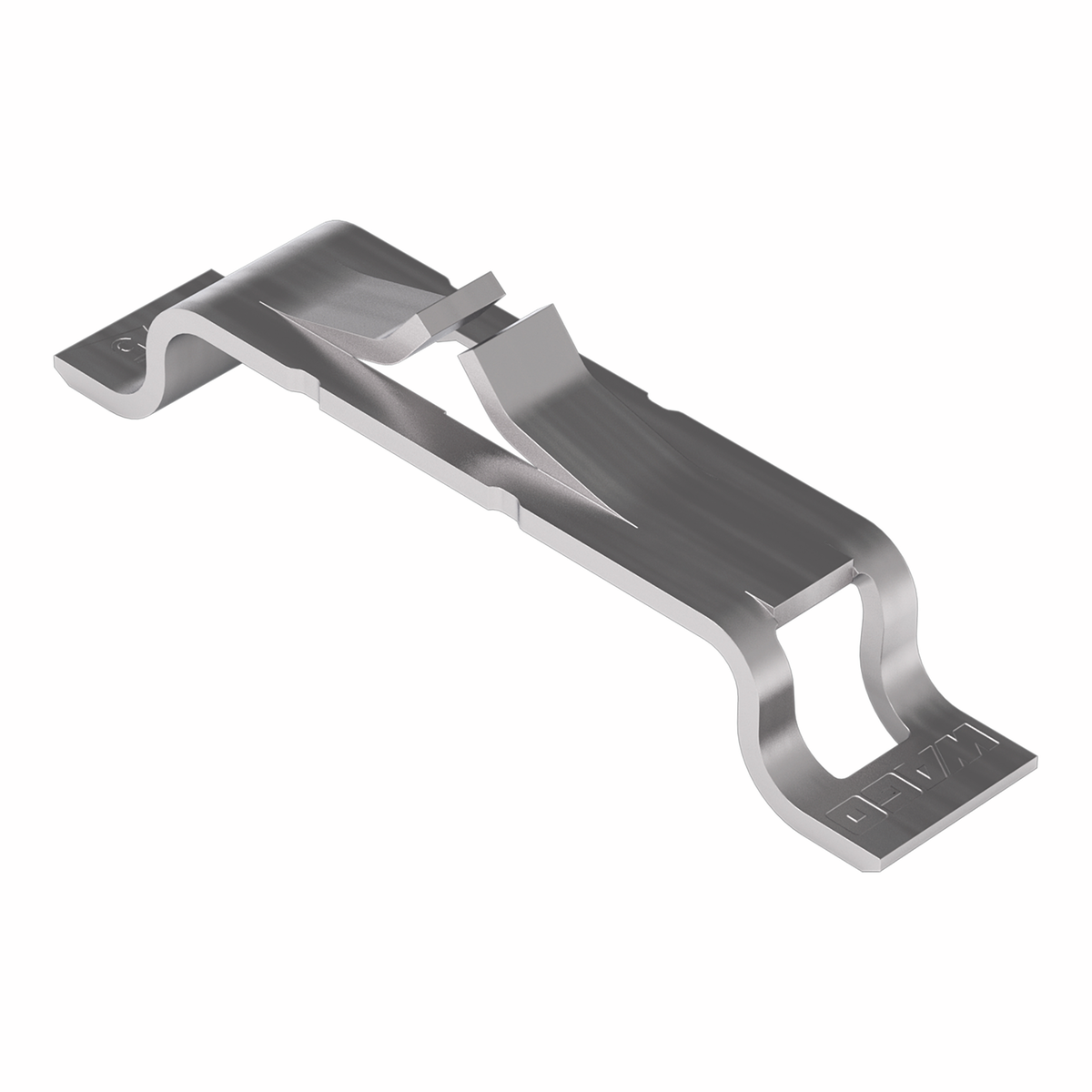

313 | | Manufacturers Part No. 2075-381/997-404(2075-381/997-404) WAGO Terminal block 2075 90° 1 Pole Pitch3mm SMD 3mm 3,9mm 20AWG 18AWG 9A 500VAC | Customer Part No. Customer Project No. | 1.500 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | PUSH WIRE® | Push wire | without actuating lever | 90° | 1 | 3.0 mm | UL 94 V-0 | SMD | 20.0 AWG | 18.0 AWG | 0.34 mm² | 0.75 mm² | 3.0 mm | 3.9 mm | 17.5 mm | 9.0 A | 500.0 V AC | ||||||||||||

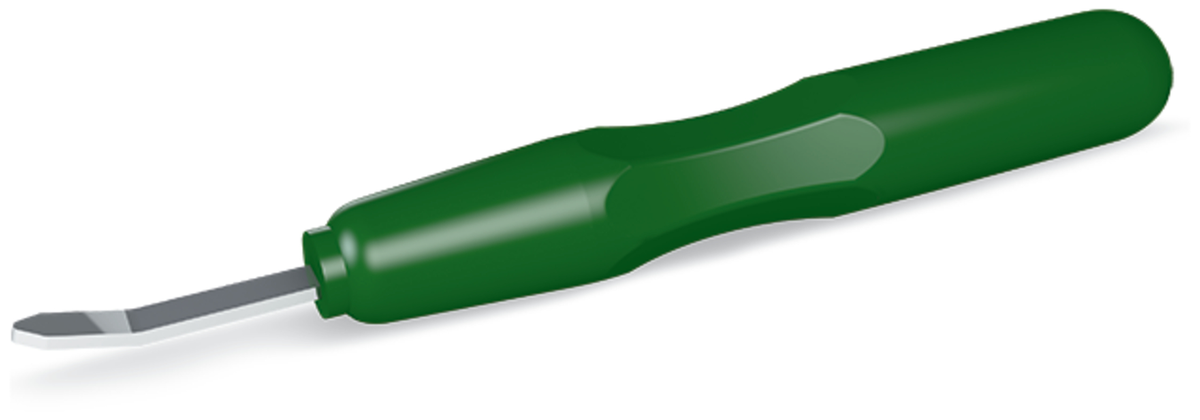

314 | | Customer Part No. Customer Project No. | 2 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 1 or mul. of 1) | WAGO | Actuating tool | Tool | Insulating Material | green | |||||||||||||||||||||||||||

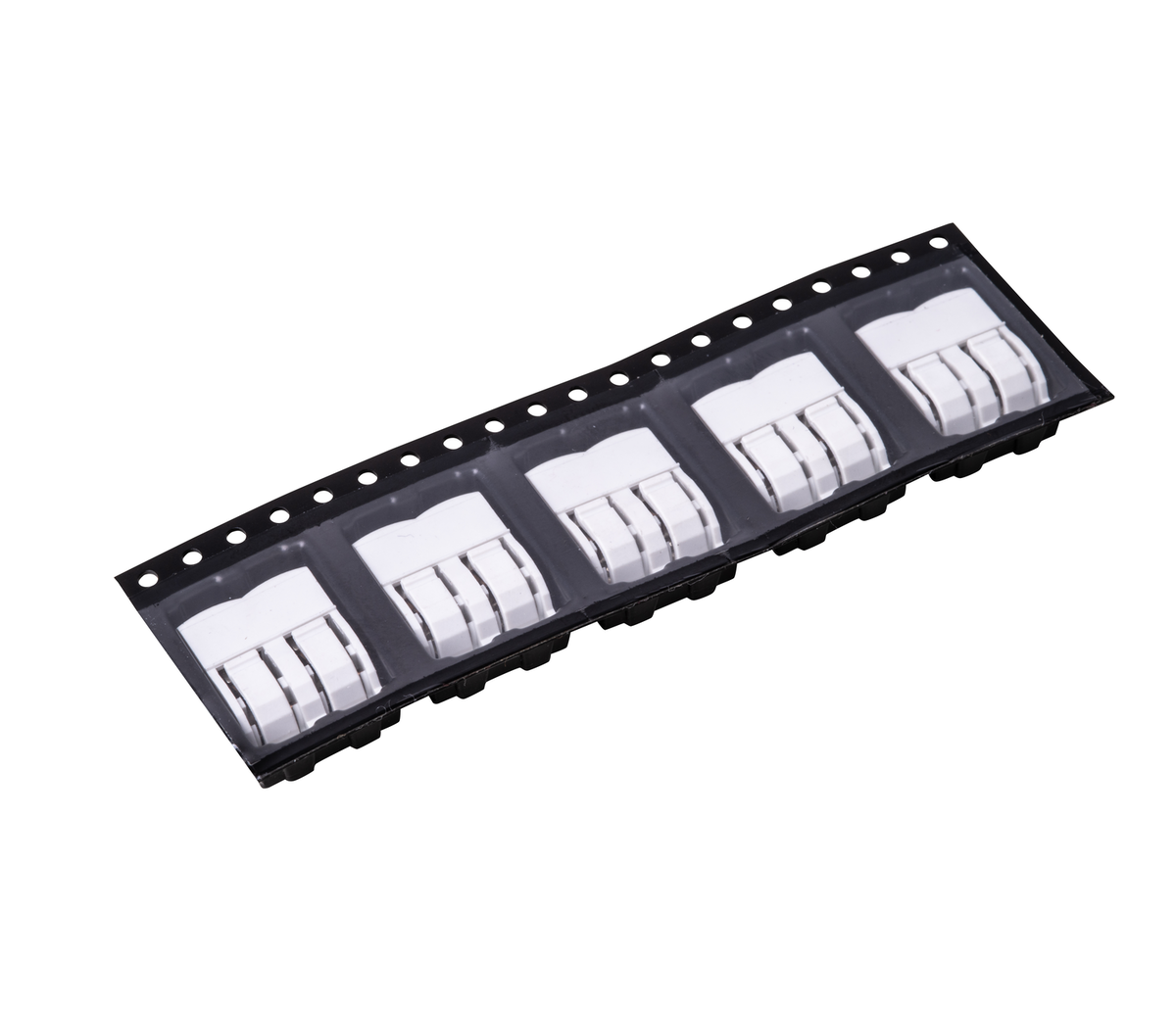

315 | | Manufacturers Part No. AK4092/1KD-6.0-WH-SMD(AK4092/1-WH-SMD-G) PTR HARTMANN Terminal block AK4092-SMD horizontal 1 Pole Pitch6mm white SMD 5,7mm 5,6mm 20AWG 16AWG 17,5A 320VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 900 or mul. of 900) | PTR HARTMANN | Terminal block | AK4092/..KD-6.0-WH-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | horizontal | 1 | 6.0 mm | Polyphthalamid (PPA) | white | UL 94 V-0 | SMD | 20.0 AWG | 16.0 AWG | 0.5 mm² | 1.5 mm² | 0.5 mm² | 1.5 mm² | 5.7 mm | 5.6 mm | 15.2 mm | 17.5 A | 320.0 V AC | ||||||||
316 | | Manufacturers Part No. AK4092/2KD-6.0-WH-SMD(AK4092/2-WH-SMD-G) PTR HARTMANN Terminal block AK4092-SMD horizontal 2 Pole Pitch6mm white SMD 11,7mm 5,6mm 20AWG 16AWG 17,5A 320VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 750 or mul. of 750) | PTR HARTMANN | Terminal block | AK4092/..KD-6.0-WH-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | horizontal | 2 | 6.0 mm | Polyphthalamid (PPA) | white | UL 94 V-0 | SMD | 20.0 AWG | 16.0 AWG | 0.5 mm² | 1.5 mm² | 0.5 mm² | 1.5 mm² | 11.7 mm | 5.6 mm | 15.2 mm | 17.5 A | 320.0 V AC | ||||||||
317 | | Manufacturers Part No. AK4092/3KD-6.0-WH-SMD(AK4092/3-WH-SMD-G) PTR HARTMANN Terminal block AK4092-SMD horizontal 3 Pole Pitch6mm white SMD 17,7mm 5,6mm 20AWG 16AWG 17,5A 320VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 450 or mul. of 450) | PTR HARTMANN | Terminal block | AK4092/..KD-6.0-WH-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | horizontal | 3 | 6.0 mm | Polyphthalamid (PPA) | white | UL 94 V-0 | SMD | 20.0 AWG | 16.0 AWG | 0.5 mm² | 1.5 mm² | 0.5 mm² | 1.5 mm² | 17.7 mm | 5.6 mm | 15.2 mm | 17.5 A | 320.0 V AC | ||||||||
318 | | Manufacturers Part No. AK4092/4KD-6.0-WH-SMD(AK4092/4-WH-SMD-G) PTR HARTMANN Terminal block AK4092-SMD horizontal 4 Pole Pitch6mm white SMD 23,7mm 5,6mm 20AWG 16AWG 17,5A 320VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 380 or mul. of 380) | PTR HARTMANN | Terminal block | AK4092/..KD-6.0-WH-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | horizontal | 4 | 6.0 mm | Polyphthalamid (PPA) | white | UL 94 V-0 | SMD | 20.0 AWG | 16.0 AWG | 0.5 mm² | 1.5 mm² | 0.5 mm² | 1.5 mm² | 23.7 mm | 5.6 mm | 15.2 mm | 17.5 A | 320.0 V AC | ||||||||
319 | | Manufacturers Part No. AK4601/2KD-3.5-V-BK-SMD(AK4601/2-V-BK-SMD) PTR HARTMANN Terminal block AK4601 vertical 2 Pole Pitch3,5mm black SMD 7mm 14,8mm 24AWG 16AWG 8A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 150 or mul. of 150) | PTR HARTMANN | Terminal block | AK4601/..KD-3.5-V-BK-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | vertical | 2 | 3.5 mm | Polyamide (PA) | black | UL 94 V-0 | SMD | 24.0 AWG | 16.0 AWG | 0.2 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 7.0 mm | 14.8 mm | 10.3 mm | 8.0 A | 250.0 V AC | ||||||||
320 | | Manufacturers Part No. AK4601/3KD-3.5-V-BK-SMD(AK4601/3-V-BK-SMD) PTR HARTMANN Terminal block AK4601 vertical 3 Pole Pitch3,5mm black SMD 10,5mm 14,8mm 24AWG 16AWG 8A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 150 or mul. of 150) | PTR HARTMANN | Terminal block | AK4601/..KD-3.5-V-BK-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | vertical | 3 | 3.5 mm | Polyamide (PA) | black | UL 94 V-0 | SMD | 24.0 AWG | 16.0 AWG | 0.2 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 10.5 mm | 14.8 mm | 10.3 mm | 8.0 A | 250.0 V AC | ||||||||
321 | | Manufacturers Part No. AK4601/4KD-3.5-V-BK-SMD(AK4601/4-V-BK-SMD) PTR HARTMANN Terminal block AK4601 vertical 4 Pole Pitch3,5mm black SMD 14mm 14,8mm 24AWG 16AWG 8A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 150 or mul. of 150) | PTR HARTMANN | Terminal block | AK4601/..KD-3.5-V-BK-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | vertical | 4 | 3.5 mm | Polyamide (PA) | black | UL 94 V-0 | SMD | 24.0 AWG | 16.0 AWG | 0.2 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 14.0 mm | 14.8 mm | 10.3 mm | 8.0 A | 250.0 V AC | ||||||||
322 | | Manufacturers Part No. AK4601/5KD-3.5-V-BK-SMD(AK4601/5-V-BK-SMD) PTR HARTMANN Terminal block AK4601 vertical 5 Pole Pitch3,5mm black SMD 17,5mm 14,8mm 24AWG 16AWG 8A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 150 or mul. of 150) | PTR HARTMANN | Terminal block | AK4601/..KD-3.5-V-BK-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | vertical | 5 | 3.5 mm | Polyamide (PA) | black | UL 94 V-0 | SMD | 24.0 AWG | 16.0 AWG | 0.2 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 17.5 mm | 14.8 mm | 10.3 mm | 8.0 A | 250.0 V AC | ||||||||
323 | | Manufacturers Part No. AK4601/6KD-3.5-V-BK-SMD(AK4601/6-V-BK-SMD) PTR HARTMANN Terminal block AK4601 vertical 6 Pole Pitch3,5mm black SMD 21mm 14,8mm 24AWG 16AWG 8A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 150 or mul. of 150) | PTR HARTMANN | Terminal block | AK4601/..KD-3.5-V-BK-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | vertical | 6 | 3.5 mm | Polyamide (PA) | black | UL 94 V-0 | SMD | 24.0 AWG | 16.0 AWG | 0.2 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 21.0 mm | 14.8 mm | 10.3 mm | 8.0 A | 250.0 V AC | ||||||||
324 | | Manufacturers Part No. AK4601/7KD-3.5-V-BK-SMD(AK4601/7-V-BK-SMD) PTR HARTMANN Terminal block AK4601 vertical 7 Pole Pitch3,5mm black SMD 24,5mm 14,8mm 24AWG 16AWG 8A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 150 or mul. of 150) | PTR HARTMANN | Terminal block | AK4601/..KD-3.5-V-BK-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | vertical | 7 | 3.5 mm | Polyamide (PA) | black | UL 94 V-0 | SMD | 24.0 AWG | 16.0 AWG | 0.2 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 24.5 mm | 14.8 mm | 10.3 mm | 8.0 A | 250.0 V AC | ||||||||
325 | | Manufacturers Part No. AK4601/8KD-3.5-V-BK-SMD(AK4601/8-V-BK-SMD) PTR HARTMANN Terminal block AK4601 vertical 8 Pole Pitch3,5mm black SMD 28mm 14,8mm 24AWG 16AWG 8A 250VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 150 or mul. of 150) | PTR HARTMANN | Terminal block | AK4601/..KD-3.5-V-BK-SMD (TAPE-ON-REEL) | Push-In | With actuating lever | vertical | 8 | 3.5 mm | Polyamide (PA) | black | UL 94 V-0 | SMD | 24.0 AWG | 16.0 AWG | 0.2 mm² | 1.5 mm² | 0.2 mm² | 1.5 mm² | 28.0 mm | 14.8 mm | 10.3 mm | 8.0 A | 250.0 V AC |
