Results (528)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Product Family | Design | Actuation | Alignment | Number of poles | Pitch | Contact Material Input | Contact Surface Input | Housing material | Colour | Class of Inflammability | Connector Contact | Connector Material | Conductor cross-section (AWG), min. | Conductor cross-section (AWG), max. | Nominal cross-section, solid, min. | Nominal cross-section, solid, max. | Nominal cross-section finely stranded, min. | Nominal cross-section finely stranded, max. | Dimension: Width | Dimension: Height | Dimension: Depth | Rated current | Rated voltage AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

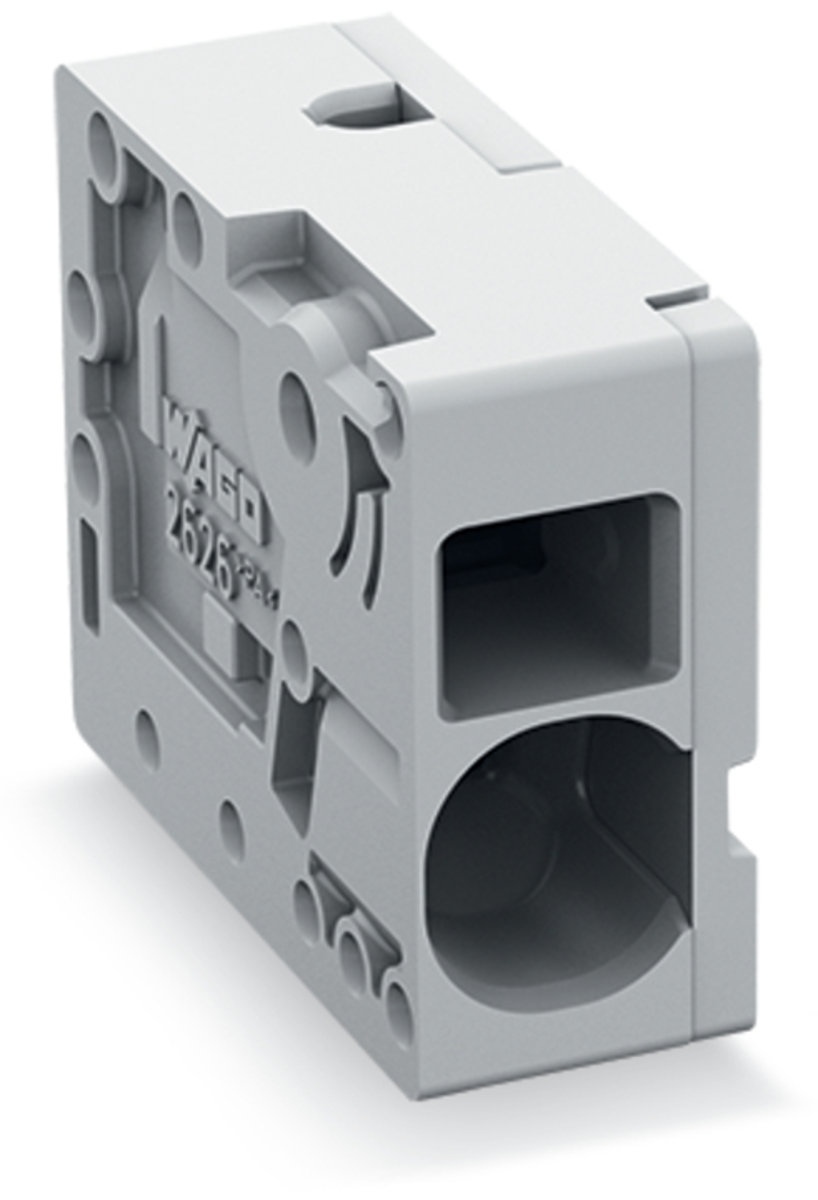

01 |  | Manufacturers Part No. 2626-1101(2626-1101) WAGO Terminal block 2626 horizontal 1 Pole Pitch7,5mm gray Solder 9,3mm 23,6mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 965 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 1 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 9.3 mm | 23.6 mm | 24.2 mm | 48.0 A | 1000.0 V AC | ||||||||

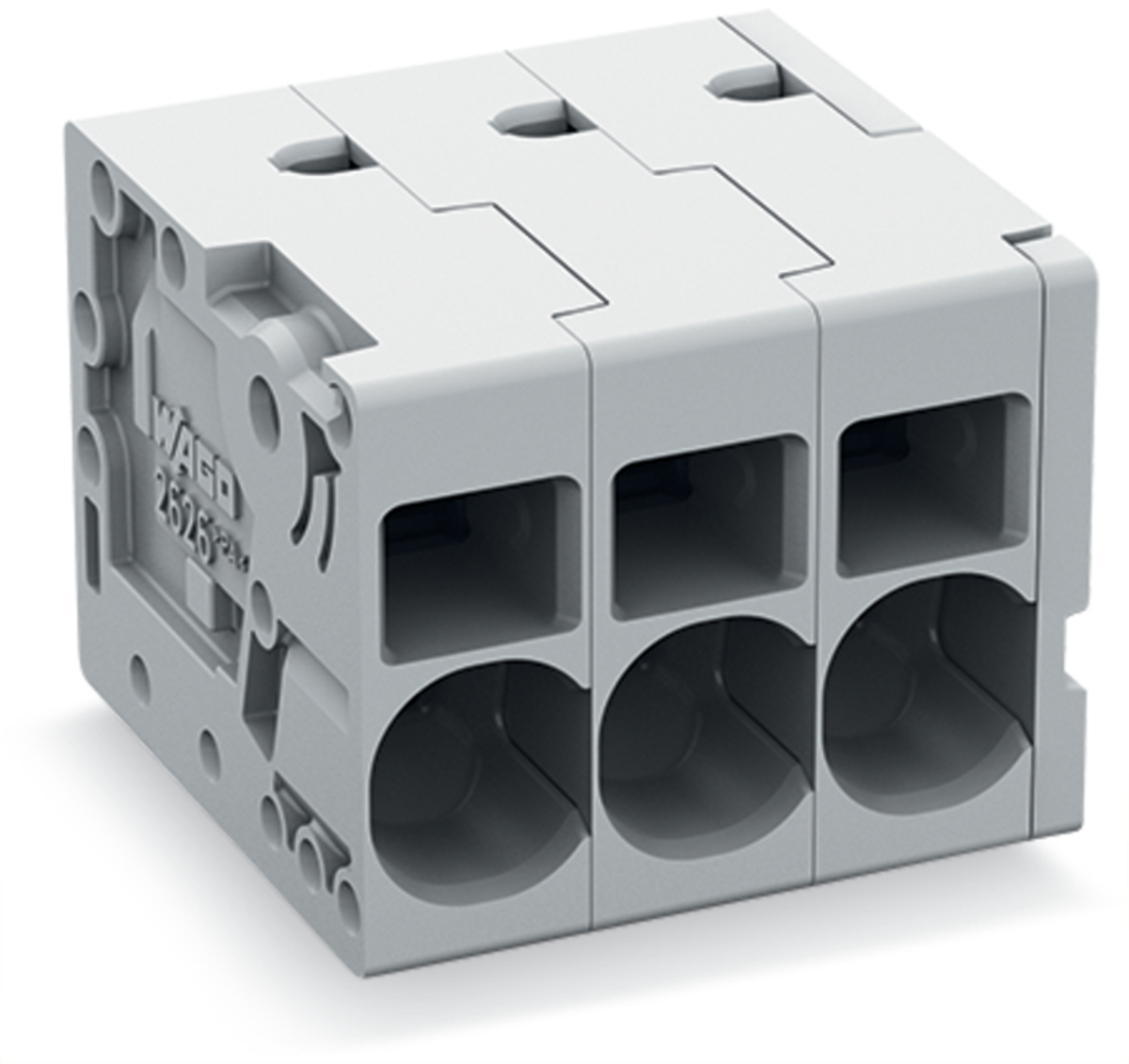

02 | | Manufacturers Part No. 2626-1103/020-000(2626-1103/020-000) WAGO Terminal block 2626 horizontal 3 Pole Pitch7,5mm gray Solder 24,3mm 23,6mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 192 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 4 or mul. of 4) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 3 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 24.3 mm | 23.6 mm | 24.2 mm | 48.0 A | 1000.0 V AC | ||||||||

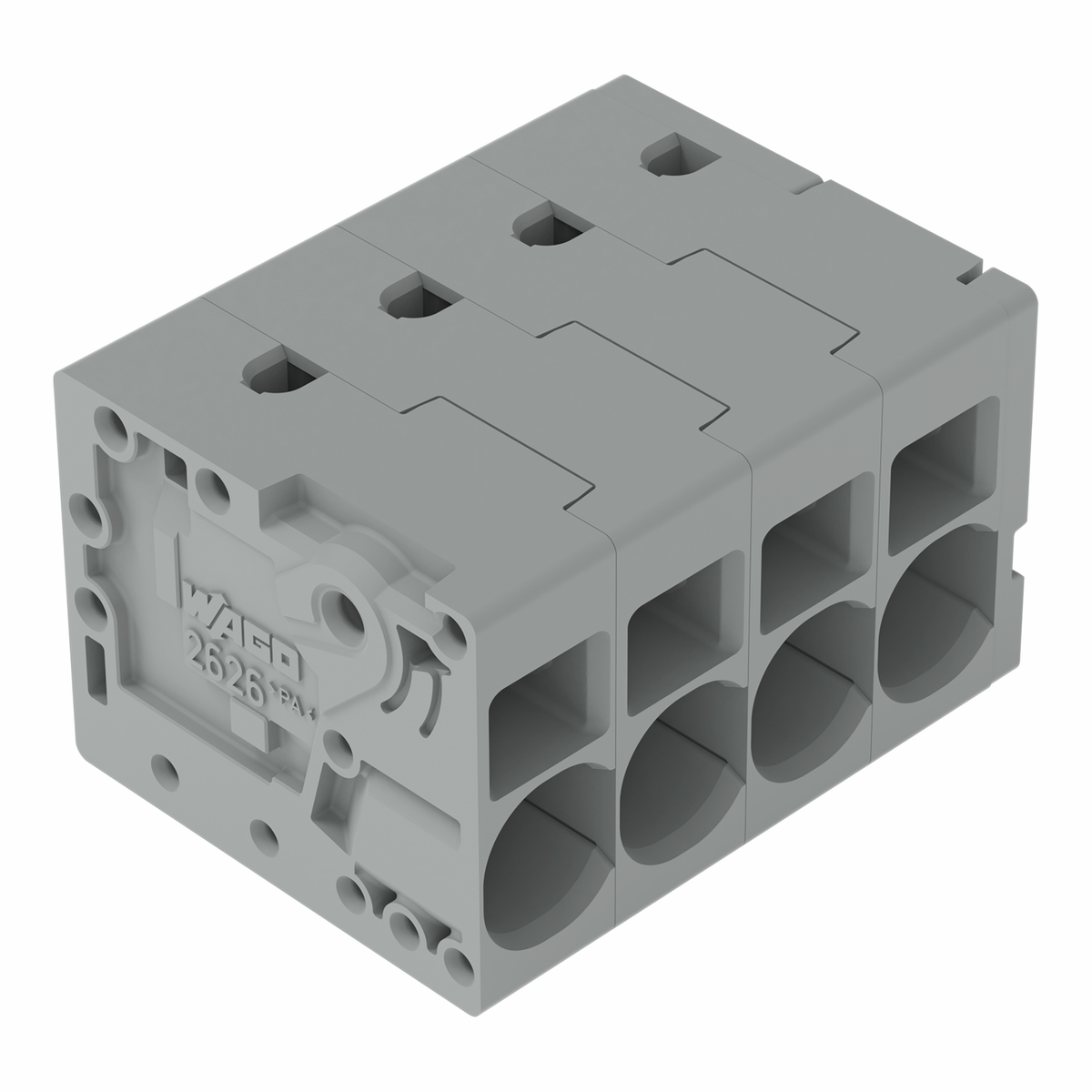

03 | | Manufacturers Part No. 2626-1104/020-000(2626-1104/020-000) WAGO Terminal block 2626 horizontal 4 Pole Pitch7,5mm gray Solder 31,8mm 23,6mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 4 or mul. of 4) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 4 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 31.8 mm | 23.6 mm | 24.2 mm | 48.0 A | 1000.0 V AC | ||||||||
04 | | Manufacturers Part No. 2626-1105/020-000(2626-1105/020-000) WAGO Terminal block 2626 horizontal 5 Pole Pitch7,5mm gray Solder 39,3mm 23,6mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 60 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | horizontal | 5 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 39.3 mm | 23.6 mm | 24.2 mm | 48.0 A | 1000.0 V AC | ||||||||

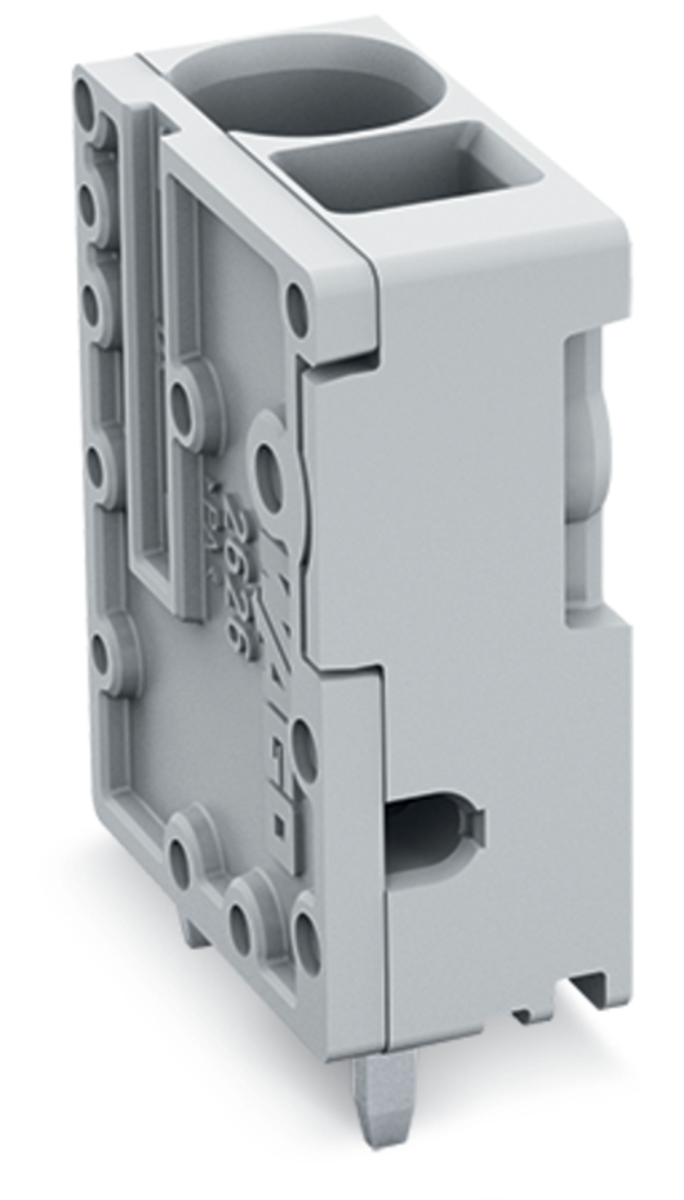

05 | | Manufacturers Part No. 2626-3101(2626-3101) WAGO Terminal block 2626 vertical 1 Pole Pitch7,5mm gray Solder 9,3mm 28,2mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 180 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | vertical | 1 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 9.3 mm | 28.2 mm | 18.5 mm | 48.0 A | 1000.0 V AC | ||||||||
06 | | Manufacturers Part No. 2626-3102/020-000(2626-3102/020-000) WAGO Terminal block 2626 vertical 2 Pole Pitch7,5mm gray Solder 16,8mm 28,2mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 165 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 3 or mul. of 3) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | vertical | 2 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 16.8 mm | 28.2 mm | 18.5 mm | 48.0 A | 1000.0 V AC | ||||||||

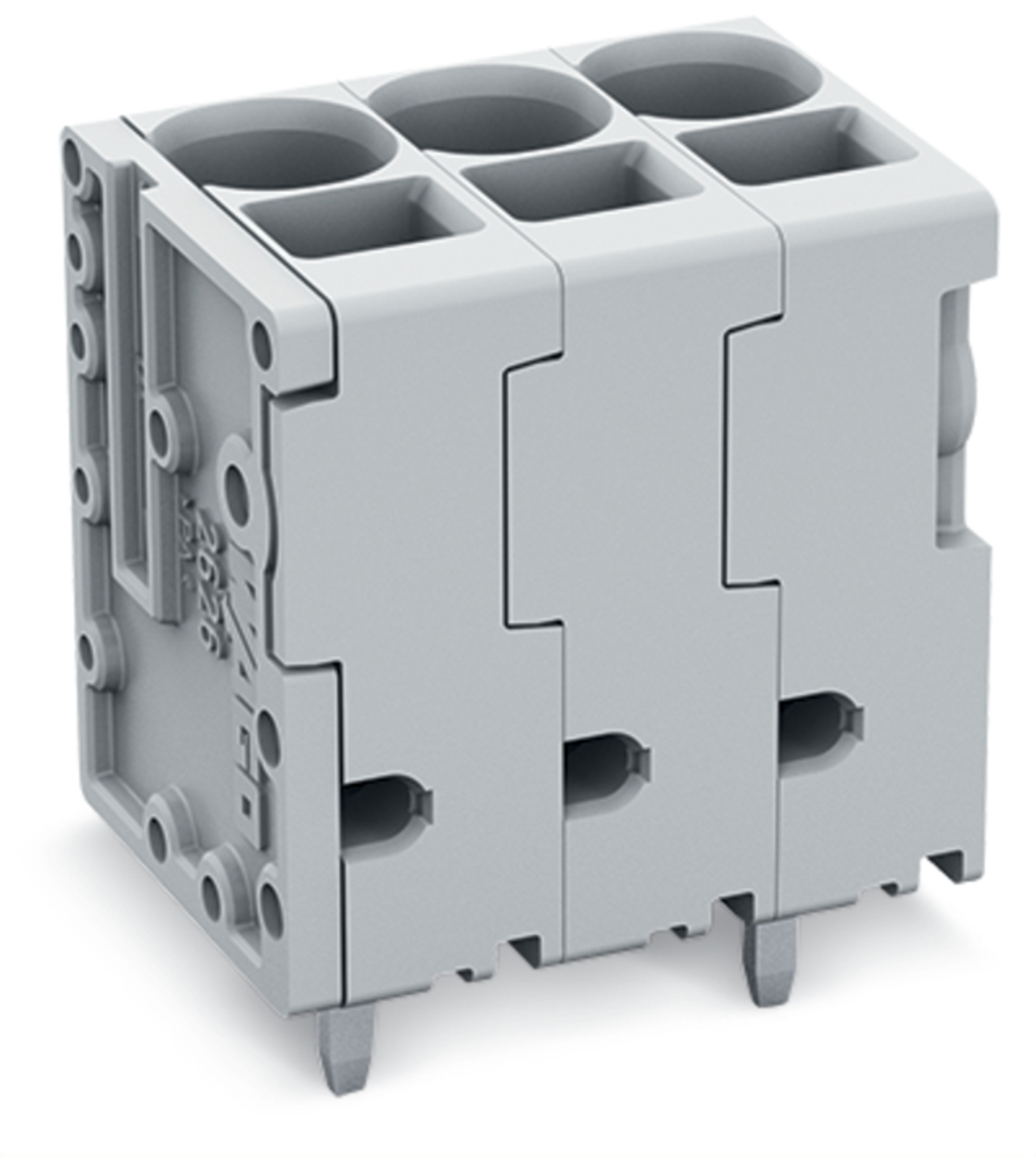

07 | | Manufacturers Part No. 2626-3103/020-000(2626-3103/020-000) WAGO Terminal block 2626 vertical 3 Pole Pitch7,5mm gray Solder 24,3mm 28,2mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 72 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 3 or mul. of 3) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | vertical | 3 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 24.3 mm | 28.2 mm | 18.5 mm | 48.0 A | 1000.0 V AC | ||||||||
08 | | Manufacturers Part No. 2626-3104/020-000(2626-3104/020-000) WAGO Terminal block 2626 vertical 4 Pole Pitch7,5mm gray Solder 31,8mm 28,2mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 3 or mul. of 3) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | vertical | 4 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 31.8 mm | 28.2 mm | 18.5 mm | 48.0 A | 1000.0 V AC | ||||||||
09 | | Manufacturers Part No. 2626-3105/020-000(2626-3105/020-000) WAGO Terminal block 2626 vertical 5 Pole Pitch7,5mm gray Solder 39,3mm 28,2mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 45 or mul. of 45) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | vertical | 5 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 39.3 mm | 28.2 mm | 18.5 mm | 48.0 A | 1000.0 V AC | ||||||||
10 | | Manufacturers Part No. 2626-3106/020-000(2626-3106/020-000) WAGO Terminal block 2626 vertical 6 Pole Pitch7,5mm gray Solder 46,8mm 28,2mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 72 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 4 or mul. of 4) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | vertical | 6 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 46.8 mm | 28.2 mm | 18.5 mm | 48.0 A | 1000.0 V AC | ||||||||
11 | | Manufacturers Part No. 2626-3108/020-000(2626-3108/020-000) WAGO Terminal block 2626 vertical 8 Pole Pitch7,5mm gray Solder 61,8mm 28,2mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | vertical | 8 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 61.8 mm | 28.2 mm | 18.5 mm | 48.0 A | 1000.0 V AC | ||||||||
12 | | Manufacturers Part No. 2626-3110/020-000(2626-3110/020-000) WAGO Terminal block 2626 vertical 10 Pole Pitch7,5mm gray Solder 76,8mm 28,2mm 24AWG 8AWG 48A 1.000VAC | Customer Part No. Customer Project No. | 25 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | with actuating tool | vertical | 10 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 76.8 mm | 28.2 mm | 18.5 mm | 48.0 A | 1000.0 V AC | ||||||||

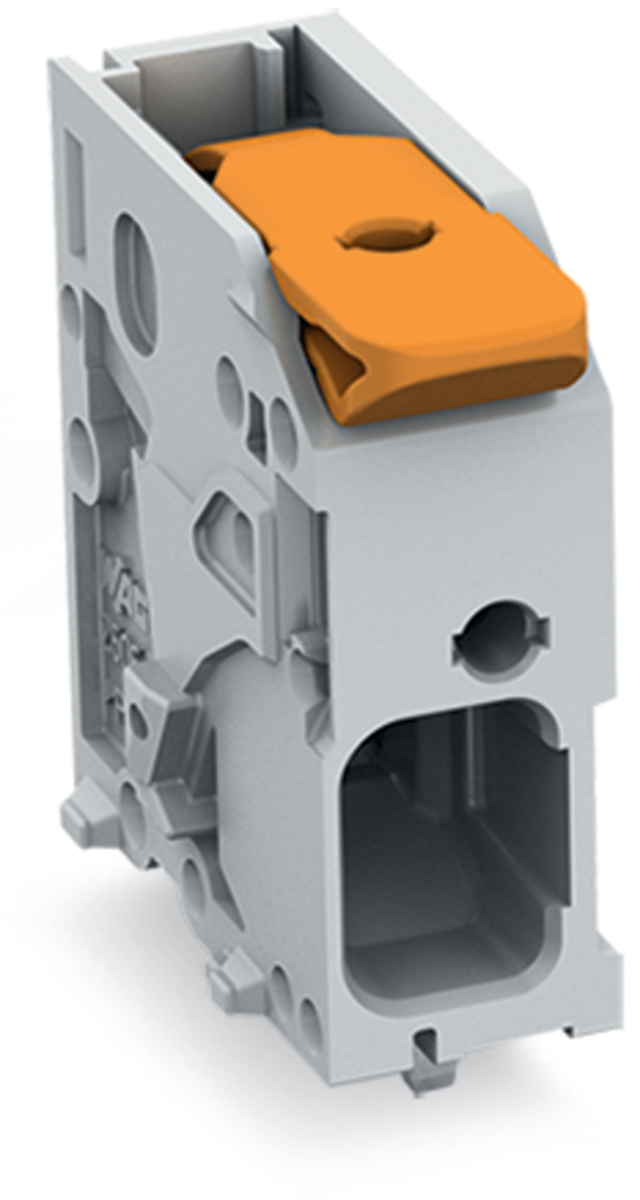

13 | | Manufacturers Part No. 2606-1101(2606-1101) WAGO Terminal block 2606 horizontal 1 Pole Pitch7,5mm gray Solder 10,35mm 28mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 1 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | horizontal | 1 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 10.35 mm | 28.0 mm | 24.3 mm | 41.0 A | 1000.0 V AC | ||||||||

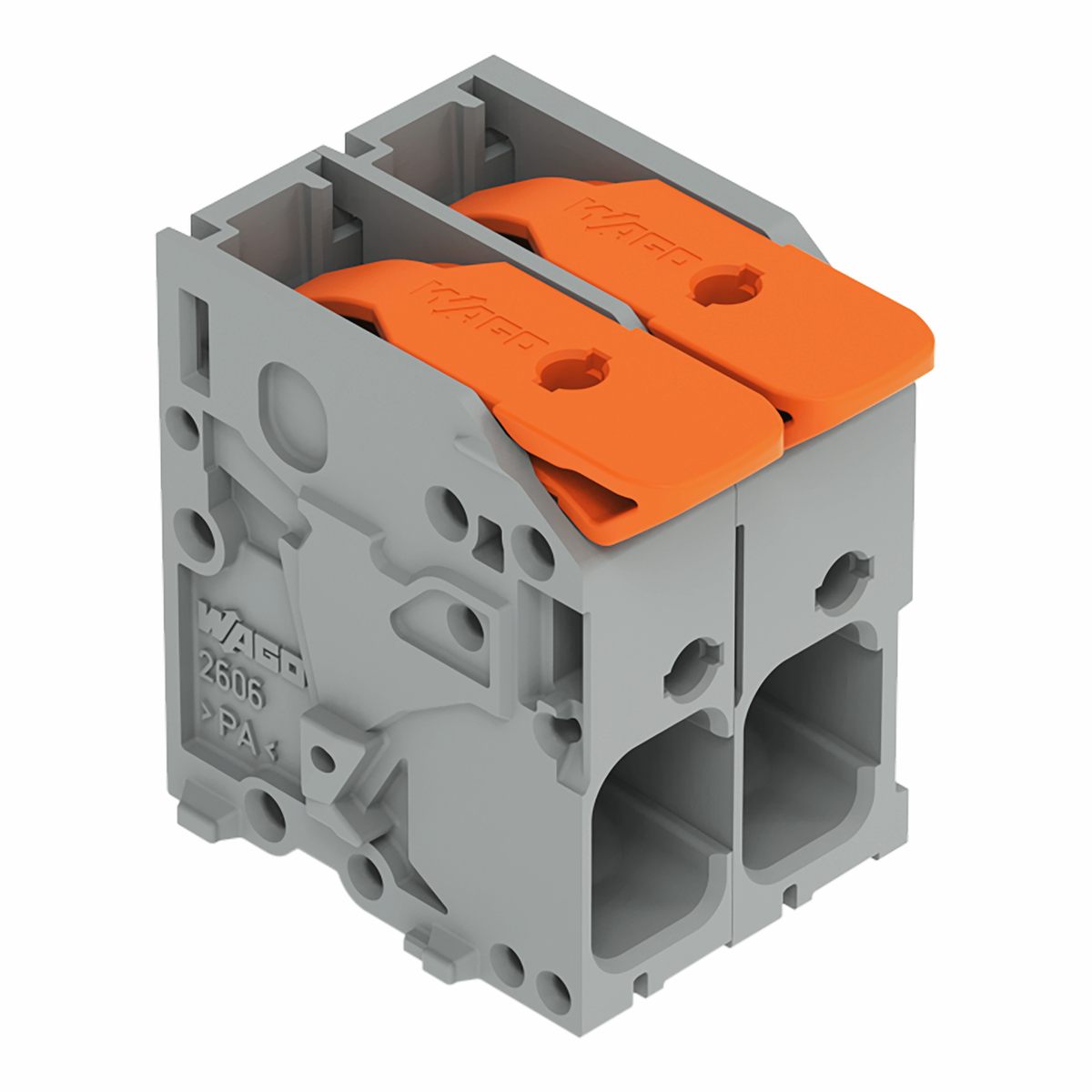

14 | | Manufacturers Part No. 2606-1102/020-000(2606-1102/020-000) WAGO Terminal block 2606 horizontal 2 Pole Pitch7,5mm gray Solder 17,85mm 28mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 102 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 3 or mul. of 3) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | horizontal | 2 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 17.85 mm | 28.0 mm | 24.3 mm | 41.0 A | 1000.0 V AC | ||||||||

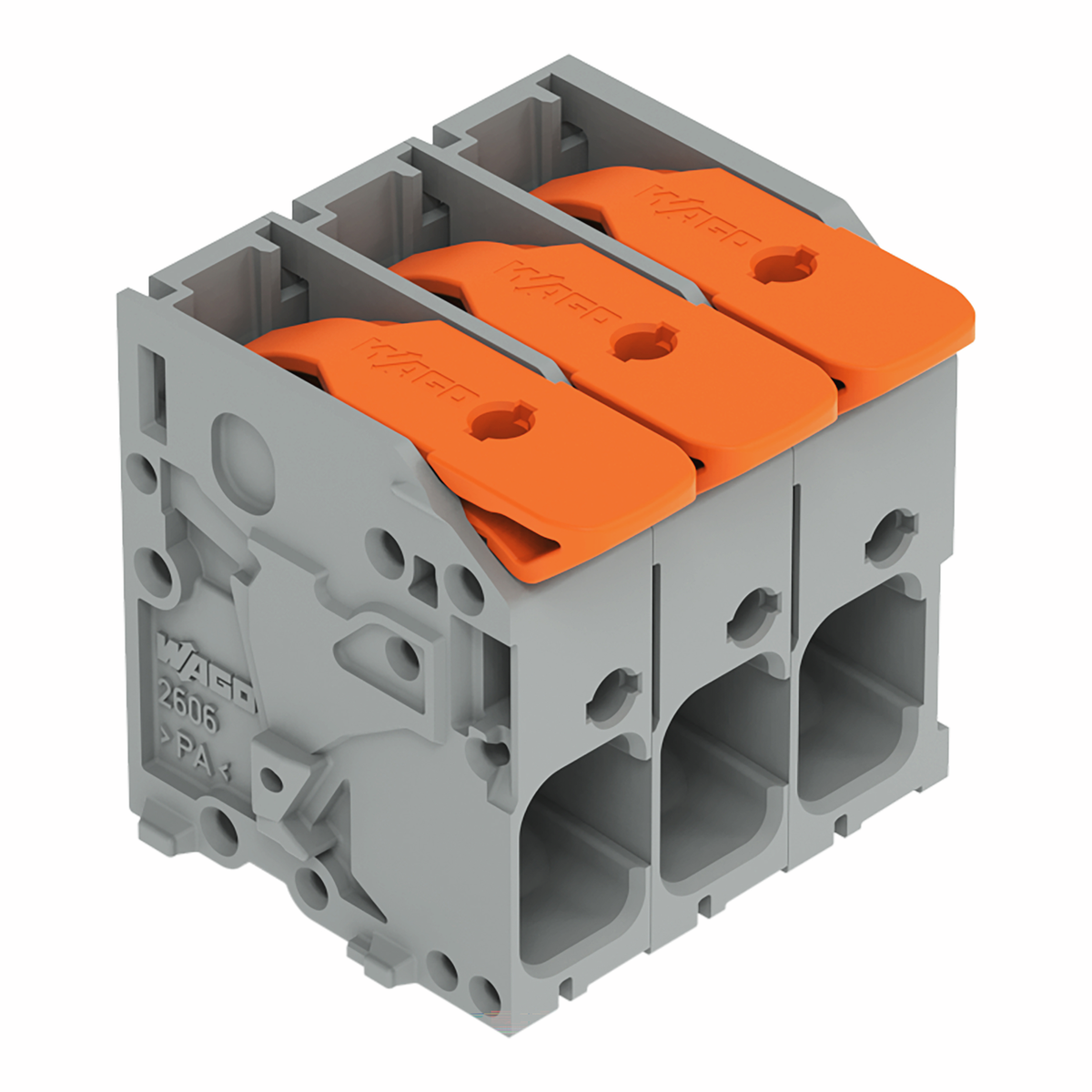

15 | | Manufacturers Part No. 2606-1103/020-000(2606-1103/020-000) WAGO Terminal block 2606 horizontal 3 Pole Pitch7,5mm gray Solder 25,35mm 28mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 54 Pcs. Planned Delivery Time Ø 5 Weeks Available on order | (at least 3 or mul. of 3) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | horizontal | 3 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 25.35 mm | 28.0 mm | 24.3 mm | 41.0 A | 1000.0 V AC | ||||||||

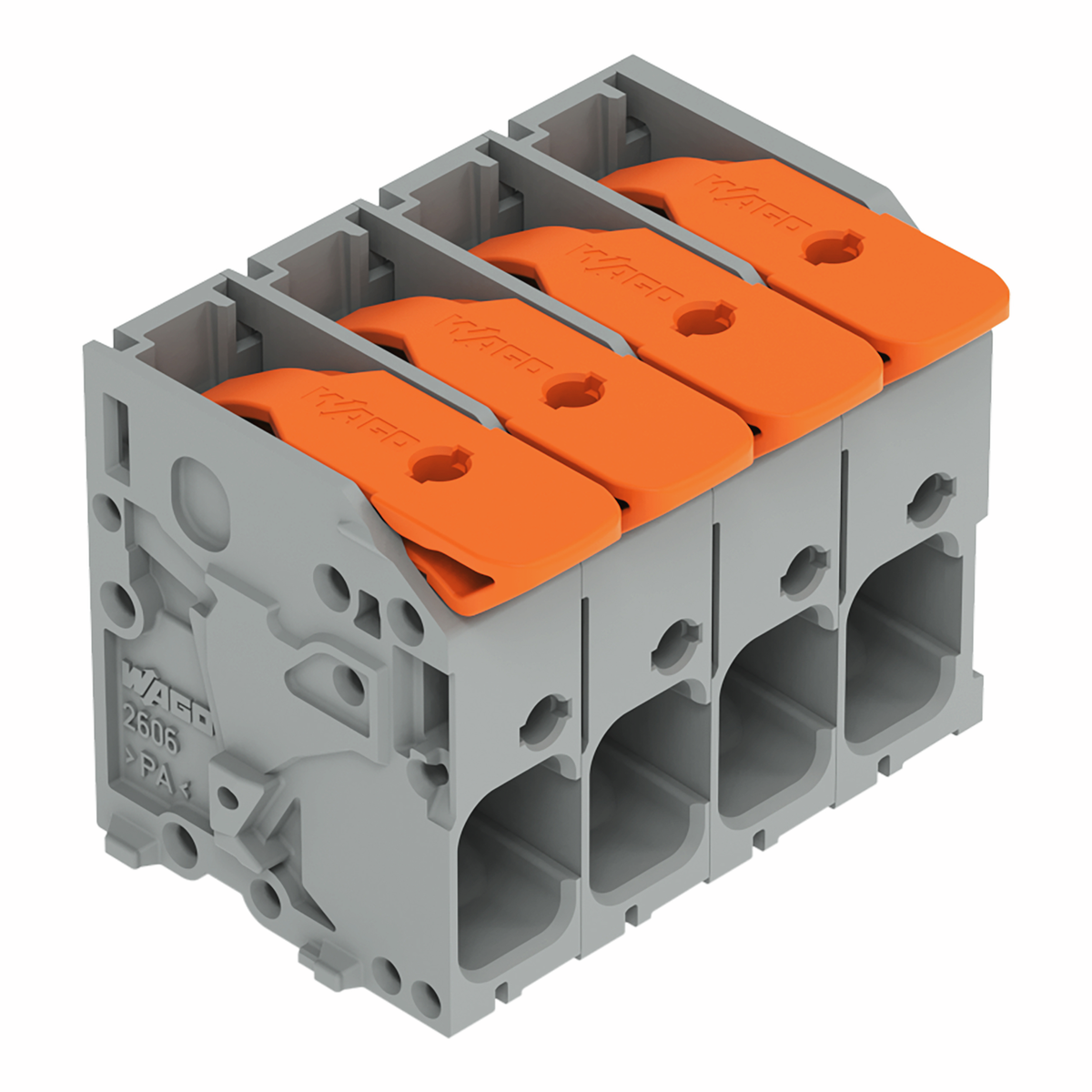

16 | | Manufacturers Part No. 2606-1104/020-000(2606-1104/020-000) WAGO Terminal block 2606 horizontal 4 Pole Pitch7,5mm gray Solder 32,85mm 28mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 84 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 3 or mul. of 3) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | horizontal | 4 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 32.85 mm | 28.0 mm | 24.3 mm | 41.0 A | 1000.0 V AC | ||||||||

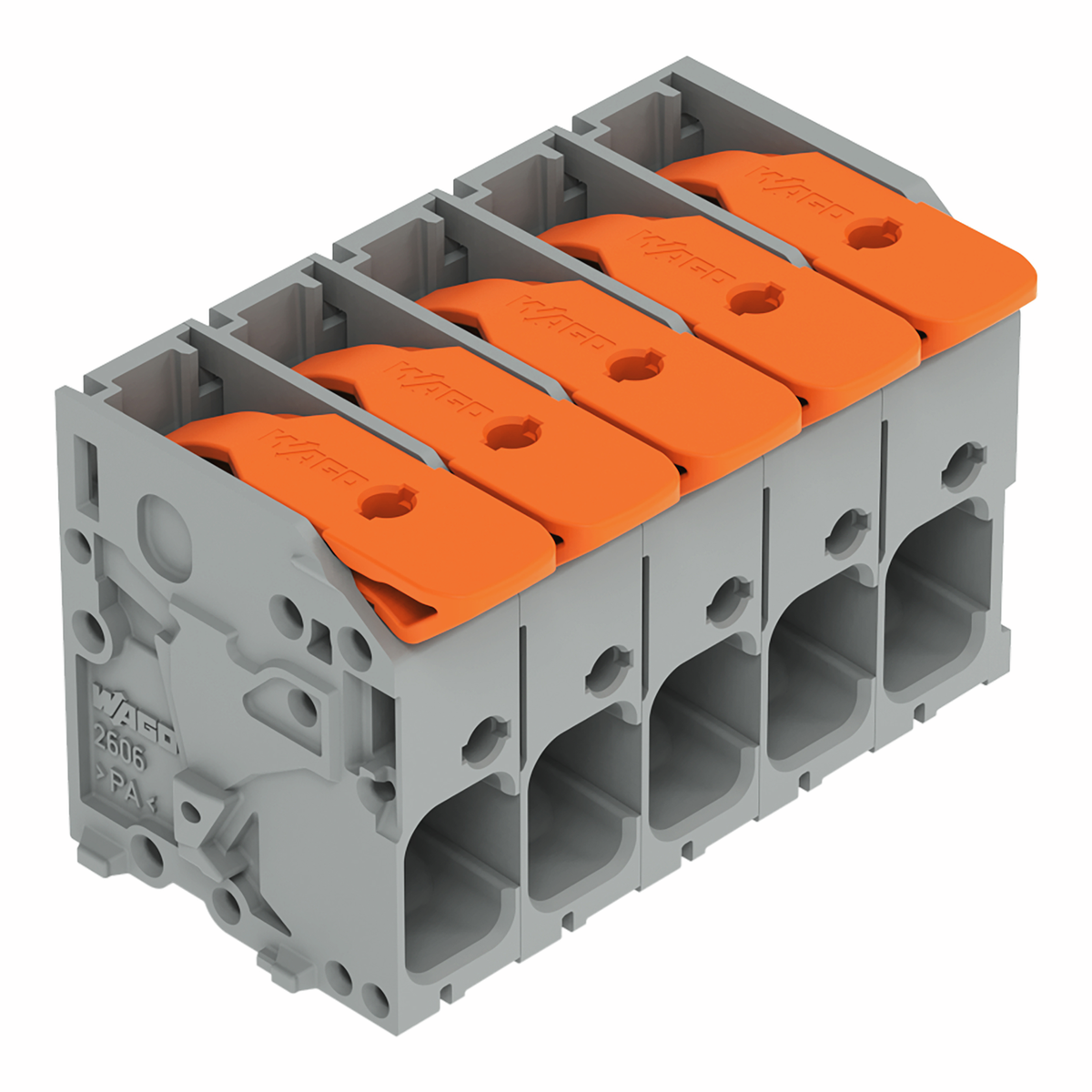

17 | | Manufacturers Part No. 2606-1105/020-000(2606-1105/020-000) WAGO Terminal block 2606 horizontal 5 Pole Pitch7,5mm gray Solder 40,35mm 28mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | horizontal | 5 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 40.35 mm | 28.0 mm | 24.3 mm | 41.0 A | 1000.0 V AC | ||||||||

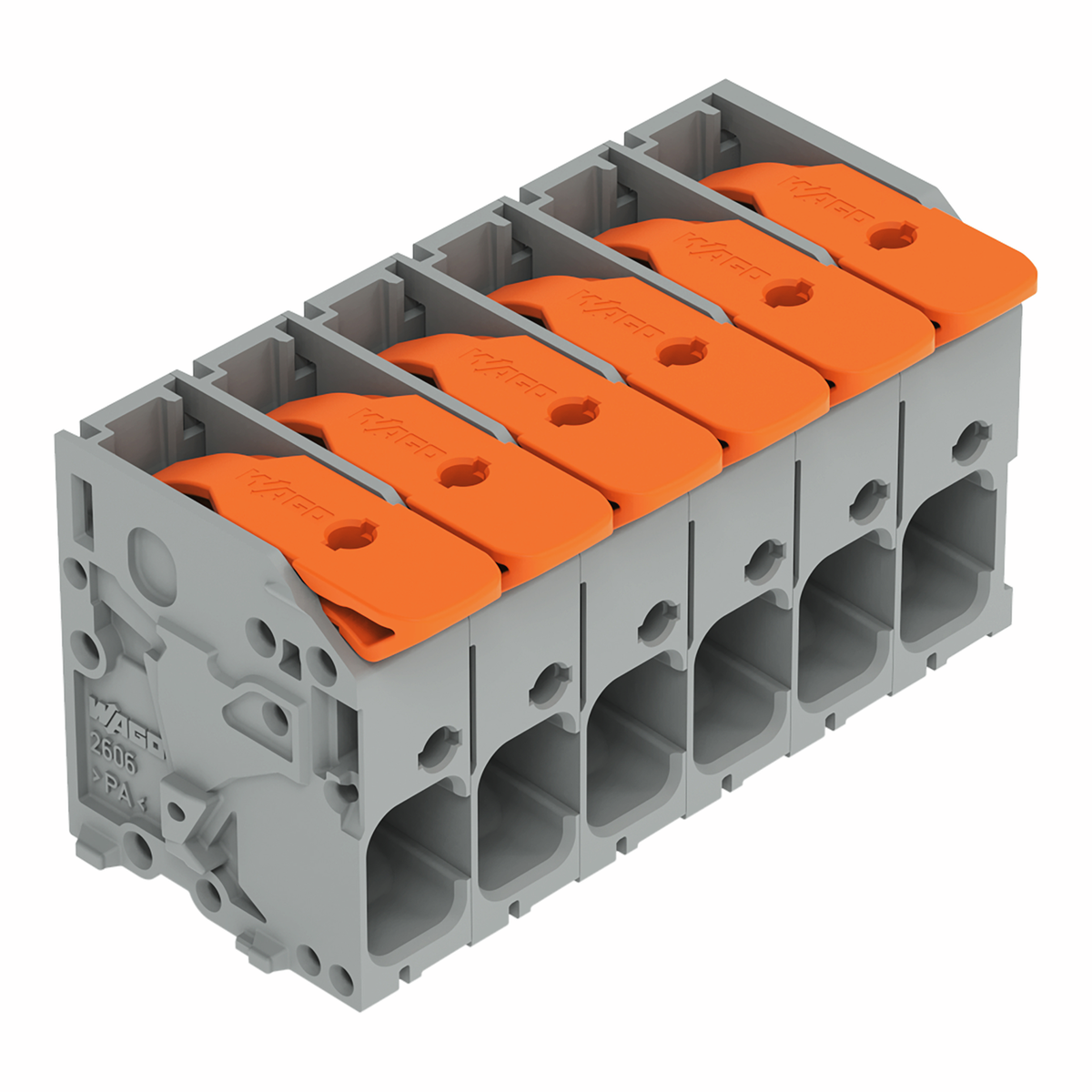

18 | | Manufacturers Part No. 2606-1106/020-000(2606-1106/020-000) WAGO Terminal block 2606 horizontal 6 Pole Pitch7,5mm gray Solder 47,85mm 28mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 35 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | horizontal | 6 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 47.85 mm | 28.0 mm | 24.3 mm | 41.0 A | 1000.0 V AC | ||||||||

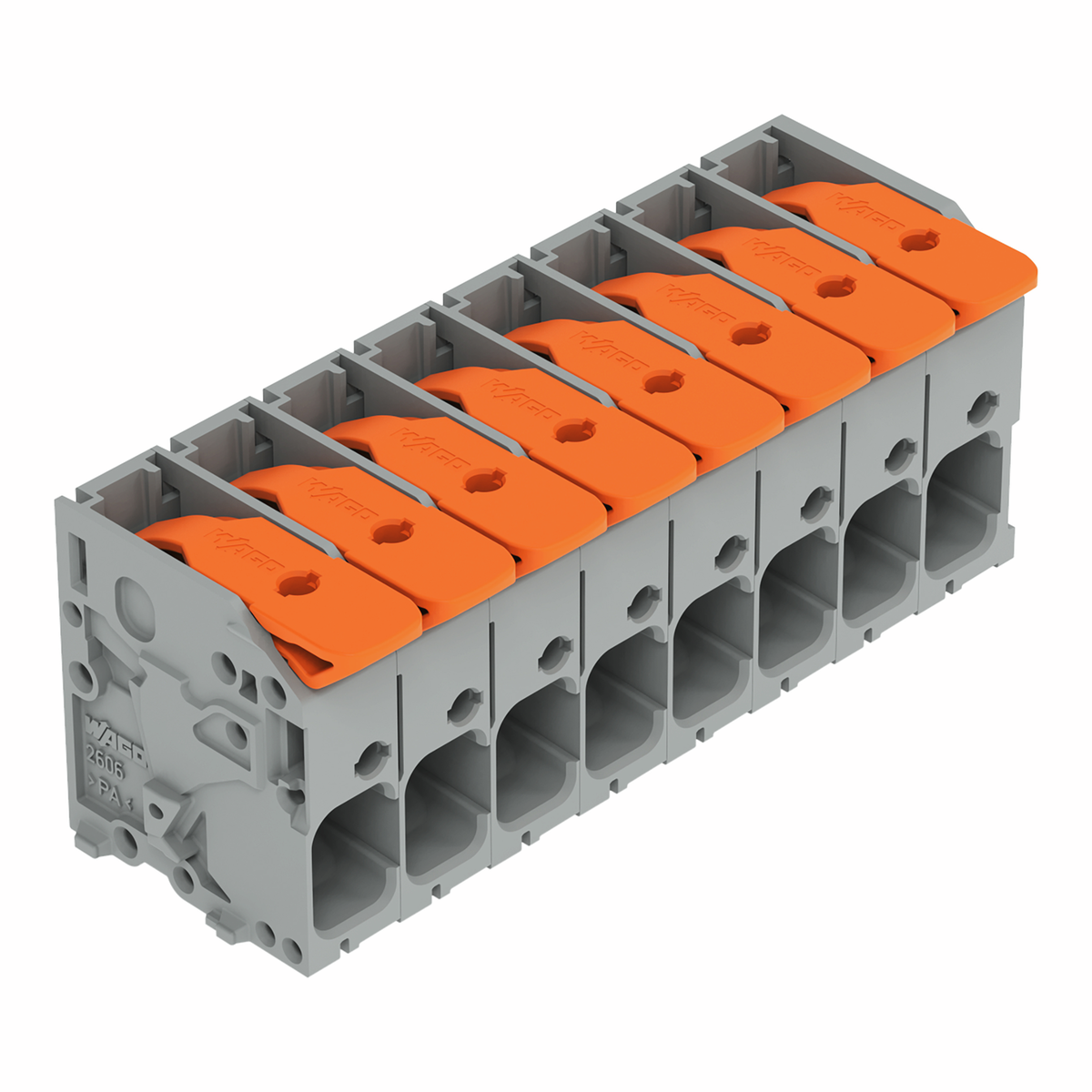

19 | | Manufacturers Part No. 2606-1108/020-000(2606-1108/020-000) WAGO Terminal block 2606 horizontal 8 Pole Pitch7,5mm gray Solder 62,85mm 28mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 3 or mul. of 3) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | horizontal | 8 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 62.85 mm | 28.0 mm | 24.3 mm | 41.0 A | 1000.0 V AC | ||||||||

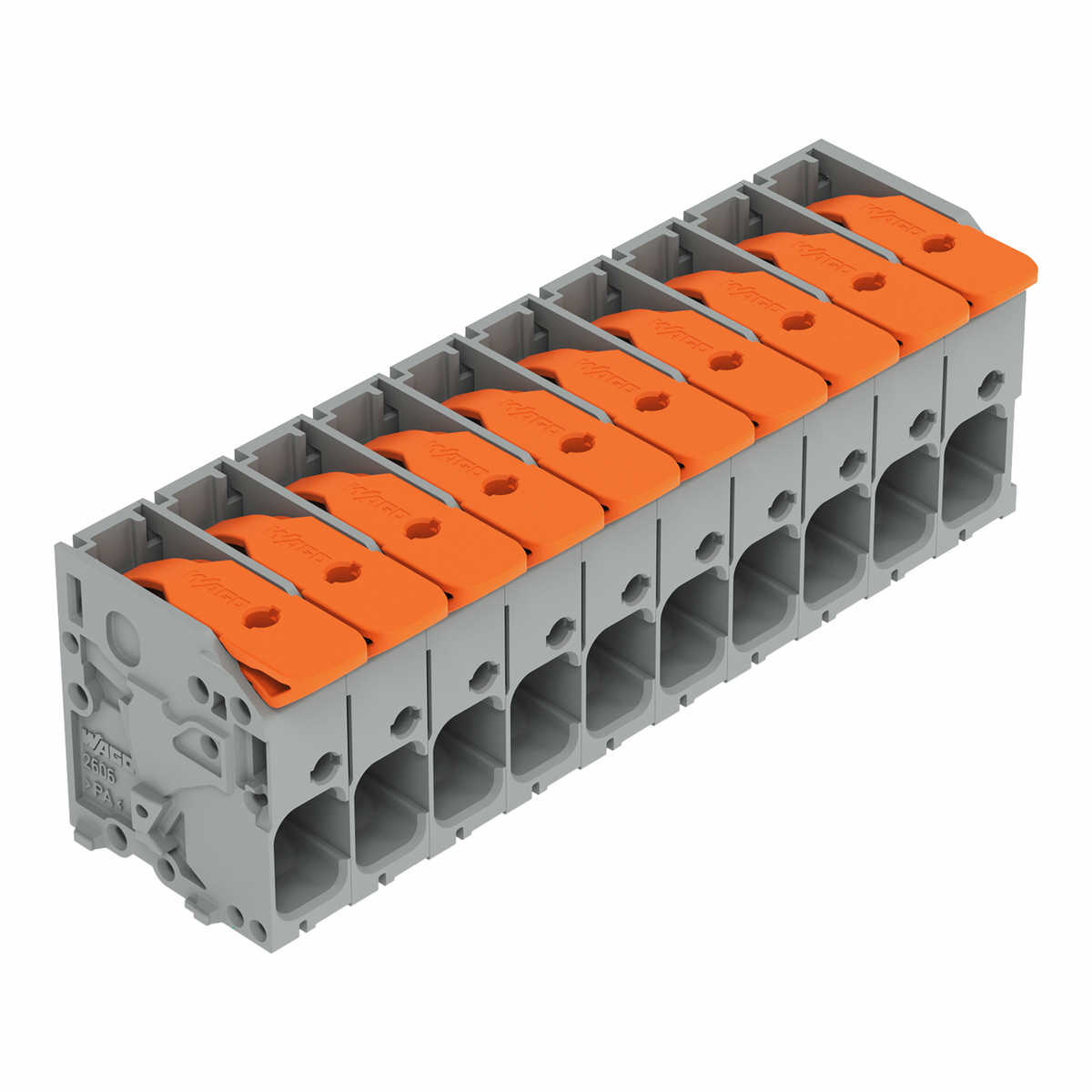

20 | | Manufacturers Part No. 2606-1110/020-000(2606-1110/020-000) WAGO Terminal block 2606 horizontal 10 Pole Pitch7,5mm gray Solder 77,85mm 28mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | horizontal | 10 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 77.85 mm | 28.0 mm | 24.3 mm | 41.0 A | 1000.0 V AC | ||||||||

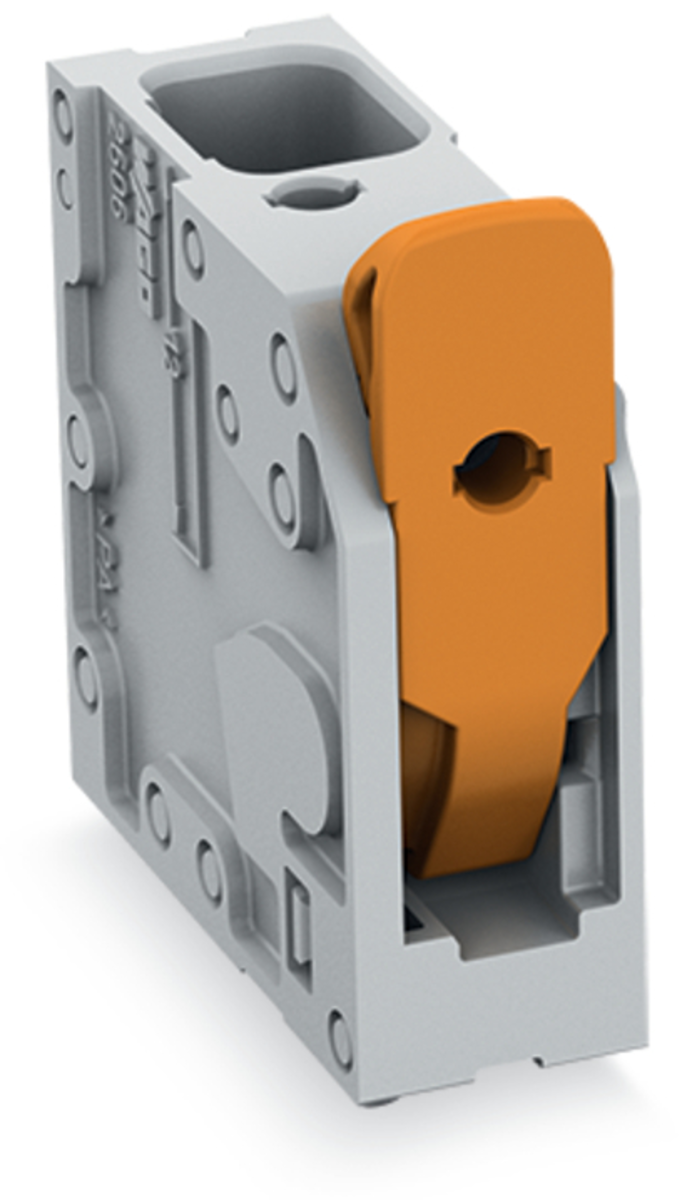

21 | | Manufacturers Part No. 2606-3101(2606-3101) WAGO Terminal block 2606 vertical 1 Pole Pitch7,5mm gray Solder 10,35mm 31mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 45 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 3 or mul. of 3) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | vertical | 1 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 10.35 mm | 31.0 mm | 24.0 mm | 41.0 A | 1000.0 V AC | ||||||||

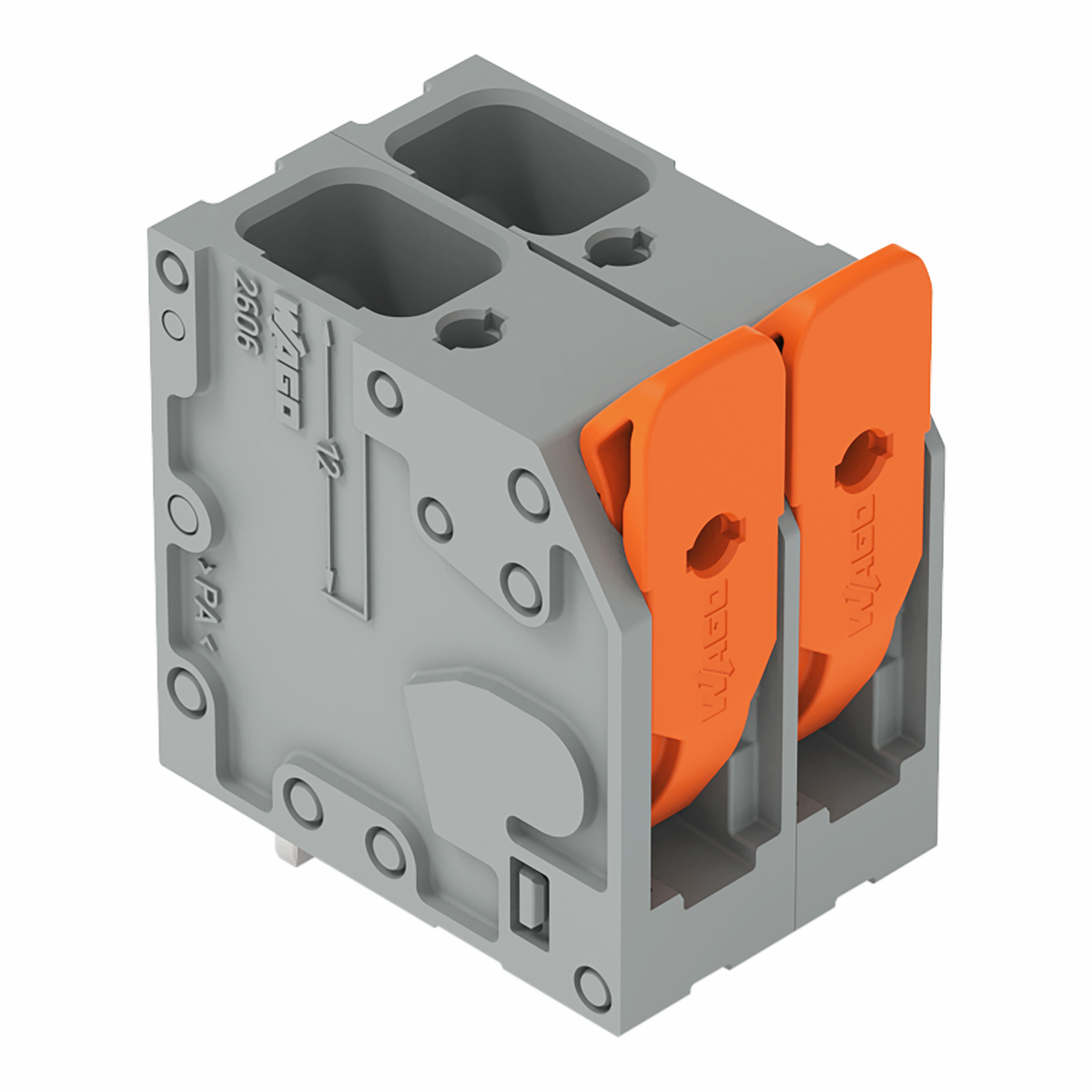

22 | | Manufacturers Part No. 2606-3102/020-000(2606-3102/020-000) WAGO Terminal block 2606 vertical 2 Pole Pitch7,5mm gray Solder 17,85mm 31mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 94 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 4 or mul. of 4) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | vertical | 2 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 17.85 mm | 31.0 mm | 24.0 mm | 41.0 A | 1000.0 V AC | ||||||||

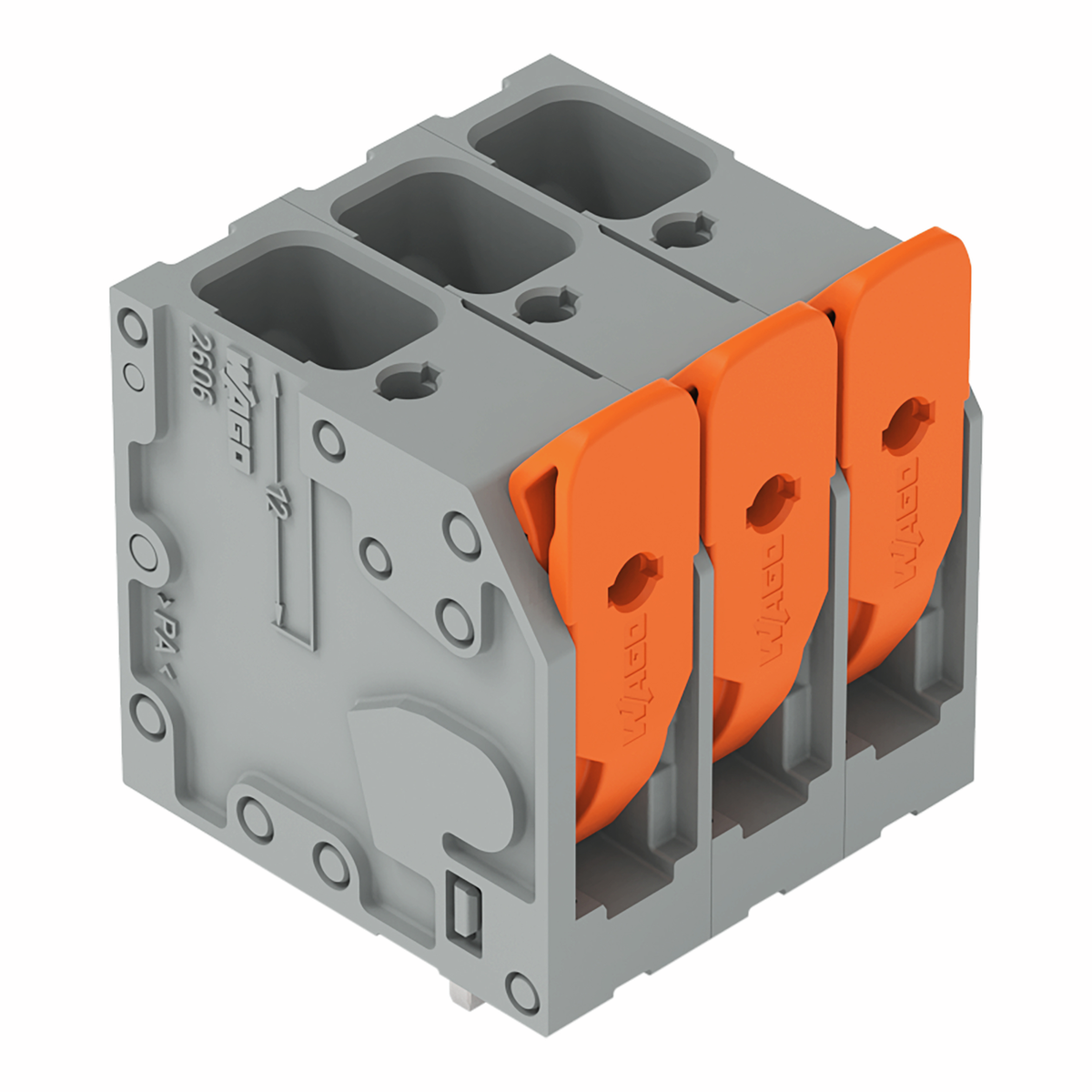

23 | | Manufacturers Part No. 2606-3103/020-000(2606-3103/020-000) WAGO Terminal block 2606 vertical 3 Pole Pitch7,5mm gray Solder 25,35mm 31mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 4 or mul. of 4) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | vertical | 3 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 25.35 mm | 31.0 mm | 24.0 mm | 41.0 A | 1000.0 V AC | ||||||||

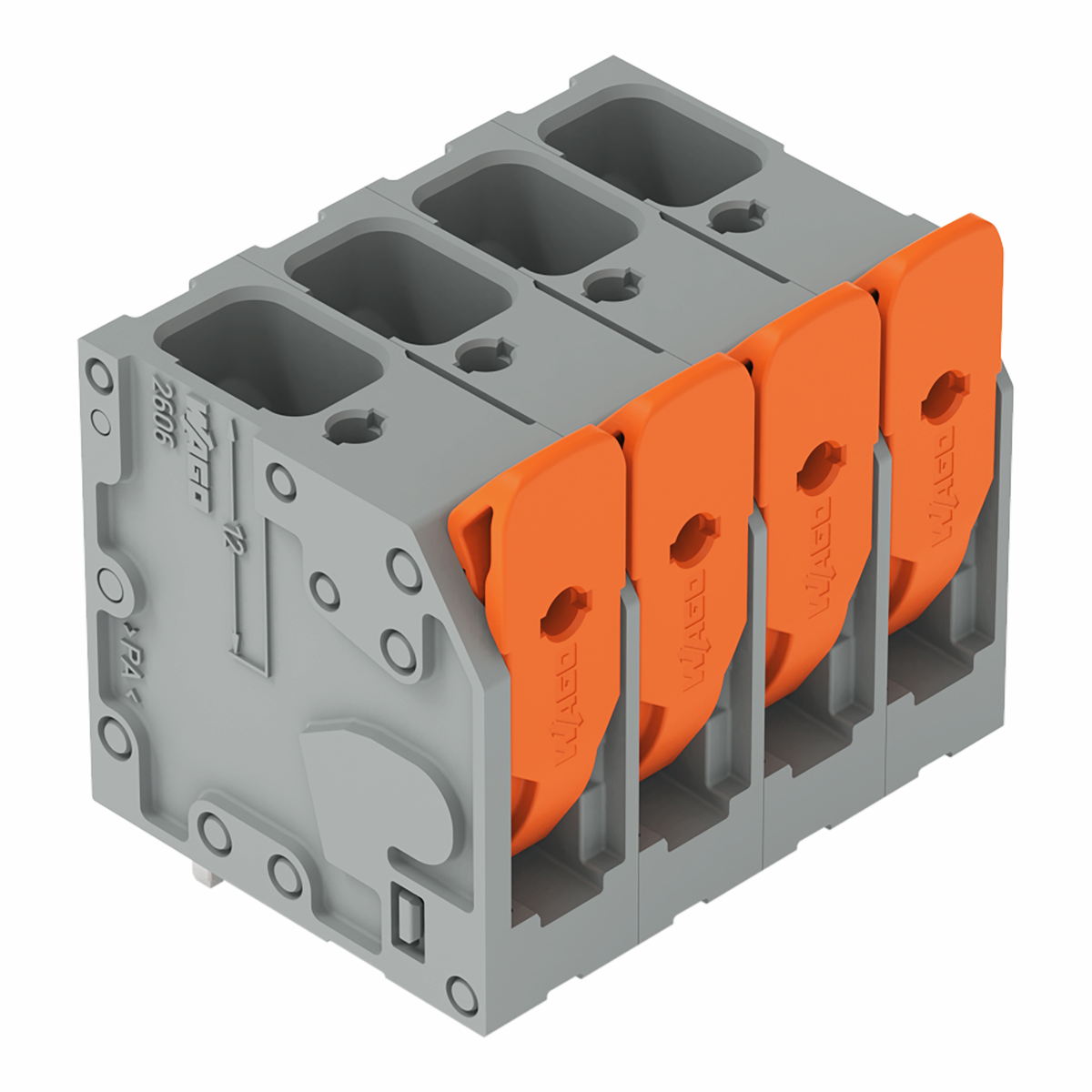

24 | | Manufacturers Part No. 2606-3104/020-000(2606-3104/020-000) WAGO Terminal block 2606 vertical 4 Pole Pitch7,5mm gray Solder 32,85mm 31mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 87 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 3 or mul. of 3) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | vertical | 4 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 32.85 mm | 31.0 mm | 24.0 mm | 41.0 A | 1000.0 V AC | ||||||||

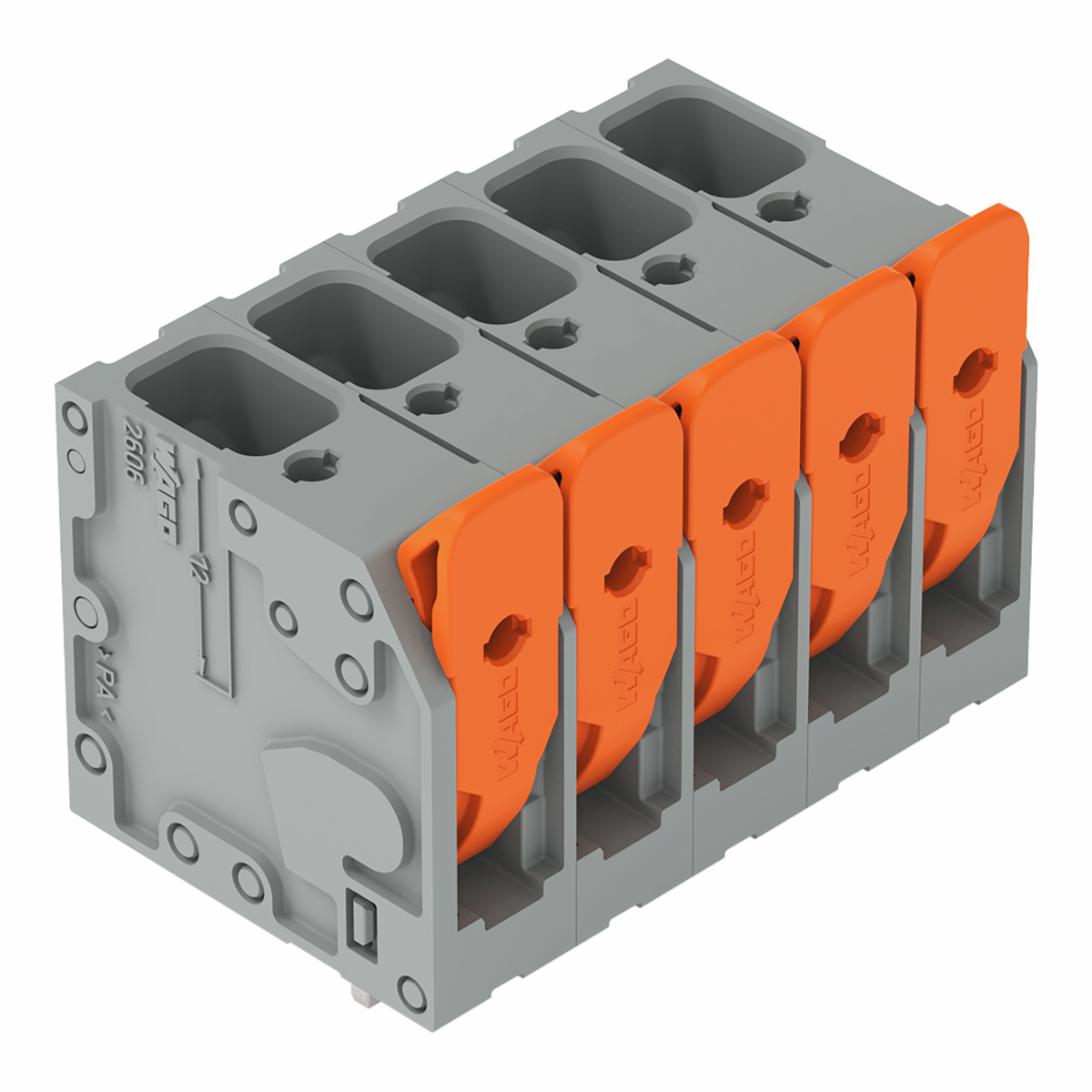

25 | | Manufacturers Part No. 2606-3105/020-000(2606-3105/020-000) WAGO Terminal block 2606 vertical 5 Pole Pitch7,5mm gray Solder 40,35mm 31mm 24AWG 8AWG 41A 1.000VAC | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 5 or mul. of 5) | WAGO | Terminal block | CAGE CLAMP® | Push-in Cage clamp | With operating lever | vertical | 5 | 7.5 mm | Polyamide (PA) 66 | gray | UL 94 V-0 | Solder | 24.0 AWG | 8.0 AWG | 0.2 mm² | 10.0 mm² | 0.2 mm² | 10.0 mm² | 40.35 mm | 31.0 mm | 24.0 mm | 41.0 A | 1000.0 V AC |
