Results (826)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Product Family | Contact Type | Design | Housing | Alignment | Number of poles | Pitch | Contact Surface Input | Housing material | Colour | Coding | Locking Type | Connector Contact | Dimension: Width | Dimension: Height | Dimension: Depth | Operating Temperature Min. | Operating Temperature Max. | Rated current | Rated voltage DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

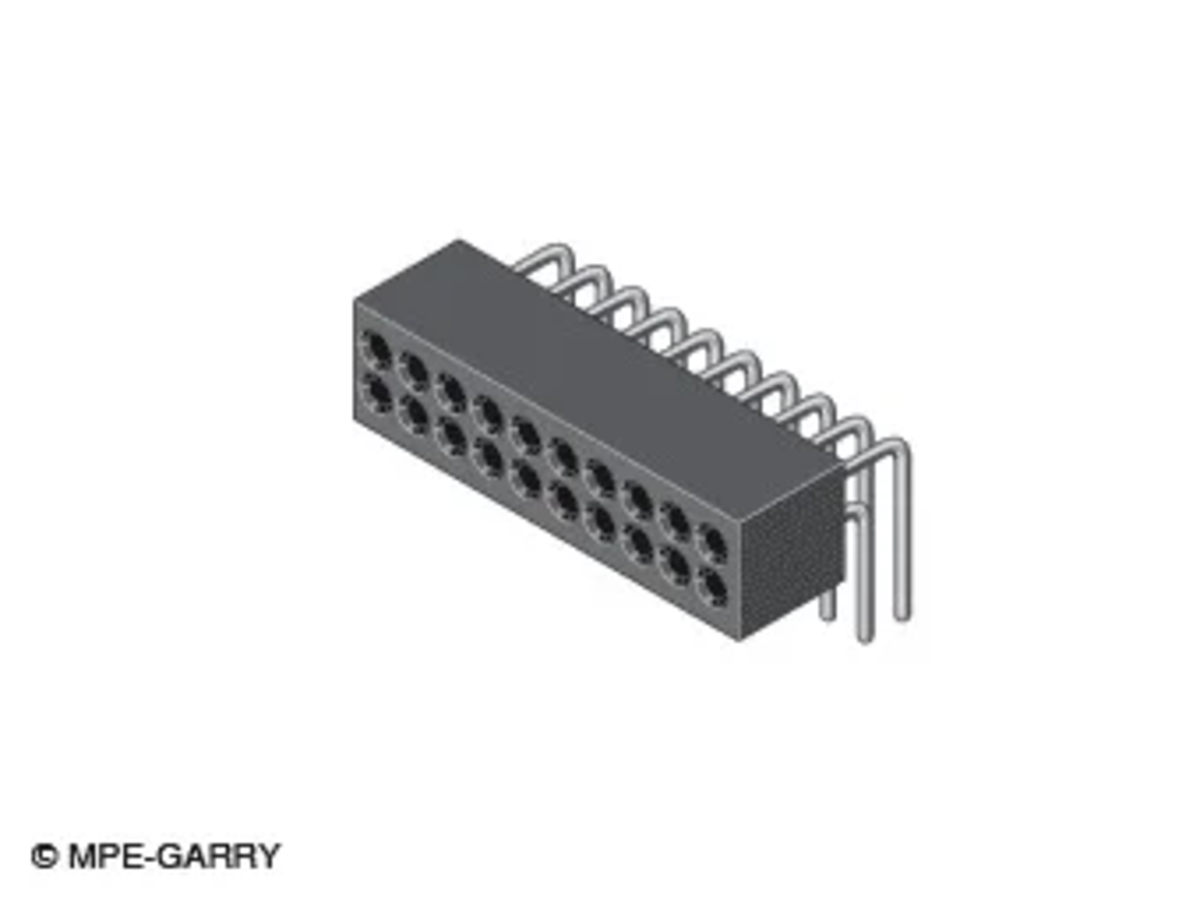

226 |  | Manufacturers Part No. 204-2-010-0-HTF-LS0(204-2-010-0-HTFLS0) Binder MPE Socket connector 204-2 Socket Header 2-row 90° 10 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 1800 or mul. of 1800) | Binder MPE | Socket connector | 204 | Socket | Header | 2-row | 90° | 10 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Solder | 6.76 mm | 6.55 mm | 6.71 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
227 | | Manufacturers Part No. 204-2-040-0-HTF-LS0(204-2-040-0-HTFLS0) Binder MPE Socket connector 204-2 Socket Header 2-row 90° 40 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 448 or mul. of 448) | Binder MPE | Socket connector | 204 | Socket | Header | 2-row | 90° | 40 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Solder | 25.81 mm | 6.55 mm | 6.71 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
228 | | Manufacturers Part No. 204-2-080-0-HTF-LS0(204-2-080-0-HTFLS0) Binder MPE Socket connector 204-2 Socket Header 2-row 90° 80 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 192 or mul. of 192) | Binder MPE | Socket connector | 204 | Socket | Header | 2-row | 90° | 80 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Solder | 51.21 mm | 6.55 mm | 6.71 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
229 | | Manufacturers Part No. 208-2-005-0-HTF-LS0(208-2-005-0-HTFLS0) Binder MPE Socket connector 208-2 Socket Header 1-row straight 5 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 4500 or mul. of 4500) | Binder MPE | Socket connector | 208 | Socket | Header | 1-row | straight | 5 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Gull Wing SMD | 6.76 mm | 5.15 mm | 3.4 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
230 | | Manufacturers Part No. 208-2-020-0-HTF-LS0(208-2-020-0-HTFLS0) Binder MPE Socket connector 208-2 Socket Header 1-row straight 20 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 1440 or mul. of 1440) | Binder MPE | Socket connector | 208 | Socket | Header | 1-row | straight | 20 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Gull Wing SMD | 25.81 mm | 5.15 mm | 3.4 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
231 | | Manufacturers Part No. 208-2-032-0-HTF-LS0(208-2-032-0-HTFLS0) Binder MPE Socket connector 208-2 Socket Header 1-row straight 32 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 390 or mul. of 390) | Binder MPE | Socket connector | 208 | Socket | Header | 1-row | straight | 32 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Gull Wing SMD | 41.05 mm | 5.15 mm | 3.4 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||

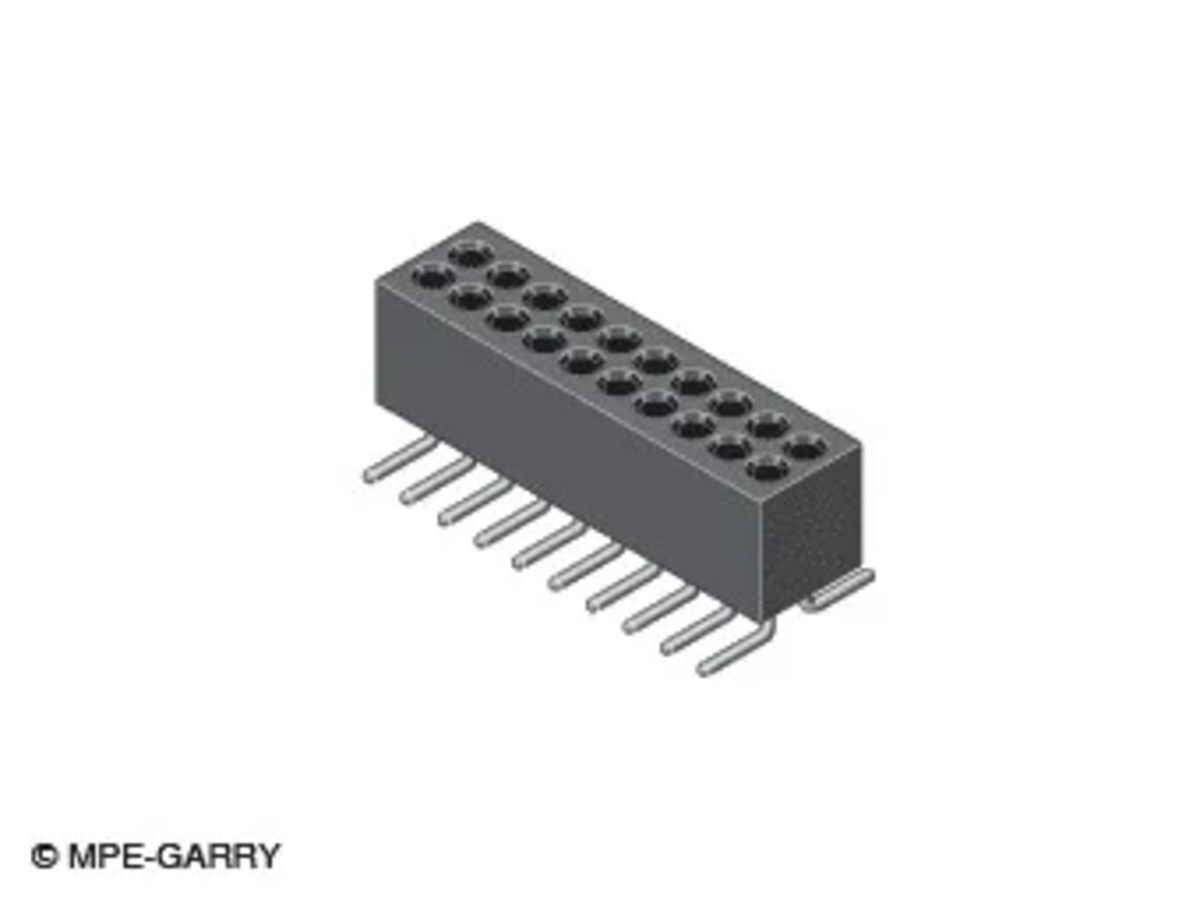

232 | | Manufacturers Part No. 208-3-010-0-HTF-LS0(208-3-010-0-HTFLS0) Binder MPE Socket connector 208-3 Socket Header 2-row straight 10 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 900 or mul. of 900) | Binder MPE | Socket connector | 208 | Socket | Header | 2-row | straight | 10 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Gull Wing SMD | 6.76 mm | 5.15 mm | 4.9 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
233 | | Manufacturers Part No. 208-3-020-0-HTF-LS0(208-3-020-0-HTFLS0) Binder MPE Socket connector 208-3 Socket Header 2-row straight 20 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 1800 or mul. of 1800) | Binder MPE | Socket connector | 208 | Socket | Header | 2-row | straight | 20 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Gull Wing SMD | 13.11 mm | 5.15 mm | 4.9 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
234 | | Manufacturers Part No. 208-3-040-0-HTF-LS0(208-3-040-0-HTFLS0) Binder MPE Socket connector 208-3 Socket Header 2-row straight 40 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 600 or mul. of 600) | Binder MPE | Socket connector | 208 | Socket | Header | 2-row | straight | 40 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Gull Wing SMD | 25.81 mm | 5.15 mm | 4.9 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
235 | | Manufacturers Part No. 208-3-080-0-HTF-LS0(208-3-080-0-HTFLS0) Binder MPE Socket connector 208-3 Socket Header 2-row straight 80 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 288 or mul. of 288) | Binder MPE | Socket connector | 208 | Socket | Header | 2-row | straight | 80 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Gull Wing SMD | 51.21 mm | 5.15 mm | 4.9 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
236 | | Manufacturers Part No. 208-5-005-0-HTF-LS0(208-5-005-0-HTFLS0) Binder MPE Socket connector 208-5 Socket Header 1-row 90° 5 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 3300 or mul. of 3300) | Binder MPE | Socket connector | 208 | Socket | Header | 1-row | 90° | 5 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Gull Wing SMD | 6.76 mm | 2.2 mm | 8.8 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
237 | | Manufacturers Part No. 208-5-020-0-HTF-LS0(208-5-020-0-HTFLS0) Binder MPE Socket connector 208-5 Socket Header 1-row 90° 20 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 630 or mul. of 630) | Binder MPE | Socket connector | 208 | Socket | Header | 1-row | 90° | 20 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Gull Wing SMD | 25.81 mm | 2.2 mm | 8.8 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
238 | | Manufacturers Part No. 208-5-032-0-HTF-LS0(208-5-032-0-HTFLS0) Binder MPE Socket connector 208-5 Socket Header 1-row 90° 32 Pole Pitch1,27mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 480 or mul. of 480) | Binder MPE | Socket connector | 208 | Socket | Header | 1-row | 90° | 32 | 1.27 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Gull Wing SMD | 41.05 mm | 2.2 mm | 8.8 mm | -40.0 °C | 105.0 °C | 1.0 A | 100.0 V DC | ||||||
239 | | Manufacturers Part No. 156-1-005-0-NFX-YS0(MBL105G) Binder MPE Socket connector 156-1 Socket Header 1-row straight 5 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 5.280 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 11 or mul. of 11) | Binder MPE | Socket connector | 156 | Socket | Header | 1-row | straight | 5 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 10.5 mm | 6.7 mm | 2.4 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
240 | | Manufacturers Part No. 156-1-010-0-NFX-YS0(MBL110G) Binder MPE Socket connector 156-1 Socket Header 1-row straight 10 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 444 Pcs. Available (from stock) | (at least 14 or mul. of 14) | Binder MPE | Socket connector | 156 | Socket | Header | 1-row | straight | 10 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 20.5 mm | 6.7 mm | 2.4 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
241 | | Manufacturers Part No. 156-1-020-0-NFX-YS0(MBL120G) Binder MPE Socket connector 156-1 Socket Header 1-row straight 20 Pole Pitch2mm black vergoldet % | Customer Part No. Customer Project No. | 2.408 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 14 or mul. of 14) | Binder MPE | Socket connector | 156 | Socket | Header | 1-row | straight | 20 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 40.5 mm | 6.7 mm | 2.4 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
242 | | Manufacturers Part No. 156-1-032-0-NFX-YS0(MBL132G) Binder MPE Socket connector 156-1 Socket Header 1-row straight 32 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 816 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 8 or mul. of 8) | Binder MPE | Socket connector | 156 | Socket | Header | 1-row | straight | 32 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 64.5 mm | 6.7 mm | 2.4 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||

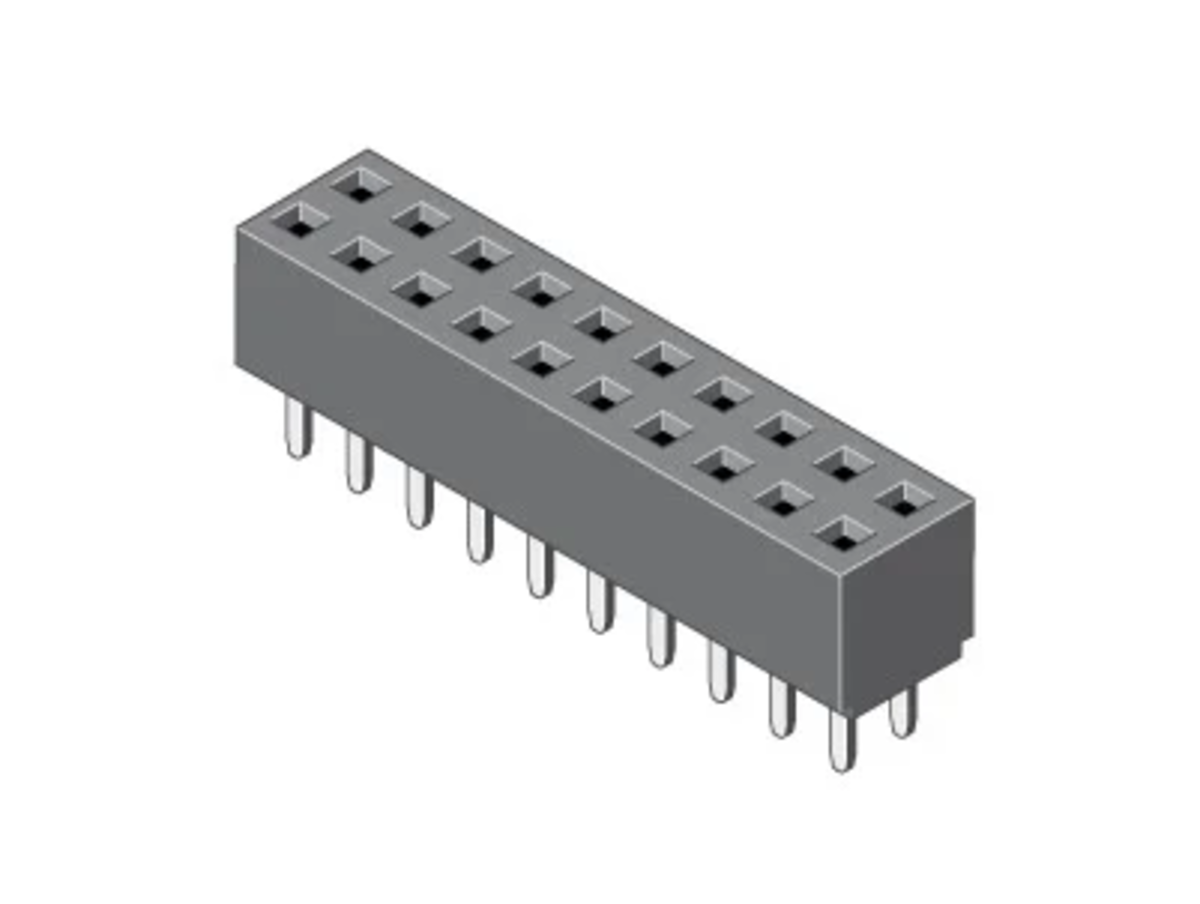

243 | | Manufacturers Part No. 156-3-010-0-NFX-YS0(MBL205G) Binder MPE Socket connector 156-3 Socket Header 2-row straight 10 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 1.925 Pcs. Available (from stock) | (at least 11 or mul. of 11) | Binder MPE | Socket connector | 156 | Socket | Header | 2-row | straight | 10 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 10.5 mm | 7.0 mm | 4.6 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
244 | | Manufacturers Part No. 156-3-020-0-NFX-YS0(MBL210G) Binder MPE Socket connector 156-3 Socket Header 2-row straight 20 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 1.484 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 14 or mul. of 14) | Binder MPE | Socket connector | 156 | Socket | Header | 2-row | straight | 20 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 20.5 mm | 7.0 mm | 4.6 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
245 | | Manufacturers Part No. 156-3-030-0-NFX-YS0(MBL215G) Binder MPE Socket connector 156-3 Socket Header 2-row straight 30 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 874 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 19 or mul. of 19) | Binder MPE | Socket connector | 156 | Socket | Header | 2-row | straight | 30 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 30.5 mm | 7.0 mm | 4.6 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
246 | | Manufacturers Part No. 156-3-040-0-NFX-YS0(MBL220G) Binder MPE Socket connector 156-3 Socket Header 2-row straight 40 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 14 or mul. of 14) | Binder MPE | Socket connector | 156 | Socket | Header | 2-row | straight | 40 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 40.5 mm | 7.0 mm | 4.6 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
247 | | Manufacturers Part No. 904-1-005-0-NFX-XS0-0-0-0-0A78(BL5005G) Binder MPE Socket connector 904-1 Socket Header 1-row straight 5 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 1.656 Pcs. Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | straight | 5 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 12.7 mm | 8.0 mm | 2.54 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||
248 | | Manufacturers Part No. 904-1-010-0-NFX-XS0-0-0-0-0A10(BL5010G) Binder MPE Socket connector 904-1 Socket Header 1-row straight 10 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 2.616 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | straight | 10 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 25.4 mm | 8.0 mm | 2.54 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||
249 | | Manufacturers Part No. 904-1-015-0-NFX-XS0-0-0-0-0A11(BL5015G) Binder MPE Socket connector 904-1 Socket Header 1-row straight 15 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 1.104 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 16 or mul. of 16) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | straight | 15 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 38.1 mm | 8.0 mm | 2.54 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||
250 | | Manufacturers Part No. 904-1-020-0-NFX-XS0-0-0-0-0A79(BL5020G) Binder MPE Socket connector 904-1 Socket Header 1-row straight 20 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 780 Pcs. Planned Delivery Time Ø 25 Weeks Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | straight | 20 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 50.8 mm | 8.0 mm | 2.54 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC |
