Results (826)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Product Family | Contact Type | Design | Housing | Alignment | Number of poles | Pitch | Contact Surface Input | Housing material | Colour | Coding | Locking Type | Connector Contact | Dimension: Width | Dimension: Height | Dimension: Depth | Operating Temperature Min. | Operating Temperature Max. | Rated current | Rated voltage DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
801 |  | Manufacturers Part No. 15EDGRC-3.5-02P-14-00A(H)(15EDGRC-3.5-02P-14) DEGSON Tray pin strip 15EDGRC-3.5 Pin Box Header 1-row 90° 2 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 2 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 7.8 mm | 10.4 mm | 9.2 mm | -40.0 °C | 105.0 °C | 7.0 A | |||||||||
802 | | Manufacturers Part No. 15EDGRC-3.5-04P-14-00A(H)(15EDGRC-3.5-04P-14) DEGSON Tray pin strip 15EDGRC-3.5 Pin Box Header 1-row 90° 4 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 300 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 4 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 14.8 mm | 10.4 mm | 9.2 mm | -40.0 °C | 105.0 °C | 7.0 A | |||||||||
803 | | Manufacturers Part No. 15EDGRC-3.5-06P-14-00A(H)(15EDGRC-3.5-06P-14) DEGSON Tray pin strip 15EDGRC-3.5 Pin Box Header 1-row 90° 6 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 300 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 6 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 21.8 mm | 10.4 mm | 9.2 mm | -40.0 °C | 105.0 °C | 7.0 A | |||||||||
804 | | Manufacturers Part No. 15EDGRC-3.5-08P-14-00A(H)(15EDGRC-3.5-08P-14) DEGSON Tray pin strip 15EDGRC-3.5 Pin Box Header 1-row 90° 8 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 2.050 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 8 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 28.8 mm | 10.4 mm | 9.2 mm | -40.0 °C | 105.0 °C | 7.0 A | |||||||||
805 | | Manufacturers Part No. 15EDGRC-3.5-16P-14-00A(H)(15EDGRC-3.5-16P-14) DEGSON Tray pin strip 15EDGRC-3.5 Pin Box Header 1-row 90° 16 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 900 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 16 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 56.8 mm | 10.4 mm | 9.2 mm | -40.0 °C | 105.0 °C | 7.0 A | |||||||||

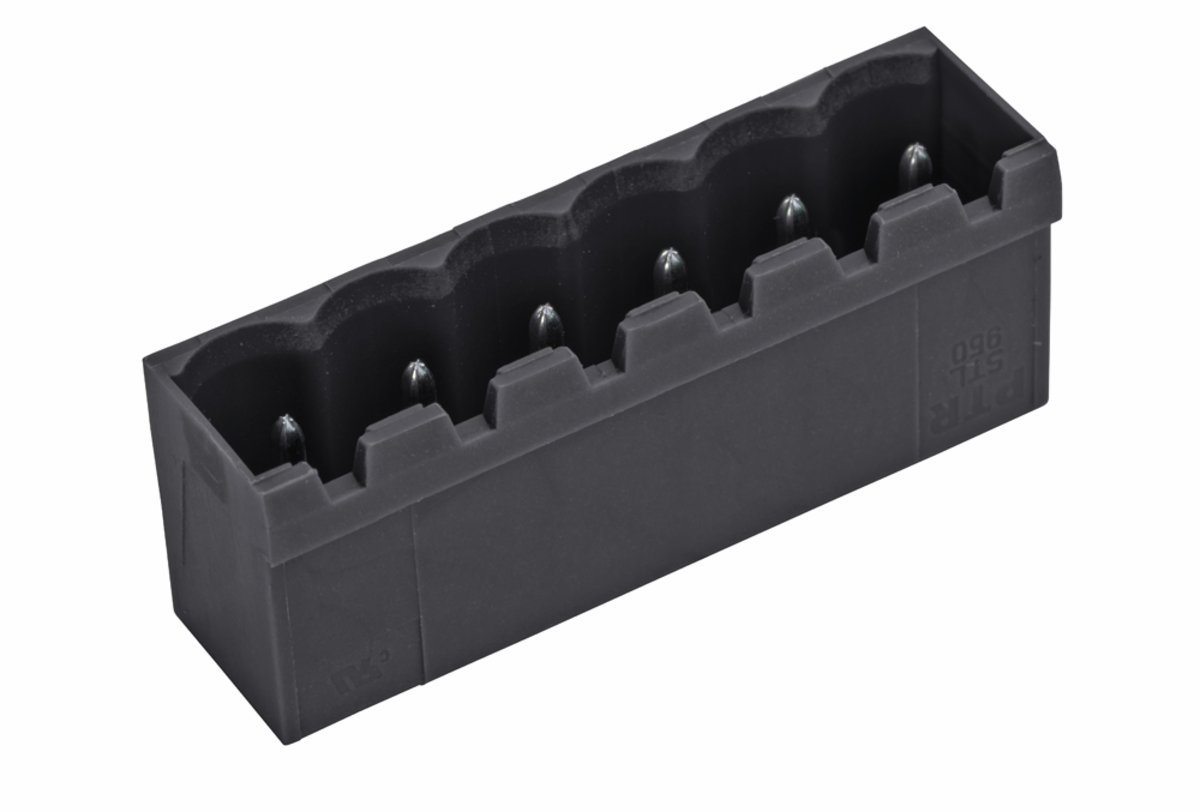

806 | | Manufacturers Part No. STLZ950/6G-5.08-V-P2.6-BK-HT(STLZ950/6G-V-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row vertical 6 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..G-5.08-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 6 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 31.68 mm | 14.6 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
807 | | Manufacturers Part No. STLZ950/3G-5.08-V-P2.6-BK-HTR(STLZ950/3G-V-BKHTG) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row vertical 3 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 140 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..G-5.08-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 3 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 16.44 mm | 14.6 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
808 | | Manufacturers Part No. STLZ950/4-5.08-H-P2.6-BK-HT(STLZ950/4-H-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row horizontal 4 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..-5.08-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 4 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 20.32 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||

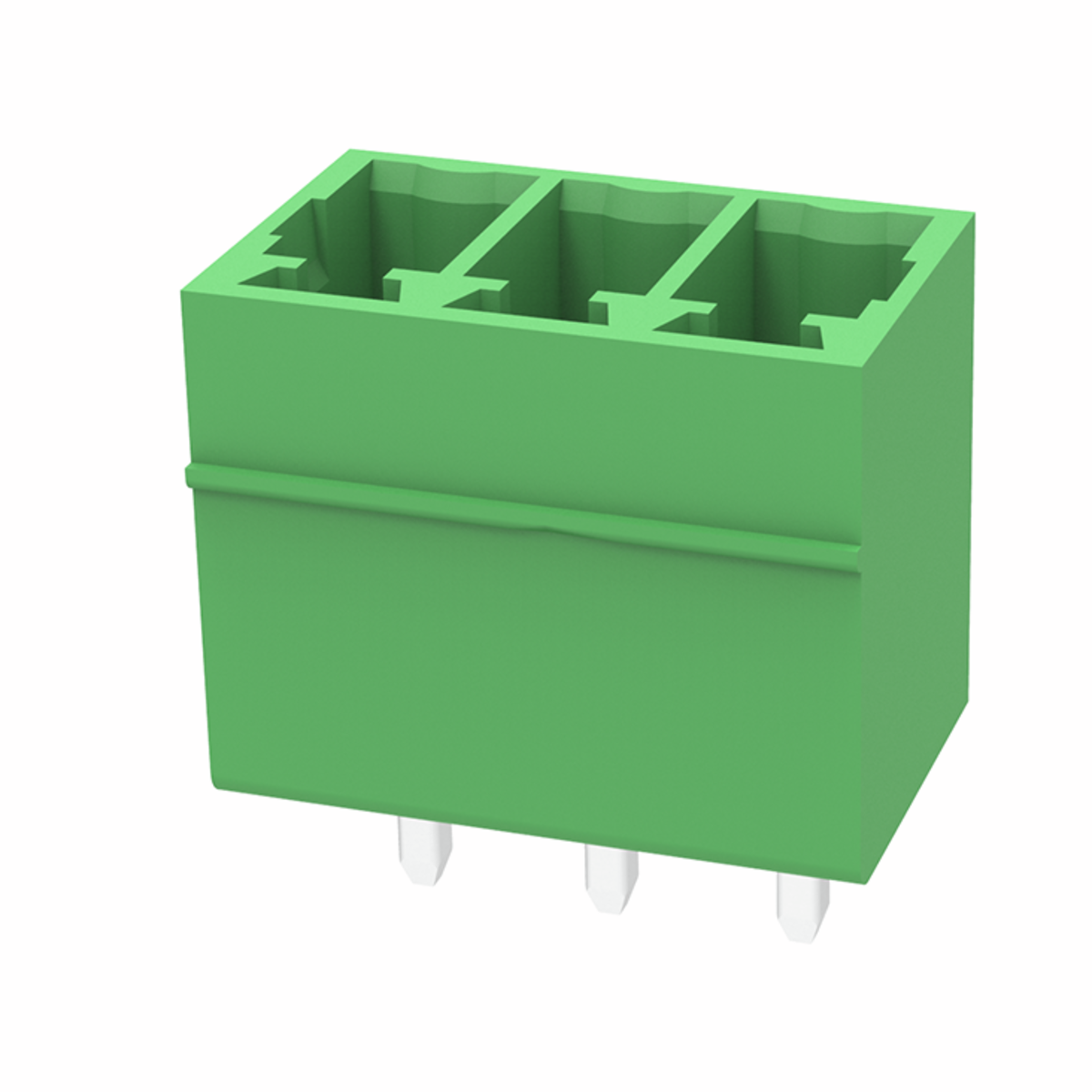

809 | | Manufacturers Part No. 15EDGVC-2.5-03P-14-00A(H)(15EDGVC-2.5-03P-14) DEGSON Tray pin strip 15EDGVC-2.5 Pin Box Header 1-row straight 3 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 1.100 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 3 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 9.4 mm | 14.0 mm | 8.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
810 | | Manufacturers Part No. 15EDGVC-2.5-04P-14-00A(H)(15EDGVC-2.5-04P-14) DEGSON Tray pin strip 15EDGVC-2.5 Pin Box Header 1-row straight 4 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 650 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 4 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 11.9 mm | 14.0 mm | 8.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
811 | | Manufacturers Part No. 15EDGVC-2.5-06P-14-00A(H)(15EDGVC-2.5-06P-14) DEGSON Tray pin strip 15EDGVC-2.5 Pin Box Header 1-row straight 6 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 6 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 16.9 mm | 14.0 mm | 8.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
812 | | Manufacturers Part No. 15EDGVC-2.5-10P-14-00A(H)(15EDGVC-2.5-10P-14) DEGSON Tray pin strip 15EDGVC-2.5 Pin Box Header 1-row straight 10 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 1.270 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 10 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 26.9 mm | 14.0 mm | 8.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
813 | | Manufacturers Part No. 15EDGRC-2.5-02P-14-00A(H)(15EDGRC-2.5-02P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 2 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 300 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 2 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 9.4 mm | 11.9 mm | 10.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
814 | | Manufacturers Part No. 15EDGRC-2.5-04P-14-00A(H)(15EDGRC-2.5-04P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 4 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 4 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 14.4 mm | 11.9 mm | 10.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
815 | | Manufacturers Part No. 15EDGRC-2.5-06P-14-00A(H)(15EDGRC-2.5-06P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 6 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 6 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 19.4 mm | 11.9 mm | 10.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
816 | | Manufacturers Part No. 15EDGRC-2.5-10P-14-00A(H)(15EDGRC-2.5-10P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 10 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 10 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 29.4 mm | 11.9 mm | 10.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
817 | | Manufacturers Part No. 15EDGVC-2.5-02P-14-00A(H)(15EDGVC-2.5-02P-14) DEGSON Tray pin strip 15EDGVC-2.5 Pin Box Header 1-row straight 2 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 2 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 6.9 mm | 14.0 mm | 8.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
818 | | Manufacturers Part No. 15EDGVC-2.5-05P-14-00A(H)(15EDGVC-2.5-05P-14) DEGSON Tray pin strip 15EDGVC-2.5 Pin Box Header 1-row straight 5 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 5 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 14.4 mm | 14.0 mm | 8.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
819 | | Manufacturers Part No. 15EDGVC-2.5-08P-14-00A(H)(15EDGVC-2.5-08P-14) DEGSON Tray pin strip 15EDGVC-2.5 Pin Box Header 1-row straight 8 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 300 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 8 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 21.9 mm | 14.0 mm | 8.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
820 | | Manufacturers Part No. 15EDGVC-2.5-12P-14-00A(H)(15EDGVC-2.5-12P-14) DEGSON Tray pin strip 15EDGVC-2.5 Pin Box Header 1-row straight 12 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 1.250 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | straight | 12 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 31.9 mm | 14.0 mm | 8.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
821 | | Manufacturers Part No. 15EDGRC-2.5-03P-14-00A(H)(15EDGRC-2.5-03P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 3 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 3 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 11.9 mm | 11.9 mm | 10.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
822 | | Manufacturers Part No. 15EDGRC-2.5-08P-14-00A(H)(15EDGRC-2.5-08P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 8 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 8 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 24.4 mm | 11.9 mm | 10.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
823 | | Manufacturers Part No. 15EDGRC-2.5-05P-14-00A(H)(15EDGRC-2.5-05P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 5 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 5 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 16.9 mm | 11.9 mm | 10.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
824 | | Manufacturers Part No. 15EDGRC-2.5-12P-14-00A(H)(15EDGRC-2.5-12P-14) DEGSON Tray pin strip 15EDGRC-2.5 Pin Box Header 1-row 90° 12 Pole Pitch2,5mm green verzinnt | Customer Part No. Customer Project No. | 50 Pcs. Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 12 | 2.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 34.4 mm | 11.9 mm | 10.1 mm | -40.0 °C | 105.0 °C | 5.0 A | |||||||||
825 | | Manufacturers Part No. 087-1-050-0-F-XS0-1260(ASL050G) Binder MPE Pin header 087-1 Pin Header 1-row straight 50 Pole Pitch2,54mm black vergoldet TOP | Customer Part No. Customer Project No. | 7.180 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Pin header | 087 | Pin | Header | 1-row | straight | 50 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 127.0 mm | 12.6 mm | 2.5 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC |
