Results (826)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Product Family | Contact Type | Design | Housing | Alignment | Number of poles | Pitch | Contact Surface Input | Housing material | Colour | Coding | Locking Type | Connector Contact | Dimension: Width | Dimension: Height | Dimension: Depth | Operating Temperature Min. | Operating Temperature Max. | Rated current | Rated voltage DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
776 |  | Manufacturers Part No. STL950/2-5.0-V-P2.6-BK-HTR(STL950/2-V-BK-HT-G) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row vertical 2 Pole Pitch5mm black | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 2 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 10.0 mm | 15.9 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
777 | | Manufacturers Part No. STL950/3-5.0-V-P2.6-BK-HTR(STL950/3-V-BK-HT-G) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row vertical 3 Pole Pitch5mm black | Customer Part No. Customer Project No. | 140 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 3 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 15.0 mm | 15.9 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
778 | | Manufacturers Part No. STL950/4G-5.0-V-P2.6-BK-HT(STL950/4G-V-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row vertical 4 Pole Pitch5mm black | Customer Part No. Customer Project No. | 300 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 4 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 21.2 mm | 14.6 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||

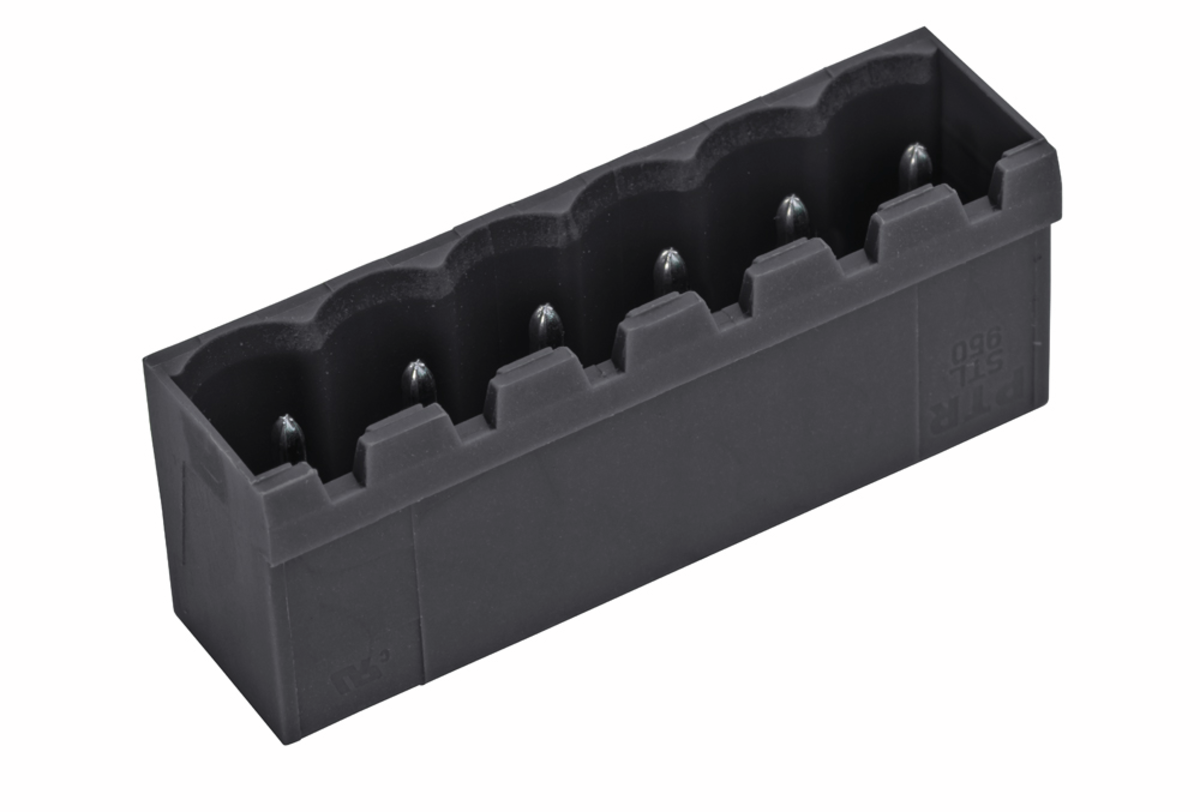

779 | | Manufacturers Part No. STL950/6G-5.0-V-P2.6-BK-HT(STL950/6G-V-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row vertical 6 Pole Pitch5mm black | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 6 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 31.2 mm | 14.6 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
780 | | Manufacturers Part No. STL950/3-5.0-H-P2.6-BK-HTR(STL950/3-H-BK-HT-G) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 3 Pole Pitch5mm black | Customer Part No. Customer Project No. | 320 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 3 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 15.0 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
781 | | Manufacturers Part No. STL950/4-5.0-H-P2.6-BK-HTR(STL950/4-H-BK-HT-G) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 4 Pole Pitch5mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 4 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 20.0 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
782 | | Manufacturers Part No. STL950/5-5.0-H-P2.6-BK-HTR(STL950/5-H-BK-HT-G) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 5 Pole Pitch5mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 5 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 25.0 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||

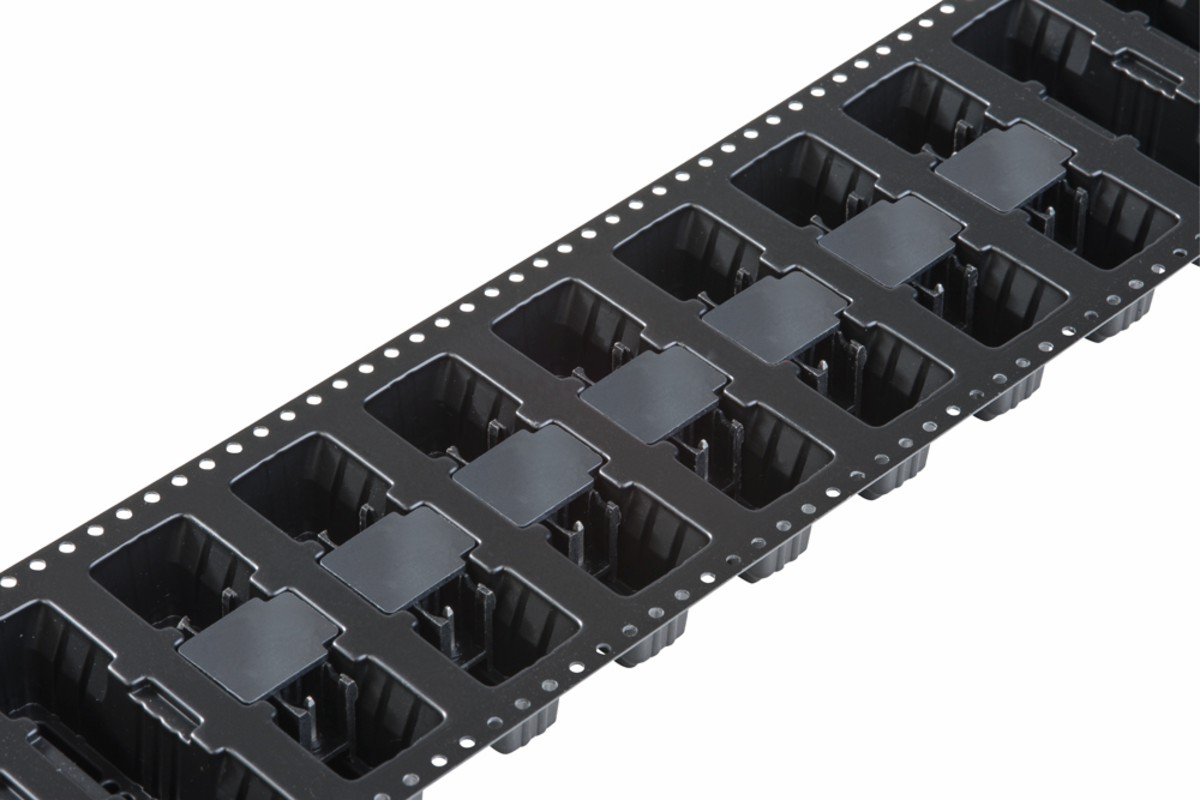

783 | | Manufacturers Part No. STLZ950/2-5.08-V-P2.6-BK-HTR(STLZ950/2-V-BK-HTG) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row vertical 2 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 160 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..-5.08-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 2 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 10.16 mm | 15.9 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
784 | | Manufacturers Part No. STLZ950/4G-5.08-V-P2.6-BK-HT(STLZ950/4G-V-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row vertical 4 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..G-5.08-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 4 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 21.52 mm | 14.6 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
785 | | Manufacturers Part No. STLZ950/6G-5.08-V-P2.6-BK-HTR(STLZ950/6G-V-BKHTG) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row vertical 6 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 140 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..G-5.08-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 6 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 31.68 mm | 14.6 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
786 | | Manufacturers Part No. STLZ950/5-5.08-H-P2.6-BK-HT(STLZ950/5-H-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row horizontal 5 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..-5.08-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 5 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 25.4 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
787 | | Manufacturers Part No. STLZ950/3-5.08-H-P2.6-BK-HT(STLZ950/3-H-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row horizontal 3 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..-5.08-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 3 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 15.24 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||

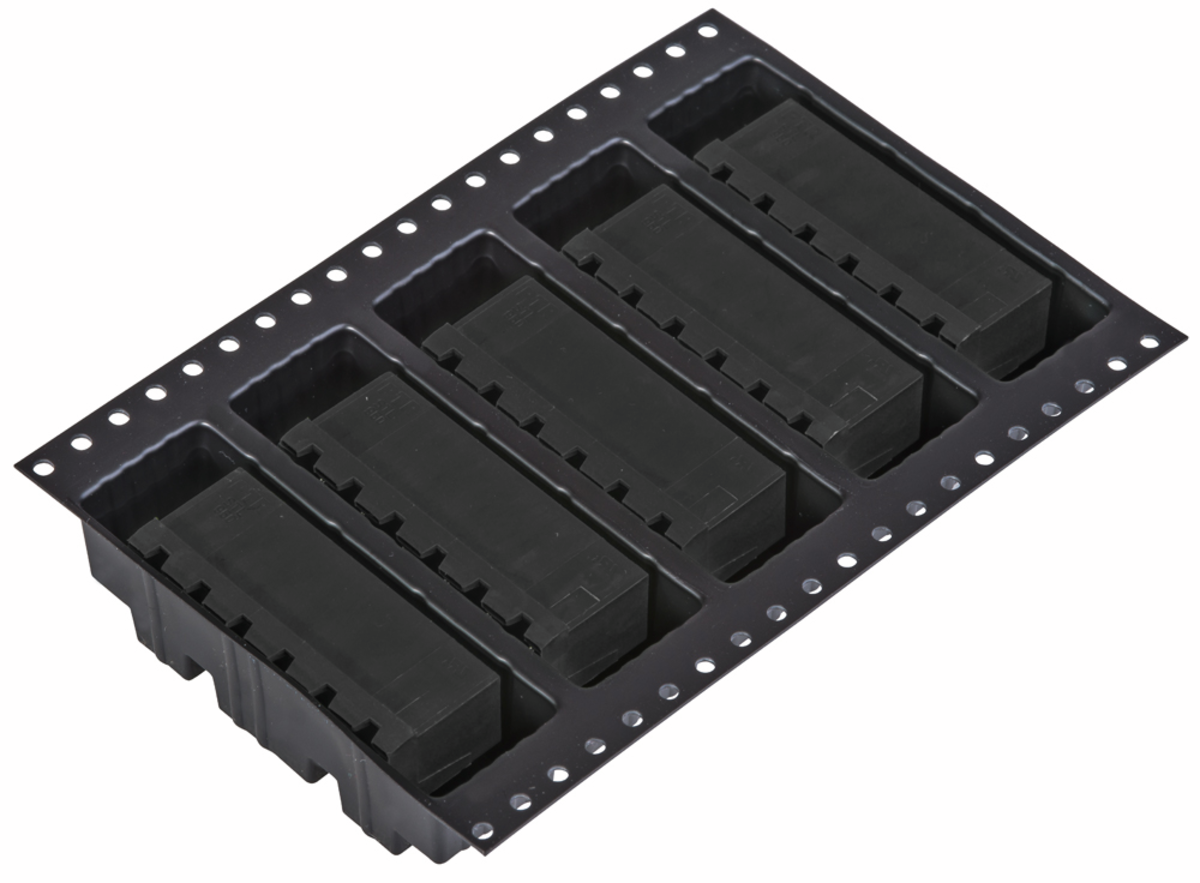

788 | | Manufacturers Part No. STLZ950/6G-5.08-H-P2.6-BK-HTR(STLZ950/6G-H-BKHTG) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row horizontal 6 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..G-5.08-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 6 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 31.68 mm | 11.0 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
789 | | Manufacturers Part No. STL950/2-5.0-V-P2.6-BK-HT(STL950/2-V-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row vertical 2 Pole Pitch5mm black | Customer Part No. Customer Project No. | 160 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 2 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 10.0 mm | 15.9 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
790 | | Manufacturers Part No. STL950/3G-5.0-V-P2.6-BK-HTR(STL950/3G-V-BK-HTG) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row vertical 3 Pole Pitch5mm black | Customer Part No. Customer Project No. | 130 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 3 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 16.2 mm | 14.6 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
791 | | Manufacturers Part No. STL950/6-5.0-H-P2.6-BK-HT(STL950/6-H-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 6 Pole Pitch5mm black | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 6 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 30.0 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
792 | | Manufacturers Part No. STL950/3G-5.0-H-P2.6-BK-HT(STL950/3G-H-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 3 Pole Pitch5mm black | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 3 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 16.2 mm | 11.1 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
793 | | Manufacturers Part No. 15EDGRC-3.5-12P-14-00A(H)(15EDGRC-3.5-12P-14) DEGSON Tray pin strip 15EDGRC-3.5 Pin Box Header 1-row 90° 12 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 12 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 42.8 mm | 10.4 mm | 9.2 mm | -40.0 °C | 105.0 °C | 7.0 A | |||||||||
794 | | Manufacturers Part No. 15EDGRC-3.5-03P-14-00A(H)(15EDGRC-3.5-03P-14) DEGSON Tray pin strip 15EDGRC-3.5 Pin Box Header 1-row 90° 3 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 1.900 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 3 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 11.3 mm | 10.4 mm | 9.2 mm | -40.0 °C | 105.0 °C | 7.0 A | |||||||||
795 | | Manufacturers Part No. STLZ950/4G-5.08-H-P2.6-BK-HTR(STLZ950/4G-H-BKHTG) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row horizontal 4 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..G-5.08-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 4 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 21.52 mm | 11.0 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||

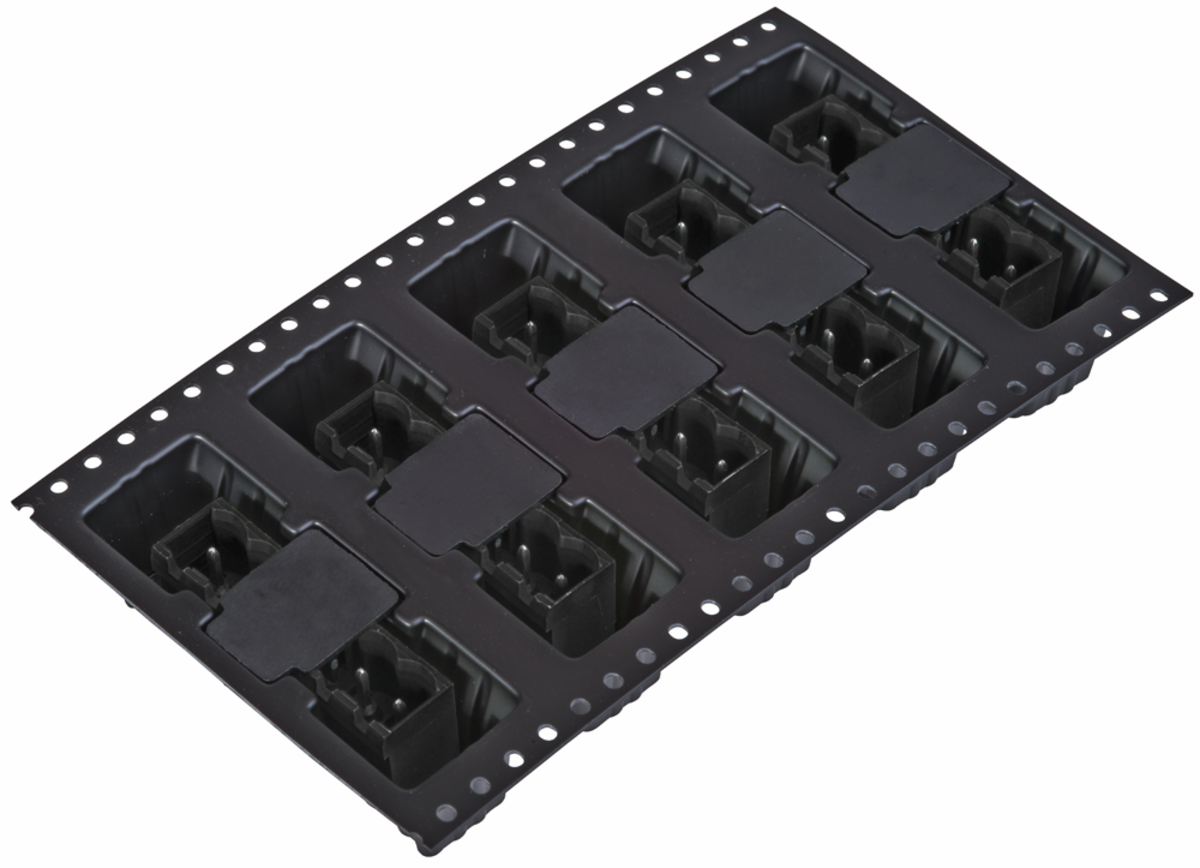

796 | | Manufacturers Part No. STL950/2G-5.0-V-P2.6-BK-HTR(STL950/2G-V-BK-HTG) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row vertical 2 Pole Pitch5mm black | Customer Part No. Customer Project No. | 90 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 2 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 11.2 mm | 14.6 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
797 | | Manufacturers Part No. STL950/4-5.0-H-P2.6-BK-HT(STL950/4-H-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 4 Pole Pitch5mm black | Customer Part No. Customer Project No. | 190 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 4 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 20.0 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
798 | | Manufacturers Part No. STL950/4-5.0-V-P2.6-BK-HT(STL950/4-V-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row vertical 4 Pole Pitch5mm black | Customer Part No. Customer Project No. | 140 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 4 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 20.0 mm | 15.9 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
799 | | Manufacturers Part No. STL950/2G-5.0-H-P2.6-BK-HT(STL950/2G-H-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 2 Pole Pitch5mm black | Customer Part No. Customer Project No. | 90 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 2 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 11.2 mm | 11.1 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
800 | | Manufacturers Part No. STL950/4G-5.0-H-P2.6-BK-HT(STL950/4G-H-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 4 Pole Pitch5mm black | Customer Part No. Customer Project No. | 170 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 4 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 21.2 mm | 11.1 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A |
