Results (826)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Product Family | Contact Type | Design | Housing | Alignment | Number of poles | Pitch | Contact Surface Input | Housing material | Colour | Coding | Locking Type | Connector Contact | Dimension: Width | Dimension: Height | Dimension: Depth | Operating Temperature Min. | Operating Temperature Max. | Rated current | Rated voltage DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

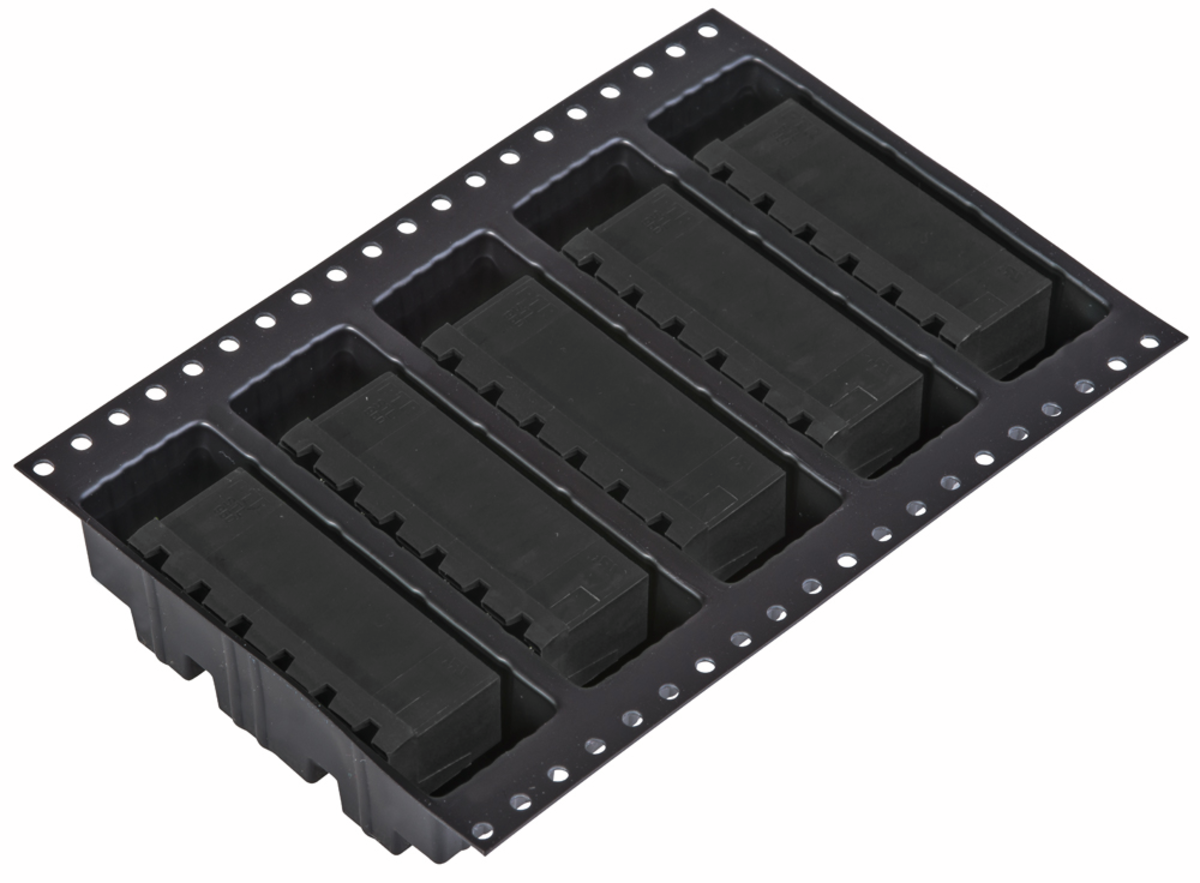

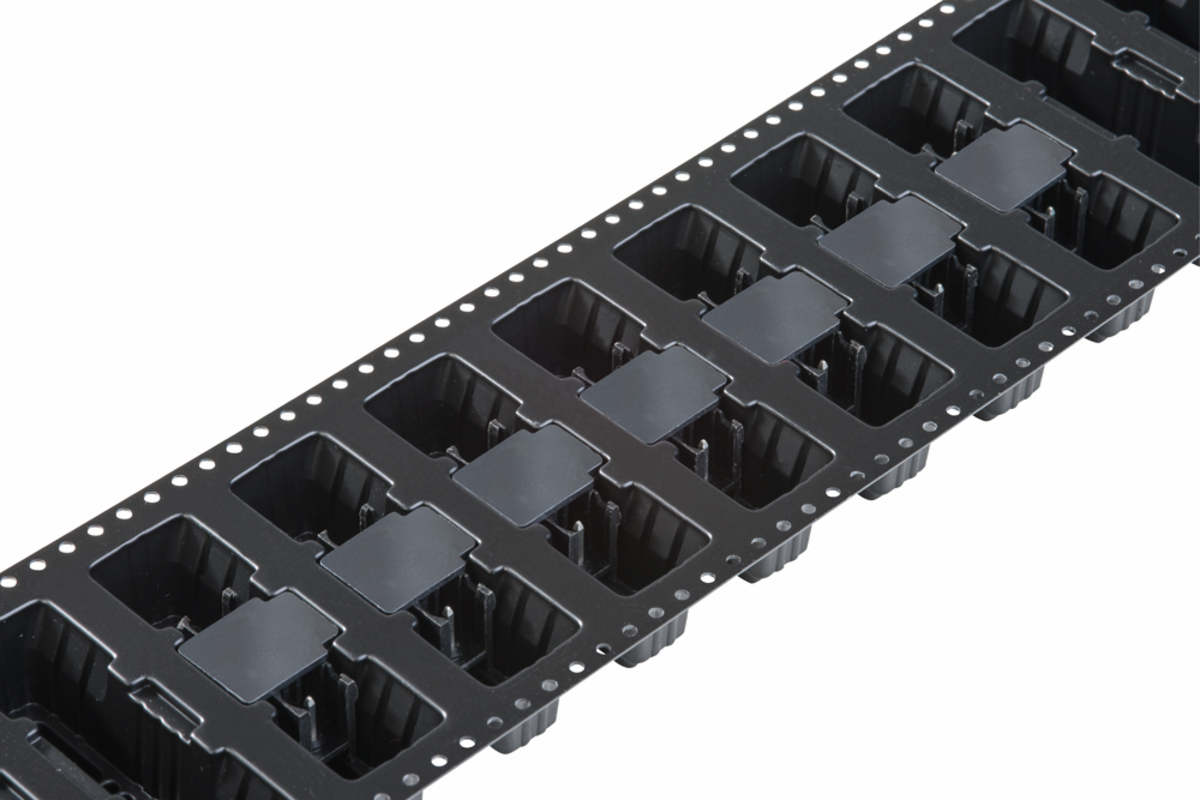

751 |  | Manufacturers Part No. STL950/4-5.0-V-P2.6-BK-HTR(STL950/4-V-BK-HT-G) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row vertical 4 Pole Pitch5mm black | Customer Part No. Customer Project No. | 140 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 4 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 20.0 mm | 15.9 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
752 | | Manufacturers Part No. STL950/2-5.0-H-P2.6-BK-HT(STL950/2-H-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 2 Pole Pitch5mm black | Customer Part No. Customer Project No. | 150 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 2 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 10.0 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
753 | | Manufacturers Part No. STL950/5G-5.0-H-P2.6-BK-HT(STL950/5G-H-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 5 Pole Pitch5mm black | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 5 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 26.2 mm | 11.1 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
754 | | Manufacturers Part No. STL950/2-5.0-H-P2.6-BK-HTR(STL950/2-H-BK-HT-G) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 2 Pole Pitch5mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 2 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 10.0 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
755 | | Manufacturers Part No. STL950/6G-5.0-H-P2.6-BK-HT(STL950/6G-H-BK-HT) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 6 Pole Pitch5mm black | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 6 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 31.2 mm | 11.1 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
756 | | Manufacturers Part No. STL950/6-5.0-H-P2.6-BK-HTR(STL950/6-H-BK-HT-G) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 6 Pole Pitch5mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 6 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 30.0 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
757 | | Manufacturers Part No. DG332J-5.0-02P-13-00A(H)(DG332J-5.0-02P-13) DEGSON Pin header DG332J-5.0 Pin Header 1-row 90° 2 Pole Pitch5mm black verzinnt | Customer Part No. Customer Project No. | 2.500 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Pin header | Pin | Header | 1-row | 90° | 2 | 5.0 mm | verzinnt | Polyamide (PA) 66 | black | Solder | 10.0 mm | 12.4 mm | 2.8 mm | -40.0 °C | 120.0 °C | 12.0 A | |||||||||
758 | | Manufacturers Part No. STL950/5G-5.0-H-P2.6-BK-HTR(STL950/5G-H-BK-HTG) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 5 Pole Pitch5mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 5 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 26.2 mm | 11.1 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
759 | | Manufacturers Part No. STL950/4G-5.0-H-P2.6-BK-HTR(STL950/4G-H-BK-HTG) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 4 Pole Pitch5mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 4 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 21.2 mm | 11.1 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
760 | | Manufacturers Part No. DG332J-5.0-03P-13-00A(H)(DG332J-5.0-03P-13) DEGSON Pin header DG332J-5.0 Pin Header 1-row 90° 3 Pole Pitch5mm black verzinnt | Customer Part No. Customer Project No. | 1.100 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Pin header | Pin | Header | 1-row | 90° | 3 | 5.0 mm | verzinnt | Polyamide (PA) 66 | black | Solder | 15.0 mm | 12.4 mm | 2.8 mm | -40.0 °C | 120.0 °C | 12.0 A | |||||||||
761 | | Manufacturers Part No. STL950/2G-5.0-H-P2.6-BK-HTR(STL950/2G-H-BK-HTG) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 2 Pole Pitch5mm black | Customer Part No. Customer Project No. | 320 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 2 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 11.2 mm | 11.1 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
762 | | Manufacturers Part No. 15EDGRC-3.5-05P-14-00A(H)(15EDGRC-3.5-05P-14) DEGSON Tray pin strip 15EDGRC-3.5 Pin Box Header 1-row 90° 5 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 5 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 18.3 mm | 10.4 mm | 9.2 mm | -40.0 °C | 105.0 °C | 7.0 A | |||||||||
763 | | Manufacturers Part No. 15EDGRC-3.5-10P-14-00A(H)(15EDGRC-3.5-10P-14) DEGSON Tray pin strip 15EDGRC-3.5 Pin Box Header 1-row 90° 10 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 1.650 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 25 or mul. of 25) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 10 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 35.8 mm | 10.4 mm | 9.2 mm | -40.0 °C | 105.0 °C | 7.0 A | |||||||||
764 | | Manufacturers Part No. 15EDGRC-3.5-20P-14-00A(H)(15EDGRC-3.5-20P-14) DEGSON Tray pin strip 15EDGRC-3.5 Pin Box Header 1-row 90° 20 Pole Pitch3,5mm green verzinnt | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 50 or mul. of 50) | DEGSON | Tray pin strip | Pin | Box Header | 1-row | 90° | 20 | 3.5 mm | verzinnt | Polyamide (PA) 66 | green | Solder | 70.8 mm | 10.4 mm | 9.2 mm | -40.0 °C | 105.0 °C | 7.0 A | |||||||||

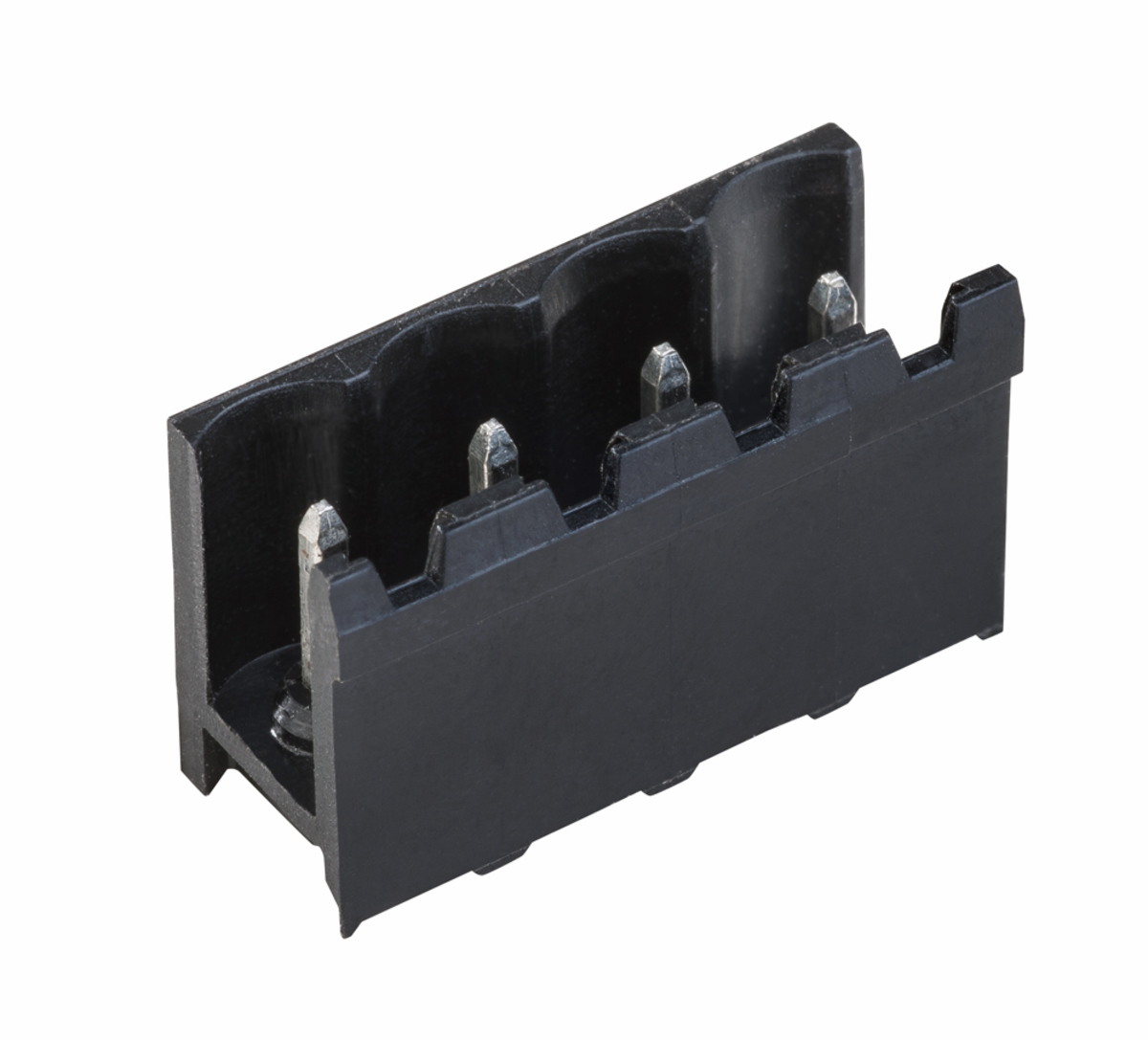

765 | | Manufacturers Part No. STLZ950/4-5.08-V-P2.6-BK-HT(STLZ950/4-V-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row vertical 4 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..-5.08-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 4 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 20.32 mm | 15.9 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
766 | | Manufacturers Part No. STLZ950/5-5.08-V-P2.6-BK-HT(STLZ950/5-V-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row vertical 5 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 80 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..-5.08-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 5 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 25.4 mm | 15.9 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
767 | | Manufacturers Part No. STLZ950/6-5.08-V-P2.6-BK-HT(STLZ950/6-V-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row vertical 6 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 80 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..-5.08-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 6 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 30.48 mm | 15.9 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||

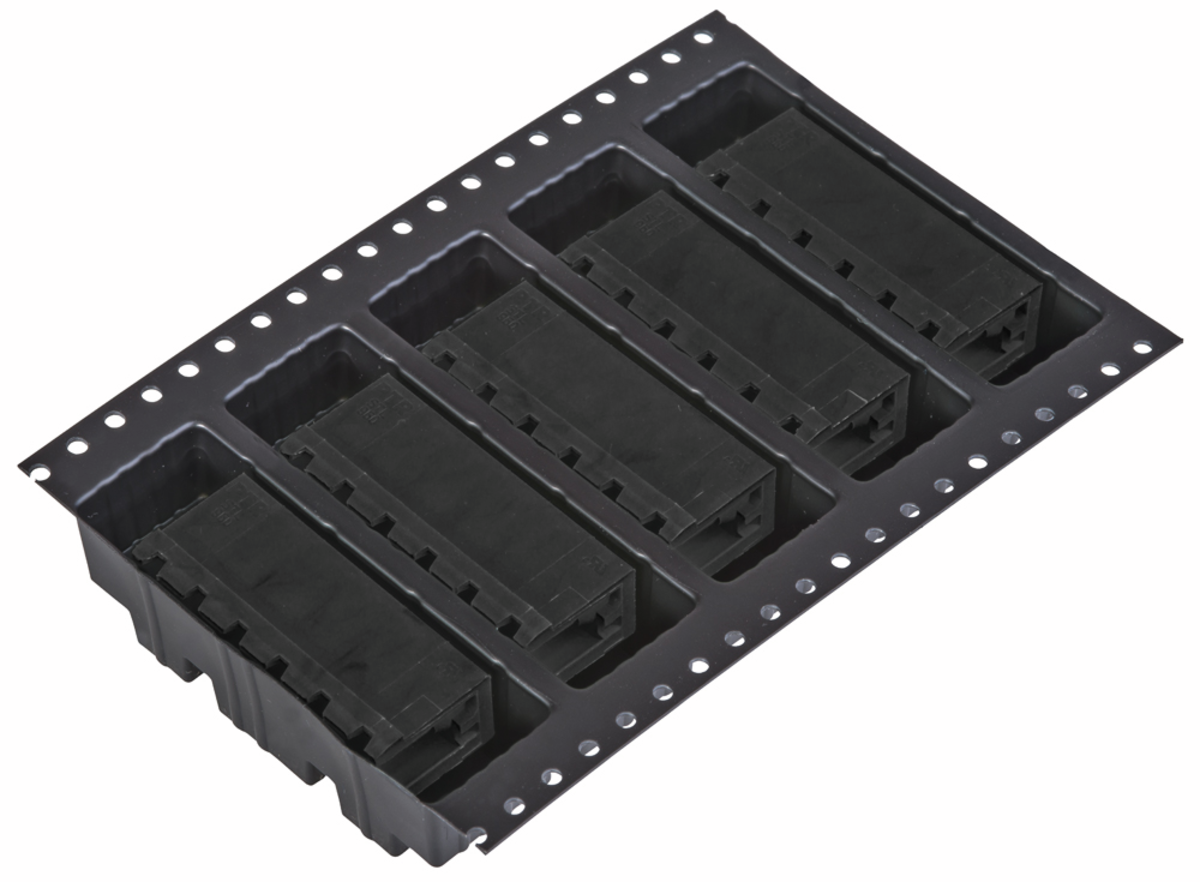

768 | | Manufacturers Part No. STLZ950/4-5.08-H-P2.6-BK-HTR(STLZ950/4-H-BKHTG) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row horizontal 4 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..-5.08-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 4 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 20.32 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
769 | | Manufacturers Part No. STLZ950/6-5.08-H-P2.6-BK-HTR(STLZ950/6-H-BKHTG) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row horizontal 6 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..-5.08-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 6 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 30.48 mm | 11.9 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||

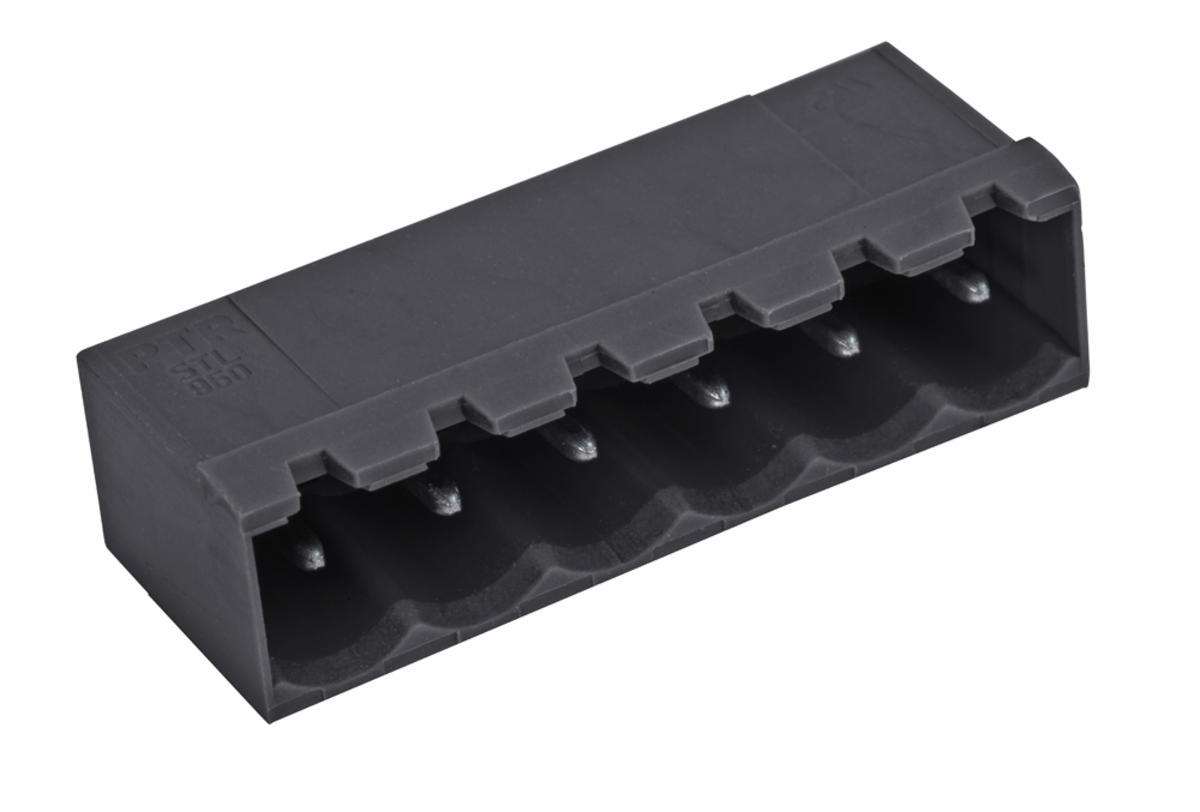

770 | | Manufacturers Part No. STLZ950/2G-5.08-H-P2.6-BK-HT(STLZ950/2G-H-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row horizontal 2 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 190 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..G-5.08-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 2 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 11.36 mm | 11.0 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
771 | | Manufacturers Part No. STLZ950/3G-5.08-H-P2.6-BK-HT(STLZ950/3G-H-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row horizontal 3 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..G-5.08-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 3 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 16.44 mm | 11.0 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
772 | | Manufacturers Part No. STLZ950/4G-5.08-H-P2.6-BK-HT(STLZ950/4G-H-BK-HT) PTR HARTMANN Tray pin strip STLZ950 Pin Box Header 1-row horizontal 4 Pole Pitch5,08mm black | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STLZ950/..G-5.08-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 4 | 5.08 mm | Polyphthalamid (PPA) | black | codable | Solder | 21.52 mm | 11.0 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
773 | | Manufacturers Part No. STL950/3G-5.0-H-P2.6-BK-HTR(STL950/3G-H-BK-HTG) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 3 Pole Pitch5mm black | Customer Part No. Customer Project No. | 310 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 3 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 16.2 mm | 11.1 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
774 | | Manufacturers Part No. STL950/6G-5.0-H-P2.6-BK-HTR(STL950/6G-H-BK-HTG) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row horizontal 6 Pole Pitch5mm black | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..G-5.0-H-P2.6-BK-HT | Pin | Box Header | 1-row | horizontal | 6 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 31.2 mm | 11.1 mm | 12.0 mm | -40.0 °C | 105.0 °C | 12.0 A | ||||||||
775 | | Manufacturers Part No. STL950/6-5.0-V-P2.6-BK-HTR(STL950/6-V-BK-HT-G) PTR HARTMANN Tray pin strip STL950 Pin Box Header 1-row vertical 6 Pole Pitch5mm black | Customer Part No. Customer Project No. | 140 Pcs. Planned Delivery Time Ø 5 Weeks Available (from stock) | (at least 10 or mul. of 10) | PTR HARTMANN | Tray pin strip | STL950/..-5.0-V-P2.6-BK-HT | Pin | Box Header | 1-row | vertical | 6 | 5.0 mm | Polyphthalamid (PPA) | black | codable | Solder | 30.0 mm | 15.9 mm | 8.4 mm | -40.0 °C | 105.0 °C | 12.0 A |
